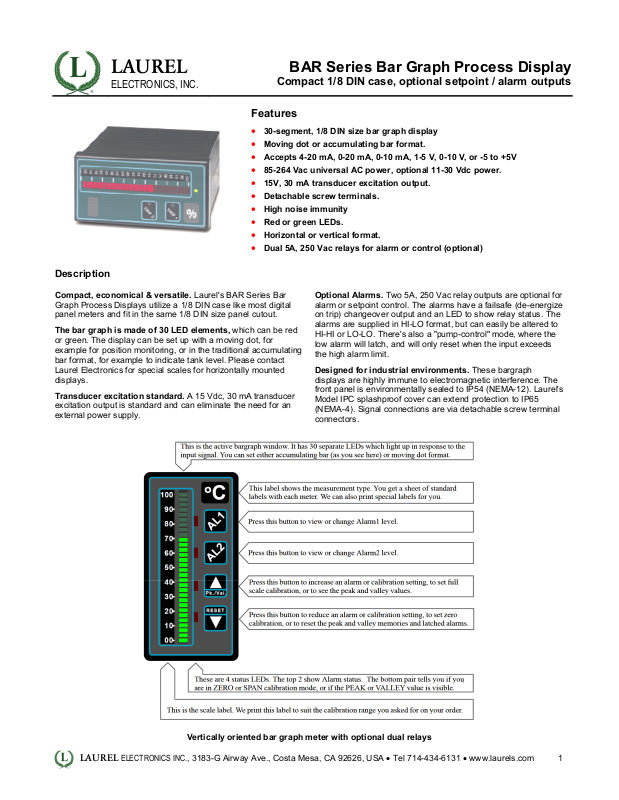

BAR Series Bar Graph Process Display

Compact 1/8 DIN case, optional setpoint / alarm outputs

Features

•

30-segment, 1/8 DIN size bar graph display

•

Moving dot or accumulating bar format.

•

Accepts 4-20 mA, 0-20 mA, 0-10 mA, 1-5 V, 0-10 V, or -5 to +5V

•

85-264 Vac universal AC power, optional 11-30 Vdc power.

•

15V, 30 mA transducer excitation output.

•

Detachable screw terminals.

•

High noise immunity

•

Red or green LEDs.

•

Horizontal or vertical format.

•

Dual 5A, 250 Vac relays for alarm or control (optional)

Description

Compact, economical & versatile. Laurel's BAR Series Bar

Graph Process Displays utilize a 1/8 DIN case like most digital
panel meters and fit in the same 1/8 DIN size panel cutout.

The bar graph is made of 30 LED elements, which can be red
or green. The display can be set up with a moving dot, for
example for position monitoring, or in the traditional accumulating
bar format, for example to indicate tank level. Please contact
Laurel Electronics for special scales for horizontally mounted
displays.

Transducer excitation standard. A 15 Vdc, 30 mA transducer
excitation output is standard and can eliminate the need for an
external power supply.

Optional Alarms. Two 5A, 250 Vac relay outputs are optional for
alarm or setpoint control. The alarms have a failsafe (de-energize
on trip) changeover output and an LED to show relay status. The
alarms are supplied in HI-LO format, but can easily be altered to
HI-HI or LO-LO. There's also a "pump-control" mode, where the
low alarm will latch, and will only reset when the input exceeds
the high alarm limit.

Designed for industrial environments. These bargraph
displays are highly immune to electromagnetic interference. The
front panel is environmentally sealed to IP54 (NEMA-12). Laurel's
Model IPC splashproof cover can extend protection to IP65
(NEMA-4). Signal connections are via detachable screw terminal
connectors.

Vertically oriented bar graph meter with optional dual relays

LAUREL

ELECTRONICS INC., 3183-G Airway Ave., Costa Mesa, CA 92626, USA • Tel [phone] • www.laurels.com 1

Specifications

Signal

Input ranges 4-20 mA, 0-20 mA, 0-10 mA, 1-5V, 0-10V, -5 to +5V

Accuracy

Accuracy at 25ºC
Resolution
Temperature coefficient
Warm-up time
CMRR
NMRR

Display

Format
Color
Scale length

Alarm Outputs (optional)

Format
Annunciation
Output
Hysteresis

Power Supply

Voltage options
Power consumption

Excitation Output

Specified at the time or order

0.5% of range ± 1 segment
1 part in 30
100 ppm / ºC
1 minute
70 dB, DC to 450 Hz
55 dB, 50 or 60 Hz

30 LED segments with power-on indicator
Red or green
75 mm (3.0")

HI-LO (default), HI-HI, LO-LO, or pump control
Red LED illuminates when relay de-energizes
Changeover, Form C, rated 5 A, 250 Vac, resistive
±1% of range

110 Vac, 230 Vac, 24 Vac, 48 Vac, 5 Vdc, 11-30 Vdc
3 W typ.

Voltage
Current
Accuracy

Mechanical

Bezel dimensions
Panel cutout
Depth behind panel
Width behind panel
Weight

Environmental

Operating Temperature
Storage Temperature
Relative Humidity
Case material
Protection

15 Vdc
30 mA (current limited)
±20%

48 x 96 mm (1.89" x 3.78"), H x W
45 x 92 mm (1.77" x 3.62"), H x
125 mm (4.92"), including connectors
110 mm (4.33")
300 g (11 oz)

0°C to 50°C (32°F to 122°F)

-40°C to 85°C (-40°F to 185°F)
0-85% RH, non-condensing
94V-1, UL rated Noryl
NEMA-12 (IP54) when panel mounted
NEMA-4 (IP65) with optional IPC Splashproof cover
