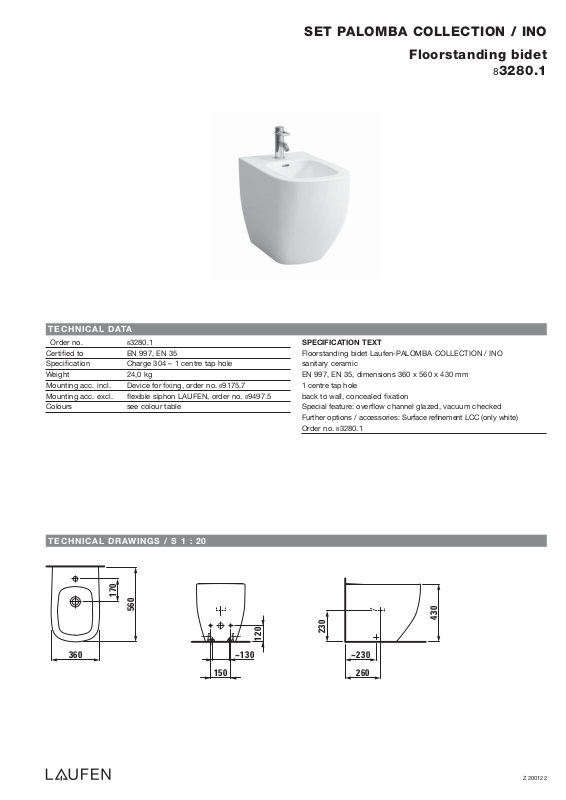

SET PALOMBA COLLECTION / INO
Floorstanding bidet
83280.1
TECHNICAL DATA
Order no. 83280.1
Certified to EN 997, EN 35
Specification Charge 304 – 1 centre tap hole
Weight 24,0 kg
Mounting acc. incl. Device for fixing, order no. 89175.7
Mounting acc. excl. flexible siphon LAUFEN, order no. 89497.5
Colours see colour table
TECHNICAL DRAWINGS / S 1 : 20
170
560
120
SPECIFICATION TEXT
Floorstanding bidet Laufen-PALOMBA COLLECTION / INO
sanitary ceramic
EN 997, EN 35, dimensions 360 x 560 x 430 mm
1 centre tap hole
back to wall, concealed fixation
Special feature: overflow channel glazed, vacuum checked
Further options / accessories: Surface refinement LCC (only white)
Order no. 83280.1
430
230
360
150
~130
~230
260
Z 200122
