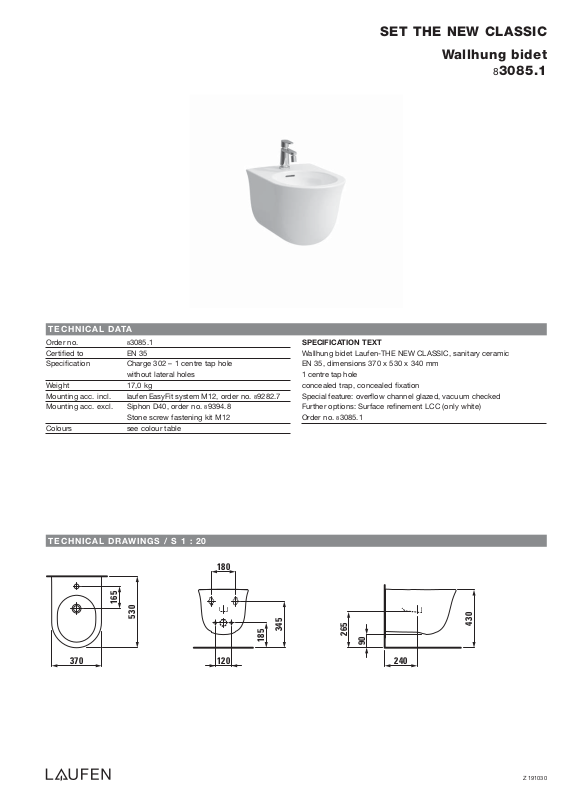

SET THE NEW CLASSIC
Wallhung bidet
83085.1
TECHNICAL DATA
Order no. 83085.1
Certified to EN 35
Specification Charge 302 – 1 centre tap hole
without lateral holes
Weight 17,0 kg
Mounting acc. incl. laufen EasyFit system M12, order no. 89282.7
Mounting acc. excl. Siphon D40, order no.
Stone screw fastening kit M12
Colours see colour table
89394.8
SPECIFICATION TEXT
Wallhung bidet Laufen-THE NEW CLASSIC, sanitary ceramic
EN 35, dimensions 370 x 530 x 340 mm
1 centre tap hole
concealed trap, concealed fixation
Special feature: overflow channel glazed, vacuum checked
Further options: Surface refinement LCC (only white)
Order no. 83085.1
TECHNICAL DRAWINGS / S 1 : 20
180
165
530
345
185
430
265
90
370
120
240
Z 191030
