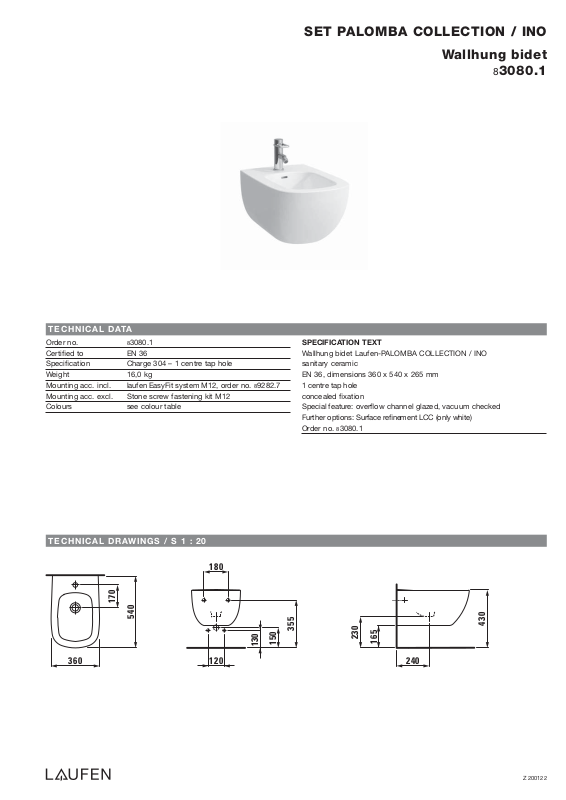

Page 1
SET PALOMBA COLLECTION / INO
Wallhung bidet
83080.1
TECHNICAL DATA
Order no. 83080.1
Certified to EN 36
Specification Charge 304 – 1 centre tap hole
Weight 16,0 kg
Mounting acc. incl. laufen EasyFit system M12, order no. 89282.7
Mounting acc. excl. Stone screw fastening kit M12
Colours see colour table
TECHNICAL DRAWINGS / S 1 : 20
180
170
540
130
SPECIFICATION TEXT
Wallhung bidet Laufen-PALOMBA COLLECTION / INO
sanitary ceramic
EN 36, dimensions 360 x 540 x 265 mm
1 centre tap hole
concealed fixation
Special feature: overflow channel glazed, vacuum checked
Further options: Surface refinement LCC (only white)
Order no. 83080.1
355
230
150
165
430
360
120
240
Z 200122
