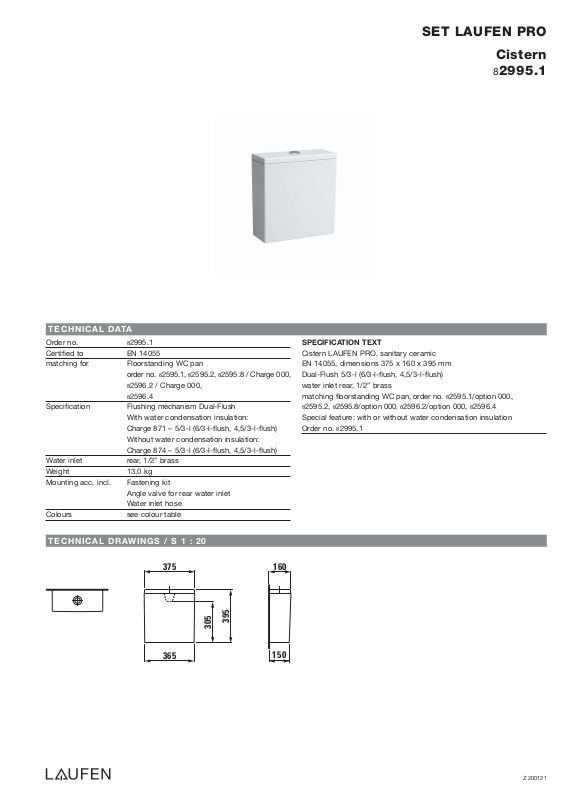

Page 1
SET LAUFEN PRO
Cistern
82995.1
TECHNICAL DATA
Order no. 82995.1
Certified to EN 14055
matching for Floorstanding WC pan
order no.
82596.4
Specification Flushing mechanism Dual-Flush
With water condensation insulation:
Charge 871 – 5/3-l (6/3-l-flush, 4,5/3-l-flush)
Without water condensation insulation:
Charge 874 – 5/3-l (6/3-l-flush, 4,5/3-l-flush)
Water inlet rear, 1/2” brass
Weight 13,0 kg
Mounting acc. incl. Fastening kit
Angle valve for rear water inlet
Water inlet hose
Colours see colour table
82596.2 / Charge 000,
82595.1, 82595.2, 82595.8 / Charge 000,
TECHNICAL DRAWINGS / S 1 : 20
375
160
SPECIFICATION TEXT
Cistern LAUFEN PRO, sanitary ceramic
EN 14055, dimensions 375 x 160 x 395 mm
Dual-Flush 5/3-l (6/3-l-flush, 4,5/3-l-flush)
water inlet rear, 1/2” brass
matching floorstanding WC pan, order no.
82595.2, 82595.8/option 000, 82596.2/option 000, 82596.4
Special feature: with or without water condensation insulation
Order no. 82995.1
82595.1/option 000,
365
305
395
150
Z 200121
