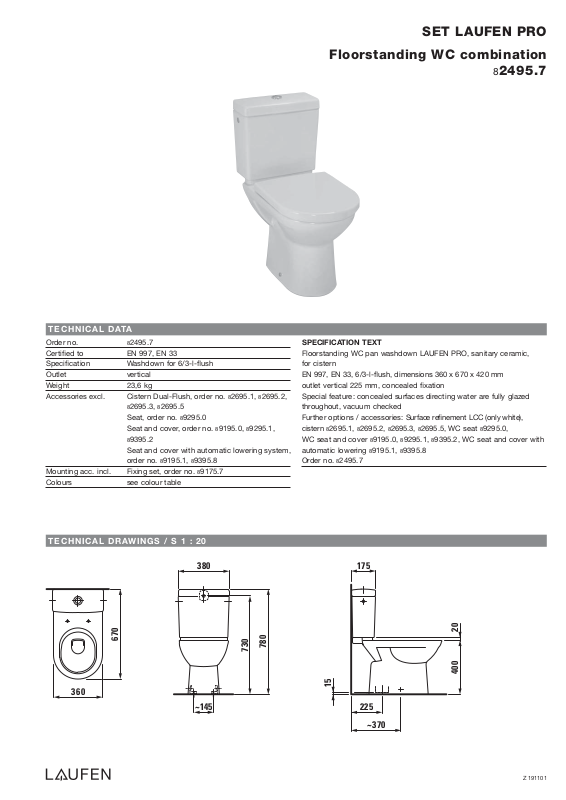

Page 1
~145
~370
15
400
20
360
670
225
175
380
780
730
SET LAUFEN PRO
Floorstanding WC combination
82495.7
TECHNICAL DATA
Order no. 82495.7
Certified to EN 997, EN 33
Specification Washdown for 6/3-l-flush
Outlet vertical
Weight 23,6 kg
Accessories excl. Cistern Dual-Flush, order no.
Seat, order no.
Seat and cover, order no.
Seat and cover with automatic lowering system,
order no. 89195.1, 89395.8
Mounting acc. incl. Fixing set, order no. 89175.7
Colours see colour table
82695.3, 82695.5
89295.0
89395.2
82695.1, 82695.2,
89195.0, 89295.1,
TECHNICAL DRAWINGS / S 1 : 20
SPECIFICATION TEXT
Floorstanding WC pan washdown LAUFEN PRO, sanitary ceramic,
for cistern
EN 997, EN 33, 6/3-l-flush, dimensions 360 x 670 x 420 mm
outlet vertical 225 mm, concealed fixation
Special feature: concealed surfaces directing water are fully glazed
throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
cistern
82695.1, 82695.2, 82695.3, 82695.5, WC seat 89295.0,
WC seat and cover
automatic lowering
Order no. 82495.7
89195.0, 89295.1, 89395.2, WC seat and cover with
89195.1, 89395.8
Z 191101
