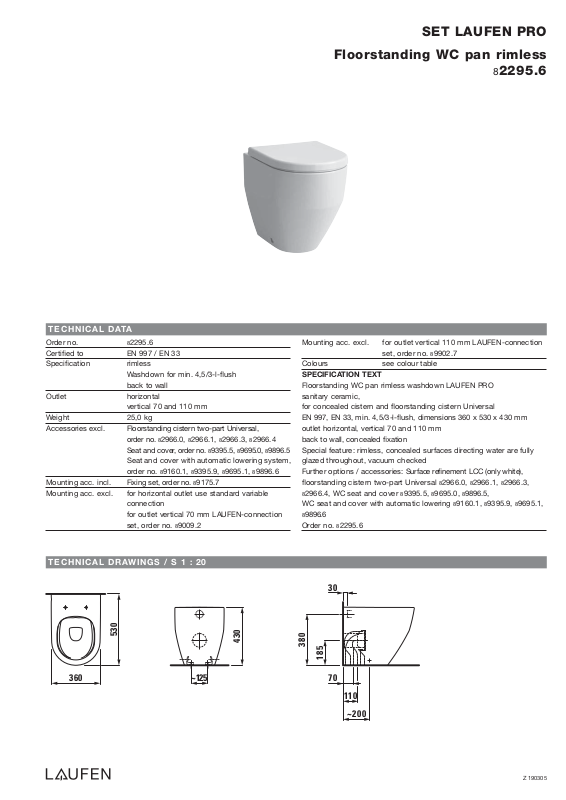

SET LAUFEN PRO
~125
360
530
110
185
380
70
430
30
~200
Floorstanding WC pan rimless
82295.6
TECHNICAL DATA
Order no. 82295.6
Certified to EN 997 / EN 33
Specification rimless
Washdown for min. 4,5/3-l-flush
back to wall
Outlet horizontal
vertical 70 and 110 mm
Weight 25,0 kg
Accessories excl. Floorstanding cistern two-part Universal,
order no.
Seat and cover, order no.
Seat and cover with automatic lowering system,
order no. 89160.1, 89395.9, 89695.1, 89896.6
Mounting acc. incl. Fixing set, order no. 89175.7
Mounting acc. excl. for horizontal outlet use standard variable
connection
for outlet vertical 70 mm LAUFEN-connection
set, order no. 89009.2
82966.0, 82966.1, 82966.3, 82966.4
89395.5, 89695.0, 89896.5
TECHNICAL DRAWINGS / S 1 : 20
Mounting acc. excl. for outlet vertical 110 mm LAUFEN-connection
set, order no. 89902.7
Colours see colour table
SPECIFICATION TEXT
Floorstanding WC pan rimless washdown LAUFEN PRO
sanitary ceramic,
for concealed cistern and floorstanding cistern Universal
EN 997, EN 33, min. 4,5/3-l-flush, dimensions 360 x 530 x 430 mm
outlet horizontal, vertical 70 and 110 mm
back to wall, concealed fixation
Special feature: rimless, concealed surfaces directing water are fully
glazed throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
floorstanding cistern two-part Universal
82966.4, WC seat and cover 89395.5, 89695.0, 89896.5,
WC seat and cover with automatic lowering
89896.6
Order no. 82295.6
82966.0, 82966.1, 82966.3,
89160.1, 89395.9, 89695.1,
Z 190305
