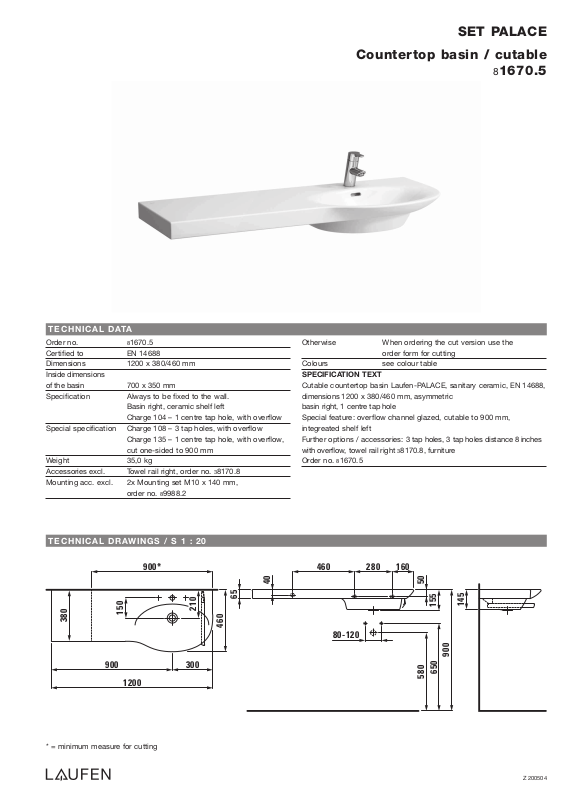

SET PALACE
145
900 300
1200
460
210
380
150
580
155
650
900
50
80-120
280460 160
65
900*
40
Countertop basin / cutable
81670.5
TECHNICAL DATA
Order no. 81670.5
Certified to EN 14688
Dimensions 1200 x 380/460 mm
Inside dimensions
of the basin 700 x 350 mm
Specification Always to be fixed to the wall.
Basin right, ceramic shelf left
Charge 104 – 1 centre tap hole, with overflow
Special specification Charge 108 – 3 tap holes, with overflow
Charge 135 – 1 centre tap hole, with overflow,
cut one-sided to 900 mm
Weight 35,0 kg
Accessories excl. Towel rail right, order no. 38170.8
Mounting acc. excl. 2x Mounting set M10 x 140 mm,
order no. 89988.2
Otherwise When ordering the cut version use the
order form for cutting
Colours see colour table
SPECIFICATION TEXT
Cutable countertop basin Laufen-PALACE, sanitary ceramic, EN 14688,
dimensions 1200 x 380/460 mm, asymmetric
basin right, 1 centre tap hole
Special feature: overflow channel glazed, cutable to 900 mm,
integreated shelf left
Further options / accessories: 3 tap holes, 3 tap holes distance 8 inches
with overflow, towel rail right 38170.8, furniture
Order no. 81670.5
TECHNICAL DRAWINGS / S 1 : 20
* = minimum measure for cutting
Z 200504
