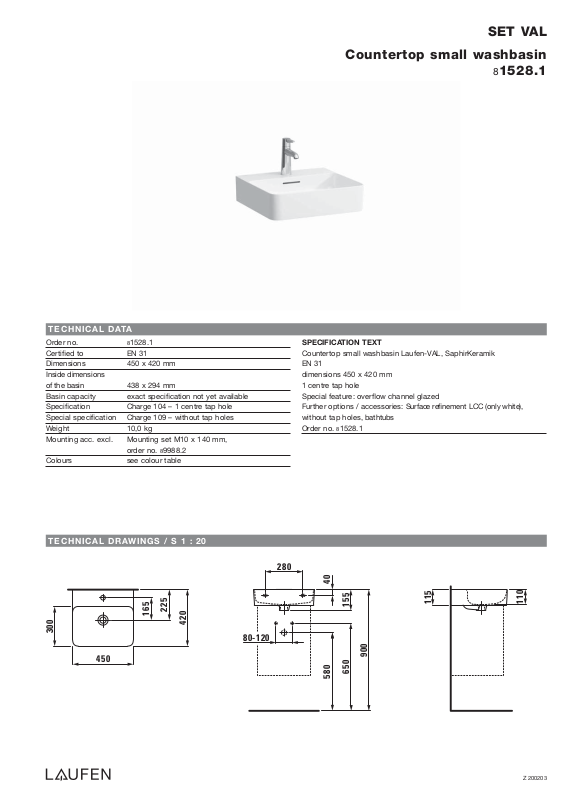

Page 1
SET VAL
Countertop small washbasin
81528.1
TECHNICAL DATA
Order no. 81528.1
Certified to EN 31
Dimensions 450 x 420 mm
Inside dimensions
of the basin 438 x 294 mm
Basin capacity exact specification not yet available
Specification Charge 104 – 1 centre tap hole
Special specification Charge 109 – without tap holes
Weight 10,0 kg
Mounting acc. excl. Mounting set M10 x 140 mm,
order no. 89988.2
Colours see colour table
TECHNICAL DRAWINGS / S 1 : 20
225
165
420
300
80-120
SPECIFICATION TEXT
Countertop small washbasin Laufen-VAL, SaphirKeramik
EN 31
dimensions 450 x 420 mm
1 centre tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
without tap holes, bathtubs
Order no. 81528.1
280
40
155
115
110
450
580
900
650
Z 200203
