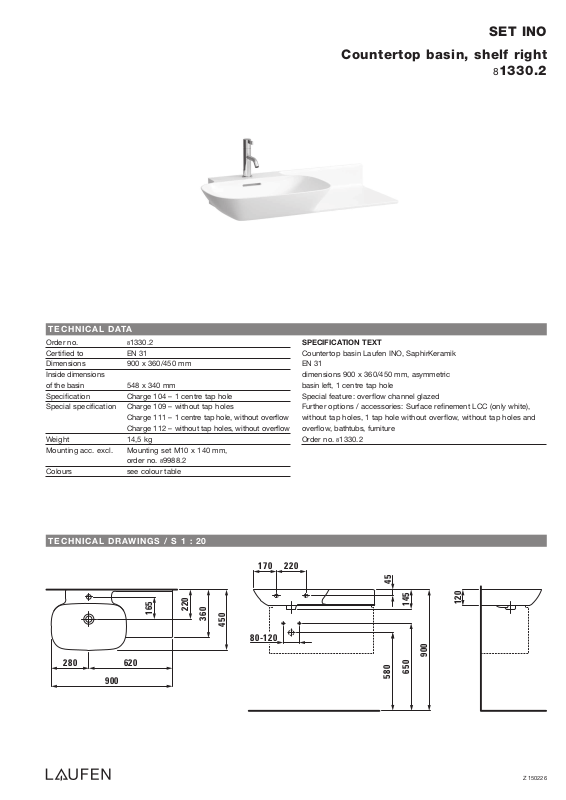

Laufen 8.1330.2 Datasheet

SET INO

Countertop basin, shelf right

81330.2

TECHNICAL DATA

Order no. 81330.2
Certified to EN 31
Dimensions 900 x 360/450 mm
Inside dimensions
of the basin 548 x 340 mm
Specification Charge 104 – 1 centre tap hole
Special specification Charge 109 – without tap holes

Charge 111 – 1 centre tap hole, without overflow

Charge 112 – without tap holes, without overflow
Weight 14,5 kg
Mounting acc. excl. Mounting set M10 x 140 mm,

order no. 89988.2
Colours see colour table

TECHNICAL DRAWINGS / S 1 : 20

165

220

360

450

80-120

SPECIFICATION TEXT

Countertop basin Laufen INO, SaphirKeramik
EN 31
dimensions 900 x 360/450 mm, asymmetric
basin left, 1 centre tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
without tap holes, 1 tap hole without overflow, without tap holes and
overflow, bathtubs, furniture
Order no. 81330.2

220170

45

145

120

280 620

900

580

900

650

Z 150226
