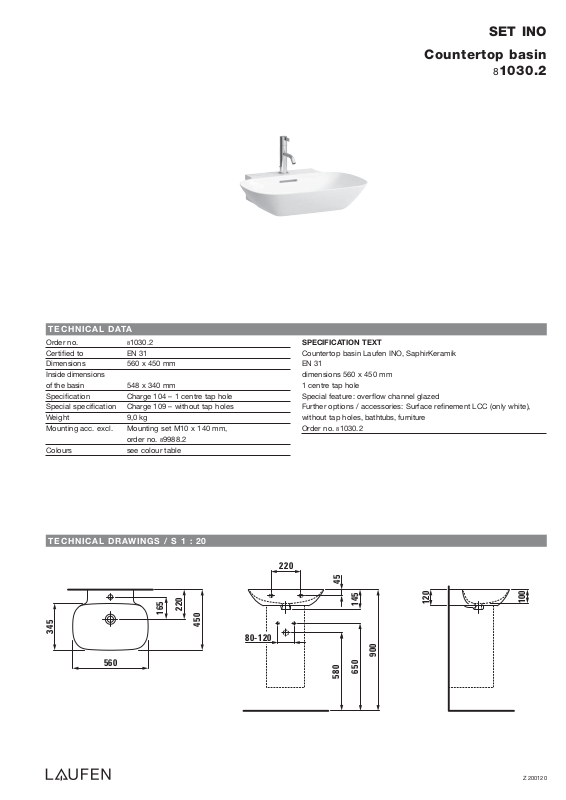

Laufen 8.1030.2 Datasheet

SET INO

Countertop basin

81030.2

TECHNICAL DATA

Order no. 81030.2
Certified to EN 31
Dimensions 560 x 450 mm
Inside dimensions
of the basin 548 x 340 mm
Specification Charge 104 – 1 centre tap hole
Special specification Charge 109 – without tap holes
Weight 9,0 kg
Mounting acc. excl. Mounting set M10 x 140 mm,
order no. 89988.2
Colours see colour table

TECHNICAL DRAWINGS / S 1 : 20

220

165

345

450

80-120

SPECIFICATION TEXT

Countertop basin Laufen INO, SaphirKeramik
EN 31
dimensions 560 x 450 mm
1 centre tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
without tap holes, bathtubs, furniture
Order no. 81030.2

220

45

145

120

100

560

580

900

650

Z 200120
