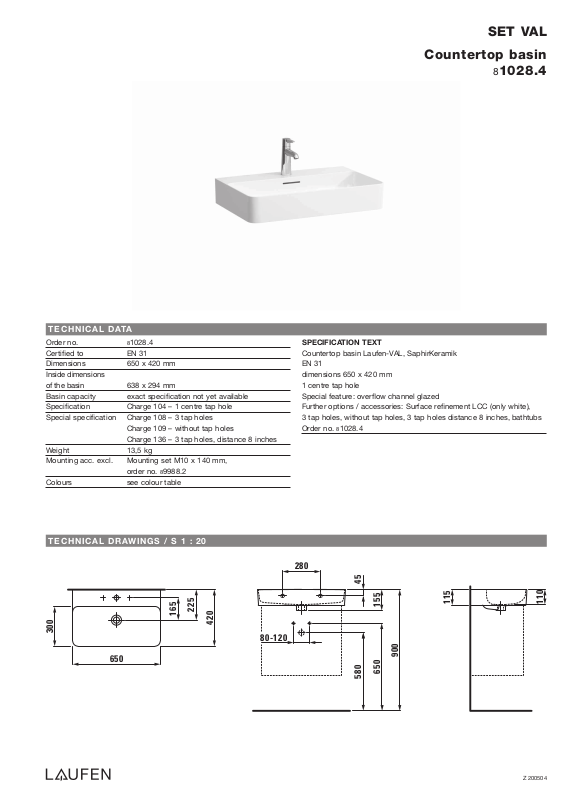

Laufen 8.1028.4 Datasheet

SET VAL

Countertop basin

81028.4

TECHNICAL DATA

Order no. 81028.4
Certified to EN 31
Dimensions 650 x 420 mm
Inside dimensions
of the basin 638 x 294 mm
Basin capacity exact specification not yet available
Specification Charge 104 – 1 centre tap hole
Special specification Charge 108 – 3 tap holes
Charge 109 – without tap holes
Charge 136 – 3 tap holes, distance 8 inches
Weight 13,5 kg
Mounting acc. excl. Mounting set M10 x 140 mm,
order no. 89988.2
Colours see colour table

TECHNICAL DRAWINGS / S 1 : 20

225

165

420

300

80-120

SPECIFICATION TEXT

Countertop basin Laufen-VAL, SaphirKeramik
EN 31
dimensions 650 x 420 mm
1 centre tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
3 tap holes, without tap holes, 3 tap holes distance 8 inches, bathtubs
Order no. 81028.4

280

45

155

115

110

650

580

900

650

Z 200504
