Operating Instructions
Ecoline
Immersion thermostats E 100
Bath/ Circulation thermostats
E 106 T, E 112 T, E 115 T, E 120 T
E 103, E 111, E 119, E 125
From Series Z 01
Software version 2.0
01/01
YAEE0012
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
LAUDA DR. R. WOBSER
GMBH & CO. KG
P.O. Box 1251
97912 Lauda-Königshofen
Germany
Phone: (+49) (0) 9343/ 503-0
Fax: (+49) (0) 9343/ 503-222
e-mail info@lauda.de
Internet http://www.lauda.de
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Safety notes
Before operating the equipment please read carefully all the instructions and safety
notes.
If you have any questions please phone us!
Follow the instructions on setting up, operation etc. This is the only way to avoid
incorrect operation of the equipment and to ensure full warranty protection.
•
Transport the equipment with care!
•
Equipment and its internal parts can be damaged:
−
by dropping
−
by shock.
•
Equipment should only be operated by technically qualified personnel!
•
Never operate the equipment without the bath liquid!
•
Do not start up the equipment if
−
it is damaged or leaking
−
the supply cable is damaged.
•
Switch off the equipment and pull out the mains plug for
−
servicing or repair
−
the supply cable is damaged!
The Operating Instructions include additional safety notes which are identified by a
triangle with an exclamation mark. Carefully read the instructions and follow them
accurately! Disregarding the instructions may have serious consequences, such as
damage to the equipment, damage to property or injury to personnel
We reserve the right to make technical alterations!
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
•
Drain the bath before moving the equipment!
•
Have the equipment serviced or repaired by properly qualified personnel only!
I
1 BRIEF OPERATING INSTRUCTIONS...........................................................................................1
2 CONTROL AND FUNCTIONAL ELEMENTS.................................................................................2
3 UNIT DESCRIPTION .....................................................................................................................3
3.1 Unit description......................................................................................................................3
3.2 Pumps.....................................................................................................................................3
3.3 Temperature indication, control, and safety circuit ............................................................4
3.4 Materials.................................................................................................................................4
4 UNPACKING .................................................................................................................................4
5 PREPARATIONS...........................................................................................................................5
5.1 Assembly and setting up.......................................................................................................5
5.2 Filling and emptying..............................................................................................................7
5.3 Bath liquids and hose connections......................................................................................9
5.4 Connection of external circuits...........................................................................................11
5.5 Cooling the thermostats......................................................................................................13
6 STARTING UP.............................................................................................................................14
6.1 Connection to the supply....................................................................................................14
6.2 Switching on ........................................................................................................................14
6.3 Setpoint selection................................................................................................................15
6.4 Menu functions ....................................................................................................................16
6.4.1 Pump output......................................................................................................................................16
6.4.2 User calibration.................................................................................................................................17
6.5 Warning and safety functions.............................................................................................18
6.5.1 Overtemperature protection and testing........................................................................................18
6.5.2 Low-level protection and testing ....................................................................................................20
6.5.3 Pump motor monitoring...................................................................................................................20
6.5.4 Other error messages ......................................................................................................................21
7 SAFETY NOTES..........................................................................................................................22
7.1 General safety notes............................................................................................................22
7.2 Other safety notes ...............................................................................................................22
8 MAINTENANCE...........................................................................................................................24
8.1 Cleaning................................................................................................................................24
II
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
8.2 Maintenance and repair.......................................................................................................24
8.3 Ordering spares ...................................................................................................................25
9 TECHNICAL DATA (TO DIN 58966)............................................................................................26
10 ACCESSORIES .........................................................................................................................29
11 CIRCUIT DIAGRAM...................................................................................................................31
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
III
IV
Explanation of signs
☞
➾
Danger: This sign is used where there may be injury to
personnel if a recommendation is not followed
accurately or is disregarded.
Note Here special attention is drawn to some aspect. May
include reference to danger.
Reference: Refers to other information in different Sections.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Brief operating instructions
1 Brief operating instructions
This brief instruction shall give you the possibility to operate the unit quickly. For safe operation
of the unit it is absolutely necessary to read carefully all the instructions and safety notes!
1. Assemble unit and add items as appropriate (➾ Section 5).
Take care of the hose tubing connections (➾ Section 5.1. and 5.4.).
2. Fill the unit with corresponding liquid. (➾ Section 5.3.).
The units are designed for operation with non-flammable and flammable liquids to
EN 61010-2-010. ! Take care of the level of the bath liquid! (➾ Section 5.2.)
3. Connect the unit only to a socket with a protective earth (PE) connection.
Compare the information on the rating label with the supply details.
4.
5. Switch on at the mains switch
6. Setting of the functions
Using a screwdriver, set the overtemperature cut-out point to a value clearly
above ambient temperature (➾ Section 6.5.1.).
05.08.99
YAEE0012
1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Control and functional elements
2 Control and functional elements
Clamping bracket
Setting knob
Pt 100
Pump housing
Outlet for bath circulation
Jet nozzle
Heater
Heating
LED green; Supply ON
Menu functions
Mains switch
Setting of overtemperature
switch-off point
Pump connections
−
inlet
Pump connections
−
outflow
Cooling coil connection
Bath bridge
Bath cover
2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Unit description
3 Unit description
3.1 Unit description
The immersion thermostat E 100 has a device for fixing the immersion thermostat to the bath vessel
(clamping bracket). An adapter is supplied for the deep-drawn LAUDA baths 003, 011, 019 and 025.
The type designation of the Ecoline bath/circulation thermostats consists of the control unit E 100 and the
type of bath.
Example: Control unit E 100 and bath 003 produces Thermostat Type E 103.
The letter T (for "Transparent") refers to the baths made of polycarbonate. Type E 103 is supplied with
bath cover. For other baths made of stainless steel bath covers are available as accessory
10. Accessories).
(➾ Section
3.2 Pumps
All units are supplied with a pressure pump with vario drive. The pump has an outlet with a rotatable bend
(Immersion Thermostat) which is connected to the pump nipple for external thermostating circuits
(bath/circulation thermostats). An additional outlet provides circulation inside the bath. By turning the
setting knob it is possible to choose between both outlets or to divide the flows.
The pump chamber of immersion thermostats is rotatable in a restricted way to reach an optimal
circulation. The pump can be used up to viscosities of 150 mm²/s during heating up. To get an optimum
accuracy of control a viscosity of 30 mm²/s is recommended.
One of five pump output steps can be selected using the operating menu.
On small bath thermostats (e.g. E 103 or E 106 T) and with operation as bath thermostat it is advisable to
use output step 1. The advantage is a low heat generation while having a uniform circulation, that means,
that the unit can work without cooling down to just above ambient temperature.
When operating as circulation thermostat with an external circuit it is preferable to use a larger flow
setting in order to ensure a small temperature difference, especially at higher temperatures and in
conjunction with oil as the bath liquid.
The pump pressure outlet can be closed off without causing any damage to the pump.
05.08.99
YAEE0012
Pump characteristics
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
(➾ Section 9. Technical data)
3
Unit description
3.3 Temperature indication, control, and safety circuit
The unit is provided with a 7-segment LCD-Display (3 ½ places) with additional symbols for indicating
bath temperature and settings as well as operating states.
The setpoint is input and additional adjustments can be made using either two or three keys
A Pt 100 temperature probe is used for measuring the actual temperature and for control. A second Pt
100 serves as temperature probe for the safety circuit (overtemperature protection) which is independent
of the control function.
A low-level cut-out switches off the heating on both poles in order to prevent dry operation of the heater.
The pump is switched off through the electronics. The setting of the overtemperature cut-out is adjusted
with a tool on a potentiometer and is always limited to 5 °C above the operating temperature range.
All settings and fault messages are stored in the memory on supply failure or when the mains switch is
set to OFF.
The tubular heater is controlled from a modified PID controller through a triac circuit specially designed to
be unaffected by supply variations and interference.
3.4 Materials
All parts which come into contact with the bath liquid are made from high-grade materials appropriate to
the operating temperature. These are rust-free stainless steel, the plastics PPS, polycarbonate (bath 006
T, 012 T, 015 T, 020 T) and fluoride rubber.
4 Unpacking
After the unit and accessories have been unpacked they have to be examined for possible transport
damage. If there is any damage visible on the unit, the forwarding agent or the post office has to be
notified so that the shipment can be examined.
Standard accessories:
Bath cover E 103 only
Closing plugs on all bath/circulation thermostats
on all immersion and bath/circulation thermostats
Warning label
Operating Instructions on all immersion and bath/circulation thermostats
4
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Preparations
5 Preparations
5.1 Assembly and setting up
a) Immersion Thermostat
−
Hang the thermostat into the bath to be thermostated
(baths ➾ Section 10. Accessories)
−

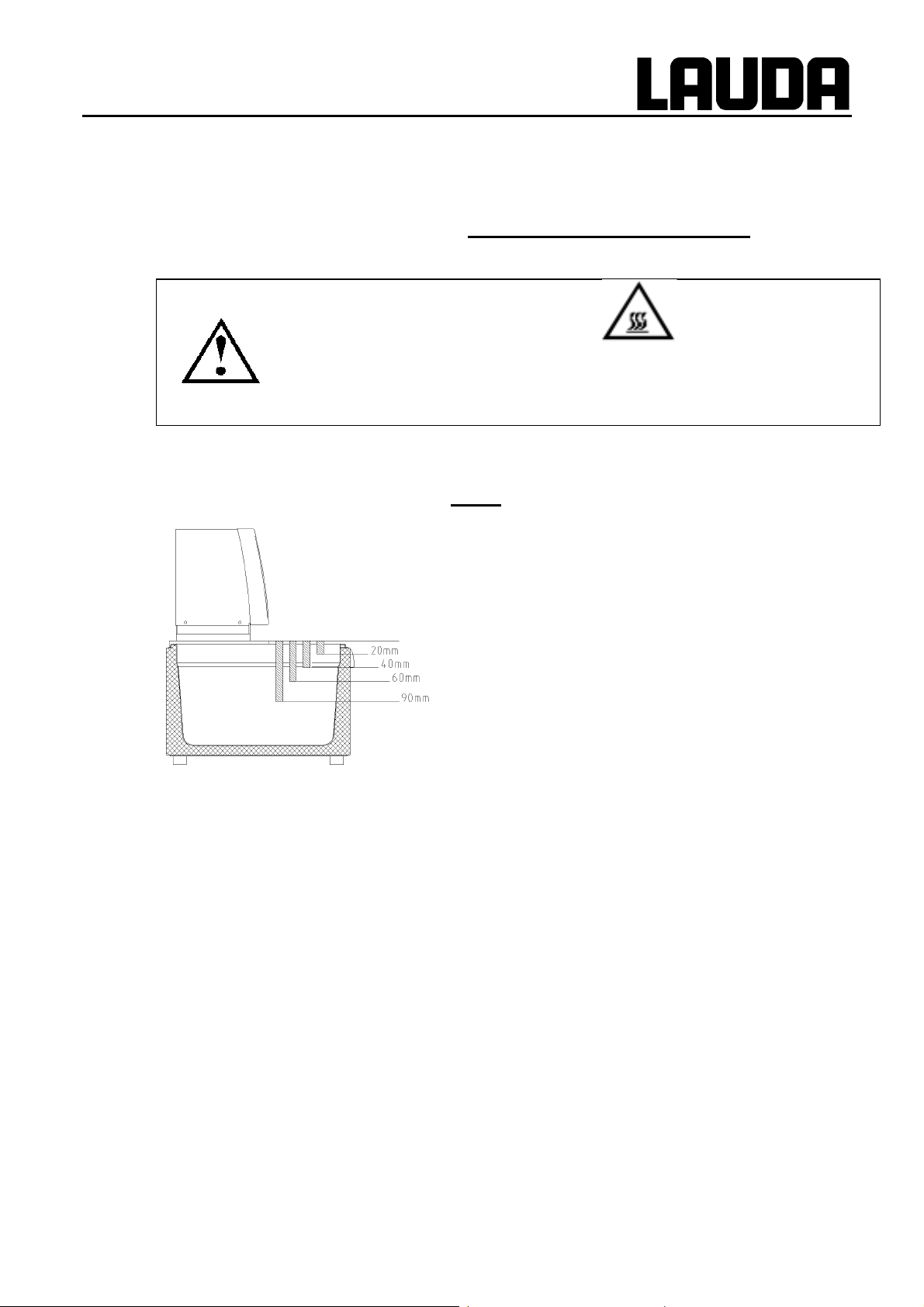

In baths made of plastic the heater should
☞
−
For all LAUDA baths (plastic and deep-drawn baths),
please fix the adapter (standard accessory) on the
clamping bracket.
not have contact to the sides of the bath!
−
Do not cover the ventilation opening at the
back of the unit.
Keep clear distance of at least 20 cm.
Adjustment of the pump chamber
−
The fixation of the temperature probe has
to be moved upwards approx. 15 mm.
−
Adjust the pump chamber.
−
Move the fixation of the temperature probe
downwards again (see ill. on the left)
05.08.99
YAEE0012
Adjustments of the pump outflows
ill 1
Setting knob turned anticlockwise
−
Turn the jet nozzle to face diagonally into the bath. The
outflow for the bath circulation can then be closed.
−
Turn the setting knob to the left (see. ill. 1)
ill 2
Setting knob medium position
ill 3.
Setting knob turned clockwise
5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Preparations
Operation with cooling coil
Accessories)
−
Pull the clamping bracket to the back for fixing the
cooling coil while releasing it with a screwdriver.
−
Push the cooling coil on the clamping bracket.
−
Install the clamping bracket again.
Operation with fixing rod
−
Pull the clamping bracket to the back while releasing it
with a screwdriver.
−
Install the fixing rod together with the clamping bracket.
(➾ Section 10.
(➾ Section 10. Accessories)
−
The immersion thermostats have to be fixed carefully at the bath, for they must
not fall into the bath.
−
In that case don’t touch the bath liquid! Pull out mains plug immediately!
Operation with external consumer
a) Bath/Circulation thermostats
−
Place the unit on a flat surface.
−
Do not cover the ventilation openings at the
☞
back.
−
Keep a clear distance of at least 20 cm.
−
Put the control unit with the bath bridge on
the bath.
−
−
When operating without an external
− −
consumer (bath thermostat) the setting
knob has to be turned so that the flow
comes out of the outlet for bath circulation
(➾ ill. 3, Section 5.1.).
(➾ Section 5.4.)
6
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Preparations
−
At bath temperature above 70°C the label
the bath in a clearly visible position.
−
When operating as bath thermostat without external consumer the pump outflow
connection has to be closed (use closing plugs) or linked to the return.
5.2 Filling and emptying
Operation with external consumer
thermostat) (➾ Section 5.4.)
supplied must be affixed on
(Circulation
−
When using thermal oils it is necessary to allow an expansion of approx. 8 %/100 °C.
☞
−
When operating with an external consumer the total expansion takes place in the bath.
Filling
−
Fill baths up to a maximum level of 20 mm below the bath
bridge.
−
Optimum operation at 20-40 mm below the bath bridge.
−
Operation is possible down to 60 mm below the bath bridge.
−
The low-level cut-out operates at approx. 90 mm below the
bath bridge
05.08.99
YAEE0012
7
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Preparations
−
The units are designed for operation with non-flammable and flammable liquids to EN
☞
61010-2-010! Flammable liquids can be operated up to no more than 25°C below the
firepoint (➾ Section 5.3.).
Emptying
−
Switch off the thermostat, pull out the mains plug!
a) Immersion thermostat
−
Unscrew the thermostat-
−
Drain the bath
b) Bath/Circulation thermostat
−
Take off the control unit with the bath bridge
−
Drain the bath.
−
Observe the appropriate regulation when disposing used thermostating liquid.
−
When connecting an external consumer take care that the level of the bath liquid does
not drop too much ! fill in bath liquid if necessary.
Do not drain the thermostating liquid when it is hot or very cold (below 0°C)!
8
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Preparations
5.3 Bath liquids and hose connections
Bath liquids
LAUDA
Designation
Former
designation
water +5...+90
Kryo 30 ➁ G 100 ➁ -30...+90
Kryo 50 SK Super
Frigor
Kryo 20 160 MS -20...+180
Ultra 350 330 SCB +30...+200
Therm 230 RDS 50 +60...+230
Working
tem-
perature
range
from °C
to °C
-50...+95
Chemical
Designation
at 20°C mm²/s mm²/s 5 l 10 l 20 l
deionised
water ➀
Mono-
Visco-
sity
(kin)
-- -- --
4 50 at -25°C -- LZB 109 LZB 209 LZB 309
Viscosity
(kin) at
Temperature
Fire-
point
Ref.No.
Quantity
ethylene-
glycol/water
Silicone oil
Silicone oil
synthetic
6 35 at -50°C > 139 LZB 103 LZB 203 LZB 303
11 28 at -20°C > 230 LZB 116 LZB 216 LZB 316
47 28 at +30°C > 240 LZB 107 LZB 207 LZB 307
thermal oil
Silicone oil
44 28 ... +60°C > 362 LZB 117 LZB 217 LZB 317
① At higher temperatures ! Evaporation losses ! Use bath covers (➾ Section 10. Accessories).
☞
Distilled water or fully deionised water must only be used with the addition of 0,1g sodium
carbonate (Na
danger of corrosion!
!
) /l water, otherwise
2CO3
➁ Water content falls after prolonged operation at higher temperatures
mixture becomes flammable (flash point 128 °C).
!
Check the mixture ratio with a densiometer.
!
− When selecting bath liquids it should be noted that performance must be expected to worsen
at the lower limit of the operating temperature range due to increasing viscosity. The full
operating range should only be utilised if really necessary.
− The operating ranges of the bath liquids and tubing represent general data which may be
limited by the operating temperature range of the unit.
Silicone oil causes pronounced swelling of Silicone rubber ! never use Silicone oil with
Silicone tubing!
DIN Safety data sheets are available on request
12.11.01
YAEE0012
9
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Preparations
Hose connections
Tubing type Int. dia.
Ø mm
Perbunan tubing,
uninsulated
Perbunan tubing,
uninsulated
Perbunan tubing
insulated
Silicone tubing,
uninsulated
Silicone tubing
insulated
Viton 11 -60 to 200 for all bath
9 0 to 120 for all bath
12 -0 to 120 for all bath
12
ext. dia.
35mm approx.
11 -30 to 100 water,
11
ext. dia.
35mm approx.
Temperature
range °C
-60 to 120 for all bath
-60 to 100 water,
Application Ref. No.
RKJ 011
liquids
RKJ 012
liquids
LZS 008
liquids
RKJ 059
water/glycol
mixture
LZS 007
water/glycol
mixture
RKJ 091
liquids
−
Silicone oil causes pronounced swelling of Silicone rubber ! never use Silicone
oil with Silicone tubing!
−
Protect tubing with hose clips against slipping off.
10
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Preparations
5.4 Connection of external circuits
a) Immersion thermostats
−
Push 11-12 mm int. dia. tubing (➾ Section 5.3.) directly
onto the jet nozzle and connect it to the external
consumer.
−
Hang the return tubing into the bath and fix it!
−
We recommend to use the pump set (➾ Section 10.
Accessories). In this case
−
screw on the pump connectors.
−
Install the connecting tube.
−
Using the setting knob at the pump outflows, divide up
the pump flow in accordance to the thermostating
task.(➾ Section 5.1)
−
Position
setting knob is turned anticlockwise.
−
Position
outlet for bath circulation, the setting knob is in medium
position.
−
Position
bath circulation fully open, the setting knob is turned
clockwise.
−
Operate the setting knob only when the bath contents are near ambient
temperature.
−
When no tubing is connected, close the pump outflow connection with closing
plugs even in position
➂➂➂➂
.
➀➀➀➀
! maximum flow in the external circuit, the
➁➁➁➁
!
flow passes through pump outflow and
➂➂➂➂
! external circuit is closed and the outlet for
05.08.99
YAEE0012
11
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Preparations
−
If the cross-section of the tubing is too small ! temperature drop between bath
☞
and external system due to low flow rate. Increase the bath temperature
appropriately.
−
Always ensure the maximum possible flow cross-section in the external circuit!
b) Bath/Circulation thermostat
−
Connect 11-12 mm int. dia tubing (➾ Section 5.3.) to
pump connector
−
Pump outflow always in front, return connection always
at the back.
−
When the external consumer is placed at a higher level than the thermostat, the
pump is stopped and air penetrates into the thermostating circuit the external
liquid may drain down into the bath even with a closed system ! danger of
flooding the thermostat!
−
Protect tubing with hose clips against slipping off!
−
When no external consumer is connected to the thermostat, the pump outflow
connection must be closed (use closing plugs) or linked to the return!
12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Preparations
5.5 Cooling the thermostats
At bath temperatures down to just above ambient temperature (approx. 2 – 10°C) it is possible to work
without cooling. Additional cooling is required for lower temperatures
Immersion thermostat.
Bath/Circulation thermostats ! fitted with cooling coil, as standard..
Cooling possibilities
down to 20 °C Mains water ! keep the water consumption as low as possible!
down to –20°C flow-through cooler DLK 10/ DLK 25 (depending on bath size and
−
Use insulated tubing!
☞
−
When thermostating an external system the equipment must be arranged in the
following order: thermostat ! external circuit ! flow-through cooler ! thermostat
!
attach the cooling coil (➾ Section 5.1.).
temperature) ➾ Section 10. Accessories
!
use water/glycol mixture (ratio 1:1).
05.08.99
YAEE0012
13
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Starting up
6 Starting up
6.1 Connection to the supply
Compare the supply voltage against the data on the rating label.
Model according to EMC directive EN 61326-1 Class B.*
− Connect the unit only to a grounded mains power socket (PE).
− No warranty when the thermostat is connected to a wrong supply!
− Without external circuit ensure that the pump pressure outflow is closed or linked to the
− Ensure that the unit is filled in accordance with Section 5.2.!
6.2 Switching on
!
!
!!
pump return.
0,25s
(* Notic only valid for EU countries)
− Using a screwdriver set the overtemperature switch-off point
to a value clearly above ambient temperature.
− Switch on at the mains switch.
The green LED for "Supply ON" lights up.
− A tone sounds for approx. 0,25 s.
14
− The unit self-test starts up. All display segments and
symbols light up for approx. 1 s. Then the software version
is indicated for approx. 1 s.
− Display shows the actual bath temperature. The pump
starts up. The values which were active before switching off
− If necessary add more bath liquid to replace the amount pumped out to the external
☞
− If the pump does not purge the system immediately. The unit may switch off again
!
!
!!
consumer.
although it is filled sufficiently (only when starting up for the first time)..
are entered.
− A double signal tone sounds.
* Notice only valid for EU countries!
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Starting up
6.3 Setpoint selection
or
−
The display for LEVEL (low-level) appears.
−
The fault triangle is flashing
−
Press the key. If necessary repeat several times.
−
Also press the key if the unit had switched off under a fault
condition.
−
Shortly press one of these keys ! adjusted setpoint
appears for approx. 4 s.
−
°C is flashing, in contrast to the actual value.
−
During the 4 s. start to set the required setpoint using the
keys.
−
Speeding the setting process by:
a) continuous pressing the keys or
b) pressing one key (holding it down) and shortly pressing
the other key.
−
Briefly releasing (1 s) the key (s) and again pressing one of
the keys moves the cursor one place to the right.
−
Display flashes 4 s ! the new value is accepted
automatically, or
−
Value is entered immediately with this key.
05.08.99
YAEE0012
−
For safety reasons the setpoint can only be adjusted up to 2 °C above the upper limit of
☞
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
the operating temperature range of the particular unit type
15
Starting u
p

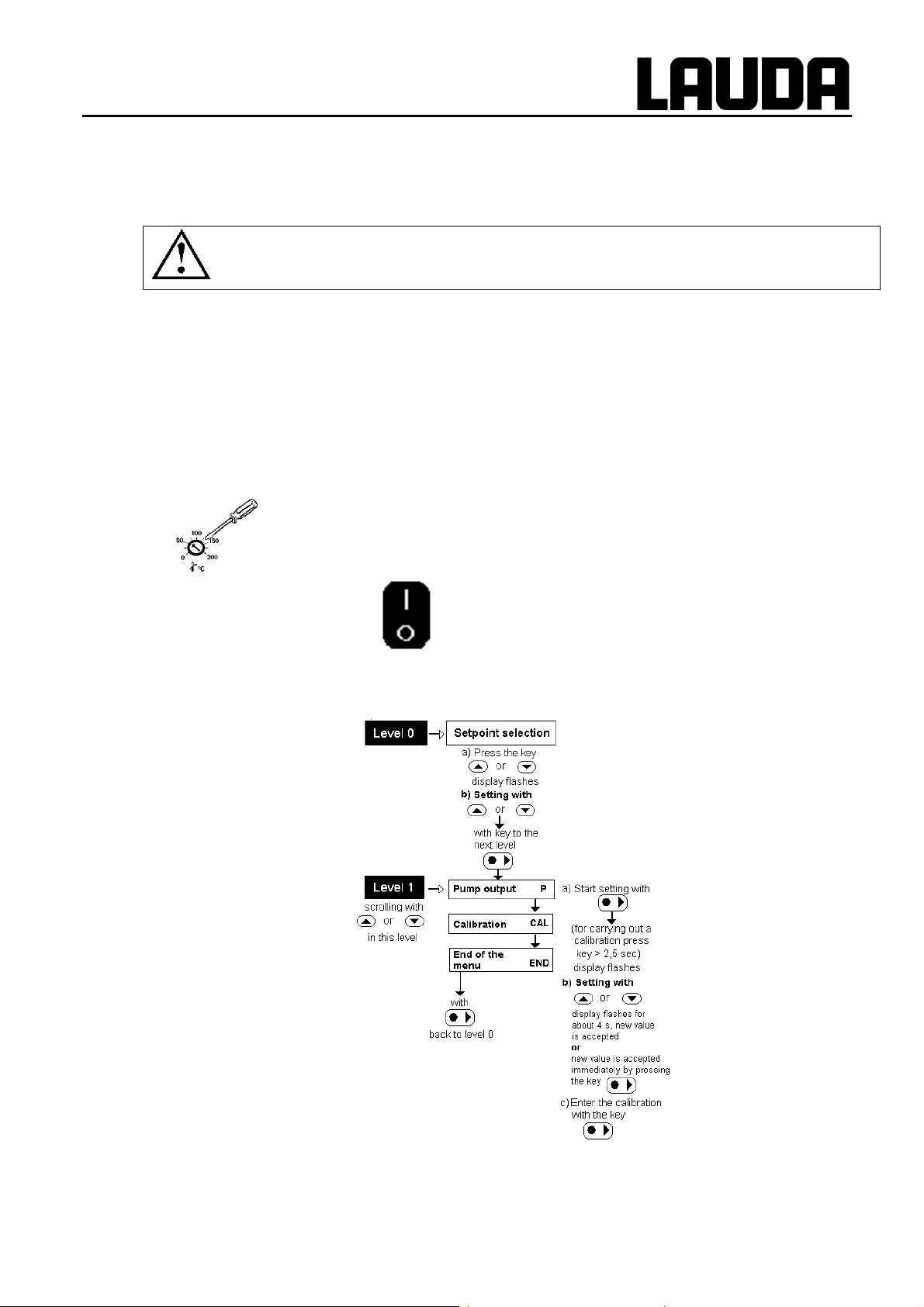

6.4 Menu functions
6.4.1 Pump output
or
−
Switching from setpoint selection (level 0) to level 1 using
the key
−
Within one level it is possible to scroll using the keys.
−
In principle
automatically after approx. 4 s or
−
Settings are entered immediately on operating this key
, after each setting has been made it is entered
or
−

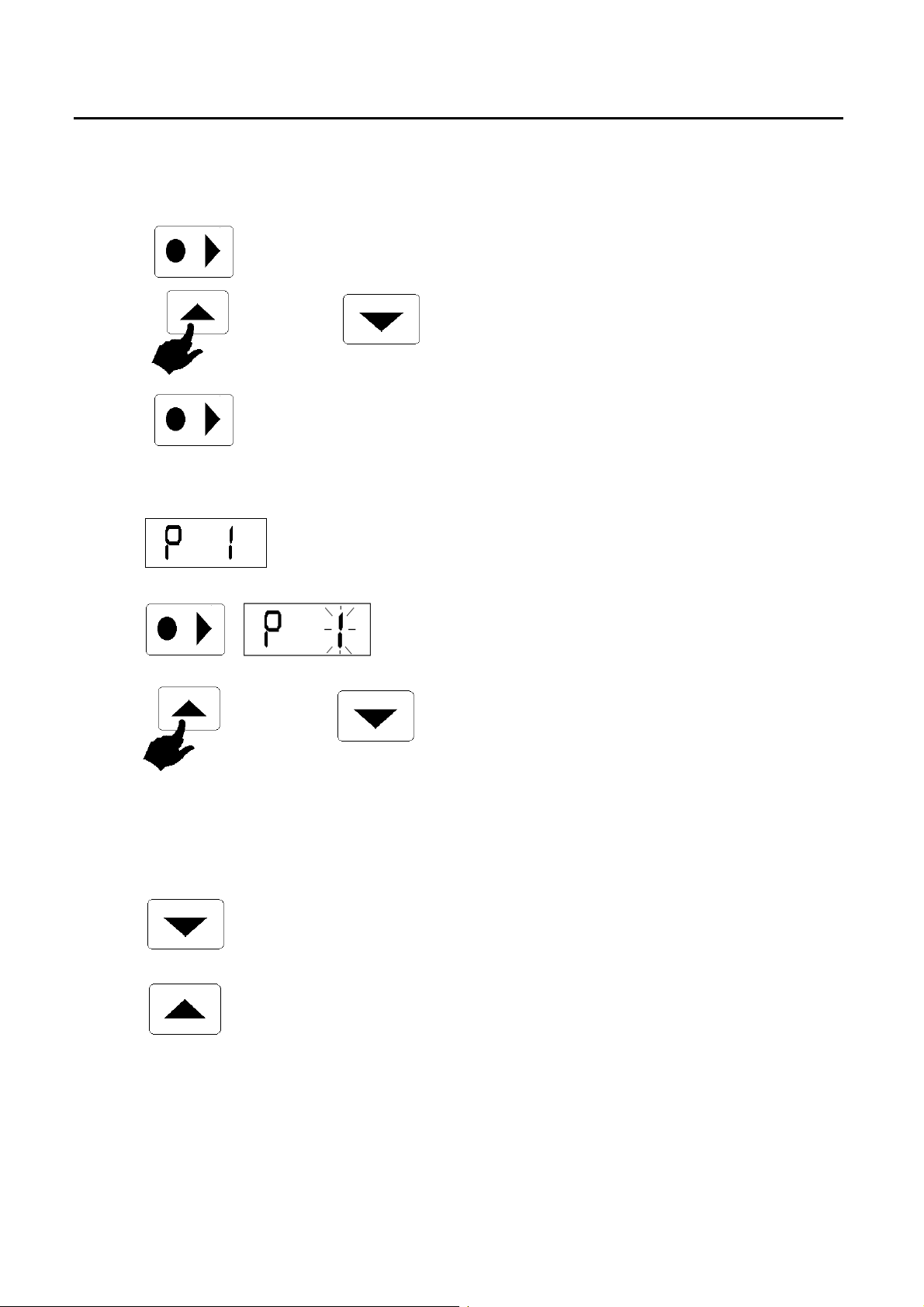

Display shows P and actual pump output step.
−
Press the key ! display flashes (approx. 4 s)
−
During this time start to set the required step with the keys. 0
= pump stopped, heating off
1 = low pump output
2 , 3 , 4 = medium pump output
5 = maximum pump output
−
The pump responds immediately (can be heard). (Setting is
entered after approx. 4 s ➾ Section 6.4.)
−
Move forward with key to "User calibration" or
16
−
back with the key to the actual value display.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Starting up
6.4.2 User calibration
−
☞
−
−
−
−
− −
Remove the external consumers and switch the setting knob of the pump to right side.
(➾Section 5.4).
A reference thermometer with necessary accuracy is required. Otherwise the factory
calibration should not be altered. The reference thermometer has to be inserted far
enough and long enough into the bath.
It is not allowed to calibrate to more than ± 3 °C. Multiple calibration to more than ± 3
°C cause internal faults (after 2 min ”EEE“ changing with “1006” or ”16”).
The factory calibration
will be lost through overwriting
! please work carefully!!!
and
or
1x
>2,5 s
−
Directly from level 0 (actual value display), press key
combination on the left
−
with key from pump output.
1. The display shows CAL. To carry out a calibration, press
the key longer than 2.5 s.
2. The actual value appears and flashes approx. 4 s.
3. Input the value indicated on the reference thermometer with
one of the two keys.
or
05.08.99
YAEE0012
4. The additive calibration must be entered with the key shown
on the left.
5. Forward with key to "END",
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
then
17
Starting u
p
Example
6. with key to actual value display
7. with key back to pump output.
a) Insert a suitable thermometer into the bath (long enough and far enough).
b) Remove the external consumers and turn the setting knob of the pump outflows to the
right side.
c) Set the setpoint to a temperature where you use to work (e.g. set the setpoint to 45°C
(➾ Section 6.3.)
d) Wait until the actual bath temperature has reached the setpoint temperature of 45°C
and until the indication on the reference thermometer does not change any more.
e) Remove the reference thermometer, which shows e.g. 44,8 °C.
f) Select CAL on the display and go forward as mentioned under point 1-7 (see
above).The actual bath temperature switches from 45°C to 44,8°C and the unit starts to
heat up until the actual bath temperature has reached 45°C. (! the reference
thermometer should also indicate 45°C).
or
6.5 Warning and safety functions
6.5.1 Overtemperature protection and testing
−
−
The units are designed for operation with non-flammable and flammable liquids to EN
− −
61010-2-010!
−
Set the overtemperature switch-off point. Recommended
setting 5°C above required bath temperature.
☞
−
The actual switch-off point is indicated on the display, e.g.
110°C.
18
☞
−
Not higher than 25 °C below the firepoint of
the bath liquid (➾ Section 5.3.).
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Starting up
☞
"
"
""
−
When the switch-off point is being adjusted by more than 2°C ! display shows MAX
and actual overtemperature switch-off point with 1°C resolution for approx. 4 s.
−
The position of the potentiometer is decisive for the setting. The display is just a help for
the setting.
−
−
Setting is possible only up to a upper limit of the operating temperature range + 5 °C.
− −
−
When the bath temperature arises above the
overtemperature switch-off point.
1. Double signal tone sounds.
☞

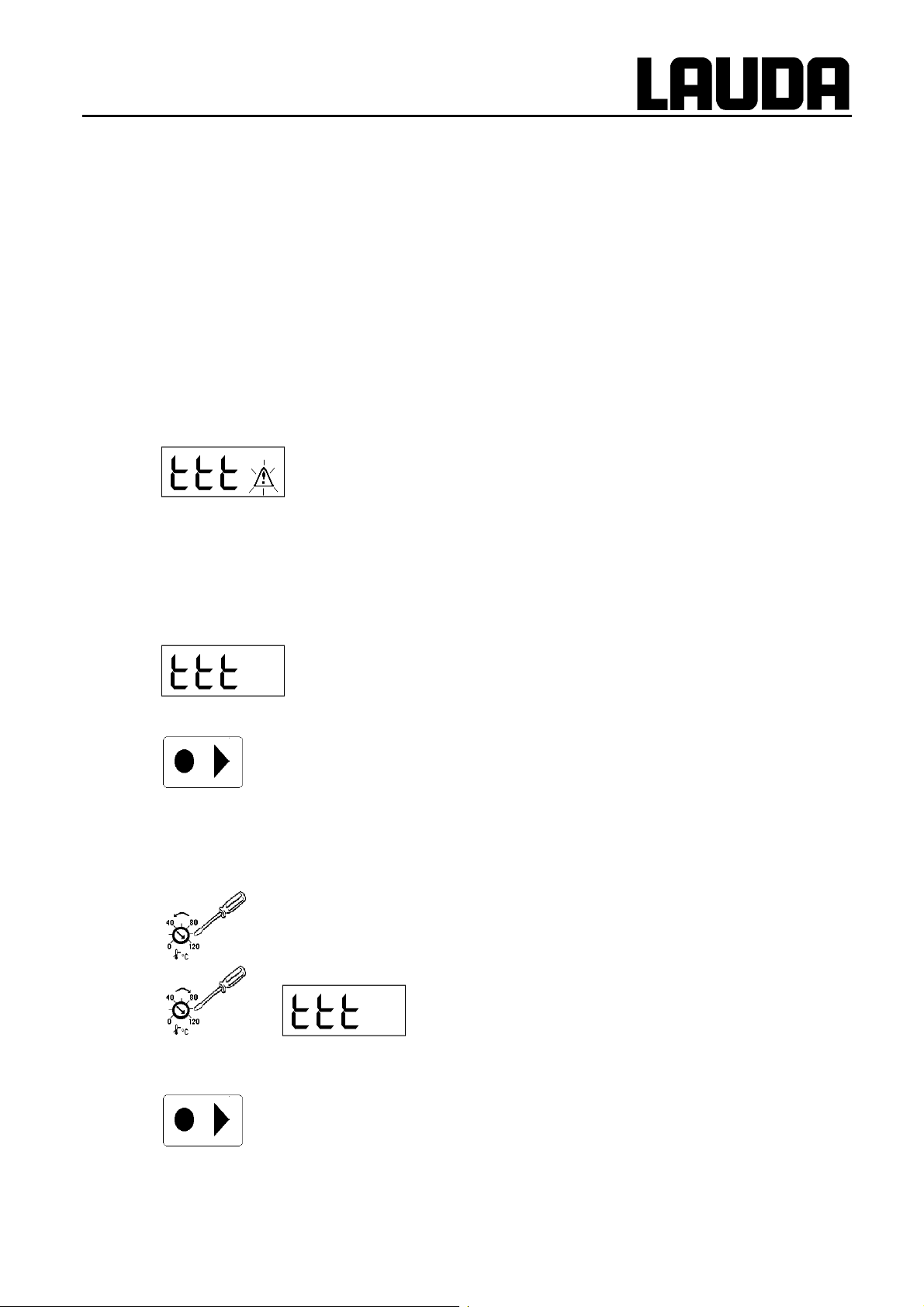

2. The display shows the indication for overtemperature
fault triangle is flashing
!
heating is switched off on both poles,
!
pump is switched off by the electronics.
−
Rectify the cause of the fault.
−
Wait until the bath temperature has cooled down below the
switch-off point or set the switch-off point at a higher value.
When the display shows
−
reset with the key.
−
−
Before the unit is run is running unattended for longer periods
− −
protection
should be tested.
Therefore:
−
Turn the potentiometer slowly anticlockwise. ! The unit
must switch off at the bath temperature.
ttt
overtemperature
ttt
the
05.08.99
YAEE0012
−
Step 1 - 2 (see above) must follow.
−
Set the overtemperature switch-off point again above the
bath temperature and wait until the indication
on the display, then
−
reset with the key.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
ttt
appears
19
Starting u
p
g
6.5.2 Low-level protection and testing
"
"
""
−
Double signal tone sounds, if the bath liquid falls so
much that the heater is no longer covered with liquid
completely.
☞
1. The display shows
is flashing
!
heating is switched off on both poles,
!
pump is switched off by the electronics
2. Top up the bath ➾ Section 5.2 and reset with the key.
−
If necessary repeat several times in case that the pump does not purge
immediately.
−
Testing at regular intervals by lowering the bath level. Place a hose on the pump
connector and pump some of the bath liquid into a suitable container.
−
−
Step 1 - 2 must follow.
− −
−
Bath temperature during this test not below 0°C or higher than 50°C, otherwise
danger of burn injuries !
−
If there is any irregularity when testing the safety devices, switch off the unit
immediately and pull out the mains plug !
−
Have the unit checked by the LAUDA service or the local service organisation!
LLL
(low-level) and the fault triangle
6.5.3 Pump motor monitoring
−
In case of pump motor overload or a blockage the heating and the pump are
switched off.
20
☞
"
"
""
−
Double si
−
The display shows
−
Rectify the cause of the fault, i.g. clean the pump or
check the viscosity, then
−
reset with the key.
nal tone sounds.
PPP
and the fault triangle is flashing
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Starting up
g
6.5.4 Other error messages
−
Other error messages shown on display.
with error code, e.g. 0.
!
various temperature probe faults.
EEE
changes
☞
−
If the fault report is repeated ! pull out the mains plug and try whether the motor
can be rotated by the fan blade inserting a screwdriver into the ventilation opening
at the back of the unit.
−
Error code 0 ...255 ! microprocessor error.
−
Error code 1000...1255 ! slave processor error.
−
Indication can be used for remote dia
!
pump fault, proceed as in Section 6.5.3.
nosis.
−
After rectifying the fault, reset with the key.
05.08.99
YAEE0012
21
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Safety notes
7 Safety notes
7.1 General safety notes
A laboratory thermostat is intended for heating and pumping liquids according to the needs of the user.
This leads to hazards by high temperatures, fire, and the general hazards by the use of electrical energy.
The user is largely protected through the application of the appropriate standard specifications.
Additional hazards may arise from the type of material being thermostated, e.g. when going above or
below certain temperature levels or through breaking of the container and reaction with the thermostating
liquid.
It is not possible to cover all possibilities; they remain largely within the responsibility and the judgement
of the user.
The unit must only be used as intended and as described in these Operating Instructions. This includes
operation by suitably instructed qualified personnel
The units are not designed for use under medical conditions according to EN 60601-1 or IEC 601-1 !
7.2 Other safety notes
•
Connect the unit to a grounded mains power socket.
•
Parts of the bath cover may reach surface temperatures above 70 °C when operating at higher
temperatures. Take care when touching it!
•
Use suitable hoses ➾ Section 5.3.
•
Protect tubing with hose clips against slipping off. Prevent kinking of tubing!
•
Check tubing from time to time for possible material defects.
•
Heat transfer tubing and other hot parts must not come into contact with the supply cable!
•
When using the thermostat as circulation thermostat, failure of tubing may lead to leaking of hot liquid
and become a danger to personnel and objects.
22
•
When no external consumer is connected to the thermostat the pump outflow connection must be
closed (use closing plugs) or linked to the return.
•
Don’t change the pump connections with the connections of the cooling coil!
•
Allow for expansion of the bath oil at elevated temperatures
•
Depending on the bath liquid used and the mode of operation it is possible for toxic vapours to be
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Safety notes
produced. Ensure appropriate ventilation!
•
Immersion thermostats have to be fixed carefully at the bath vessels!
•
Only use bath vessels which are appropriate for the intended operating temperatures!
•
When changing the bath liquid from water to oil, for temperatures above 100 °C, carefully remove all
traces of water, also from tubing and from the external consumer, otherwise ! danger of burns
through delayed boiling!
•
The cooling coil with the cooling water has only to be used for operating temperatures below 100°C.
At higher temperatures! danger of hot vapour to be produced!
•
Always pull out the mains plug before cleaning, maintenance or moving the thermostat!
•
Repairs on the control unit and the refrigeration system must be carried out by properly qualified
personnel only!
•
Values for temperature control and indicating accuracy apply under normal conditions according to
DIN 58966. High-frequency electromagnetic fields may under special conditions lead to unfavourable
values. This does not affect the safety.
05.08.99
YAEE0012
23
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Maintenance
8 Maintenance
8.1 Cleaning
The unit can be cleaned with water adding a few drops of detergent (washing up liquid), using a moist
cloth..
Before cleaning the unit, pull out the mains plug!
Water must not enter the control unit!
−
Carry out appropriate detoxification if dangerous material has been spilled on or
☞
8.2 Maintenance and repair
−
−
LAUDA thermostats are largely maintenance-free. If the thermostating liquid becomes dirty it has to be
replaced (➾ Section 5.2.).
−
☞
inside the unit.
−
Method of cleaning and detoxification are decided by the special knowledge of the
user. In case of doubt please contact the manufacturer!
Before any maintenance and repair work pull out the mains plug!
Repair on the control unit must only be carried out by properly qualified personnel!
If a fuse blows (! supply indication not alight) fit only fuses as specified (2 x T 16 A; 1 x
T 2,5 A, size 5 x 20 ! fuses are inside the unit.
24
UL 487-1
F3; T 2,5 A
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
F1; T 16 A
F2; T 16 A
Maintenance
8.3 Ordering spares
When ordering spares please quote instrument type and serial number from the rating label. This avoids
queries and supply of incorrect items.
We shall always be happy to deal with queries and to receive suggestions and criticism
LAUDA DR. R. WOBSER
GMBH & CO.KG
P.O. Box 1251
97912 Lauda-Königshofen
GERMANY
Phone: (+49) (0) 9343/ 503-0
Fax: (+49) (0) 9343/ 503-222
E–mail info@lauda.de
Internet http://www.lauda.de
05.08.99
YAEE0012
25
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Technical data
9 Technical data (to DIN 58966)
Common technical data
Ambient temperature range °C 5 to 40
Setting resolution °C 0.1
Indication resolution °C 0.1
Indication accuracy °C ±0.4°C ± 0.5 % additive re-calibration from indicated value ➂
Temperature control ± °C 0,05
Safety features ➀ FL
Additional functions
Power
consumption
➀
FL: suitable for flammable and non-flammable liquids; NFL: only suitable for non-flammable liquids
➁ ➾
Section 7.2. last item
230 V;50/60 Hz
115 V; 60 Hz
100 V:50/60 Hz
kW 1,6
E 100
1,4
1,1
Immersion thermostats
E 100
Operating temperature range ➀ °C 25 to 120
" with water cooling °C 20 to 120
Operating temperature range ➁ °C -20 to 120
Heater
power
Pump type pressure pump with choice of 5 output steps
Max. discharge pressure
Max. flow rate➂ l/min 20
Pump connections mm nipples 13 mm dia.
Bath depth ➃ mm min 150
Usable depth ➃ mm min 100
Overall size (WxD) mm 125x133
Height (H) mm 315
Weight kg 3
Ref. No. 230 V; 50/60 Hz
➀
at pump output step 1
➂
at pump output step 5
230 V; 50/60 Hz
115 V; 60 Hz
100 V; 50/60 Hz
➂ bar 0.4
115 V; 60 Hz
100 V; 50/ 60Hz
1.5
1,3
1,0
LCE 0221
LCE 4221
LCE 6221
➁
with additional cooling
➃
baths ➾ section 10. Accessories
26
Units to EU-Directive 89/ 336/ EWG (EMC) and 73/ 23/ EWG (low-voltage) with CE-mark.
We reserve the right to make technical alterations!
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Technical data
Bath/Circulation thermostats
Operating temperature range ➀ 0 23 to 120
“with water cooling °C 20 to 120
Operating temperature range ➁ °C -20 to 120
Heater
power
Pump type pressure pump with choice of 5 output steps
Max. discharge pressure ➂ bar 0.4
Max. flow rate ➂ l/min 17
Pump connections mm nipples 13 mm dia.
Max. bath volume l 2,5 to 3.5 9 to 12 12 to 18 19 to 25
Bath deep-drawn inner vessel, steel casing painted
Bath opening (WxD) mm 135x105 300x190 300x365 300x365
Bath depth ➃ mm 150 150 150 200
Usable depth ➃ mm 130 130 130 180
Height top edge of bath mm 178 178 178 228
Overall size (WxD) m m 168x271 331x360 331x536 331x536
Height mm 349 349 349 399
Weight kg 6 9 10 12
Ref. No. 230 V; 50/60 Hz
230 V; 50/60 Hz
115 V; 60 Hz
100 V; 50/60 Hz
115 V; 60 Hz
100 V; 50/ 60Hz
E 103 E 111 E 119 E 125
kW 1.5
1,3
1,0
LCB 0691
LCB 4691
LCB 6691
LCB 0693
LCB 4693
LCB 6693
LCB 0695
LCB 4695
LCB 6695
LCB 0697
LCB 4697
LCB 6697
E 106 T E 112 T E 115 T E 120 T
Operating temperature range ➀ °C 23 to 100
“ with water cooling °C 20 to 100
Operating temperature range ➁ °C -20 to 100
Heater power 230 V; 50/60 Hz
115 V; 60 Hz
100 V; 50/60 Hz
Pump type pressure pump with choice of 5 output steps
Max. discharge pressure ➂ bar 0.4
Max. flow rate ➂ l/min 17
Pump connections mm nipples 13 mm dia.
Max. bath volume l 5 to 7 9 to 13 10 to 15 14 to 20
Baths polycarbonate
Bath opening (WxD) mm 130x285 300x175 275x130 300x350
Bath depth ➃ mm 160 160 310 160
Usable depth ➃ mm 140 140 290 140
Height top edge of bath mm 170 208 356 208
Overall size (WxD) mm 145x435 316x330 428x142 316x506
Height mm 330 369 517 369
Weight kg 4 7 6 8
Ref. No. 230 V; 50/60 Hz
115 V; 60 Hz
100 V; 50/ 60Hz
➀
at pump output step 1
➂
at pump output step 5
kW 1.5
1.3
1.0
LCM 0091
LCM 4091
LCM 6091
LCD 0261
LCD 4261
LCD 6261
➁
with additional cooling
➃
baths ➾ section 10. Accessories
LCD 0263
LCD 4263
LCD 6263
LCD 0265
LCD 4265
LCD 6265
Units to EU-Directive 89/ 336/ EWG (EMC) and 73/ 23/ EWG (low-voltage) with CE-mark.
05.08.99
YAEE0012
We reserve the right to make technical alterations!
27
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Technical data
Pump characteristics
Immersion thermostats
measured with water
0,45
0,4
0,35
0,3
0,25
bar
0,2
0,15
0,1
0,05
0
0 2 4 6 8 101214161820
step 1
step 4
step 2
step 3
step 5
l/min
Bath/ Circulation thermostats
measured with water
0,45
0,4
0,35
0,3
step 4
step 5
step 3
bar
0,25
0,2
0,15
step 2
28
0,1
0,05
0
024681012141618
step 1
l/min
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Accessories
10 Accessories
Immersion thermostats
Accessories Ref. No.
Cooling coil HOK 064
Pump set (pressure and return connection) LCZ 0638
Fixing rod LCZ 0637
Bath Materials Max. Temp
(°C)
006 T polycarbonate 100 5 to 7 130x420x160 * LCZ 0628
012 T polycarbonate 100 9 to 13 300x315x160 LCZ 0629
015 T polycarbonate 100 10 to 5 416x130x310 LCZ 0630
020 T polycarbonate 100 14 to 20 300x490x160 LCZ 0631
003 deep-drawn
stainless steel
011 deep-drawn
stainless steel
019 deep-drawn
stainless steel
025 deep-drawn
stainless steel
006 stainless steel 200 3.5 to 5.5 150x260x160 LCZ 0624
012 stainless steel 200 8 to 13 300x305x160 LCZ 0625
020 stainless steel 200 13. to 20 300x480x160 LCZ 0626
026 stainless steel 200 19 to 26 300x480x200 LCZ 0627
040 stainless steel 200 30 to 40 300x750x200 LCZ 029
150 2.5 to .3.5 135x240x150 * LCZ 0620
150 9 to 12 300x329x150 * LCZ 0621
150 12 to 18 300x505x150 * LCZ 0622
150 19 to 25 300x505x200 * LCZ 0623
Volume (l) Inner size (WxDxH) Ref. No.
05.08.99
YAEE0012
* Measured at top edge of bath, slightly reduced downwards
29
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Accessories
Bath / Circulation thermostats
Accessories suitable for Ref. No.
Bath cover E 111 HDQ 079
Bath cover two parts E 119, E 125 LCZ 0632
Stainless steel gable cover E 220 T LCZ 011
Stainless steel gable cover E 119, E 125 LCZ 0634
Cover plate E 115 T LSZ 0115
Rising platform 8 steps E 103 LCZ 0645
Rising platform 8 steps E 1206 T LCZ 0648
Rising platform 8 steps E 112 T, E 111, E 120 T,
E 119, E 125
Through-flow cooler DLK 10 to -10 °C LFD 005
Through-flow cooler DLK 25 to -30 °C LFD 108
For further information please contact us.
LCZ 0635
30
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Circuit diagram
11 Circuit diagram
05.08.99
YACD0059
31
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Circuit diagram
230V; 50Hz ◆ 230V; 50/60Hz ◆ [230V; 60Hz] at serial no: X01
E 1xx E 2xx E 3xx
A 1 Printed circuit board „Mains“ UL 487-1 UL 487-1 UL 487-1
A 2 Printed circuit board „Display“ UL 488-1A UL 488-1B UL 488-1C
A 3 Printed circuit board serial interface RS 232/RS 485 ---------- UL 490 UL 490
A 4 Printed circuit board Mains LED-Backlight --------- --------- UL 492
A 5 Printed circuit board Display LED-Backlight --------- --------- EAO 015
B 1 Pt100 probe safety circuit ETP 057 ETP 057 ETP 057
B 2 Pt100 probe actual value
E 1 Heater 1,5 kW EH 168 --------- ---------E 2 Heater 2,25 kW ---------- EH 169 EH 169
M 1 Pump motor EM 109 EM 109 EM 109
S 1 Mains switch EST 101 EST 101 EST 101
U 3 SSR (BRT22H) Y 1 output A1 --------- EYI 158 --------X 1 Mains connection EKN 001 EKN 001 EKN 001
X 2 Lock screw --------- 2x EQZ 048 2x EQZ 048
X 8 Connection socket Cooling (Stakei 2) --------- --------- EQK 004
X 10 Connection socket Cooling unit (Stakei 200) --------- --------- EQD 037
X 13 Housing 2pol. --------- --------- EQF 067
X 21 Plug strip terminal 12pol. EQF 079 EQF 079 EQF 079
X 23 Line up terminal 2pol. --------- --------- EZK 063
115V; 60Hz ◆ [100V; 50/60Hz] at serial no: X01
EQZ 006
EQZ 006
E 1xx E 2xx E 3xx
A 1 Printed circuit board „Mains“ UL 499 UL 499 UL 499
A 2 Printed circuit board „Display“ UL 488-1A UL 488-1B UL 488-1C
A 3 Printed circuit board serial interface RS 232/RS 485 ---------- UL 490 UL 490
A 4 Printed circuit board Mains LED-Backlight --------- --------- UL 492
A 5 Printed circuit board Display LED-Backlight --------- --------- EAO 015
B 1 Pt100 probe safety circuit ETP 057 ETP 057 ETP 057
B 2 Pt100 probe actual value
E 1 Heater 1,3 kW at 115V
1,0 kW at 100V
M 1 Pump motor EM 109 EM 109 EM 109
S 1 Mains switch EST 101 EST 101 EST 101
U 3 SSR (BRT22H) Y 1 output A1 --------- EYI 158 --------X 1 Mains connection EKN 003 EKN 003 EKN 003
X 2 Lock screw --------- 2x EQZ 048 2x EQZ 048
X 8 Connection socket Cooling (Stakei 2) --------- --------- EQK 004
X 10 Connection socket Cooling unit (Stakei 200) --------- --------- EQD 037
X 13 Housing 2pol. --------- --------- EQF 067
X 21 Plug strip terminal 12pol. EQF 079 EQF 079 EQF 079
X 23 Line up terminal 2pol. --------- --------- EZK 063
EH 171 EH 171 EH 171
EQZ 006
EQZ 006
32
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
BESTÄTIGUNG / CONFIRMATION / CONFIRMATION
An
To / A
/
LAUDA Dr. R. Wobser • LAUDA Service Center • Fax: +49 (0) 9343 - 503-222
Von
:
From / De
/
:
Firma
Straße
Ort
Tel
Fax
Betreiber
ompany / Entreprise
/ C
/ S
City / Ville
/
treet / Rue
:
:
:
.:
:
esponsible person / Personne responsable
/ R
:
Hiermit bestätigen wir, daß nachfolgend aufgeführtes LAUDA-Gerät (Daten vom Typenschild):
We herewith confirm that the following LAUDA-equipment (see label):
Par la présente nous confirmons que l’appareil LAUDA (voir plaque signalétique):
Typ
Type / Type
/
:
Serien-Nr.
Serial no. / No. de série:
/
mit folgendem Medium betrieben wurde
was used with the below mentioned media
a été utilisé avec le liquide suivant
Darüber hinaus bestätigen wir, daß das oben aufgeführte Gerät sorgfältig gereinigt wurde,
die Anschlüsse verschlossen sind, und sich weder giftige, aggressive, radioaktive noch
andere gefährliche Medien in dem Gerät befinden.
Additionally we confirm that the above mentioned equipment has been cleaned, that all connectors are closed
and that there are no poisonous, aggressive, radioactive or other dangerous media inside the equipment.
D’autre part, nous confirmons que l’appareil mentionné ci-dessus a été nettoyé correctement, que les
tubulures sont fermées et qu’il n’y a aucun produit toxique, agressif, radioactif ou autre produit nocif ou
dangeureux dans la cuve.
Stempel
Seal / Cachet.
Formblatt / Form / Formulaire: Unbedenk.doc
Erstellt / published / établi: LSC
Änd.-Stand / config-level / Version: 0.1
Datum / date: 30.10.1998
Datum
Date / Date
LAUDA DR. R. WOBSER GmbH & Co. KG
Pfarrstraße 41/43 Tel: +49 (0)9343 / 503-0
D - 97922 Lauda-Königshofen Fax: +49 (0)9343 / 503-222
Internet: http://www.lauda.de E-mail: info@lauda.de
Betreiber
Responsible person / Personne responsable
UNBEDENK.DOC
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Artisan Technology Group is your source for quality
new and certied-used/pre-owned equipment
• FAST SHIPPING AND
DELIVERY
• TENS OF THOUSANDS OF
IN-STOCK ITEMS
• EQUIPMENT DEMOS
• HUNDREDS OF
MANUFACTURERS
SUPPORTED
• LEASING/MONTHLY
RENTALS
• ITAR CERTIFIED
SECURE ASSET SOLUTIONS
SERVICE CENTER REPAIRS
Experienced engineers and technicians on staff
at our full-service, in-house repair center
Instra
Remotely inspect equipment before purchasing with
our interactive website at www.instraview.com
Contact us: (888) 88-SOURCE | sales@artisantg.com | www.artisantg.com
SM
REMOTE INSPECTION
View
WE BUY USED EQUIPMENT
Sell your excess, underutilized, and idle used equipment
We also offer credit for buy-backs and trade-ins
www.artisantg.com/WeBuyEquipment
LOOKING FOR MORE INFORMATION?
Visit us on the web at www.artisantg.com for more
information on price quotations, drivers, technical
specications, manuals, and documentation
Loading...
