EVDK Based Vehicle Classification

EVDK Based Vehicle Classification User Guide

Contents

Acronyms in This Document ................................................................................................................................................. 4

1. Introduction .................................................................................................................................................................. 5

2. Functional Description .................................................................................................................................................. 6

3. Demo Setup .................................................................................................................................................................. 8

3.1. Hardware Requirements ..................................................................................................................................... 8

3.2. Software and Firmware Requirements ............................................................................................................... 8

3.3. Board Settings ..................................................................................................................................................... 8

4. Programming the Demo ............................................................................................................................................. 11

4.1. Programming the MicroSD Card Firmware ....................................................................................................... 11

5. Running the Demo ...................................................................................................................................................... 13

Technical Support ............................................................................................................................................................... 15

Revision History .................................................................................................................................................................. 16

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

2 FPGA-UG-02073-1.0

EVDK Based Vehicle Classification User Guide

Figures

Figure 2.1. Lattice EVDK with MicroSD Card Adapter Board ................................................................................................ 6

Figure 2.2. Vehicle Classification Demo Diagram ................................................................................................................. 7

Figure 3.1. Back View of ECP5 VIP Input Bridge Board ......................................................................................................... 9

Figure 3.2. Top View of CrossLink VIP Input Bridge Board ................................................................................................. 10

Figure 4.1. Connecting the MicroSD Card ........................................................................................................................... 11

Figure 4.2. Win32 Disk Imager ............................................................................................................................................ 12

Figure 5.1. Example Output with Car Image ....................................................................................................................... 13

Figure 5.2. Example Output with Truck Image ................................................................................................................... 14

Figure 5.3. Example Output with Motorbike Image ........................................................................................................... 14

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02073-1.0 3

EVDK Based Vehicle Classification

Acronym

Definition

CNN

Convolutional Neural Network

EVDK

Embedded Vision Development Kit

FPGA

Field-Programmable Gate Array

LED

Light-emitting diode

MLE

Machine Learning Engine

SDHC

Secure Digital High Capacity

SDXC

Secure Digital eXtended Capacity

SPI

Serial Peripheral Interface

VIP

Video Interface Platform

USB

Universal Serial Bus

Neural Network

User Guide

Acronyms in This Document

A list of acronyms used in this document.

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

4 FPGA-UG-02073-1.0

EVDK Based Vehicle Classification User Guide

1. Introduction

This document provides technical information and instructions for setting up and running the EVDK Based Vehicle Classification Demo. This demo is designed to utilize the Lattice Machine Learning Engine (MLE) IP and is implemented on the Lattice Embedded Vision Development Kit (EVDK). The EVDK based vehicle classification demo takes image data from one of the cameras on the EVDK and feeds it through a CNN and outputs the input image with a bounding box overlay through the HDMI Output. The color of the bounding box and a letter indicate the vehicle class.

Refer to the following documents for detailed information on Lattice development boards and kit:

 Lattice Embedded Vision Development Kit User Guide (FPGA-UG-02015)  CrossLink VIP Input Bridge Board Evaluation Board User Guide (FPGA-EB-02002)  ECP5 VIP Processor Board Evaluation Board User Guide (FPGA-EB-02001)  HDMI VIP Output Bridge Board Evaluation Board User Guide (FPGA-EB-02003)

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02073-1.0 5

EVDK Based Vehicle Classification

CrossLink VIP

Input Bridge Board

ECP5 VIP

Processor Board

HDMI VIP Output

Bridge Board

MicroSD Card

Adapter Board

Camera Sensor CN2

Camera Sensor CN1

User Guide

2. Functional Description

The EVDK Based Vehicle Classification Demo is designed to utilize the Lattice Embedded Vision Development Kit with MicroSD Card Adapter Board, as shown in Figure 2.1.

The Lattice Embedded Vision Development Kit features a stackable modular architecture consisting of three boards:

 CrossLink Video Interface Platform (VIP) Input Bridge Board  ECP5 VIP Processor Board  HDMI VIP Output Bridge Board

Figure 2.1 shows Revision C of the Embedded Vision Development Kit. For earlier revisions, refer to the user guide of

the specific evaluation board. For more information on the Embedded Vision Development Kit, visit the Lattice website

Embedded Vision Development Kit page.

The firmware, which holds the CNN training results (from Caffe tool) is stored inside the SD card. The MLE classifies input images and generates a bounding box and class designation which is shown as an overlay on the output image.

As shown in Figure 2.2, the video data taken by the camera sensor (CN2) on the CrossLink VIP Input Bridge Board are fed into the ECP5 VIP Processor Board where the MLE processes the image data. This data, with weights and biases from the firmware, is used to create the bounding box and classification overlay.

The implementation of this demo in ECP5-85 consists of 8 Neural Network engines (NN) engines.

Figure 2.1. Lattice EVDK with MicroSD Card Adapter Board

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

6 FPGA-UG-02073-1.0

EVDK Based Vehicle Classification

ECP5

ECP5 VIP

Processor Board

Crosslink VIP Input

Bridge Board

External

Camera

MicroSD Card

Adapter Board

External

MicroSD

Card

External

DRAM

DDR3

Control

Machine Learning Engine

(MLE)

Frame Data

224x224

Result

HDMI VIP Output

Bridge Board

External

HDMI

AXI

Slave

Loader

CSI2_to_DVI_top

HDMI_I2C_top

Video Processing

Lattice IP

(Clarity)

Lattice VIP

Module

Lattice EVDK

Component

User Guide

Figure 2.2. Vehicle Classification Demo Diagram

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02073-1.0 7

EVDK Based Vehicle Classification User Guide

3. Demo Setup

This section describes the demo setup.

3.1. Hardware Requirements

 Lattice Embedded Vision Development Kit (LF-EVDK1-EVN)

 Mini-USB Cable (Included in the kit)

 12 V Power Supply (Included in the kit)  HDMI Cable  HDMI Monitor (1080p60)  MicroSD Card Adapter (MICROSD-ADP-EVN)  MicroSD Card (Standard only - less than 2 GB, not SDHC/SDXC and others)

3.2. Software and Firmware Requirements

 Diamond Programmer (Refer to www.latticesemi.com/programmer)  Programming files for Embedded Vision Development Kit

 Dual_Camera_to_Parallel_Crosslink.bit (targets CrossLink)

 vehicle_classification_demo_ecp5.bit (targets ECP5)  MicroSD card Image writer software (Win32diskimager)

 URL link: https://sourceforge.net/projects/win32diskimager/  MicroSD card image

 vehicle_classification_demo.bin

3.3. Board Settings

Before programming the boards, perform the following steps:

On the ECP5 VIP Input Bridge Board, make sure the jumper settings are as shown in Figure 3.1. On the CrossLink VIP Processor Board (Figure 3.2), ensure that SW2 is ON to power the board (LEDs should be ON). Connect the 12 V power supply to the barrel plug J4. Connect the mini-USB cable from the PC to the mini-USB connector J2.

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

8 FPGA-UG-02073-1.0

EVDK Based Vehicle Classification

ECP5

Configuration

Selection

Header (J3)

JTAG Daisy Chain

Header (J50)

ispClock

User (J54)

JTAG

Header

(J1)

Bank 2 Voltage

Selection Header

(J55)

Debug Header (J14)

Power ON/OFF Switch (SW2)

User LEDs

Bank 0 Voltage Selection Header (J7)

FTDI TCK Pull Up/Down (J52)

General Purpose

Switches (SW3)

Bank 4

Voltage Selection Header (J51)

Bank 1, 8, 3 Voltage

Selection Headers

(J6, J9, J5)

ispClock5406D

(U53)

ProgramN (SW4)

Upstream

Connector

(J11)

Upstream

Connector (J10)

Nanovesta

Connectors (CN1, CN2)

12V DC Power

Jack (J4) (Front)

USB Mini-B

Connector (J2) (Front)

User Guide

Figure 3.1. Back View of ECP5 VIP Input Bridge Board

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02073-1.0 9

EVDK Based Vehicle Classification

SPI Flash (U9)

Flash Chip

Select (J4)

CRESETB Selection (J30)

External Programming

Header (J29)

Wakeup

(SW1)

System Reset

(SW3)

User LEDs

(D7-D10)

Power LEDs

External Clock Connection (J22)

Debug Header

(J28)

Clock Selection

Header (J23)

Sensor Reset (SW2)

IMX214 Camera Sensor

Connector (CN1)

IMX214 Camera Sensor Connector (CN2)

FPGA SPI Chip Select (J2)

LIF-MD6000-CSFBGA81 (U4)

User Guide

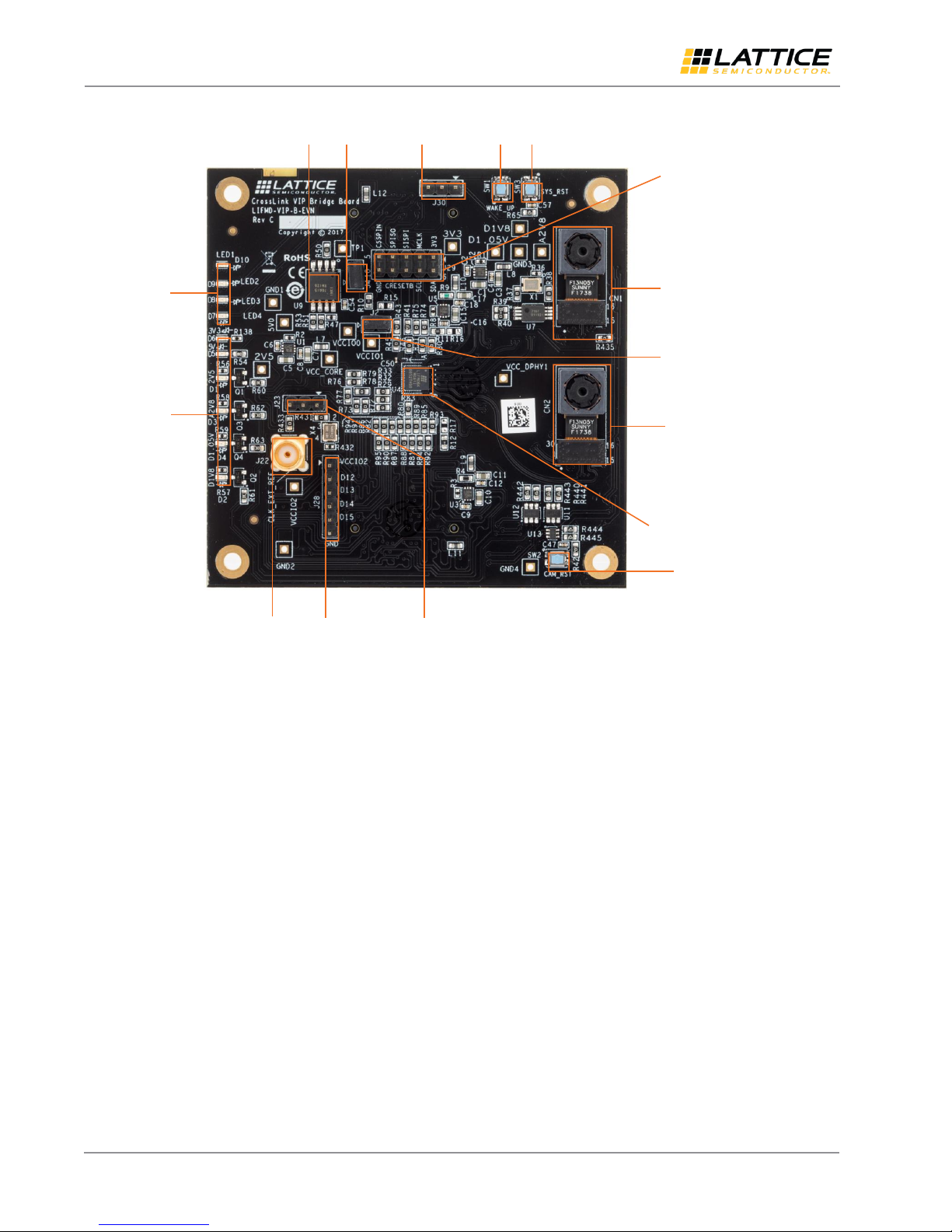

Figure 3.2. Top View of CrossLink VIP Input Bridge Board

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

10 FPGA-UG-02073-1.0

EVDK Based Vehicle Classification

User Guide

4. Programming the Demo

Both the CrossLink VIP Input Bridge Board and the ECP5 VIP Processor Board must be configured and programmed.

Also, the demo design firmware must be programmed onto the MicroSD card which is plugged into the MicroSD Card

Adaptor Board. For instructions on programming the ECP5 and Crosslink devices, refer to the Lattice Embedded Vision

Development Kit User Guide (FPGA-UG-02015).

4.1. Programming the MicroSD Card Firmware

To write the image to the MicroSD Card:

Download and install the Win32diskimager Image Writer software from the following link:

https://sourceforge.net/projects/win32diskimager/.

Use Win32diskimager to write the appropriate Flash image file to the SD memory card. Depending on your PC, you

may need a separate adapter (not described in this document) to physically connect to the card. See the

Programming the Demo section to determine the file for the specific demo.

Connect the MicroSD Card as shown in Figure 4.1.

In Win32 Disk Imager, select the image file ~/Demonstration/vehicle_classification_demo.bin as shown in

Figure 4.2.

Select the card reader in Device. Click Write.

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02073-1.0 11

Figure 4.1. Connecting the MicroSD Card

EVDK Based Vehicle Classification User Guide

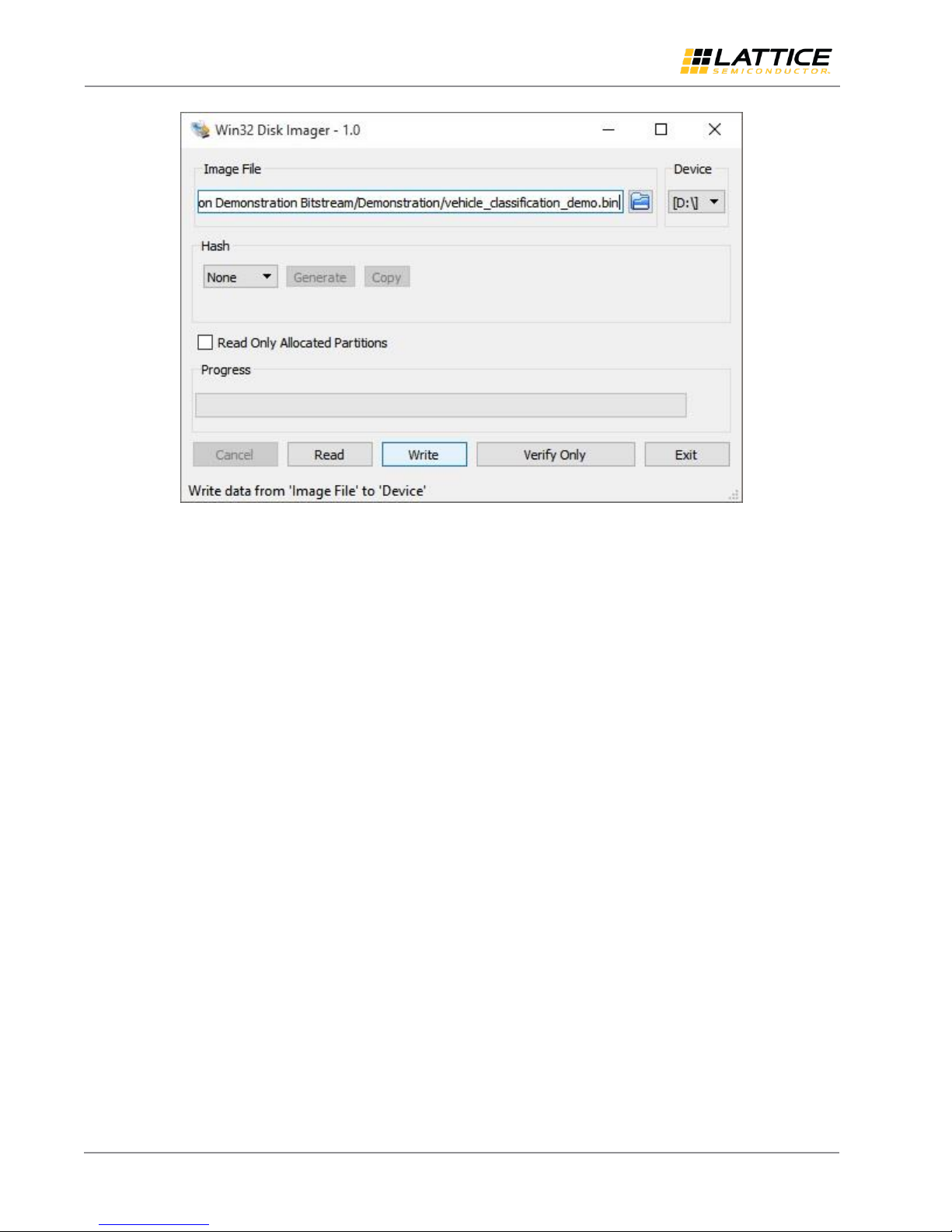

Figure 4.2. Win32 Disk Imager

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

12 FPGA-UG-02073-1.0

EVDK Based Vehicle Classification

User Guide

5. Running the Demo

To run the demo:

Insert the configured MicroSD Card into the MicroSD Card Adapter, and connect it to the Embedded Vision

Development Kit.

Cycle the power on the Embedded Vision Development Kit to allow ECP5 and CrossLink to be reconfigured from

Flash.

Connect the Embedded Vision Development Kit to the HDMI monitor. The camera image should be displayed on

monitor.

Place image for classification in front of the camera. If a vehicle is detected, a bounding box is shown along with a

classification letter as follows:

 Car -- Red box and L (Light)  Truck -- Green box and H (Heavy)  Motorbike or bicycle -- Blue box and T (Two-wheeler)

Some example outputs are shown below (Figure 5.1, Figure 5.3, and Figure 5.2).

Note: Since demo firmware/information is written to non-volatile Flash memory, it runs at power-up.

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02073-1.0 13

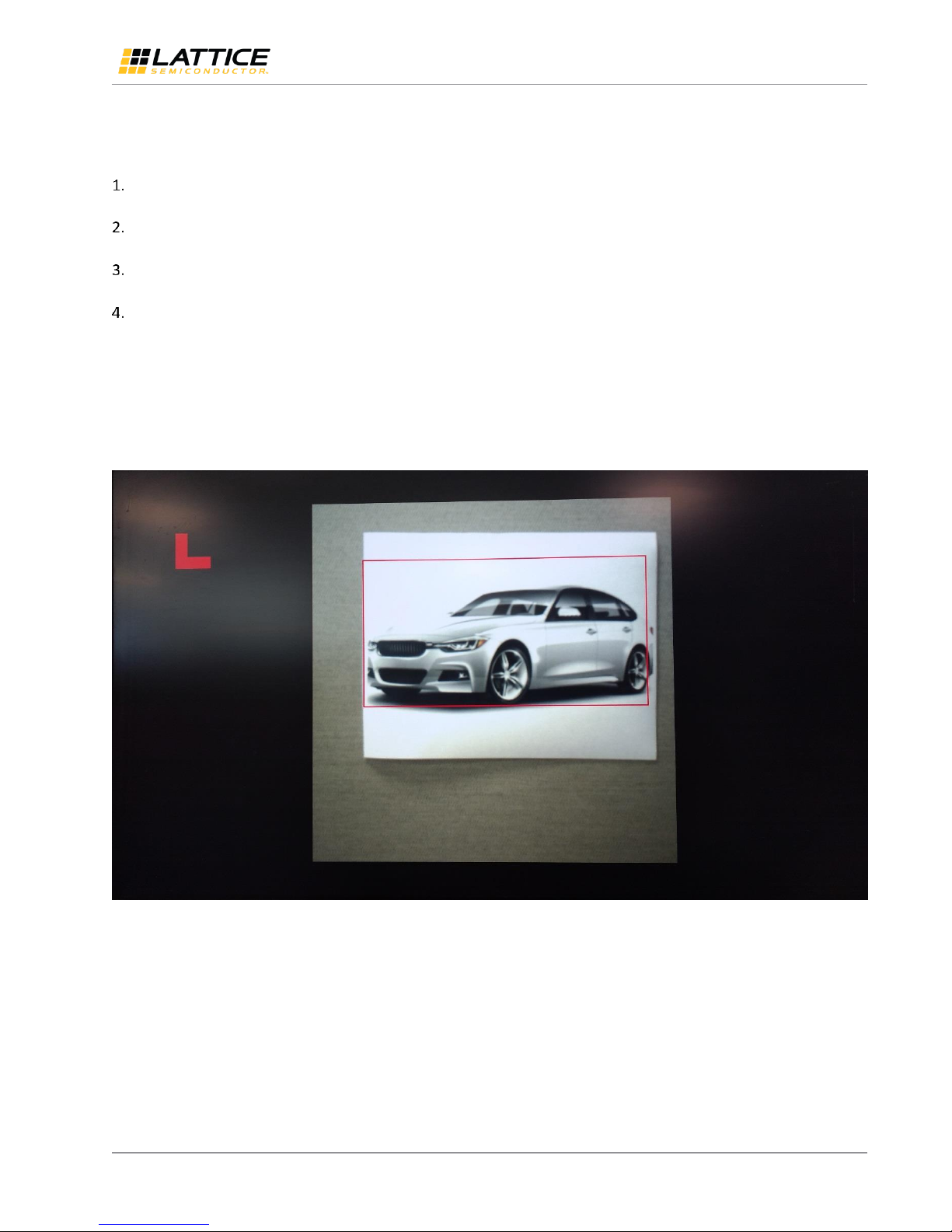

Figure 5.1. Example Output with Car Image

EVDK Based Vehicle Classification User Guide

Figure 5.2. Example Output with Truck Image

Figure 5.3. Example Output with Motorbike Image

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

14 FPGA-UG-02073-1.0

EVDK Based Vehicle Classification

User Guide

Technical Support

For assistance, submit a technical support case at www.latticesemi.com/techsupport.

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02073-1.0 15

EVDK Based Vehicle Classification

Section

Change Summary

All

Initial release.

User Guide

Revision History

Revision 1.0, September 2018

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
