Lattice ispPAC-POWR1014 User Manual

g

g

■

■

■

■

■

■

■

®

ispPAC-POWR1014/A

In-System Programmable Power Supply Supervisor,

Reset Generator and Sequencing Controller

August 2007 Data Sheet DS1014

Features

Monitor and Control Multiple Power Supplies

• Simultaneously monitors up to 10 power
supplies

• Provides up to 14 output control signals

• Programmable digital and analog circuitry

Embedded PLD for Sequence Control

• 24-macrocell CPLD implements both state
machines and combinatorial logic functions

Embedded Programmable Timers

• Four independent timers

• 32µs to 2 second intervals for timing sequences

Analog Input Monitoring

• 10 independent analog monitor inputs

• Two programmable threshold comparators per
analog input

• Hardware window comparison

• 10-bit ADC for I
POWR1014A only)

High-Voltage FET Drivers

• Power supply ramp up/down control

• Programmable current and voltage output

• Independently configurable for FET control or
digital output

2-Wire (I

2

C/SMBus™ Compatible) Interface

• Comparator status monitor

• ADC readout

• Direct control of inputs and outputs

• Power sequence control

• Only available with ispPAC-POWR1014A

3.3V Operation, Wide Supply Range 2.8V to

3.96V

• In-system programmable through JTAG

• Industrial temperature range: -40°C to +85°C

• 48-pin TQFP package, lead-free option

2

C monitoring (ispPAC-

Application Block Diagram

Primary

Supply

Primary

Supply

Primary

Supply

Primary

Supply

Primary

Supply

*ispPAC-POWR1014A only.

3.3V

2.5V

1.8V

POL#1

POL#N

ADC*

10 Analog Inputs

and Voltage Monitors

ispPAC-POWR1014A

4 Timers

Enables

12 Digital

Outputs

24 Macrocells

4 Digital

Inputs

Other Control/Supervisory

Signals

2 MOSFET

Drivers

CPLD

53 Inputs

2

C

I

Interface

2

I

Bus*

Voltage

C

Other Board Circuitry

Monitoring

ital Monitorin

Di

CPU

Description

Lattice’s Power Manager II ispPAC-POWR1014/A is a
general-purpose power-supply monitor and sequence
controller, incorporating both in-system programmable
logic and in-system programmable analog functions
implemented in non-volatile E
ispPAC-POWR1014/A device provides 10 independent
analog input channels to monitor up to 10 power supply
test points. Each of these input channels has two inde­pendently programmable comparators to support both
high/low and in-bounds/out-of-bounds (window-com­pare) monitor functions. Four general-purpose digital
inputs are also provided for miscellaneous control func­tions.

2

CMOS

®

technology. The

The ispPAC-POWR1014/A provides 14 open-drain digi­tal outputs that can be used for controlling DC-DC con­verters, low-drop-out regulators (LDOs) and opto­couplers, as well as for supervisory and general-pur­pose logic interface functions. Two of these outputs

© 2007 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal. All other
brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without
notice.

www.latticesemi.com

(HVOUT1-HVOUT2) may be configured as high-voltage

1

DS1014_01.5

n

n

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

MOSFET drivers. In high-voltage mode these outputs can provide up to 10V for driving the gates of n-channel
MOSFETs so that they can be used as high-side power switches controlling the supplies with a programmable
ramp rate for both ramp up and ramp down.

The ispPAC-POWR1014/A incorporates a 24-macrocell CPLD that can be used to implement complex state
machine sequencing for the control of multiple power supplies as well as combinatorial logic functions. The status
of all of the comparators on the analog input channels as well as the general purpose digital inputs are used as
inputs by the CPLD array, and all digital outputs may be controlled by the CPLD. Four independently programmable
timers can create delays and time-outs ranging from 32µs to 2 seconds. The CPLD is programmed using Logi­Builder™, an easy-to-learn language integrated into the PAC-Designer
monitor the status of any of the analog input channel comparators or the digital inputs.

The on-chip 10-bit A/D converter is used to monitor the V

MON

POWR1014A device.

2

The I

C bus/SMBus interface allows an external microcontroller to measure the voltages connected to the V

inputs, read back the status of each of the V

comparator and PLD outputs, control logic signals IN2 to IN4 and

MON

control the output pins (ispPAC-POWR1014A only).

®

software. Control sequences are written to

voltage through the I

2

C bus of the ispPAC-

MON

Figure 1. ispPAC-POWR1014/A Block Diagram

ADC*

VMON1
VMON2
VMON3
VMON4
VMON5
VMON6
VMON7
VMON8
VMON9

VMON10

IN1
IN2
IN3
IN4

A
N
D

V
O
L
T
A

E G

N O M
I

T
O
R
S

I

N
P

T U
S

1
0

A
N
A
L
O
G

I

N
P

S T U

4
D
I

G
I

T
A
L

VCCINP

VCCA

VCCD (2)

V

C
C
P
R
O
G

JTAG LOGIC

T

V

T

T

C

D

C

K

O

C

S M

J

TDISEL

T
D
I

A
T
D
I

MEASUREMENT

CONTROL LOGIC*

CPLD

24 MACROCELLS

53 INPUTS

CLOCK

OSCILLATOR

P

M

L

C
L

C D

K

L
K

R
S E
T E

b

TIMERS

(4)

O
U
T

P
U

P

T

O

R

O

O

L

G N I T U

I2C

INTERFACE

SCL (POWR1014A o

SDA (POWR1014A o

GNDA

D
R

2

I

V
R E

S

G I D
T I

L A
O

T U
P
U
T
S

F
T E

1
2

O
P
E
N

-

D
R

I A

N

GNDD (2)

HVOUT1
HVOUT2

OUT3/(SMBA*)
OUT4
OUT5
OUT6
OUT7
OUT8
OUT9
OUT10
OUT11
OUT12
OUT13
OUT14

*ispPAC-POWR1014A only.

2

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Pin Descriptions

Number Name Pin Type Voltage Range Description

44 IN1 Digital Input VCCINP

46 IN2 Digital Input VCCINP

47 IN3 Digital Input VCCINP

48 IN4 Digital Input VCCINP

25 VMON1 Analog Input -0.3V to 5.87V

26 VMON2 Analog Input -0.3V to 5.87V

27 VMON3 Analog Input -0.3V to 5.87V

28 VMON4 Analog Input -0.3V to 5.87V

32 VMON5 Analog Input -0.3V to 5.87V

33 VMON6 Analog Input -0.3V to 5.87V

34 VMON7 Analog Input -0.3V to 5.87V

35 VMON8 Analog Input -0.3V to 5.87V

36 VMON9 Analog Input -0.3V to 5.87V

37 VMON10 Analog Input -0.3V to 5.87V

7, 31 GNDD

30 GNDA

41, 23 VCCD

29 VCCA

5

5

6

6

Ground Ground Digital Ground

Ground Ground Analog Ground

Power 2.8V to 3.96V Core VCC, Main Power Supply

Power 2.8V to 3.96V Analog Power Supply

45 VCCINP Power 2.25V to 5.5V VCC for IN[1:4] Inputs

20 VCCJ Power 2.25V to 3.6V VCC for JTAG Logic Interface Pins

24 VCCPROG Power 3.0V to 3.6V

7

Open Drain Output

15 HVOUT1

Current Source/Sink

Open Drain Output

14 HVOUT2

Current Source/Sink

13 SMBA_OUT3 Open Drain Output

12 OUT4 Open Drain Output

11 OUT5 Open Drain Output

10 OUT6 Open Drain Output

9 OUT7 Open Drain Output

8 OUT8 Open Drain Output

6 OUT9 Open Drain Output

5 OUT10 Open Drain Output

4 OUT11 Open Drain Output

3 OUT12 Open Drain Output

2 OUT13 Open Drain Output

1 OUT14 Open Drain Output

8

40 RESETb

Digital I/O 0V to 3.96V Device Reset (Active Low) - Internal pull-up

0V to 10V Open-Drain Output 1

12.5µA to 100µA Source
100µA to 3000µA Sink

7

0V to 10V Open-Drain Output 2

12.5µA to 100µA Source
100µA to 3000µA Sink

7

0V to 5.5V

7

0V to 5.5V Open-Drain Output 4

7

0V to 5.5V Open-Drain Output 5

7

0V to 5.5V Open-Drain Output 6

7

0V to 5.5V Open-Drain Output 7

7

0V to 5.5V Open-Drain Output 8

7

0V to 5.5V Open-Drain Output 9

7

0V to 5.5V Open-Drain Output 10

7

0V to 5.5V Open-Drain Output 11

7

0V to 5.5V Open-Drain Output 12

7

0V to 5.5V Open-Drain Output 13

7

0V to 5.5V Open-Drain Output 14

42 PLDCLK Digital Output 0V to 3.96V

1

1

1

1

4

4

4

4

4

4

4

4

4

4

PLD Logic Input 1 Registered by MCLK

PLD Logic Input 2 Registered by MCLK

PLD Logic Input 3 Registered by MCLK

PLD Logic Input 4 Registered by MCLK

Voltage Monitor 1 Input

Voltage Monitor 2 Input

Voltage Monitor 3 Input

Voltage Monitor 4 Input

Voltage Monitor 5 Input

Voltage Monitor 6 Input

Voltage Monitor 7 Input

Voltage Monitor 8 Input

Voltage Monitor 9 Input

Voltage Monitor 10 Input

VCC for E
Powered by V

2

Programming when the Device is Not

and V

CCD

CCA

High-voltage FET Gate Driver 1

High-voltage FET Gate Driver 2

Open-Drain Output 3, (SMBUS Alert Active Low,
ispPAC-POWR1014A only).

250kHz PLD Clock Output (Tristate), CMOS
Output - Internal pull-up

3

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Pin Descriptions (Cont.)

Number Name Pin Type Voltage Range Description

43 MCLK Digital I/O 0V to 3.96V

21 TDO Digital Output 0V to 5.5V JTAG Test Data Out

22 TCK Digital Input 0V to 5.5V JTAG Test Clock Input

16 TMS Digital Input 0V to 5.5V JTAG Test Mode Select - Internal Pull-up

18 TDI Digital Input 0V to 5.5V

17 ATDI Digital Input 0V to 5.5V

19 TDISEL Digital Input 0V to 5.5V Select TDI/ATDI Input - Internal Pull-up

39 SCL

38 SDA

1. [IN1...IN4] are inputs to the PLD. The thresholds for these pins are referenced by the voltage on VCCINP. Unused INx inputs should be tied
to GNDD.

2. IN1 pin can also be controlled through JTAG interface.

3. [IN2..IN4] can also be controlled through I

4. The VMON inputs can be biased independently from VCCA. Unused VMON inputs should be tied to GNDD.

5. GNDA and GNDD pins must be connected together on the circuit board.

6. VCCD and VCCA pins must be connected together on the circuit board.

7. Open-drain outputs require an external pull-up resistor to a supply.

8. The RESETb pin should only

9. These pins should be connected to GNDD (ispPAC-POWR1014 device only).

9

9

Digital Input 0V to 5.5V I

Digital I/O 0V to 5.5V

2

C/SMBus interface (ispPAC-POWR1014A only).

be used for cascading two or more ispPAC-POWR1014/A devices.

8MHz Clock I/O (Tristate), CMOS Drive - Internal
Pull-up

JTAG Test Data In, TDISEL pin = 1 - Internal
Pull-up

JTAG Test Data In (Alternate), TDISEL Pin = 0 ­Internal Pull-up

2

C Serial Clock Input (ispPAC-POWR1014A Only)

2

I

C Serial Data, Bi-directional Pin, Open Drain

(ispPAC-POWR1014A Only)

4

C

C

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Absolute Maximum Ratings

Absolute maximum ratings are shown in the table below. Stresses beyond those listed may cause permanent dam­age to the device. Functional operation of the device at these or any other conditions beyond those indicated in the
recommended operating conditions of this specification is not implied.

Symbol Parameter Conditions Min. Max. Units

V

CCD

V

CCA

V

CCINP

V

CCJ

V

CCPROG

V

IN

V

MON

V

TRI

I

SINKMAXTOTAL

T

S

T

A

Core supply -0.5 4.5 V

Analog supply -0.5 4.5 V

Digital input supply (IN[1:4]) -0.5 6 V

JTAG logic supply -0.5 6 V

2

E

programming supply -0.5 4 V

Digital input voltage (all digital I/O pins) -0.5 6 V

V

input voltage -0.5 6 V

MON

Voltage applied to tri-stated pins

HVOUT[1:2] -0.5 11 V

OUT[3:14] -0.5 6 V

Maximum sink current on any output 23 mA

Storage temperature -65 150

Ambient temperature -65 125

o

C

o

Recommended Operating Conditions

Symbol Parameter Conditions Min. Max. Units

V

CCD,

V

CCINP

V

CCJ

V

CCPROG

V

IN

V

MON

V

CCA

Core supply voltage at pin 2.8 3.96 V

Digital input supply for IN[1:4] at pin 2.25 5.5 V

JTAG logic supply voltage at pin 2.25 3.6 V

2

E

programming supply at pin During E

2

programming 3.0 3.6 V

Input voltage at digital input pins -0.3 5.5 V

Input voltage at V

pins -0.3 5.9 V

MON

OUT[3:14] pins -0.3 5.5 V

V

OUT

T

APROG

T

A

Open-drain output voltage

Ambient temperature during
programming

HVOUT[1:2] pins in open­drain mode

-0.3 10.4 V

-40 85

Ambient temperature Power applied -40 85

Analog Specifications

Symbol Parameter Conditions Min. Typ. Max. Units

1

I

CC

I

CCINP

I

CCJ

I

CCPROG

1. Includes currents on V

Supply current 20 mA

Supply current 5mA

Supply current 1mA

Supply current During programming cycle 20 mA

CCD

and V

supplies.

CCA

o

C

o

5

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Voltage Monitors

Symbol Parameter Conditions Min. Typ. Max. Units

R

IN

C

IN

V

Range Programmable trip-point range 0.075 5.867 V

MON

V

Sense Near-ground sense threshold 70 75 80 mV

Z

V

Accuracy Absolute accuracy of any trip-point

MON

HYST

1. Guaranteed by characterization across V

Input resistance 55 65 75 k

Input capacitance 8 pF

1

Hysteresis of any trip-point (relative to
setting)

range, operating temperature, process.

CCA

0.3 0.9 %

1%

Ω

High Voltage FET Drivers

Symbol Parameter Conditions Min. Typ. Max. Units

10V setting 9.6 10 10.4

V

PP

I

OUTSRC

I

OUTSINK

Gate driver output voltage

Gate driver source current
(HIGH state)

Gate driver sink current
(LOW state)

6V setting 5.8 6 6.2

12.5

Four settings in software

25

50

100

FAST OFF mode 2000 3000

100

Controlled ramp settings

250

500

V8V setting 7.7 8 8.3

µA

µA

6

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

ADC Characteristics

1

Symbol Parameter Conditions Min. Typ. Max. Units

ADC resolution 10 Bits

T

CONVERT

V

IN

ADC Step Size LSB

Conversion time Time from I2C request 100 µs

Input range full scale

Programmable attenuator = 1 0 2.048 V

Programmable attenuator = 3 0 5.9

2

Programmable attenuator = 1 2 mV

Programmable attenuator = 3 6 mV

Eattenuator Error due to attenuator Programmable attenuator = 3 +/- 0.1 %

1. ispPAC-POWR1014A only.

2. Maximum voltage is limited by V

ADC Error Budget Across Entire Operating Temperature Range

pin (theoretical maximum is 6.144V).

MONX

1

Symbol Parameter Conditions Min. Typ. Max. Units

TADC Error

1. ispPAC-POWR1014A only.

2. Total error, guaranteed by characterization, includes INL, DNL, Gain, Offset, and PSR specs of the ADC.

Total Measurement Error at
Any Voltage

2

Measurement Range 600 mV - 2.048V,
Attenuator =1

-8 +/-4 8 mV

Power-On Reset

Symbol Parameter Conditions Min. Typ. Max. Units

T

GOOD

V

TL

V

TH

V

T

T

POR

C

L

1. Corresponds to VCCA and VCCD supply voltages.

Power-on reset to valid VMON comparator
output

Threshold below which RESETb is LOW

Threshold above which RESETb is HIGH

Threshold above which RESETb is valid

Minimum duration dropout required to trigger
RESETb

Capacitive load on RESETb for master/slave
operation

1

1

1

2.7 V

0.8 V

15µs

500 µs

2.3 V

200 pF

V

7

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

AC/Transient Characteristics

Over Recommended Operating Conditions

Symbol Parameter Conditions Min. Typ. Max. Units

Voltage Monitors

t

PD16

t

PD64

Propagation delay input to
output glitch filter OFF

Propagation delay input to
output glitch filter ON

Oscillators

f

CLK

f

CLKEXT

f

PLDCLK

Internal master clock
frequency (MCLK)

Externally applied master
clock (MCLK)

PLDCLK output frequency f

Timers

Timeout Range

Resolution

Range of programmable
timers (128 steps)

Spacing between available
adjacent timer intervals

Accuracy Timer accuracy f

7.6 8 8.4 MHz

7.2 8.8 MHz

= 8MHz 250 kHz

CLK

= 8MHz 0.032 1966 ms

f

CLK

= 8MHz -6.67 -12.5 %

CLK

16 µs

64 µs

13 %

8

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Digital Specifications

Over Recommended Operating Conditions

Symbol Parameter Conditions Min. Typ. Max. Units

I

IL,IIH

I

OH-HVOUT

I

PU

V

IL

V

IH

V

OL

V

OH

I

SINKTOTAL

1. IN[1:4] referenced to V

2. Sum of maximum current sink from all digital outputs combined. Reliable operation is not guaranteed if this value is exceeded.

Input leakage, no pull-up/pull-down +/-10 µA

HVOUT[1:2] in open

Output leakage current

drain mode and pulled

35 60 µA

up to 10V

Input pull-up current (TMS, TDI,
TDISEL, ATDI, MCLK, PLDCLK,

70 µA

RESETb)

TDI, TMS, ATDI,
TDISEL, 3.3V supply

Voltage input, logic low

1

TDI, TMS, ATDI,
TDISEL, 2.5V supply

SCL, SDA 30% V

IN[1:4] 30% V

TDI, TMS, ATDI,
TDISEL, 3.3V supply

Voltage input, logic high

1

TDI, TMS, ATDI,
TDISEL, 2.5V supply

SCL, SDA 70% V

IN[1:4] 70% V

HVOUT[1:2] (open drain mode), I

TDO,MCLK,PLDCLK I

TDO, MCLK, PLDCLK I

2

All digital outputs 67 mA

; TDO, TDI, TMS, ATDI, TDISEL referenced to V

CCINP

= 10mA 0.8

SINK

= 20mA 0.8

SINK

= 4mA 0.4

SINK

= 4mA V

SRC

CCJ

2.0

1.7

CCD

CCINP

; SCL, SDA referenced to V

CCD.

0.8

0.7

CCD

CCINP

V

CCD

V

CCINP

- 0.4 V

CCD

V

V

VOUT[3:14] I

9

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

I2C Port Characteristics

1

Symbol Definition

F

I2C

T

SU;STA

T

HD;STA

T

SU;DAT

T

SU;STO

T

HD;DAT

T

LOW

T

HIGH

T

F

T

R

T

TIMEOUT

T

POR

T

BUF

1. Applies to ispPAC-POWR1014A only.

2. If F

is less than 50kHz, then the ADC DONE status bit is not guaranteed to be set after a valid conversion request is completed. In this

I2C

case, waiting for the T
readout. When F

I2C clock/data rate 100

After start 4.7 0.6 us

After start 4 0.6 us

Data setup 250 100 ns

Stop setup 4 0.6 us

Data hold; SCL= Vih_min = 2.1V 0.3 3.45 0.3 0.9 us

Clock low period 4.7 10 1.3 10 us

Clock high period 4 0.6 us

Fall time; 2.25V to 0.65V 300 300 ns

Rise time; 0.65V to 2.25V 1000 300 ns

Detect clock low timeout 25 35 25 35 ms

Device must be operational after power-on reset 500 500 ms

Bus free time between stop and start condition 4.7 1.3 us

CONVERT

is greater than 50kHz, ADC conversion complete is ensured by waiting for the DONE status bit.

I2C

minimum time after a convert request is made is the only way to guarantee a valid conversion is ready for

100KHz 400KHz

2

400

UnitsMin. Max. Min. Max.

2

KHz

10

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Timing for JTAG Operations

Symbol Parameter Conditions Min. Typ. Max. Units

t

ISPEN

t

ISPDIS

t

HVDIS

t

HVDIS

t

CEN

t

CDIS

t

SU1

t

H

t

CKH

t

CKL

f

MAX

t

CO

t

PWV

t

PWP

Figure 2. Erase (User Erase or Erase All) Timing Diagram

Program enable delay time 10 — — µs

Program disable delay time 30 — — µs

High voltage discharge time, program 30 — — µs

High voltage discharge time, erase 200 — — µs

Falling edge of TCK to TDO active — — 10 ns

Falling edge of TCK to TDO disable — — 10 ns

Setup time 5 — — ns

Hold time 10 — — ns

TCK clock pulse width, high 20 — — ns

TCK clock pulse width, low 20 — — ns

Maximum TCK clock frequency — — 25 MHz

Falling edge of TCK to valid output — — 10 ns

Verify pulse width 30 — — µs

Programming pulse width 20 — — ms

VIH

TMS

VIL

t

SU1

VIH

TCK

VIL

Update-IR Run-Test/Idle (Erase) Select-DR Scan

State

t

t

SU1

H

t

CKH tGKL

t

H

Figure 3. Programming Timing Diagram

VIH

TMS

VIL

TCK

State

t

SU1

VIH

VIL

Update-IR Run-Test/Idle (Program) Select-DR Scan

t

t

SU1

H

t

t

CKH

CKL

CKH

t

SU1

t

SU2

t

t

SU1

H

t

CKL

t

H

t

CKH

t

H

t

CKH

t

SU1

t

H

t

H

t

CKH

t

SU1

t

PWP

t

t

SU1

Instruction, then clock to the Run-Test/Idle state

Clock to Shift-IR state and shift in the Discharge

t

H

CKH

t

t

SU1

H

t

t

CKH

GKL

Run-Test/Idle (Discharge)

t

SU1

t

H

t

CKH

Specified by the Data Sheet

t

Update-IR

Clock to Shift-IR state and shift in the next

Instruction, which will stop the discharge process

11

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Figure 4. Verify Timing Diagram

VIH

TMS

VIL

t

H

t

CKH

TCK

VIH

t

t

SU1

VIL

t

H

SU1

t

t

CKH

CKL

t

H

t

SU1

t

PWV

t

H

t

CKH

t

SU1

t

t

H

SU1

t

CKH

t

CKL

State

Update-IR Run-Test/Idle (Program) Select-DR Scan

Update-IR

Clock to Shift-IR state and shift in the next Instruction

Figure 5. Discharge Timing Diagram

t

(Actual)

t

SU1

Clock to Shift-IR state and shift in the Verify

Instruction, then clock to the Run-Test/Idle state

HVDIS

t

t

H

SU1

t

t

CKH

CKL

Run-Test/Idle (Verify)

t

H

t

CKH

Specified by the Data Sheet

t

PWV

t

SU1

t

PWV

Actual

t

H

t

CKH

TMS

TCK

State

VIH

VIL

t

H

VIH

VIL

t

t

SU1

t

H

SU1

t

CKH tCKL

Update-IR Run-Test/Idle (Erase or Program)

t

SU1

t

PWP

t

H

t

CKH

Select-DR Scan

Theory of Operation

Analog Monitor Inputs

The ispPAC-POWR1014/A provides 10 independently programmable voltage monitor input circuits as shown in
Figure 6. Two individually programmable trip-point comparators are connected to an analog monitoring input. Each
comparator reference has 372 programmable trip points over the range of 0.672V to 5.867V. Additionally, a 75mV
‘zero-detect’ threshold is selectable which allows the voltage monitors to determine if a monitored signal has
dropped to ground level. This feature is especially useful for determining if a power supply’s output has decayed to
a substantially inactive condition after it has been switched off.

12

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

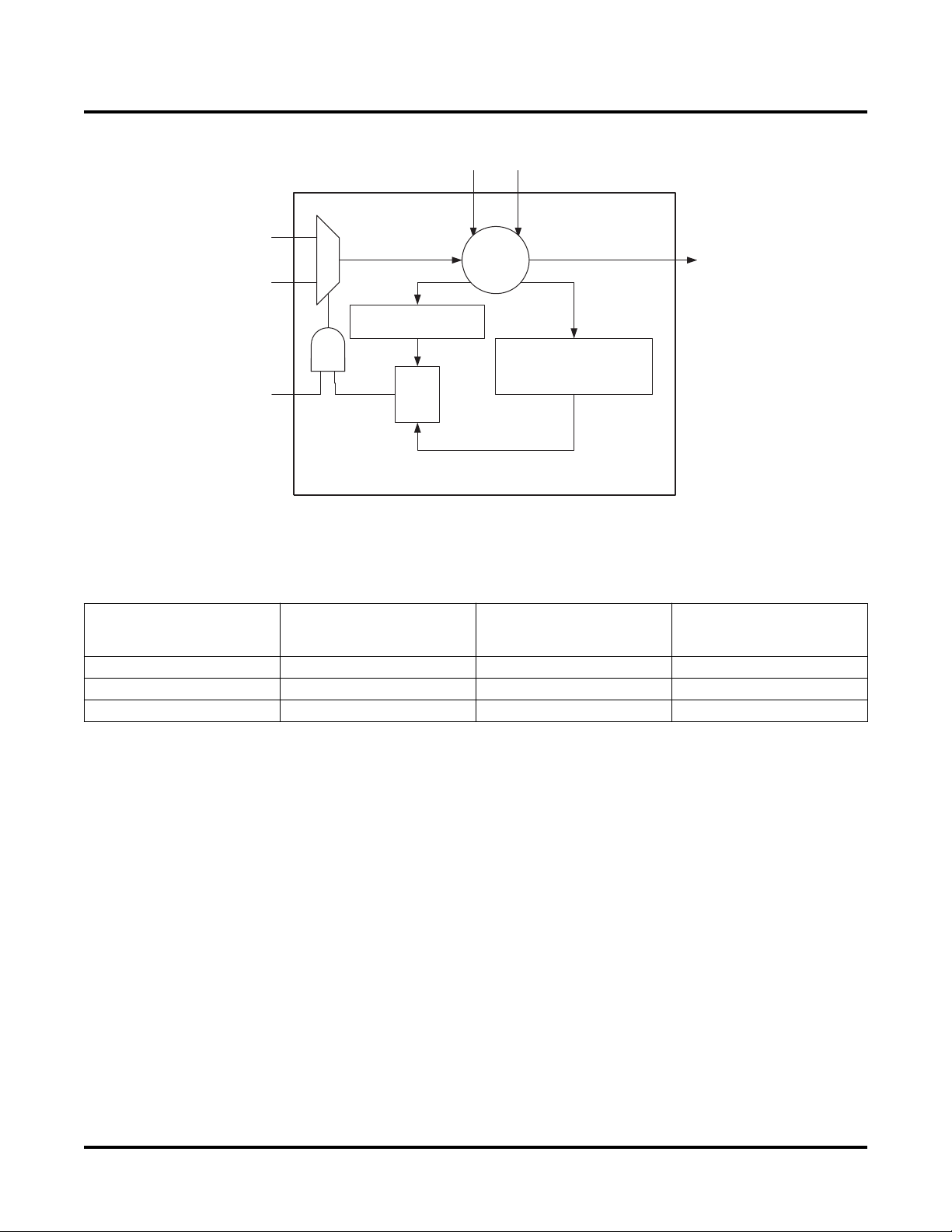

Figure 6. ispPAC-POWR1014/A Voltage Monitors

ispPAC-POWR1014/A

To ADC
(POWR1014A only)

Comp A/Window

Select

MUX

Glitch

Filter

Glitch

Filter

VMONxA

Logic

Signal

VMONxB

Logic

Signal

PLD

Array

VMONx

Trip Point A

Trip Point B

Comp A

+

–

Comp B

+

–

Analog Input

Window Control

Filtering

VMONx Status

I2C Interface

Unit (POWR1014A

only)

Figure 6 shows the functional block diagram of one of the 10 voltage monitor inputs - ‘x’ (where x = 1...10). Each
voltage monitor can be divided into three sections: Analog Input, Window Control, and Filtering.

The voltage input is monitored by two individually programmable trip-point comparators, shown as CompA and
CompB. Table 1 shows all trip points and the range to which any comparator’s threshold can be set.

Each comparator outputs a HIGH signal to the PLD array if the voltage at its positive terminal is greater than its pro­grammed trip point setting, otherwise it outputs a LOW signal.

A hysteresis of approximately 1% of the setpoint is provided by the comparators to reduce false triggering as a
result of input noise. The hysteresis provided by the voltage monitor is a function of the input divider setting. Table 3
lists the typical hysteresis versus voltage monitor trip-point.

AGOOD Logic Signal

All the VMON comparators auto-calibrate immediately after a power-on reset event. During this time, the digital
glitch filters are also initialized. This process completion is signalled by an internally generated logic signal:
AGOOD. All logic using the VMON comparator logic signals must wait for the AGOOD signal to become active.

Programmable Over-Voltage and Under-Voltage Thresholds

Figure 7 (a) shows the power supply ramp-up and ramp-down voltage waveforms. Because of hysteresis, the com­parator outputs change state at different thresholds depending on the direction of excursion of the monitored power
supply.

13

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Figure 7. (a) Power Supply Voltage Ramp-up and Ramp-down Waveform and the Resulting Comparator
Output, (b) Corresponding to Upper and Lower Trip Points

UTP

LTP

(a)

Monitored Power Supply Votlage

(b)

Comparator Logic Output

During power supply ramp-up the comparator output changes from logic 0 to 1 when the power supply voltage
crosses the upper trip point (UTP). During ramp down the comparator output changes from logic state 1 to 0 when
the power supply voltage crosses the lower trip point (LTP). To monitor for over voltage fault conditions, the UTP
should be used. To monitor under-voltage fault conditions, the LTP should be used.

Tables 1 and 2 show both the under-voltage and over-voltage trip points, which are automatically selected in soft­ware depending on whether the user is monitoring for an over-voltage condition or an under-voltage condition.

14

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Table 1. Trip Point Table Used For Over-Voltage Detection

Coarse Range Setting

Fine

Range

Setting 123456789101112

1 0.806 0.960 1.143 1.360 1.612 1.923 2.290 2.719 3.223 3.839 4.926 5.867

2 0.802 0.955 1.137 1.353 1.603 1.913 2.278 2.705 3.206 3.819 4.900 5.836

3 0.797 0.950 1.131 1.346 1.595 1.903 2.266 2.691 3.190 3.799 4.875 5.806

4 0.793 0.945 1.125 1.338 1.586 1.893 2.254 2.677 3.173 3.779 4.849 5.775

5 0.789 0.940 1.119 1.331 1.578 1.883 2.242 2.663 3.156 3.759 4.823 5.745

6 0.785 0.935 1.113 1.324 1.570 1.873 2.230 2.649 3.139 3.739 4.798 5.714

7 0.781 0.930 1.107 1.317 1.561 1.863 2.219 2.634 3.122 3.719 4.772 5.683

8 0.776 0.925 1.101 1.310 1.553 1.853 2.207 2.620 3.106 3.699 4.746 5.653

9 0.772 0.920 1.095 1.303 1.544 1.843 2.195 2.606 3.089 3.679 4.721 5.622

10 0.768 0.915 1.089 1.296 1.536 1.833 2.183 2.592 3.072 3.659 4.695 5.592

11 0.764 0.910 1.083 1.289 1.528 1.823 2.171 2.578 3.055 3.639 4.669 5.561

12 0.760 0.905 1.077 1.282 1.519 1.813 2.159 2.564 3.038 3.619 4.644 5.531

13 0.755 0.900 1.071 1.275 1.511 1.803 2.147 2.550 3.022 3.599 4.618 5.500

14 0.751 0.895 1.065 1.268 1.502 1.793 2.135 2.535 3.005 3.579 4.592 5.470

15 0.747 0.890 1.059 1.261 1.494 1.783 2.123 2.521 2.988 3.559 4.567 5.439

16 0.743 0.885 1.053 1.254 1.486 1.773 2.111 2.507 2.971 3.539 4.541 5.408

17 0.739 0.880 1.047 1.246 1.477 1.763 2.099 2.493 2.954 3.519 4.515 5.378

18 0.734 0.875 1.041 1.239 1.469 1.753 2.087 2.479 2.938 3.499 4.490 5.347

19 0.730 0.870 1.035 1.232 1.460 1.743 2.075 2.465 2.921 3.479 4.464 5.317

20 0.726 0.865 1.029 1.225 1.452 1.733 2.063 2.450 2.904 3.459 4.438 5.286

21 0.722 0.860 1.024 1.218 1.444 1.723 2.052 2.436 2.887 3.439 4.413 5.256

22 0.718 0.855 1.018 1.211 1.435 1.713 2.040 2.422 2.871 3.419 4.387 5.225

23 0.713 0.850 1.012 1.204 1.427 1.703 2.028 2.408 2.854 3.399 4.361 5.195

24 0.709 0.845 1.006 1.197 1.418 1.693 2.016 2.394 2.837 3.379 4.336 5.164

25 0.705 0.840 1.000 1.190 1.410 1.683 2.004 2.380 2.820 3.359 4.310 5.133

26 0.701 0.835 0.994 1.183 1.402 1.673 1.992 2.365 2.803 3.339 4.284 5.103

27 0.697 0.830 0.988 1.176 1.393 1.663 1.980 2.351 2.787 3.319 4.259 5.072

28 0.692 0.825 0.982 1.169 1.385 1.653 1.968 2.337 2.770 3.299 4.233 5.042

29 0.688 0.820 0.976 1.161 1.377 1.643 1.956 2.323 2.753 3.279 4.207 5.011

30 0.684 0.815 0.970 1.154 1.368 1.633 1.944 2.309 2.736 3.259 4.182 4.981

31 0.680 0.810 0.964 1.147 — 1.623 1.932 2.295 — 3.239 4.156 4.950

Low-V
Sense

75mV

15

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Table 2. Trip Point Table Used For Under-Voltage Detection

Fine

Range

Setting 123456789101112

1 0.797 0.950 1.131 1.346 1.595 1.903 2.266 2.691 3.190 3.799 4.875 5.806

2 0.793 0.945 1.125 1.338 1.586 1.893 2.254 2.677 3.173 3.779 4.849 5.775

3 0.789 0.940 1.119 1.331 1.578 1.883 2.242 2.663 3.156 3.759 4.823 5.745

4 0.785 0.935 1.113 1.324 1.570 1.873 2.230 2.649 3.139 3.739 4.798 5.714

5 0.781 0.930 1.107 1.317 1.561 1.863 2.219 2.634 3.122 3.719 4.772 5.683

6 0.776 0.925 1.101 1.310 1.553 1.853 2.207 2.620 3.106 3.699 4.746 5.653

7 0.772 0.920 1.095 1.303 1.544 1.843 2.195 2.606 3.089 3.679 4.721 5.622

8 0.768 0.915 1.089 1.296 1.536 1.833 2.183 2.592 3.072 3.659 4.695 5.592

9 0.764 0.910 1.083 1.289 1.528 1.823 2.171 2.578 3.055 3.639 4.669 5.561

10 0.760 0.905 1.077 1.282 1.519 1.813 2.159 2.564 3.038 3.619 4.644 5.531

11 0.755 0.900 1.071 1.275 1.511 1.803 2.147 2.550 3.022 3.599 4.618 5.500

12 0.751 0.895 1.065 1.268 1.502 1.793 2.135 2.535 3.005 3.579 4.592 5.470

13 0.747 0.890 1.059 1.261 1.494 1.783 2.123 2.521 2.988 3.559 4.567 5.439

14 0.743 0.885 1.053 1.254 1.486 1.773 2.111 2.507 2.971 3.539 4.541 5.408

15 0.739 0.880 1.047 1.246 1.477 1.763 2.099 2.493 2.954 3.519 4.515 5.378

16 0.734 0.875 1.041 1.239 1.469 1.753 2.087 2.479 2.938 3.499 4.490 5.347

17 0.730 0.870 1.035 1.232 1.460 1.743 2.075 2.465 2.921 3.479 4.464 5.317

18 0.726 0.865 1.029 1.225 1.452 1.733 2.063 2.450 2.904 3.459 4.438 5.286

19 0.722 0.860 1.024 1.218 1.444 1.723 2.052 2.436 2.887 3.439 4.413 5.256

20 0.718 0.855 1.018 1.211 1.435 1.713 2.040 2.422 2.871 3.419 4.387 5.225

21 0.713 0.850 1.012 1.204 1.427 1.703 2.028 2.408 2.854 3.399 4.361 5.195

22 0.709 0.845 1.006 1.197 1.418 1.693 2.016 2.394 2.837 3.379 4.336 5.164

23 0.705 0.840 1.000 1.190 1.410 1.683 2.004 2.380 2.820 3.359 4.310 5.133

24 0.701 0.835 0.994 1.183 1.402 1.673 1.992 2.365 2.803 3.339 4.284 5.103

25 0.697 0.830 0.988 1.176 1.393 1.663 1.980 2.351 2.787 3.319 4.259 5.072

26 0.692 0.825 0.982 1.169 1.385 1.653 1.968 2.337 2.770 3.299 4.233 5.042

27 0.688 0.820 0.976 1.161 1.377 1.643 1.956 2.323 2.753 3.279 4.207 5.011

28 0.684 0.815 0.970 1.154 1.368 1.633 1.944 2.309 2.736 3.259 4.182 4.981

29 0.680 0.810 0.964 1.147 1.360 1.623 1.932 2.295 2.719 3.239 4.156 4.950

30 0.676 0.805 0.958 1.140 1.352 1.613 1.920 2.281 2.702 3.219 4.130 4.919

31 0.672 0.800 0.952 1.133 - 1.603 1.908 2.267 - 3.199 4.105 4.889

Low-V
Sense

75mV

16

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Table 3. Comparator Hysteresis vs. Trip-Point

Trip-point Range (V)

Hysteresis (mV)Low Limit High Limit

0.672 0.806 8

0.800 0.960 10

0.952 1.143 12

1.133 1.360 14

1.346 1.612 17

1.603 1.923 20

1.908 2.290 24

2.267 2.719 28

2.691 3.223 34

3.199 3.839 40

4.105 4.926 51

4.889 5.867 61

75 mV 0 (Disabled)

The window control section of the voltage monitor circuit is an AND gate (with inputs: an inverted COMPA “ANDed”
with COMPB signal) and a multiplexer that supports the ability to develop a ‘window’ function without using any of
the PLD’s resources. Through the use of the multiplexer, voltage monitor’s ‘A’ output may be set to report either the
status of the ‘A’ comparator, or the window function of both comparator outputs. The voltage monitor’s ‘A’ output
indicates whether the input signal is between or outside the two comparator thresholds. Important: This windowing
function is only valid in cases where the threshold of the ‘A’ comparator is set to a value higher than that of the ‘B’
comparator. Table 4 shows the operation of window function logic.

Table 4. Voltage Monitor Windowing Logic

Input Voltage Comp A Comp B

< Trip-point B < Trip-point A 0 0 0 Outside window, low

V

IN

Trip-point B < V

Trip-point B < Trip-point A < V

< Trip-point A 0 1 1 Inside window

IN

IN

1 1 0 Outside window, high

Window

(B and Not A) Comment

Note that when the ‘A’ output of the voltage monitor circuit is set to windowing mode, the ‘B’ output continues to
monitor the output of the ‘B’ comparator. This can be useful in that the ‘B’ output can be used to augment the win­dowing function by determining if the input is above or below the windowing range.

The third section in the ispPAC-POWR1014/A’s input voltage monitor is a digital filter. When enabled, the compara­tor output will be delayed by a filter time constant of 64 µs, and is especially useful for reducing the possibility of
false triggering from noise that may be present on the voltages being monitored. When the filter is disabled, the
comparator output will be delayed by 16µs. In both cases, enabled or disabled, the filters also provide synchroniza­tion of the input signals to the PLD clock. This synchronous sampling feature effectively eliminates the possibility of
race conditions from occurring in any subsequent logic that is implemented in the ispPAC-POWR1014/A’s internal
PLD logic.

2

The comparator status can be read from the I

C interface (ispPAC-POWR1014A only). For details on the I2C inter-

face, please refer to the I2C/SMBUS Interface section of this data sheet.

17

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

VMON Voltage Measurement with the On-chip Analog to Digital Converter (ADC, ispPAC­POWR1014A Only)

The ispPAC-POWR1014A has an on-chip analog to digital converter that can be used for measuring the voltages at
the VMON inputs.

Figure 8. ADC Monitoring VMON1 to VMON10

VMON1

VMON2

VMON3

VMON10

VDDA

VCCINP

Programmable Analog

Attenuator

ADC

MUX

4

From I2C ADC MUX Register

(ispPAC-POWR1014A Only)

÷3 / ÷1

1

5

ADC

Internal

VREF- 2.048V

Programmable

Digital Multiplier

x3 / x1

10

To I2C Readout Register

12

(ispPAC-POWR1014A Only)

Figure 8 shows the ADC circuit arrangement within the ispPAC-POWR1014A device. The ADC can measure all
analog input voltages through the multiplexer, ADC MUX. The programmable attenuator between the ADC mux and
the ADC can be configured as divided-by-3 or divided-by-1 (no attenuation). The divided-by-3 setting is used to
measure voltages from 0V to 6V range and divided-by-1 setting is used to measure the voltages from 0V to 2V
range.

A microcontroller can place a request for any VMON voltage measurement at any time through the I2C bus (isp­PAC-POWR1014A only). Upon the receipt of an I2C command, the ADC will be connected to the I2C selected
VMON through the ADC MUX. The ADC output is then latched into the I2C readout registers.

Calculation

The algorithm to convert the ADC code to the corresponding voltage takes into consideration the attenuation bit
value. In other words, if the attenuation bit is set, then the 10-bit ADC result is automatically multiplied by 3 to cal­culate the actual voltage at that VMON input. Thus, the I2C readout register is 12 bits instead of 10 bits. The follow­ing formula can always be used to calculate the actual voltage from the ADC code.

Voltage at the VMONx Pins

VMON = I2C Readout Register (12 bits1, converted to decimal) * 2mV

1

Note: ADC_VALUE_HIGH (8 bits), ADC_VALUE_LOW (4 bits) read from I2C/SMBUS interface (ispPAC-POWR1014A only).

18

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

PLD Block

Figure 9 shows the ispPAC-POWR1014/A PLD architecture, which is derived from the Lattice's ispMACH™ 4000
CPLD. The PLD architecture allows the flexibility in designing various state machines and control functions used for
power supply management. The AND array has 53 inputs and generates 123 product terms. These 123 product
terms are divided into three groups of 41 for each of the generic logic blocks, GLB1, GLB2, and GLB3. Each GLB
is made up of eight macrocells. In total, there are 24 macrocells in the ispPAC-POWR1014/A device. The output
signals of the ispPAC-POWR1014/A device are derived from GLBs as shown in Figure 9. GLB3 generates timer
control.

Figure 9. ispPAC-POWR1014/A PLD Architecture

Global Reset
(Resetb pin)

GLB1

AGOOD

IN[1:4]

Generic Logic Block

41

4

8 Macrocell

41 PT

HVOUT[1..2],
OUT[3..8]

VMON[1-10]

Output
Feedback

Timer0
Timer1
Timer2
Timer3

Timer Clock

AND Array

53 Inputs

IRP

123 PT

18

20

4

24

41

41

PLD Clock

GLB2

Generic Logic Block

8 Macrocell

41 PT

GLB3

Generic Logic Block

8 Macrocell

41 PT

OUT[9..14]

Macrocell Architecture

The macrocell shown in Figure 10 is the heart of the PLD. The basic macrocell has five product terms that feed the
OR gate and the flip-flop. The flip-flop in each macrocell is independently configured. It can be programmed to
function as a D-Type or T-Type flip-flop. Combinatorial functions are realized by bypassing the flip-flop. The polarity
control and XOR gates provide additional flexibility for logic synthesis. The flip-flop’s clock is driven from the com­mon PLD clock that is generated by dividing the 8 MHz master clock by 32. The macrocell also supports asynchro­nous reset and preset functions, derived from either product terms, the global reset input, or the power-on reset
signal. The resources within the macrocells share routing and contain a product term allocation array. The product
term allocation array greatly expands the PLD’s ability to implement complex logical functions by allowing logic to
be shared between adjacent blocks and distributing the product terms to allow for wider decode functions.

19

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

C

Figure 10. ispPAC-POWR1014/A Macrocell Block Diagram

Global Reset Power On Reset

Global Polarity Fuse for

Init Product Term

Product Term Allocation

R P

D/T Q

CLK

Macrocell flip-flop provides

D, T, or combinatorial

output with polarity

To PLD Output

PT4

PT3

PT2

PT1

PT0

Block Init Product Term

Polarity

Clock

Clock and Timer Functions

Figure 11 shows a block diagram of the ispPAC-POWR1014/A’s internal clock and timer systems. The master clock
operates at a fixed frequency of 8MHz, from which a fixed 250kHz PLD clock is derived.

Figure 11. Clock and Timer System

lock

PLD

Timer 0

Internal

Oscillator

8MHz

SW0

SW1

MCLK PLDCLK

32

SW2

Timer 1

To/From

PLD

Timer 2

Timer 3

The internal oscillator runs at a fixed frequency of 8 MHz. This signal is used as a source for the PLD and timer
clocks. It is also used for clocking the comparator outputs and clocking the digital filters in the voltage monitor cir-

20

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

cuits and ADC. The ispPAC-POWR1014/A can be programmed to operate in three modes: Master mode, Standal­one mode and Slave mode. Table 5 summarizes the operating modes of ispPAC-POWR1014/A.

Table 5. ispPAC-POWR1014/A Operating Modes

Timer

Operating Mode SW0 SW1 Condition Comments

Standalone Closed Open When only one ispPAC-POWR1014/A is used. MCLK pin tristated

Master Closed Closed

Slave Open Closed

When more than one ispPAC-POWR1014/A is
used in a board, one of them should be configured
to operate in this mode.

When more than one ispPAC-POWR1014/As is
used in a board. Other than the master, the rest of
the ispPAC-POWR1014/As should be pro­grammed as slaves.

MCLK pin outputs 8MHz clock

MCLK pin is input

A divide-by-32 prescaler divides the internal 8MHz oscillator (or external clock, if selected) down to 250kHz for the
PLD clock and for the programmable timers. This PLD clock may be made available on the PLDCLK pin by closing
SW2. Each of the four timers provides independent timeout intervals ranging from 32µs to 1.96 seconds in 128
steps.

Digital Outputs

The ispPAC-POWR1014/A provides 14 digital outputs, HVOUT[1:2] and OUT[3:14]. Outputs OUT[3:14] are perma­nently configured as open drain to provide a high degree of flexibility when interfacing to logic signals, LEDs, opto­couplers, and power supply control inputs. The HVOUT[1:2] pins can be configured as either high voltage FET driv­ers or open drain outputs. Each of these outputs may be controlled either from the PLD or from the I
PAC-POWR1014A only). The determination whether a given output is under PLD or I2C control may be made on a
pin-by-pin basis (see Figure 12). For further details on controlling the outputs through I2C, please see the I2C/
SMBUS Interface section of this data sheet.

2

C bus (isp-

Figure 12. Digital Output Pin Configuration

Digital Control

from PLD

Digital Control from I

2

C Register

OUTx

Pin

(ispPAC-POWR1014A only)

High-Voltage Outputs

In addition to being usable as digital open-drain outputs, the ispPAC-POWR1014/A’s HVOUT1-HVOUT2 output
pins can be programmed to operate as high-voltage FET drivers. Figure 13 shows the details of the HVOUT gate
drivers. Each of these outputs may be controlled from the PLD, or with the ispPAC-POWR1014A, from the I2C bus
(see Figure 13). For further details on controlling the outputs through I2C, please see the I2C/SMBUS Interface sec­tion of this data sheet.

21

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Figure 13. Basic Function Diagram for an Output in High Voltage MOSFET Gate Driver Mode

Charge Pump

(6 to 10V)

+

-

Digital Control

from PLD

Digital Control from I

(ispPAC-POWR1014A Only)

2

C Register

I

SINK

(100 to 500 µA)

+Fast Turn-off

(3000µA)

I

SOURCE

(12.5 to 100 µA)

HVOUTx

Input

Supply

Pin

Load

Figure 13 shows the HVOUT circuitry when programmed as a FET driver. In this mode the output either sources
current from a charge pump or sinks current. The maximum voltage that the output level at the pin will rise to is also
programmable between 6V and 10V. The maximum voltage levels that are required depend on the gate-to-source
threshold of the FET being driven and the power supply voltage being switched. The maximum voltage level needs
to be sufficient to bias the gate-to-source threshold on and also accommodate the load voltage at the FET’s
source, since the source pin of the FET to provide a wide range of ramp rates is tied to the supply of the target
board. When the HVOUT pin is sourcing current, charging a FET gate, the source current is programmable
between 12.5µA and 100µA. When the driver is turned to the off state, the driver will sink current to ground, and
this sink current is also programmable between 3000µA and 100µA to control the turn-off rate.

Programmable Output Voltage Levels for HVOUT1- HVOUT2

There are three selectable steps for the output voltage of the FET drivers when in FET driver mode. The voltage
that the pin is capable of driving to can be programmed from 6V to 10V in 2V steps.

RESETb Signal, RESET Command via JTAG or I2C

Activating the RESETb signal (Logic 0 applied to the RESETb pin) or issuing a reset instruction via JTAG, or with
the ispPAC-POWR1014A, I
been configured in the PINS window:

• OUT3-14 will go high-impedance.

• HVOUT pins programmed for open drain operation will go high-impedance.

• HVOUT pins programmed for FET driver mode operation will pull down.

At the conclusion of the RESET event, these outputs will go to the states defined by the PINS window, and if a
sequence has been programmed into the device, it will be re-started at the first step. The analog calibration will be
re-done and consequently, the VMONs, and ADCs will not be operational until 500 microseconds (max.) after the
conclusion of the RESET event.

CAUTION: Activating the RESETb signal or issuing a RESET command through I2C or JTAG during the ispPAC­POWR1014/A device operation, results in the device aborting all operations and returning to the power-on reset
state. The status of the power supplies which are being enabled by the ispPAC-POWR1014/A will be determined by
the state of the outputs shown above.

2

C will force the outputs to the following states independent of how these outputs have

22

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

I2C/SMBUS Interface (ispPAC-POWR1014A Only)

I2C and SMBus are low-speed serial interface protocols designed to enable communications among a number of
devices on a circuit board. The ispPAC-POWR1014A supports a 7-bit addressing of the I2C communications proto­col, as well as SMBTimeout and SMBAlert features of the SMBus, enabling it to easily integrated into many types
of modern power management systems. Figure 14 shows a typical I2C configuration, in which one or more ispPAC­POWR1014As are slaved to a supervisory microcontroller. SDA is used to carry data signals, while SCL provides a
synchronous clock signal. The SMBAlert line is only present in SMBus systems. The 7-bit I2C address of the
POWR1014A is fully programmable through the JTAG port.

Figure 14. ispPAC-POWR1014A in I

V+

SDA

SCL

INTERRUPT

MICROPROCESSOR

2

C MASTER)

(I

2

C/SMBUS System

SDA/SMDAT (DATA)

SCL/SMCLK (CLOCK)

SMBALERT

SDA SDA

POWR1014A

2

C SLAVE)

(I

OUT5/

SCL SCL

SMBA

POWR1014A

2

C SLAVE)

(I

OUT5/
SMBA

To Other

2

I

C

Devices

In both the I2C and SMBus protocols, the bus is controlled by a single MASTER device at any given time. This mas­ter device generates the SCL clock signal and coordinates all data transfers to and from a number of slave devices.
The ispPAC-POWR1014A is configured as a slave device, and cannot independently coordinate data transfers.
Each slave device on a given I2C bus is assigned a unique address. The ispPAC-POWR1014A implements the 7-bit
addressing portion of the standard. Any 7-bit address can be assigned to the ispPAC-POWR1014A device by pro­gramming through JTAG. When selecting a device address, one should note that several addresses are reserved
by the I2C and/or SMBus standards, and should not be assigned to ispPAC-POWR1014A devices to assure bus
compatibility. Table 6 lists these reserved addresses.

Table 6. I

2C/SMBus Reserved Slave Device Addresses

Address R/W bit I2C function Description SMBus Function

0000 000 0 General Call Address General Call Address

0000 000 1 Start Byte Start Byte

0000 001 x CBUS Address CBUS Address

0000 010 x Reserved Reserved

0000 011 x Reserved Reserved

0000 1xx x HS-mode master code HS-mode master code

0001 000 x NA SMBus Host

0001 100 x NA SMBus Alert Response Address

0101 000 x NA Reserved for ACCESS.bus

0110 111 x NA Reserved for ACCESS.bus

1100 001 x NA SMBus Device Default Address

1111 0xx x 10-bit addressing 10-bit addressing

1111 1xx x Reserved Reserved

23

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

The ispPAC-POWR1014A’s I2C/SMBus interface allows data to be both written to and read from the device. A data
write transaction (Figure 15) consists of the following operations:

1. Start the bus transaction

2. Transmit the device address (7 bits) along with a low write bit

3. Transmit the address of the register to be written to (8 bits)

4. Transmit the data to be written (8 bits)

5. Stop the bus transaction

To start the transaction, the master device holds the SCL line high while pulling SDA low. Address and data bits are
then transferred on each successive SCL pulse, in three consecutive byte frames of 9 SCL pulses. Address and
data are transferred on the first 8 SCL clocks in each frame, while an acknowledge signal is asserted by the slave
device on the 9th clock in each frame. Both data and addresses are transferred in a most-significant-bit-first format.
The first frame contains the 7-bit device address, with bit 8 held low to indicate a write operation. The second frame
contains the register address to which data will be written, and the final frame contains the actual data to be writ­ten. Note that the SDA signal is only allowed to change when the SCL is low, as raising SDA when SCL is high sig­nals the end of the transaction.

Figure 15. I

2C Write Operation

SCL

SDA

123456789

A6 A5 A4 A3 A2 A1 A0 R7 R6 R5 R4 R3 R2 R1 R0

START

R/W

123456789 123456789

D7 D6 D5 D4 D3 D2 D1 D0

Note: Shaded Bits Asserted by Slave

ACKACKACK

STOPDEVICE ADDRESS (7 BITS) REGISTER ADDRESS (8 BITS) WRITE DATA (8 BITS)

Reading a data byte from the ispPAC-POWR1014A requires two separate bus transactions (Figure 16). The first
transaction writes the register address from which a data byte is to be read. Note that since no data is being written
to the device, the transaction is concluded after the second byte frame. The second transaction performs the actual
read. The first frame contains the 7-bit device address with the R/W bit held High. In the second frame the ispPAC­POWR1014A asserts data out on the bus in response to the SCL signal. Note that the acknowledge signal in the
second frame is asserted by the master device and not the ispPAC-POWR1014A.

Figure 16. I

2C Read Operation

STEP 1: WRITE REGISTER ADDRESS FOR READ OPERATION

SCL

SDA

START

STEP 2: READ DATA FROM THAT REGISTER

123456789

A6 A5 A4 A3 A2 A1 A0 R7 R6 R5 R4 R3 R2 R1 R0

DEVICE ADDRESS (7 BITS) REGISTER ADDRESS (8 BITS)

R/W

123456789

ACKACK

STOP

SCL

SDA

START

123456789

A6 A5 A4 A3 A2 A1 A0

DEVICE ADDRESS (7 BITS) READ DATA (8 BITS)

R/W

ACK

123456789

D5 D4 D3 D2 D1 D0D6D7

Note: Shaded Bits Asserted by Slave

ACK

OPTIONAL

STOP

The ispPAC-POWR1014A provides 17 registers that can be accessed through its I2C interface. These registers
provide the user with the ability to monitor and control the device’s inputs and outputs, and transfer data to and
from the device. Table 7 provides a summary of these registers.

24

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Table 7. I

2C Control Registers

Register
Address

Register

Name Read/Write Description Value After POR

0x00 vmon_status0 R VMON input status Vmon[4:1] – – – – – – – –

0x01 vmon_status1 R VMON input status Vmon[8:5] – – – –

0x02 vmon_status2 R VMON input status Vmon[10:9] X X X X

0x03 output_status0 R Output status OUT[8:3], HVOUT[2:1] – – – –

0x04 output_status1 R Output status OUT[14:9] X X – –

0x06 input_status R Input status IN[4:1] X X X X

0x07 adc_value_low R ADC D[3:0] and status – – – –

0x08 adc_value_high R ADC D[9:4] X X – –

0x09 adc_mux R/W ADC Attenuator and MUX[3:0] X X X 1

0x0A UES_byte0 R UES[7:0] – – – –

0x0B UES_byte1 R UES[15:8] – – – –

0x0C UES_byte2 R UES[23:16] – – – –

0x0D UES_byte3 R UES[31:24] – – – –

0x0E gp_output1 R/W GPOUT[8:1] 0 0 0 0

0x0F gp_output2 R/W GPOUT[14:9] X X 0 0

0x11 input_value R/W PLD Input State [4:2] X X X X

0x12 reset W Resets device on write N/A

1. “X” = Non-functional bit (bits read out as 1’s).

2. “–” = State depends on device configuration or input status.

– – – –

– – – –

– – – –

– – – –

– – – –

X X X 1

– – – –

1 1 1 1

– – – –

– – – –

– – – –

– – – –

0 1 0 0

0 0 0 0

– – – X

1, 2

Several registers are provided for monitoring the status of the analog inputs. The three registers
VMON_STATUS[0:2] provide the ability to read the status of the VMON output comparators. The ability to read both
the ‘a’ and ‘b’ comparators from each VMON input is provided through the VMON input registers. Note that if a
VMON input is configured to window comparison mode, then the corresponding VMONxA register bit will reflect the
status of the window comparison.

Figure 17. VMON Status Registers

0x00 - VMON_STATUS0 (Read Only)

VMON4B VMON4A VMON3B VMON3A VMON2B VMON2A VMON1B VMON1A

b7 b0

0x01 - VMON_STATUS1 (Read Only)

VMON8B VMON8A VMON7B VMON7A VMON6B VMON6A VMON5B VMON5A

b7 b0

0x02 - VMON_STATUS2 (Read Only)

b7 b0

b6 b5 b4 b3 b2 b1

b6 b5 b4 b3 b2 b1

VMON10B VMON10A VMON9B VMON9A1111

b6 b5 b4 b3 b2 b1

It is also possible to directly read the value of the voltage present on any of the VMON inputs by using the ispPAC­POWR1014A’s ADC. Three registers provide the I2C interface to the ADC (Figure 18).

25

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Figure 18. ADC Interface Registers

0x07 - ADC_VALUE_LOW

D3 D2 D1 D0

b7 b0

0x08 - ADC_VALUE_HIGH

D11 D10 D9 D8 D7 D6 D5 D4

b7 b0

0x09 - ADC_MUX (Read/Write)

X X X ATTEN SEL3 SEL2 SEL1 SEL0

b7 b0

b6 b5 b4 b3 b2 b1

b6 b5 b4 b3 b2 b1

b6 b5 b4 b3 b2 b1

(Read Only)

1 1 1 DONE

(Read Only)

To perform an A/D conversion, one must set the input attenuator and channel selector. Two input ranges may be
set using the attenuator, 0 - 2.048V and 0 - 6.144V. Table 8 shows the input attenuator settings.

Table 8. ADC Input Attenuator Control

ATTEN (ADC_MUX.4) Resolution Full-Scale Range

0 2mV 2.048 V

1 6mV 6.144 V

The input selector may be set to monitor any one of the ten VMON inputs, the VCCA input, or the VCCINP input.
Table 9 shows the codes associated with each input selection.

Table 9. V

Address Selection Table

MON

SEL3

(ADC_MUX.3)

0000VMON1

0001VMON2

0010VMON3

0011VMON4

0100VMON5

0101VMON6

0110VMON7

0111VMON8

1000VMON9

1001VMON10

1100VCCA

1101VCCINP

Select Word

SEL2

(ADC_MUX.2)

SEL1

(ADC_MUX.1)

SEL0

(ADC_MUX.0)

Input Channel

Writing a value to the ADC_MUX register to set the input attenuator and selector will automatically initiate a conver­sion. When the conversion is in process, the DONE bit (ADC_VALUE_LOW.0) will be reset to 0. When the conver­sion is complete, this bit will be set to 1. When the conversion is complete, the result may be read out of the ADC by
performing two I2C read operations; one for ADC_VALUE_LOW, and one for ADC_VALUE_HIGH. It is recom­mended that the I2C master load a second conversion command only after the completion of the current conversion

26

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

command (Waiting for the DONE bit to be set to 1). An alternative would be to wait for a minimum specified time
(see T

CONVERT

value in the specifications) and disregard checking the DONE bit.

Note that if the I2C clock rate falls below 50kHz (see F
conversion is to wait the minimum specified time (T

note in specifications), the only way to insure a valid ADC

I2C

CONVERT

), as the operation of the DONE bit at clock rates lower
than that cannot be guaranteed. In other words, if the I2C clock rate is less than 50kHz, the DONE bit may or may
not assert even though a valid conversion result is available.

To insure every ADC conversion result is valid, preferred operation is to clock I2C at more than 50kHz and verify
DONE bit status or wait for the full T

CONVERT

time period between subsequent ADC convert commands. If an I2C
request is placed before the current conversion is complete, the DONE bit will be set to 1 only after the second
request is complete.

The status of the digital input lines may also be monitored and controlled through I2C commands. Figure 19 shows
the I2C interface to the IN[1:4] digital input lines. The input status may be monitored by reading the INPUT_STATUS
register, while input values to the PLD array may be set by writing to the INPUT_VALUE register. To be able to set
an input value for the PLD array, the input multiplexer associated with that bit needs to be set to the I2C register set­ting in E2CMOS memory otherwise the PLD will receive its input from the INx pin.

Figure 19. I

2C Digital Input Interface

IN1

USERJTAG

IN[2..4]

PLD Output/Input_Value Register Select

Bit

3

3

(E2 Configuration)

3

MUX

2

MUX

PLD

Array

3

Input_Status Input_Value

2

C Interface Unit

I

0x06 - INPUT_STATUS

b7 b0

0x11 - INPUT_VALUE (Read/Write)

XXXX

b7 b0

b6 b5 b4 b3 b2 b1

b6 b5 b4 b3 b2 b1

(Read Only)

IN4 IN3 IN2 IN11111

I4 I3 I2 X

The digital outputs may also be monitored and controlled through the I2C interface, as shown in Figure 20. The sta­tus of any given digital output may be read by reading the contents of the associated OUTPUT_STATUS[1:0] regis­ter. Note that in the case of the outputs, the status reflected by these registers reflects the logic signal used to drive
the pin, and does not sample the actual level present on the output pin. For example, if an output is set high but is

27

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

not pulled up, the output status bit corresponding with that pin will read ‘1’, but a high output signal will not appear
on the pin.

Digital outputs may also be optionally controlled directly by the I2C bus instead of by the PLD array. The outputs
may be driven either from the PLD output or from the contents of the GP_OUTPUT[1:0] registers with the choice
user-settable in E2CMOS memory. Each output may be independently set to output from the PLD or from the
GP_OUTPUT registers.

Figure 20. I

2C Output Monitor and Control Logic

PLD Output/GP_Output Register Select

PLD

Output

Routing

Pool

GP_Output1

GP_Output2

0x03 - OUTPUT_STATUS0

OUT8 OUT7 OUT6 OUT5 HVOUT2 HVOUT1OUT4

b7 b0

2

(E

Configuration)

14

14

MUX

14

2

C Interface Unit

I

(Read Only)

b6 b5 b4 b3 b2 b1

14

Output_Status0

Output_Status1

OUT3

14

HVOUT[1..2]
OUT[3..14]

0x04 - OUTPUT_STATUS1

11

b7 b0

0x0E - GP_OUTPUT1 (Read/Write)

GP8 GP7 GP6 GP5 GP4 GP3_ENb GP2 GP1

b7 b0

0x0F - GP_OUTPUT2 (Read/Write)

X X GP14 GP13 GP12 GP11 GP10 GP9

b7 b0

b6 b5 b4 b3 b2 b1

b6 b5 b4 b3 b2 b1

b6 b5 b4 b3 b2 b1

(Read Only)

OUT14 OUT13 OUT12 OUT11 OUT10 OUT9

The UES word may also be read through the I2C interface, with the register mapping shown in Figure 21.

28

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Figure 21. I

2C Register Mapping for UES Bits

0x0A - UES_BYTE0

UES7 UES6 UES5 UES4 UES3 UES2 UES1 UES0

b7 b0

0x0B - UES_BYTE1

UES15 UES14 UES13 UES12 UES11 UES10 UES9 UES8

b7 b0

0x0C - UES_BYTE2

UES23 UES22 UES21 UES20 UES19 UES18 UES17 UES16

b7 b0

0x0D - UES_BYTE3

UES31 UES30 UES29 UES28 UES27 UES26 UES25 UES24

b7 b0

(Read Only)

b6 b5 b4 b3 b2 b1

(Read Only)

b6 b5 b4 b3 b2 b1

(Read Only)

b6 b5 b4 b3 b2 b1

(Read Only)

b6 b5 b4 b3 b2 b1

The I2C interface also provides the ability to initiate reset operations. The ispPAC-POWR1014A may be reset by
issuing a write of any value to the I2C RESET register (Figure 22). Note: The execution of the I2C reset command is
equivalent to toggling the Resetb pin of the chip. Refer to the Resetb Signal, RESET Command via JTAG or I2C
section of this data sheet for further information.

Figure 22. I

2C Reset Register

0x12 - RESET (Write Only)

XXXXXXXX

b7 b0

b6 b5 b4 b3 b2 b1

29

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

SMBus SMBAlert Function

The ispPAC-POWR1014A provides an SMBus SMBAlert function so that it can request service from the bus mas­ter when it is used as part of an SMBus system. This feature is supported as an alternate function of OUT3. When
the SMBAlert feature is enabled, OUT3 is controlled by a combination of the PLD output and the GP3_ENb bit
(Figure 23). Note: To enable the SMBAlert feature, the SMB_Mode (EECMOS bit) should be set in software.

Figure 23. ispPAC-POWR1014/A SMBAlert Logic

PLD Output/GP_Output Register Select

PLD

Output

Routing

Pool

(E2 Configuration)

MUX

OUT3/SMBA Mode Select

(E2 Configuration)

MUX

OUT3/SMBA

GP3_ENb

SMBAlert

Logic

I2C Interface Unit

The typical flow for an SMBAlert transaction is as follows (Figure 23):

1. GP3_ENb bit is forced (Via I2C write) to Low

2. ispPAC-POWR1014A PLD Logic pulls OUT3/SMBA Low

3. Master responds to interrupt from SMBA line

4. Master broadcasts a read operation using the SMBus Alert Response Address (ARA)

5. ispPAC-POWR1014A responds to read request by transmitting its device address

6. If transmitted device address matches ispPAC-POWR1014A address, it sets GP3_ENb bit high.
This releases OUT3/SMBA.

Figure 24. SMBAlert Bus Transaction

SMBA

SCL

SDA

SLAVE

ASSERTS

SMBA

START

123456789

000110 0

ALERT RESPONSE ADDRESS

(0001 100)

R/W

ACK A4 A3 A2 A1 A0 xA5A6

123456789

ACK

SLAVE ADDRESS (7 BITS)

Note: Shaded Bits Asserted by Slave

SLAVE

RELEASES

SMBA

STOP

After OUT3/SMBA has been released, the bus master (typically a microcontroller) may opt to perform some service
functions in which it may send data to or read data from the ispPAC-POWR1014A. As part of the service functions,
the bus master will typically need to clear whatever condition initiated the SMBAlert request, and will also need to
reset GP3_ENb to re-enable the SMBAlert function. For further information on the SMBus, the user should consult
the SMBus Standard.

30

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Software-Based Design Environment

Designers can configure the ispPAC-POWR1014/A using PAC-Designer, an easy to use, Microsoft Windows com­patible program. Circuit designs are entered graphically and then verified, all within the PAC-Designer environment.
Full device programming is supported using PC parallel port I/O operations and a download cable connected to the
serial programming interface pins of the ispPAC-POWR1014/A. A library of configurations is included with basic
solutions and examples of advanced circuit techniques are available on the Lattice web site for downloading. In
addition, comprehensive on-line and printed documentation is provided that covers all aspects of PAC-Designer
operation. The PAC-Designer schematic window, shown in Figure 25, provides access to all configurable ispPAC­POWR1014/A elements via its graphical user interface. All analog input and output pins are represented. Static or
non-configurable pins such as power, ground, and the serial digital interface are omitted for clarity. Any element in
the schematic window can be accessed via mouse operations as well as menu commands. When completed, con­figurations can be saved, simulated, and downloaded to devices.

Figure 25. PAC-Designer ispPAC-POWR1014/A Design Entry Screen

In-System Programming

The ispPAC-POWR1014/A is an in-system programmable device. This is accomplished by integrating all E2 config­uration memory and control logic on-chip. Programming is performed through a 4-wire, IEEE 1149.1 compliant
serial JTAG interface at normal logic levels. Once a device is programmed, all configuration information is stored
on-chip, in non-volatile E2CMOS memory cells. The specifics of the IEEE 1149.1 serial interface and all ispPAC­POWR1014/A instructions are described in the JTAG interface section of this data sheet.

Programming ispPAC-POWR1014/A: Alternate Method

Some applications require that the ispPAC-POWR1014/A be programmed before turning the power on to the entire
circuit board. To meet such application needs, the ispPAC-POWR1014/A provides an alternate programming
method which enables the programming of the ispPAC-POWR1014/A device through the JTAG chain with a sepa­rate power supply applied just to the programming section of the ispPAC-POWR1014/A device with the main power
supply of the board turned off.

31

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Three special purpose pins, VCCPROG, ATDI and TDISEL, enable programming of the un-programmed ispPAC­POWR1014/A under such circumstances. The VCCPROG pin powers just the programming circuitry of the ispPAC­POWR1014/A device. The ATDI pin provides an alternate connection to the JTAG header while bypassing all the
un-powered devices in the JTAG chain. TDISEL pin enables switching between the ATDI and the standard JTAG
signal TDI. When the internally pulled-up TDISEL = 1, standard TDI pin is enabled and when the TDISEL = 0, ATDI
is enabled.

In order to use this feature the JTAG signals of the ispPAC-POWR1014/A are connected to the header as shown in
Figure 26. Note: The ispPAC-POWR1014/A should be the last device in the JTAG chain.

Figure 26. ispPAC-POWR1014/A Alternate TDI Configuration Diagram

1. Power for
Programming
POWR1014A

VCCJ

VCC

ispPAC-POWR

1014A

TCK

TMS

VCCPROG

TDO

TDISEL

JTAG Signal

Connector

TDI

3. Sequenced Power
Supply Turn-on

VCCJ

VCC

Other JTAG

TDI

Device(s)

TCK

TMS

VCCIO

TDO

2. Initial Power

Supply Turn-On

TDI

ATDI

TCK

TMS

TDO

TDISEL

Alternate TDI Selection Via JTAG Command

When the TDISEL pin held high and four consecutive IDCODE instructions are issued, ispPAC-POWR1014/A
responds by making its active JTAG data input the ATDI pin. When ATDI is selected, data on its TDI pin is ignored
until the JTAG state machine returns to the Test-Logic-Reset state.

This method of selecting ATDI takes advantage of the fact that a JTAG device with an IDCODE register will auto­matically load its unique IDCODE instruction into the Instruction Register after a Test-Logic-Reset. This JTAG capa­bility permits blind interrogation of devices so that their location in a serial chain can be identified without having to
know anything about them in advance. A blind interrogation can be made using only the TMS and TCLK control
pins, which means TDI and TDO are not required for performing the operation. Figure 27 illustrates the logic for
selecting whether the TDI or ATDI pin is the active data input to ispPAC-POWR1014/A.

32

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Figure 27. ispPAC-POWR1014/A TDI/ATDI Pin Selection Diagram

TMS TCK

TDI

ATDI

TDISEL

1

0

Test-Logic-Reset

JTAG

SET

Q

CLR

ispPAC-POWR1014/A

TDO

4 Consecutive
IDCODE Instructions
Loaded at Update-IR

Table 10 shows in truth table form the same conditions required to select either TDI or ATDI as in the logic diagram
found in Figure 27.

Table 10. ispPAC-POWR1014/A ATDI/TDI Selection Table

TDISEL Pin

H No Yes ATDI (TDI Disabled)

HYesNo TDI (ATDI Disabled)

L X X ATDI (TDI Disabled)

JTAG State Machine

Test-Logic-Reset

4 Consecutive

IDCODE Commands

Loaded at Update-IR

Active JTAG

Data Input Pin

Please refer to the Lattice application note AN6068, Programming the ispPAC-POWR1220AT8 in a JTAG Chain
Using ATDI. The application note includes specific SVF code examples and information on the use of Lattice

design tools to verify device operation in alternate TDI mode.

VCCPROG Power Supply Pin

Because the VCCPROG pin directly powers the on-chip programming circuitry, the ispPAC-POWR1014/A device
can be programmed by applying power to the VCCPROG pin (without powering the entire chip though the VCCD
and VCCA pins). In addition, to enable the on-chip JTAG interface circuitry, power should be applied to the VCCJ
pin.

When the ispPAC-POWR1014/A is using the VCCPROG pin, its VCCD and VCCA pins can be open or pulled low.
Additionally, other than JTAG I/O pins, all digital output pins are in Hi-Z state, HVOUT pins configured as MOSFET
driver are driven low, and all other inputs are ignored.

To switch the power supply back to VCCD and VCCA pins, one should turn the VCCPROG supply and VCCJ off
before turning the regular supplies on.

User Electronic Signature

A user electronic signature (UES) feature is included in the E2CMOS memory of the ispPAC-POWR1014/A. This
consists of 32 bits that can be configured by the user to store unique data such as ID codes, revision numbers or

33

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

inventory control data. The specifics of this feature are discussed in the IEEE 1149.1 serial interface section of this
data sheet.

Electronic Security

An electronic security “fuse” (ESF) bit is provided in every ispPAC-POWR1014/A device to prevent unauthorized
readout of the E

2

CMOS configuration bit patterns. Once programmed, this cell prevents further access to the func­tional user bits in the device. This cell can only be erased by reprogramming the device, so the original configura­tion cannot be examined once programmed. Usage of this feature is optional. The specifics of this feature are
discussed in the IEEE 1149.1 serial interface section of this data sheet.

Production Programming Support

Once a final configuration is determined, an ASCII format JEDEC file can be created using the PAC-Designer soft­ware. Devices can then be ordered through the usual supply channels with the user’s specific configuration already
preloaded into the devices. By virtue of its standard interface, compatibility is maintained with existing production
programming equipment, giving customers a wide degree of freedom and flexibility in production planning.

Evaluation Fixture

Because the features of an ispPAC-POWR1014/A are all included in the larger ispPAC-POWR1220AT8 device,
designs implemented in an ispPAC-POWR1014/A can be verified using an ispPAC-POWR1220AT8 engineering
prototype board connected to the parallel port of a PC with a Lattice ispDOWNLOAD® cable. The board demon­strates proper layout techniques and can be used in real time to check circuit operation as part of the design pro­cess. Input and output connections are provided to aid in the evaluation of the functionality implemented in ispPAC­POWR1014/A for a given application. (Figure 28).

Figure 28. Download from a PC

PAC-Designer

Software

ispDOWNLOAD

Cable (6')

4

ispPAC-POWR

Other

System

Circuitry

1220AT8

Device

IEEE Standard 1149.1 Interface (JTAG)

Serial Port Programming Interface Communication with the ispPAC-POWR1014/A is facilitated via an IEEE 1149.1
test access port (TAP). It is used by the ispPAC-POWR1014/A as a serial programming interface. A brief descrip­tion of the ispPAC-POWR1014/A JTAG interface follows. For complete details of the reference specification, refer to
the publication, Standard Test Access Port and Boundary-Scan Architecture, IEEE Std 1149.1-1990 (which now
includes IEEE Std 1149.1a-1993).

Overview

An IEEE 1149.1 test access port (TAP) provides the control interface for serially accessing the digital I/O of the isp­PAC-POWR1014/A. The TAP controller is a state machine driven with mode and clock inputs. Given in the correct
sequence, instructions are shifted into an instruction register, which then determines subsequent data input, data
output, and related operations. Device programming is performed by addressing the configuration register, shifting
data in, and then executing a program configuration instruction, after which the data is transferred to internal
E2CMOS cells. It is these non-volatile cells that store the configuration or the ispPAC-POWR1014/A. A set of

34

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

instructions are defined that access all data registers and perform other internal control operations. For compatibil­ity between compliant devices, two data registers are mandated by the IEEE 1149.1 specification. Others are func­tionally specified, but inclusion is strictly optional. Finally, there are provisions for optional data registers defined by
the manufacturer. The two required registers are the bypass and boundary-scan registers. Figure 29 shows how
the instruction and various data registers are organized in an ispPAC-POWR1014/A.

Figure 29. ispPAC-POWR1014/A TAP Registers

MULTIPLEXER

DATA REGISTER (123 BITS)

ADDRESS REGISTER (109 BITS)

UES REGISTER (32 BITS)

IDCODE REGISTER (32 BITS)

CFG ADDRESS REGISTER (12 BITS)

CFG DATA REGISTER (56 BITS)

BYPASS REGISTER (1 BIT)

INSTRUCTION REGISTER (8 BITS)

TEST ACCESS PORT (TAP)

LOGIC

E2CMOS

NON-VOLATILE

MEMORY

OUTPUT

LATCH

TDI

TCK TMS TDO

TAP Controller Specifics

The TAP is controlled by the Test Clock (TCK) and Test Mode Select (TMS) inputs. These inputs determine whether
an Instruction Register or Data Register operation is performed. Driven by the TCK input, the TAP consists of a
small 16-state controller design. In a given state, the controller responds according to the level on the TMS input as
shown in Figure 30. Test Data In (TDI) and TMS are latched on the rising edge of TCK, with Test Data Out (TDO)
becoming valid on the falling edge of TCK. There are six steady states within the controller: Test-Logic-Reset, Run­Test/Idle, Shift-Data-Register, Pause-Data-Register, Shift-Instruction-Register and Pause-Instruction-Register. But
there is only one steady state for the condition when TMS is set high: the Test-Logic-Reset state. This allows a
reset of the test logic within five TCKs or less by keeping the TMS input high. Test-Logic-Reset is the power-on
default state.

35

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Figure 30. TAP States

Test-Logic-Rst

1

Run-Test/Idle

0

0

11 1

Select-DR-Scan Select-IR-Scan

11

00

00

Capture-DR Capture-IR

00

Shift-DR Shift-IR

11

Exit1-DR Exit1-IR

00

Pause-DR Pause-IR

11

Exit2-DR Exit2-IR

11

Update-DR Update-IR

00

11

00

0011

Note: The value shown adjacent to each state transition in this figure
represents the signal present at TMS at the time of a rising edge at TCK.

When the correct logic sequence is applied to the TMS and TCK inputs, the TAP will exit the Test-Logic-Reset state
and move to the desired state. The next state after Test-Logic-Reset is Run-Test/Idle. Until a data or instruction shift
is performed, no action will occur in Run-Test/Idle (steady state = idle). After Run-Test/Idle, either a data or instruc­tion shift is performed. The states of the Data and Instruction Register blocks are identical to each other differing
only in their entry points. When either block is entered, the first action is a capture operation. For the Data Regis­ters, the Capture-DR state is very simple: it captures (parallel loads) data onto the selected serial data path (previ­ously chosen with the appropriate instruction). For the Instruction Register, the Capture-IR state will always load
the IDCODE instruction. It will always enable the ID Register for readout if no other instruction is loaded prior to a
Shift-DR operation. This, in conjunction with mandated bit codes, allows a “blind” interrogation of any device in a
compliant IEEE 1149.1 serial chain. From the Capture state, the TAP transitions to either the Shift or Exit1 state.
Normally the Shift state follows the Capture state so that test data or status information can be shifted out or new
data shifted in. Following the Shift state, the TAP either returns to the Run-Test/Idle state via the Exit1 and Update
states or enters the Pause state via Exit1. The Pause state is used to temporarily suspend the shifting of data
through either the Data or Instruction Register while an external operation is performed. From the Pause state,
shifting can resume by reentering the Shift state via the Exit2 state or be terminated by entering the Run-Test/Idle
state via the Exit2 and Update states. If the proper instruction is shifted in during a Shift-IR operation, the next entry
into Run-Test/Idle initiates the test mode (steady state = test). This is when the device is actually programmed,
erased or verified. All other instructions are executed in the Update state.

Test Instructions

Like data registers, the IEEE 1149.1 standard also mandates the inclusion of certain instructions. It outlines the
function of three required and six optional instructions. Any additional instructions are left exclusively for the manu­facturer to determine. The instruction word length is not mandated other than to be a minimum of two bits, with only
the BYPASS and EXTEST instruction code patterns being specifically called out (all ones and all zeroes respec­tively). The ispPAC-POWR1014/A contains the required minimum instruction set as well as one from the optional
instruction set. In addition, there are several proprietary instructions that allow the device to be configured and ver­ified. Table 11 lists the instructions supported by the ispPAC-POWR1014/A JTAG Test Access Port (TAP) controller:

36

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Table 11. ispPAC-POWR1014/A TAP Instruction Table

Instruction

Code Comments

BULK_ERASE 0000 0011 Bulk erase device

BYPASS 1111 1111 Bypass - connect TDO to TDI

DISCHARGE 0001 0100 Fast VPP discharge

ERASE_DONE_BIT 0010 0100 Erases ‘Done’ bit only

EXTEST 0000 0000 Bypass - connect TDO to TDI

IDCODE 0001 0110 Read contents of manufacturer ID code (32 bits)

OUTPUTS_HIGHZ 0001 1000 Force all outputs to High-Z state, FET outputs pulled low

SAMPLE/PRELOAD 00011100 Sample/Preload. Default to bypass.

PROGRAM_DISABLE 0001 1110 Disable program mode

PROGRAM_DONE_BIT 0010 1111 Programs the Done bit

PROGRAM_ENABLE 0001 0101 Enable program mode

PROGRAM_SECURITY 0000 1001 Program security fuse

Command

RESET 0010 0010

Resets device (refer to the RESETb Signal, RESET Command via
JTAG or I

2

C section of this data sheet)

IN1_RESET_JTAG_BIT 0001 0010 Reset the JTAG bit associated with IN1 pin to 0

IN1_SET_JTAG_BIT 0001 0011 Set the JTAG bit associated with IN1 pin to 1

CFG_ADDRESS 0010 1011 Select non-PLD address register

CFG_DATA_SHIFT 0010 1101 Non-PLD data shift

CFG_ERASE 0010 1001 ERASE Just the Non PLD configuration

CFG_PROGRAM 0010 1110 Non-PLD program

CFG_VERIFY 0010 1000 VRIFY non-PLD fusemap data

PLD_ADDRESS_SHIFT 0000 0001 PLD_Address register (109 bits)

PLD_DATA_SHIFT 0000 0010 PLD_Data register (123 Bits)

PLD_INIT_ADDR_FOR_PROG_INCR 0010 0001 Initialize the address register for auto increment

2

PLD_PROG_INCR 0010 0111 Program column register to E

PLD_PROGRAM 0000 0111 Program PLD data register to E

and auto increment address register

2

PLD_VERIFY 0000 1010 Verifies PLD column data

2

PLD_VERIFY_INCR 0010 1010 Load column register from E

UES_PROGRAM 0001 1010 Program UES bits into E

and auto increment address register

2

UES_READ 0001 0111 Read contents of UES register from E2 (32 bits)

BYPASS is one of the three required instructions. It selects the Bypass Register to be connected between TDI and
TDO and allows serial data to be transferred through the device without affecting the operation of the ispPAC­POWR1014/A. The IEEE 1149.1 standard defines the bit code of this instruction to be all ones (11111111).

The required SAMPLE/PRELOAD instruction dictates the Boundary-Scan Register be connected between TDI
and TDO. The ispPAC-POWR1014/A has no boundary scan register, so for compatibility it defaults to the BYPASS
mode whenever this instruction is received. The bit code for this instruction is defined by Lattice as shown in
Table 11.

The EXTEST (external test) instruction is required and would normally place the device into an external boundary
test mode while also enabling the boundary scan register to be connected between TDI and TDO. Again, since the
ispPAC-POWR1014/A has no boundary scan logic, the device is put in the BYPASS mode to ensure specification
compatibility. The bit code of this instruction is defined by the 1149.1 standard to be all zeros (00000000).

37

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

The optional IDCODE (identification code) instruction is incorporated in the ispPAC-POWR1014/A and leaves it in
its functional mode when executed. It selects the Device Identification Register to be connected between TDI and
TDO. The Identification Register is a 32-bit shift register containing information regarding the IC manufacturer,
device type and version code (Figure 31). Access to the Identification Register is immediately available, via a TAP
data scan operation, after power-up of the device, or by issuing a Test-Logic-Reset instruction. The bit code for this
instruction is defined by Lattice as shown in Table 11.

Figure 31. ispPAC-POWR1014/A ID Code

MSB LSB

0001 0000 0001 0100 0101 / 0000 0100 001 / 1 (ispPAC-POWR1014)

0000 0000 0001 0100 0101 / 0000 0100 001 / 1 (ispPAC-POWR1014A)

Part Number

00145h = ispPAC-POWR1014A

(20 bits)

10145h = ispPAC-POWR1014

JEDEC Manufacturer

Identity Code for

Lattice Semiconductor

(11 bits)

Constant 1

(1 bit)

per 1149.1-1990

ispPAC-POWR1014/A Specific Instructions

There are 25 unique instructions specified by Lattice for the ispPAC-POWR1014/A. These instructions are primarily
used to interface to the various user registers and the E2CMOS non-volatile memory. Additional instructions are
used to control or monitor other features of the device. A brief description of each unique instruction is provided in
detail below, and the bit codes are found in Table 11.

PLD_ADDRESS_SHIFT – This instruction is used to set the address of the PLD AND/ARCH arrays for subsequent
program or read operations. This instruction also forces the outputs into the OUTPUTS_HIGHZ.

PLD_DATA_SHIFT – This instruction is used to shift PLD data into the register prior to programming or reading.
This instruction also forces the outputs into the OUTPUTS_HIGHZ.

PLD_INIT_ADDR_FOR_PROG_INCR – This instruction prepares the PLD address register for subsequent
PLD_PROG_INCR or PLD_VERIFY_INCR instructions.

PLD_PROG_INCR – This instruction programs the PLD data register for the current address and increments the
address register for the next set of data.

PLD_PROGRAM – This instruction programs the selected PLD AND/ARCH array column. The specific column is
preselected by using PLD_ADDRESS_SHIFT instruction. The programming occurs at the second rising edge of
the TCK in Run-Test-Idle JTAG state. The device must already be in programming mode (PROGRAM_ENABLE
instruction). This instruction also forces the outputs into the OUTPUTS_HIGHZ.

PROGRAM_SECURITY – This instruction is used to program the electronic security fuse (ESF) bit. Programming
the ESF bit protects proprietary designs from being read out. The programming occurs at the second rising edge of
the TCK in Run-Test-Idle JTAG state. The device must already be in programming mode (PROGRAM_ENABLE
instruction). This instruction also forces the outputs into the OUTPUTS_HIGHZ.

PLD_VERIFY – This instruction is used to read the content of the selected PLD AND/ARCH array column. This
specific column is preselected by using PLD_ADDRESS_SHIFT instruction. This instruction also forces the outputs
into the OUTPUTS_HIGHZ.

DISCHARGE – This instruction is used to discharge the internal programming supply voltage after an erase or pro­gramming cycle and prepares ispPAC-POWR1014/A for a read cycle. This instruction also forces the outputs into
the OUTPUTS_HIGHZ.

38

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

CFG_ADDRESS – This instruction is used to set the address of the CFG array for subsequent program or read

operations. This instruction also forces the outputs into the OUTPUTS_HIGHZ.

CFG_DATA_SHIFT – This instruction is used to shift data into the CFG register prior to programming or reading.
This instruction also forces the outputs into the OUTPUTS_HIGHZ.

CFG_ERASE – This instruction will bulk erase the CFG array. The action occurs at the second rising edge of TCK
in Run-Test-Idle JTAG state. The device must already be in programming mode (PROGRAM_ENABLE instruction).
This instruction also forces the outputs into the OUTPUTS_HIGHZ.

CFG_PROGRAM – This instruction programs the selected CFG array column. This specific column is preselected
by using CFG_ADDRESS instruction. The programming occurs at the second rising edge of the TCK in Run-Test­Idle JTAG state. The device must already be in programming mode (PROGRAM_ENABLE instruction). This
instruction also forces the outputs into the OUTPUTS_HIGHZ.

CFG_VERIFY – This instruction is used to read the content of the selected CFG array column. This specific column
is preselected by using CFG_ADDRESS instruction. This instruction also forces the outputs into the
OUTPUTS_HIGHZ.

BULK_ERASE – This instruction will bulk erase all E2CMOS bits (CFG, PLD, UES, and ESF) in the ispPAC-
POWR1014/A. The device must already be in programming mode (PROGRAM_ENABLE instruction). This instruc­tion also forces the outputs into the OUTPUTS_HIGHZ.

OUTPUTS_HIGHZ – This instruction turns off all of the open-drain output transistors. Pins that are programmed as
FET drivers will be placed in the active low state. This instruction is effective after Update-Instruction-Register
JTAG state.

PROGRAM_ENABLE – This instruction enables the programming mode of the ispPAC-POWR1014/A. This
instruction also forces the outputs into the OUTPUTS_HIGHZ.

IDCODE – This instruction connects the output of the Identification Code Data Shift (IDCODE) Register to TDO
(Figure 32), to support reading out the identification code.

Figure 32. IDCODE Register

Bit
31

Bit

30

Bit
29

Bit
28

Bit

27

Bit

Bit

4

3

Bit

2

Bit

1

Bit

TDO

0

PROGRAM_DISABLE – This instruction disables the programming mode of the ispPAC-POWR1014/A. The Test­Logic-Reset JTAG state can also be used to cancel the programming mode of the ispPAC-POWR1014/A.

UES_READ – This instruction both reads the E2CMOS bits into the UES register and places the UES register
between the TDI and TDO pins (as shown in Figure 29), to support programming or reading of the user electronic
signature bits.

Figure 33. UES Register

Bit

14

15

12

13

10

11

8

9

6

7

4

5

2

3

0

1

TDO

Bit

Bit

Bit

Bit

Bit

Bit

Bit

Bit

Bit

Bit

Bit

Bit

Bit

Bit

Bit

UES_PROGRAM – This instruction will program the content of the UES Register into the UES E2CMOS memory.
The device must already be in programming mode (PROGRAM_ENABLE instruction). This instruction also forces
the outputs into the OUTPUTS_HIGHZ.

ERASE_DONE_BIT – This instruction clears the 'Done' bit, which prevents the ispPAC-POWR1014/A sequence
from starting.

39

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

PROGRAM_DONE_BIT – This instruction sets the 'Done' bit, which enables the ispPAC-POWR1014/A sequence

to start.

RESET – This instruction resets the PLD sequence and output macrocells.

IN1_RESET_JTAG_BIT – This instruction clears the JTAG Register logic input 'IN1.' The PLD input has to be con-

figured to take input from the JTAG Register in order for this command to have effect on the sequence.

IN1_SET_JTAG_BIT – This instruction sets the JTAG Register logic input 'IN1.' The PLD input has to be configured
to take input from the JTAG Register in order for this command to have effect on the sequence.

PLD_VERIFY_INCR – This instruction reads out the PLD data register for the current address and increments the
address register for the next read.

Notes:

In all of the descriptions above, OUTPUTS_HIGHZ refers both to the instruction and the state of the digital output
pins, in which the open-drains are tri-stated and the FET drivers are pulled low.

2

Before any of the above programming instructions are executed, the respective E
using the corresponding erase instruction.

CMOS bits need to be erased

40

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Package Diagrams

48-Pin TQFP (Dimensions in Millimeters)

3.

A

PIN 1 INDICATOR

D

N

1

0.20

C A-B D

E

B

3.

0.20 DA-BH

D1

E1

e

8.

0.08

MCbA-B D

4X

D

3.

SEE DETAIL "A"

C SEATING PLANE

LEAD FINISH

b

c

b

1

c
1

BASE METAL

SECTION B - B

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5 - 1982.

2. ALL DIMENSIONS ARE IN MILLIMETERS.

DATUMS A, B AND D TO BE DETERMINED AT DATUM PLANE H.

3.

4. DIMENSIONS D1 AND E1 DO NOT INCLUDE MOLD PROTRUSION.

ALLOWABLE MOLD PROTRUSION IS 0.254 MM ON D1 AND E1

DIMENSIONS.

5. THE TOP OF PACKAGE MAY BE SMALLER THAN THE BOTTOM

OF THE PACKAGE BY 0.15 MM.

6. SECTION B-B:

THESE DIMENSIONS APPLY TO THE FLAT SECTION OF THE

LEAD BETWEEN 0.10 AND 0.25 MM FROM THE LEAD TIP.

7. A1 IS DEFINED AS THE DISTANCE FROM THE SEATING PLANE

TO THE LOWEST POINT ON THE PACKAGE BODY.

EXACT SHAPE OF EACH CORNER IS OPTIONAL.

8.

0.08 C

AA2

A1

H

0.20 MIN.

1.00 REF.

DETAIL "A"

SYMBOL

A-

A1

A2

D

D1

E

E1

L 0.45

N

e

b1 0.17

c1 0.09

MIN.

0.05

1.35

B

B

NOM.

-

-

1.40

9.00 BSC

7.00 BSC

9.00 BSC

7.00 BSC

0.60

48

0.50 BSC

0.220.17b 0.27

0.20

0.15

0.13

GAUGE PLANE

0.25

0-7∞

L

MAX.

1.60

0.15

1.45

0.75

0.23

0.200.09c

0.16

41

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Part Number Description

Device Family

Device Number

ADC Support

A = ADC present

ispPAC-POWR1014X - 01XX48X

ispPAC-POWR1014/A Ordering Information

Conventional Packaging

Part Number Package Pins

ispPAC-POWR1014A-01T48I TQFP 48

ispPAC-POWR1014-01T48I TQFP 48

Lead-Free Packaging

Part Number Package Pins

ispPAC-POWR1014A-01TN48I Lead-Free TQFP 48

ispPAC-POWR1014-01TN48I Lead-Free TQFP 48

Operating Temperature Range

I = Industrial (-40oC to +85oC)

Package

T = 48-pin TQFP
TN = Lead-Free 48-pin TQFP*

Performance Grade

01 = Standard

42

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Package Options

IN4

IN3

IN2

VCCINP

IN1

MCLK

VCCD

RESETB

SCL

SDA

PLDCLK

VMON10

OUT14

OUT13

OUT12

OUT11

OUT10

OUT9

GNDD

OUT8

OUT7

OUT6

OUT5

OUT4

4847464544434241403938

1
2
3

4
5
6

7

ispPAC-POWR1014A

48-Pin TQFP

8

9

10
11
12

1314151617181920212223

TDI

TMS

ATDI

HVOUT2

HVOUT1

SMBA_OUT3

TDISEL

VCCJ

TDO

TCK

VCCD

37

36
35
34

33
32
31

30
29
28

27
26
25

24

VCCPROG

VMON9

VMON8

VMON7

VMON6

VMON5

GNDD

GNDA

VCCA

VMON4

VMON3

VMON2

VMON1

43

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Package Options (Cont.)

IN4

IN3

IN2

VCCINP

IN1

MCLK

VCCD

PLDCLK

RESETB

GNDD

GNDD

VMON10

OUT14

OUT13

OUT12

OUT11

OUT10

OUT9

GNDD

OUT8

OUT7

OUT6

OUT5

OUT4

1
2
3

4
5
6

7

8

9

10
11
12

1314151617181920212223

4847464544434241403938

SMBA_OUT3

Technical Support Assistance

Hotline: 1-800-LATTICE (North America)

[phone] (Outside North America)
e-mail: [e-mail]
Internet: www.latticesemi.com

ispPAC-POWR1014

48-Pin TQFP

TDI

TMS

HVOUT2

ATDI

HVOUT1

VCCJ

TDISEL

TDO

TCK

VCCD

37

36
35
34

33
32
31

30
29
28

27
26
25

24

VCCPROG

VMON9

VMON8

VMON7

VMON6

VMON5

GNDD

GNDA

VCCA

VMON4

VMON3

VMON2

VMON1

44

Lattice Semiconductor ispPAC-POWR1014/A Data Sheet

Revision History

Date Version Change Summary

February 2006 01.0 Initial release.

March 2006 01.1

May 2006 01.2 Update HVOUT I source range: 12.5µA to 100µA

October 2006 01.3 Data sheet status changed to “Final”

March 2007 01.4 Corrected VCCINP Voltage range from "2.25V to 3.6V" to "2.25V to 5.5V".

August 2007 01.5 Changes to HVOUT pin specifications.

ispPAC-POWR1014/A block diagram: “SELTDI” changed to “TDISEL”.

Pin Descriptions table: “InxP” changed to “Inx”, “MONx” to “VMONx”, VMON upper range
from “5.75V” to “5.87V”.

Pin Descriptions table, note 4 - clarification for un-used VMON pins to be tied to GNDD.

Absolute Maximum Ratings table and Recommended Operating Conditions table:
“VMON+” changed to VMON”.

Digital Specifications table: add note # 2 to ISINKTOTAL: “Sum of maximum current sink
by all digital outputs. Reliable operation is not guaranteed if this value is exceeded.”

Typographical corrections: Vmon trip points and thresholds

Typographical corrections: “InxP” to “Inx”, “MONx” to “VMONx”.

Clarify operation of ADC conversions

2

Digital Specifications table, added footnotes on I

TAP Instructions table, clarify DISCHARGE instruction of JTAG. Added instruction descrip­tions for others.

Analog Specifications table, reduced Max. I

Tightened Input Resistor Variation to 15%.

AC/Transient Characteristics table, tightened Internal Oscillator frequency variation down
to 5%.

Digital Specifications table, included V

Removed reference to Internal Pull-up resistor for signal line TDO.

Corrected the Maximum Vmon Range value from 5.734V to 5.867V.

Removed references to VPS[0:1].

and VIH specifications for I2C interface.

IL

C frequency

to 20 mA.

CC

45
