GAL20V8Z
GAL20V8ZD
Zero Power E2CMOS PLD
Features
• ZERO POWER E2CMOS TECHNOLOGY
• HIGH PERFORMANCE E
•E
• EIGHT OUTPUT LOGIC MACROCELLS
• PRELOAD AND POWER-ON RESET OF ALL REGISTERS
• APPLICATIONS INCLUDE:
• ELECTRONIC SIGNA TURE FOR IDENTIFICATION
µA Standby Current
— 100
— Input Transition Detection on GAL20V8Z
— Dedicated Power-down Pin on GAL20V8ZD
— Input and Output Latching During Power Down
2
CMOS TECHNOLOGY
— 12 ns Maximum Propagation Delay
— Fmax = 83.3 MHz
— 8 ns Maximum from Clock Input to Data Output
— TTL Compatible 16 mA Output Drive
— UltraMOS
2
CELL TECHNOLOGY
®
Advanced CMOS Technology
— Reconfigurable Logic
— Reprogrammable Cells
— 100% Tested/100% Y ields
— High Speed Electrical Erasure (<100ms)
— 20 Year Data Retention
— Maximum Flexibility for Complex Logic Designs
— Programmable Output Polarity
— Architecturally Similar to Standard GAL20V8
— 100% Functional Testability
— Battery Powered Systems
— DMA Control
— State Machine Control
— High Speed Graphics Processing
Functional Block Diagram
I/CLK
I
I
I/DPP
I
I
(64 X 40)
I
AND-ARRAY
PROGRAMMABLE
I
I
I
I
8
8
8
8
8
8
8
8
IMUX
OLMC
OLMC
OLMC
OLMC
OLMC
OLMC
OLMC
OLMC
IMUX
I
CLK
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
OE
I
I/OE
Description
The GAL20V8Z and GAL20V8ZD, at 100 µA standby current and
Pin Configuration
DIP
12ns propagation delay provides the highest speed and lowest
power combination PLD available in the market. The
GAL20V8Z/ZD is manufactured using Lattice Semiconductor's advanced zero power E
2
CMOS process, which combines CMOS with
Electrically Erasable (E2) floating gate technology .
I/DPP
NC
5
I
I
7
I
9
I
I
11
The GAL20V8Z uses Input Transition Detection (ITD) to put the
device in standby mode and is capable of emulating the full functionality of the standard GAL20V8. The GAL20V8ZD utilizes a
dedicated power-down pin (DPP) to put the device in standby mode.
It has 19 inputs available to the AND array.
Unique test circuitry and reprogrammable cells allow complete AC,
DC, and functional testing during manufacture. As a result, Lattice
Semiconductor delivers 100% field programmability and functionality of all GAL products. In addition, 100 erase/write cycles and
data retention in excess of 20 years are specified.
Copyright © 1997 Lattice Semiconductor Corp. All brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject
to change without notice.
LATTICE SEMICONDUCTOR CORP., 5555 Northeast Moore Ct., Hillsboro, Oregon 97124, U.S.A. December 1997
Tel. (503) 268-8000; 1-800-LATTICE; FAX (503) 268-8556; http://www.latticesemi.com
20v8zzd_03
1
PLCC
I
4
NC
I
I/CL
228
Vcc
I
GAL20V8Z
GAL20V8ZD
T op View
14 16
12 18
I
I
GND
NC
I
I/OE
I/O/Q
26
25
I/O/Q
I/O/Q
23
I/O/Q
NC
I/O/Q
21
I/O/Q
I/O/Q
19
I/O/Q
GAL
20V8Z
20V8ZD
Specifications GAL20V8Z
GAL20V8ZD
GAL20V8Z/ZD Ordering Information
GAL20V8Z: Commercial Grade Specifications
Tpd (ns) T su (ns) T co (ns) Icc (mA) ISB (µA) Ordering # Package
12 10 8 55 100 GAL20V8Z-12QP 24-Pin Plastic DIP
55 100 GAL20V8Z-12QJ 28-Lead PLCC
15 15 10 55 100 GAL20V8Z-15QP 24-Pin Plastic DIP
55 100 GAL20V8Z-15QJ 28-Lead PLCC
GAL20V8ZD: Commercial Grade Specifications
Tpd (ns) Tsu (ns) Tco (ns) Icc (mA) ISB (µA) Ordering # Package
12 10 8 55 100 GAL20V8ZD-12QP 24-Pin Plastic DIP
55 100 GAL20V8ZD-12QJ 28-Lead PLCC
15 15 10 55 100 GAL20V8ZD-15QP 24-Pin Plastic DIP
Part Number Description
Device Name
GAL20V8Z (Zero Power ITD)
GAL20V8ZD (Zero Power DPP)
Speed (ns)
Active Power
Q = Quarter Power
55 100 GAL20V8ZD-15QJ 28-Lead PLCC
XXXXXXXX XX X X X
_
Grade
Blank = Commercial
Package
P = Plastic DIP
J = PLCC
2
Output Logic Macrocell (OLMC)
Specifications GAL20V8Z
GAL20V8ZD
The following discussion pertains to configuring the output logic
macrocell. It should be noted that actual implementation is accomplished by development software/hardware and is completely transparent to the user.
There are three global OLMC configuration modes possible:
simple, complex, and registered. Details of each of these modes
is illustrated in the following pages. T wo global bits, SYN and AC0,
Compiler Support for OLMC
Software compilers support the three different global OLMC modes
as different device types. Most compilers also have the ability to
automatically select the device type, generally based on the register
usage and output enable (OE) usage. Register usage on the device
forces the software to choose the registered mode. All combinatorial outputs with OE controlled by the product term will force the
software to choose the complex mode. The software will choose
the simple mode only when all outputs are dedicated combinatorial
without OE control. For further details, refer to the compiler software manuals.
When using compiler software to configure the device, the user
must pay special attention to the following restrictions in each mode.
In registered mode pin 1(2) and pin 13(16) are permanently con-
figured as clock and output enable, respectively. These pins cannot
be configured as dedicated inputs in the registered mode.
control the mode configuration for all macrocells. The XOR bit of
each macrocell controls the polarity of the output in any of the three
modes, while the AC1 bit of each of the macrocells controls the input/output configuration. These two global and 16 individual architecture bits define all possible configurations in a GAL20V8Z/ZD.
The information given on these architecture bits is only to give a
better understanding of the device. Compiler software will transparently set these architecture bits from the pin definitions, so the
user should not need to directly manipulate these architecture bits.
In complex mode pin 1(2) and pin 13(16) become dedicated in-
puts and use the feedback paths of pin 22(26) and pin 15(18) respectively . Because of this feedback path usage, pin 22(26) and
pin 15(18) do not have the feedback option in this mode.
In simple mode all feedback paths of the output pins are routed
via the adjacent pins. In doing so, the two inner most pins ( pins
18(21) and 19(23)) will not have the feedback option as these pins
are always configured as dedicated combinatorial output.
When using the standard GAL20V8 JEDEC fuse pattern generated
by the logic compilers for the GAL20V8ZD, special attention must
be given to pin 4(5) (DPP) to make sure that it is not used as one
of the functional inputs.
3
Registered Mode
Specifications GAL20V8Z
GAL20V8ZD
In the Registered mode, macrocells are configured as dedicated
registered outputs or as I/O functions.
Architecture configurations available in this mode are similar to the
common 20R8 and 20RP4 devices with various permutations of
polarity , I/O and register placement.
All registered macrocells share common clock and output enable
control pins. Any macrocell can be configured as registered or I/
O. Up to eight registers or up to eight I/Os are possible in this mode.
Dedicated input or output functions can be implemented as subsets of the I/O function.
CLK
DQ
XOR
OE
Q
Registered outputs have eight product terms per output. I/Os have
seven product terms per output.
Pin 4(5) is used as dedicated power-down pin on GAL20V8ZD. It
cannot be used as functional input.
The JEDEC fuse numbers, including the User Electronic Signature
(UES) fuses and the Product T erm Disable (PTD) fuses, are shown
on the logic diagram on the following page.
Registered Configuration for Registered Mode
- SYN=0.
- AC0=1.
- XOR=0 defines Active Low Output.
- XOR=1 defines Active High Output.
- AC1=0 defines this output configuration.
- Pin 1(2) controls common CLK for the registered
outputs.
- Pin 13(16) controls common OE for the registered
outputs.
- Pin 1(2) & Pin 13(16) are permanently configured as
CLK & OE for registered output configuration.
Combinatorial Configuration for Registered Mode
- SYN=0.
- AC0=1.
- XOR=0 defines Active Low Output.
- XOR=1 defines Active High Output.
XOR
Note: The development software configures all of the architecture control bits and checks for proper pin usage automatically.
- AC1=1 defines this output configuration.
- Pin 1(2) & Pin 13(16) are permanently configured as
CLK & OE for registered output configuration.
4
Registered Mode Logic Diagram
Specifications GAL20V8Z
GAL20V8ZD
DIP (PLCC) Package Pinouts
*
1(2)
2(3)
3(4)
4(5)
5(6)
6(7)
7(9)
0000
0280
0320
0600
0640
0920
0960
1240
1280
1560
28
24
201612840
32
2640
36
PTD
23(27)
OLMC
22(26)
XOR-2560
AC1-2632
OLMC
21(25)
XOR-2561
AC1-2633
OLMC
XOR-2562
AC1-2634
OLMC
XOR-2563
AC1-2635
OLMC
XOR-2564
AC1-2636
20(24)
19(23)
18(21)
8(10)
9(11)
10(12)
11(13)
1600
1880
1920
2200
2240
2520
64-USER ELECTRONIC SIGNA TURE FUSES
2568, 2569, .... .... 2630, 2631
Byte7 Byte6 .... .... Byte1 Byte0
MSB LSB
2703
OLMC
17(20)
XOR-2565
AC1-2637
OLMC
16(19)
XOR-2566
AC1-2638
OLMC
15(18)
XOR-2567
AC1-2639
14(17)
OE
13(16)
SYN-2704
AC0-2705
* Note: Input not available on GAL20V8ZD
5
Complex Mode
Specifications GAL20V8Z
GAL20V8ZD
In the Complex mode, macrocells are configured as output only or
I/O functions.
Architecture configurations available in this mode are similar to the
common 20L8 and 20P8 devices with programmable polarity in
each macrocell.
Up to six I/Os are possible in this mode. Dedicated inputs or outputs
can be implemented as subsets of the I/O function. The two outer
most macrocells (pins 15(18) & 22(26)) do not have input capability .
Designs requiring eight I/Os can be implemented in the Registered
mode.
XOR
All macrocells have seven product terms per output. One product
term is used for programmable output enable control. Pins 1(2) and
13(16) are always available as data inputs into the AND array.
Pin 4(5) is used as dedicated power-down pin on GAL20V8ZD. It
cannot be used as functional input.
The JEDEC fuse numbers including the UES fuses and PTD fuses
are shown on the logic diagram on the following page.
Combinatorial I/O Configuration for Complex Mode
- SYN=1.
- AC0=1.
- XOR=0 defines Active Low Output.
- XOR=1 defines Active High Output.
- AC1 has no effect on this mode.
- Pin 16(19) through Pin 21(25) are configured to this
function.
Combinatorial Output Configuration for Complex Mode
- SYN=1.
- AC0=1.
- XOR=0 defines Active Low Output.
XOR
Note: The development software configures all of the architecture control bits and checks for proper pin usage automatically.
- XOR=1 defines Active High Output.
- AC1 has no effect on this mode.
- Pin 15(18) and Pin 22(26) are configured to this
function.
6
Complex Mode Logic Diagram
Specifications GAL20V8Z
GAL20V8ZD
DIP (PLCC) Package Pinouts
*
1(2)
2(3)
3(4)
4(5)
5(6)
6(7)
7(9)
0000
0280
0320
0600
0640
0920
0960
1240
1280
1560
24
32
201612840
28
2640
36
PTD
23(27)
OLMC
XOR-2560
22(26)
AC1-2632
OLMC
21(25)
XOR-2561
AC1-2633
OLMC
20(24)
XOR-2562
AC1-2634
OLMC
19(23)
XOR-2563
AC1-2635
OLMC
18(21)
XOR-2564
AC1-2636
8(10)
9(11)
10(12)
11(13)
MSB LSB
1600
1880
1920
2200
2240
2520
64-USER ELECTRONIC SIGNA TURE FUSES
2568, 2569, .... .... 2630, 2631
Byte7 Byte6 .... .... Byte1 Byte0
2703
OLMC
17(20)
XOR-2565
AC1-2637
OLMC
16(19)
XOR-2566
AC1-2638
OLMC
15(18)
XOR-2567
AC1-2639
14(17)
13(16)
SYN-2704
AC0-2705
* Note: Input not available on GAL20V8ZD
7
Simple Mode
Specifications GAL20V8Z
GAL20V8ZD
In the Simple mode, macrocells are configured as dedicated inputs
or as dedicated, always active, combinatorial outputs.
Architecture configurations available in this mode are similar to the
common 14L8 and 16P6 devices with many permutations of generic output polarity or input choices.
All outputs in the simple mode have a maximum of eight product
terms that can control the logic. In addition, each output has programmable polarity .
Vcc
XOR
Vcc
XOR
Pins 1(2) and 13(16) are always available as data inputs into the
AND array. The center two macrocells (pins 18(21) & 19(23)) cannot be used in the input configuration.
Pin 4(5) is used as dedicated power-down pin on GAL20V8ZD. It
cannot be used as functional input.
The JEDEC fuse numbers including the UES fuses and PTD fuses
are shown on the logic diagram.
Combinatorial Output with Feedback Configuration
for Simple Mode
- SYN=1.
- AC0=0.
- XOR=0 defines Active Low Output.
- XOR=1 defines Active High Output.
- AC1=0 defines this configuration.
- All OLMC except pins 18(21) & 19(23) can be
configured to this function.
Combinatorial Output Configuration for Simple Mode
- SYN=1.
- AC0=0.
- XOR=0 defines Active Low Output.
- XOR=1 defines Active High Output.
- AC1=0 defines this configuration.
- Pins 18(21) & 19(23) are permanently configured to
this function.
Dedicated Input Configuration for Simple Mode
- SYN=1.
- AC0=0.
- XOR=0 defines Active Low Output.
- XOR=1 defines Active High Output.
- AC1=1 defines this configuration.
- All OLMC except pins 18(21) & 19(23) can be
configured to this function.
Note: The development software configures all of the architecture control bits and checks for proper pin usage automatically.
8
Simple Mode Logic Diagram
1(2)
2(3)
Specifications GAL20V8Z
DIP (PLCC) Package Pinouts
24
32
28
201612840
36
PTD
GAL20V8ZD
2640
23(27)
*
8(10)
3(4)
4(5)
5(6)
6(7)
7(9)
0000
0280
0320
0600
0640
0920
0960
1240
1280
1560
1600
1880
OLMC
XOR-2560
AC1-2632
OLMC
XOR-2561
AC1-2633
OLMC
XOR-2562
AC1-2634
OLMC
XOR-2563
AC1-2635
OLMC
XOR-2564
AC1-2636
OLMC
XOR-2565
AC1-2637
22(26)
21(25)
20(24)
19(23)
18(21)
17(20)
9(11)
10(12)
11(13)
64-USER ELECTRONIC SIGNA TURE FUSES
2568, 2569, .... .... 2630, 2631
Byte7 Byte6 .... .... Byte1 Byte0
MSB LSB
1920
2200
2240
2520
OLMC
XOR-2566
AC1-2638
16(19)
OLMC
XOR-2567
AC1-2639
2703
SYN-2704
AC0-2705
* Note: Input not available on GAL20V8ZD
15(18)
14(17)
13(16)
9
Specifications GAL20V8Z
GAL20V8ZD
Absolute Maximum Ratings
(1)
Supply voltage VCC........................................ –.5 to +7V
Input voltage applied .......................... –2.5 to VCC +1.0V
Off-state output voltage applied ......... –2.5 to VCC +1.0V
Storage Temperature ................................ –65 to 150°C
Recommended Operating Conditions
Commercial Devices:
Ambient T emperature (TA) ...............................0 to 75°C
Supply voltage (VCC)
with Respect to Ground ..................... +4.75 to +5.25V
Ambient Temperature with
Power Applied ...........................................–55 to 125°C
1.Stresses above those listed under the “Absolute Maximum
Ratings” may cause permanent damage to the device. These
are stress only ratings and functional operation of the device
at these or at any other conditions above those indicated in
the operational sections of this specification is not implied
(while programming, follow the programming specifications).
DC Electrical Characteristics
Over Recommended Operating Conditions (Unless Otherwise Specified)
2
SYMBOL PARAMETER CONDITION MIN. TYP.
MAX. UNITS
VIL Input Low Voltage Vss – 0.5 — 0.8 V
VIH Input High Voltage 2.0 — Vcc+1 V
IIL Input or I/O Low Leakage Current 0V ≤ VIN ≤ VIL (MAX.) — — –10 µA
IIH Input or I/O High Leakage Current 3.5V ≤ VIN ≤ VCC ——10µA
VOL Output Low V oltage IOL = MAX. Vin = VIL or VIH — — 0.5 V
VOH Output High Voltage IOH = MAX. Vin = VIL or VIH 2.4 — — V
I
OH = -100 µA Vin = VIL or VIH Vcc-1 — — V
IOL Low Level Output Current — — 16 mA
IOH High Level Output Current — — –3.2 mA
1
IOS
Output Short Circuit Current VCC = 5V VOUT = 0.5V TA = 25°C –30 — –150 mA
COMMERCIAL
ISB Stand-by Power VIL = GND VIH = Vcc Outputs Open Z-12/-15 — 50 100 µA
Supply Current ZD-12/-15
ICC Operating Power VIL = 0.5V VIH = 3.0V Z-12/-15 — — 55 mA
Supply Current f
1) One output at a time for a maximum duration of one second. Vout = 0.5V was selected to avoid test problems by tester ground
degradation. Characterized but not 100% tested.
2) Typical values are at Vcc = 5V and TA = 25 °C
toggle = 15 MHz Outputs Open ZD-12/-15
Capacitance (TA = 25°C, f = 1.0 MHz)
SYMBOL P ARAMETER MAXIMUM* UNITS TEST CONDITIONS
C
I
C
I/O
*Characterized but not 100% tested
Input Capacitance 10 pF VCC = 5.0V , VI = 2.0V
I/O Capacitance 10 pF VCC = 5.0V , V
10
= 2.0V
I/O
AC Switching Characteristics
Specifications GAL20V8Z
Specifications GAL20V8Z
Over Recommended Operating Conditions
GAL20V8ZD
COM
PARAMETER UNITS
TEST
COND1.
DESCRIPTION
-12
MIN. MAX.
COM
-15
MIN. MAX.
tpd A Input or I/O to Combinational Output 3 12 3 15 ns
tco A Clock to Output Delay 2 8 2 10 ns
2
tcf
— Clock to Feedback Delay — 6 — 7 ns
tsu — Setup Time, Input or Feedback before Clock↑ 10 — 15 — ns
th — Hold Time, Input or Feedback after Clock↑ 0—0—ns
A Maximum Clock Frequency with 55 — 40 — MHz
External Feedback, 1/(tsu + tco)
3
fmax
A Maximum Clock Frequency with 62.5 — 45.5 — MHz
Internal Feedback, 1/(tsu + tcf)
A Maximum Clock Frequency with 83.3 — 62.5 — MHz
No Feedback
twh — Clock Pulse Duration, High 6 — 8 — ns
twl — Clock Pulse Duration, Low 6 — 8 — ns
ten B Input or I/O to Output Enabled — 12 — 15 ns
B OE to Output Enabled — 12 — 15 ns
tdis C Input or I/O to Output Disabled — 15 — 15 ns
C OE to Output Disabled — 12 — 15 ns
tas — Last Active Input to Standby 60 140 50 150 ns
4
tsa
1) Refer to Switching T est Conditions section.
2) Calculated from fmax with internal feedback. Refer to fmax Specification section.
3) Refer to fmax Specification section.
tsa to tpd, tsu, ten and tdis when the device is coming out of standby state.
4) Add
— Standby to Active Output 6 13 5 15 ns
Standby Power Timing Waveforms
POWER
INPUT or
I/O FEEDBACK
OE
CLK
OUTPUT
Icc
Isb
t
as
t
sa
*
t
pd
t
en, tdis
t
su
t
co
* Note: Rising clock edges
are allowed during
outputs are not guaranteed.
t
sa but
11
Specifications GAL20V8Z
Specifications GAL20V8ZD
AC Switching Characteristics
Over Recommended Operating Conditions
PARAMETER UNITS
TEST
COND1.
tpd A Input or I/O to Combinational Output 3 12 3 15 ns
tco A Clock to Output Delay 2 8 2 10 ns
2
tcf
— Clock to Feedback Delay — 6 — 7ns
tsu — Setup Time, Input or Feedback before Clock ↑ 10 — 15 — ns
th — Hold Time, Input or Feedback after Clock↑ 0 — 0 — ns
A Maximum Clock Frequency with 55 — 40 — MHz
3
fmax
A Maximum Clock Frequency with 62.5 — 45.5 — MHz
A Maximum Clock Frequency with 83.3 — 62.5 — MHz
DESCRIPTION
MIN. MAX.
External Feedback, 1/(tsu + tco)
Internal Feedback, 1/(tsu + tcf)
No Feedback
GAL20V8ZD
COM
-12
COM
-15
MIN. MAX.
twh — Clock Pulse Duration, High 6 — 8 — ns
twl — Clock Pulse Duration, Low 6 — 8 — ns
ten B Input or I/O to Output Enabled — 12 — 15 ns
B OE to Output Enabled — 12 — 15 ns
tdis C Input or I/O to Output Disabled — 15 — 15 ns
C OE to Output Disabled — 12 — 15 ns
1) Refer to Switching T est Conditions section.
2) Calculated from fmax with internal feedback. Refer to fmax Specification section.
3) Refer to fmax Specification section.
12
Dedicated Power-Down Pin Specifications
Over Recommended Operating Conditions
Specifications GAL20V8Z
Specifications GAL20V8ZD
GAL20V8ZD
COM
PARAMETER UNITS
TEST
COND
DESCRIPTION
1
.
-12
MIN. MAX.
COM
-15
MIN. MAX.
twhd — DPP Pulse Duration High 12 — 15 — ns
twld — DPP Pulse Duration Low 25 — 30 — ns
ACTIVE TO STANDBY
tivdh — Valid Input before DPP High 5 — 8 — ns
tgvdh — Valid OE before DPP High 0 — 0 — ns
tcvdh — V alid Clock Before DPP High 0 — 0 — ns
tdhix — Input Don't Care after DPP High — 2 — 5ns
tdhgx — OE Don't Care after DPP High — 6 — 9ns
tdhcx — Clock Don't Care after DPP High — 8 — 11 ns
ST ANDBY T O ACTIVE
tdliv — DPP Low to Valid Input 12 — 15 — ns
tdlgv — DPP Low to V alid OE 16 — 20 — ns
tdlcv — DPP Low to Valid Clock 18 — 20 — ns
tdlov A DPP Low to Valid Output 5 24 5 30 ns
1) Refer to Switching T est Conditions section.
Dedicated Power-Down Pin Timing Waveforms
DPP
t
ivdh
INPUT or
I/O FEEDBACK
t
gvdh
OE
t
cvdh
CLK
co
t
OUTPUT
t
dhix
t
dhgx
t
dhcx
t
pd,ten,tdis
t
dliv
t
dlgv
t
dlcv
t
dlov
13
(
)

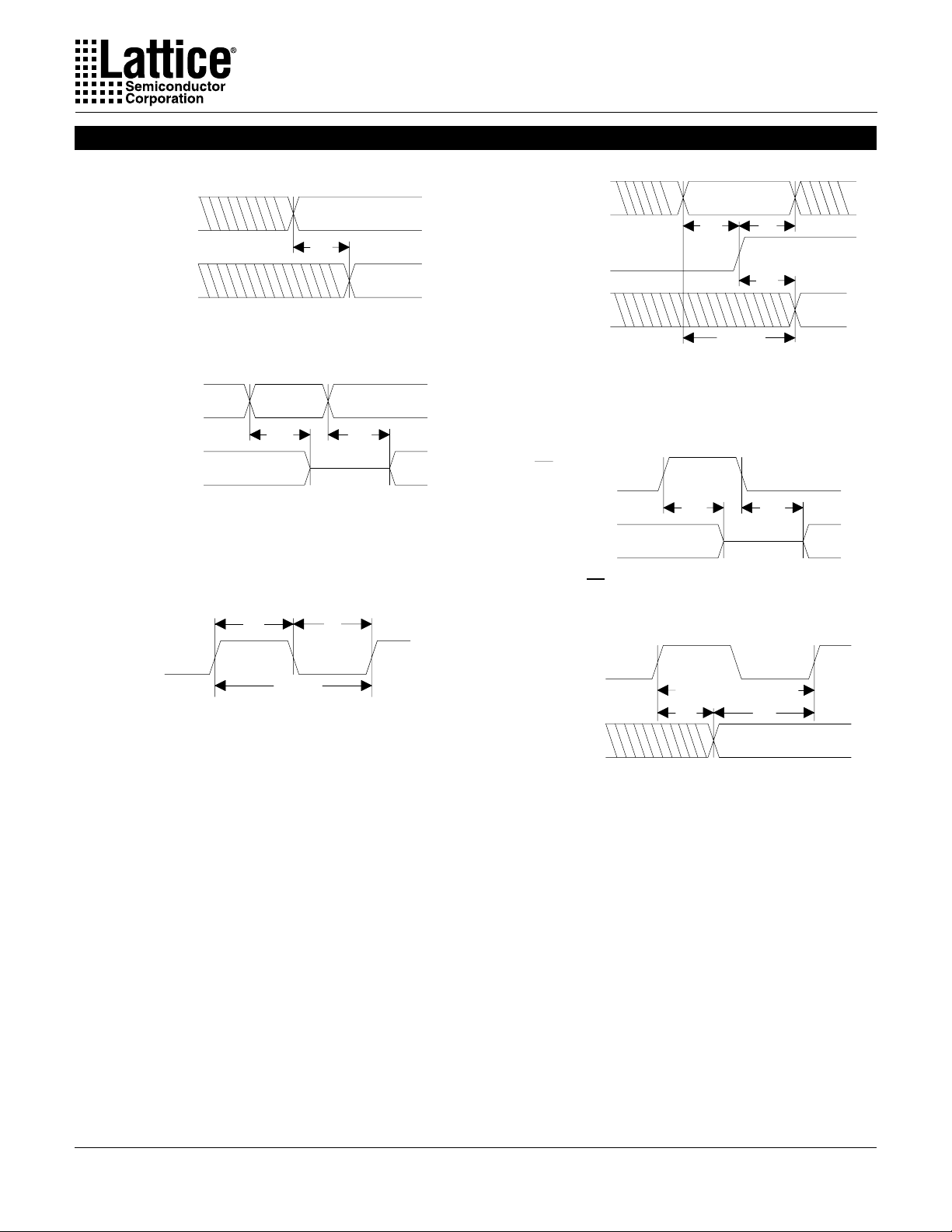

Switching Waveforms
Specifications GAL20V8Z
GAL20V8ZD
INPUT or
I/O FEEDBACK
COMBINATIONAL
OUTPUT
INPUT or
I/O FEEDBACK
COMBINATIONAL
OUTPUT
Input or I/O to Output Enable/Disable
VALID INPUT
t
pd
Combinatorial Output
wh
t
INPUT or
I/O FEEDBACK
CLK
REGISTERED
OUTPUT
VALID INPUT
su
t
t
t
1/
f
max
(external fdbk)
h
co
Registered Output
tentdis
OE
dis
t
REGISTERED
OUTPUT
OE to Output Enable/Disable
wl
t
en
t
CLK
1/fmax
w/o fb
Clock Width
CLK
REGISTERED
FEEDBACK
1/fmax (internal fdbk)
cf
t
fmax with Feedback
su
t
14
TEST POINT
C *
L
FROM OUTPUT (O/Q)
UNDER TEST
+5V
*C
L
INCLUDES TEST FIXTURE AND PROBE CAPACITANCE
R 2
R 1

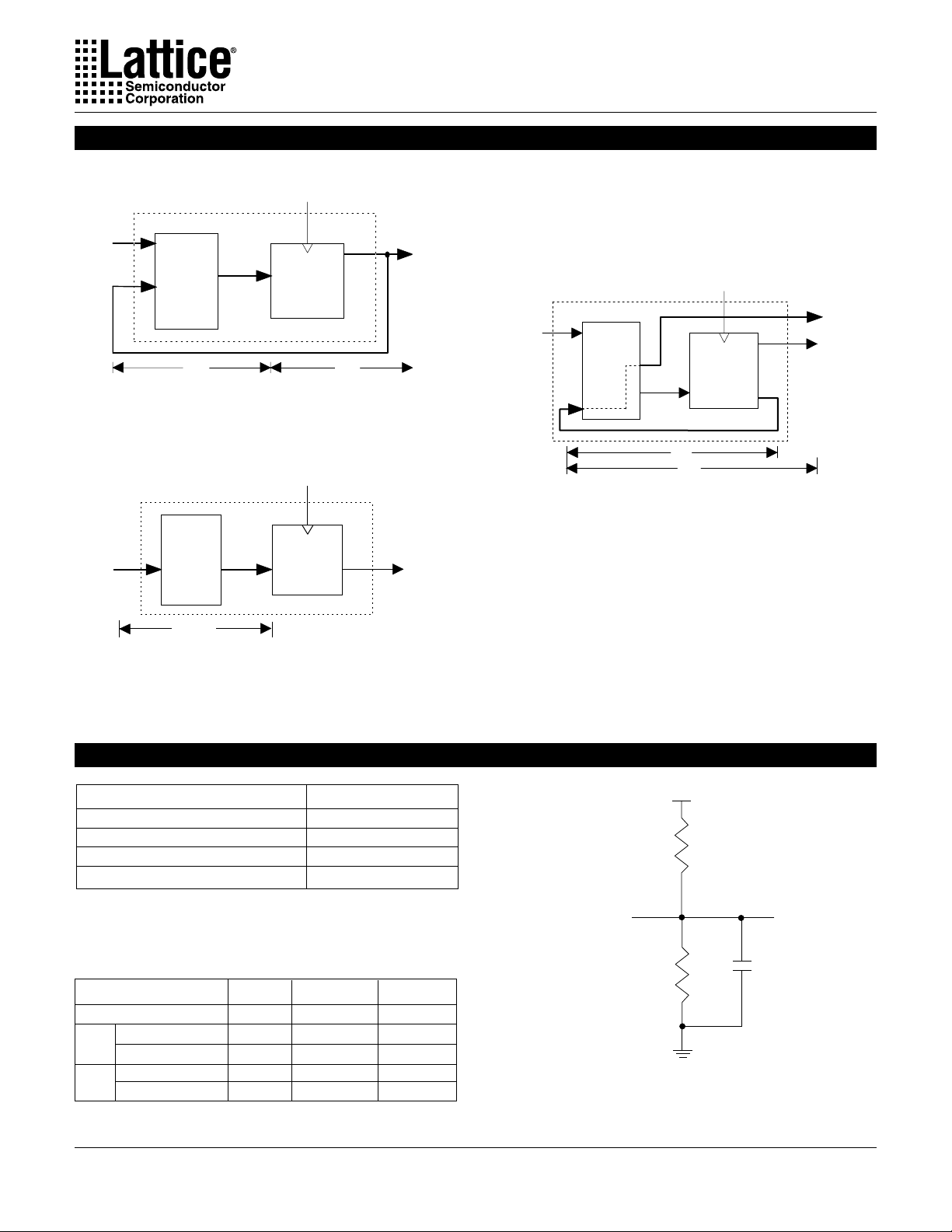

fmax Specifications
Specifications GAL20V8Z
GAL20V8ZD
CLK
LOGIC
ARRAY
t
su
REGISTER
t
co
fmax with External Feedback 1/(tsu+tco)
Note: fmax with external feedback is calculated from
measured tsu and tco.
CLK
LOGIC
ARRAY
t
su + th
REGISTER
fmax with No Feedback
Note: fmax with no feedback may be less than 1/(twh
+ twl). This is to allow for a clock duty cycle of other
than 50%.
CLK
LOGIC
ARRAY
REGISTER
t
cf
t
pd
fmax with Internal Feedback 1/(tsu+tcf)
Note: tcf is a calculated value, derived by sub-
tracting tsu from the period of fmax w/internal
feedback (tcf = 1/fmax - tsu). The value of tcf is
used primarily when calculating the delay from
clocking a register to a combinatorial output
(through registered feedback), as shown above.
For example, the timing from clock to a combinatorial output is equal to tcf + tpd.
Switching Test Conditions
Input Pulse Levels GND to 3.0V
Input Rise and Fall Times 3ns 10% – 90%
Input Timing Reference Levels 1.5V
Output Timing Reference Levels 1.5V
Output Load See Figure
3-state levels are measured 0.5V from steady-state active
level.
Output Load Conditions (see figure)
T est Condition R
A 300Ω 390 Ω 50pF
B Active High ∞ 390Ω 50pF
C Active High ∞ 390Ω 5pF
Active Low 300Ω 390Ω 50pF
1 R2 CL
Active Low 300Ω 390Ω 5pF
15
Specifications GAL20V8Z
GAL20V8ZD
Electronic Signature
An electronic signature word is provided in every GAL20V8Z/ZD
device. It contains 64 bits of reprogrammable memory that can
contain user defined data. Some uses include user ID codes,
revision numbers, or inventory control. The signature data is always available to the user independent of the state of the security
cell.
NOTE: The electronic signature is included in checksum calculations. Changing the electronic signature will alter checksum.
Security Cell
A security cell is provided in the GAL20V8Z/ZD devices to prevent
unauthorized copying of the array patterns. Once programmed,
this cell prevents further read access to the functional bits in the
device. This cell can only be erased by re-programming the device, so the original configuration can never be examined once this
cell is programmed. The electronic signature data is always available to the user, regardless of the state of this security cell.
Device Programming
GAL devices are programmed using a Lattice Semiconductorapproved Logic Programmer, available from a number of manufacturers (see the GAL Development Tools Section of the Data
Book). Complete programming of the device takes only a few
seconds. Erasing of the device is transparent to the user, and is
done automatically as part of the programming cycle.
Input Transition Detection (ITD)
The GAL20V8Z relies on its internal input detection circuitry to put
the device in power down mode. If there is no input transition for
the specified period of time, the device will go into the power down
state. Any valid input transition will put the device back into active
state. The first rising clock transition from power-down state only
acts as a wake up signal into the device and will not clock the data
input through to the output (refer to standby power timing waveform
for more detail). Any input pulse widths greater than 5ns at input
voltage level of 1.5V will be detected as input transition. The device
will not detect any input pulse widths less than 1ns measured at
input voltage level of 1.5V as input transition.
Dedicated Power-Down Pin
The GAL20V8ZD uses pin 4 (pin 5 on PLCC) as the dedicated
power-down signal to put the device in power-down state. DPP is
an active high signal where logic high driven on this signal puts the
device into power-down state. Input pin 4 (5) cannot be used as
a functional input on this device.
Output Register Preload
When testing state machine designs, all possible states and state
transitions must be verified in the design, not just those required
in the normal machine operations. This is because, in system
operation, certain events occur that may throw the logic into an
illegal state (power-up, line voltage glitches, brown-outs, etc.). To
test a design for proper treatment of these conditions, a way must
be provided to break the feedback paths, and force any desired (i.e.,
illegal) state into the registers. Then the machine can be sequenced
and the outputs tested for correct next state conditions.
The GAL20V8Z/ZD devices includes circuitry that allows each registered output to be synchronously set either high or low. Thus, any
present state condition can be forced for test sequencing. If necessary, approved GAL programmers capable of executing text
vectors perform output register preload automatically .
Input Buffers
GAL20V8Z/ZD devices are designed with TTL level compatible input buffers. These buffers, with their characteristically high impedance, load driving logic much less than traditional bipolar devices.
This allows for a greater fan out from the driving logic.
GAL20V8Z/ZD input buffers have latches within the buffers. As a
result, when the device goes into standby mode the inputs will be
latched to its values prior to standby. In order to overcome the input
latches, they will have to be driven by an external source. Lattice
Semiconductor recommends that all unused inputs and tri-stated
I/O pins for both devices be connected to another active input, VCC,
or GND. Doing this will tend to improve noise immunity and reduce
ICC for the device.
Typical Input Characteristic
40
30
20
10
0
-10
-20
Input Current (uA)
-30
-40
012345
Input Voltage (Volts)
16
Power-Up Reset
Specifications GAL20V8Z
GAL20V8ZD
Vcc
CLK
INTERNAL REGISTER
Q - OUTPUT
FEEDBACK/EXTERNAL
OUTPUT REGISTER
Vcc (min.)
Circuitry within the GAL20V8Z/ZD provides a reset signal to all
registers during power-up. All internal registers will have their Q
outputs set low after a specified time (tpr, 1µs MAX). As a result,
the state on the registered output pins (if they are enabled) will
always be high on power-up, regardless of the programmed
polarity of the output pins. This feature can greatly simplify state
machine design by providing a known state on power-up. The
timing diagram for power-up is shown below. Because of the
Input/Output Equivalent Schematics
t
su
t
wl
t
pr
Internal Register
Reset to Logic "0"
Device P in
Reset to Logic "1"
asynchronous nature of system power-up, some conditions must
be met to provide a valid power-up reset of the GAL20V8Z/ZD.
First, the VCC rise must be monotonic. Second, the clock input
must be at static TTL level as shown in the diagram during power
up. The registers will reset within a maximum of
tpr time. As in
normal system operation, avoid clocking the device until all input
and feedback path setup times have been met. The clock must
also meet the minimum pulse width requirements.
PIN
PIN
ESD
Protection
Circuit
ESD
Protection
Circuit
Vcc
Vcc
Vcc
Data
Output
Feedback
Tri-State
Control
PIN
Vcc
PIN
Feedback
(To Input Buffer)
Typical OutputT ypical Input
17

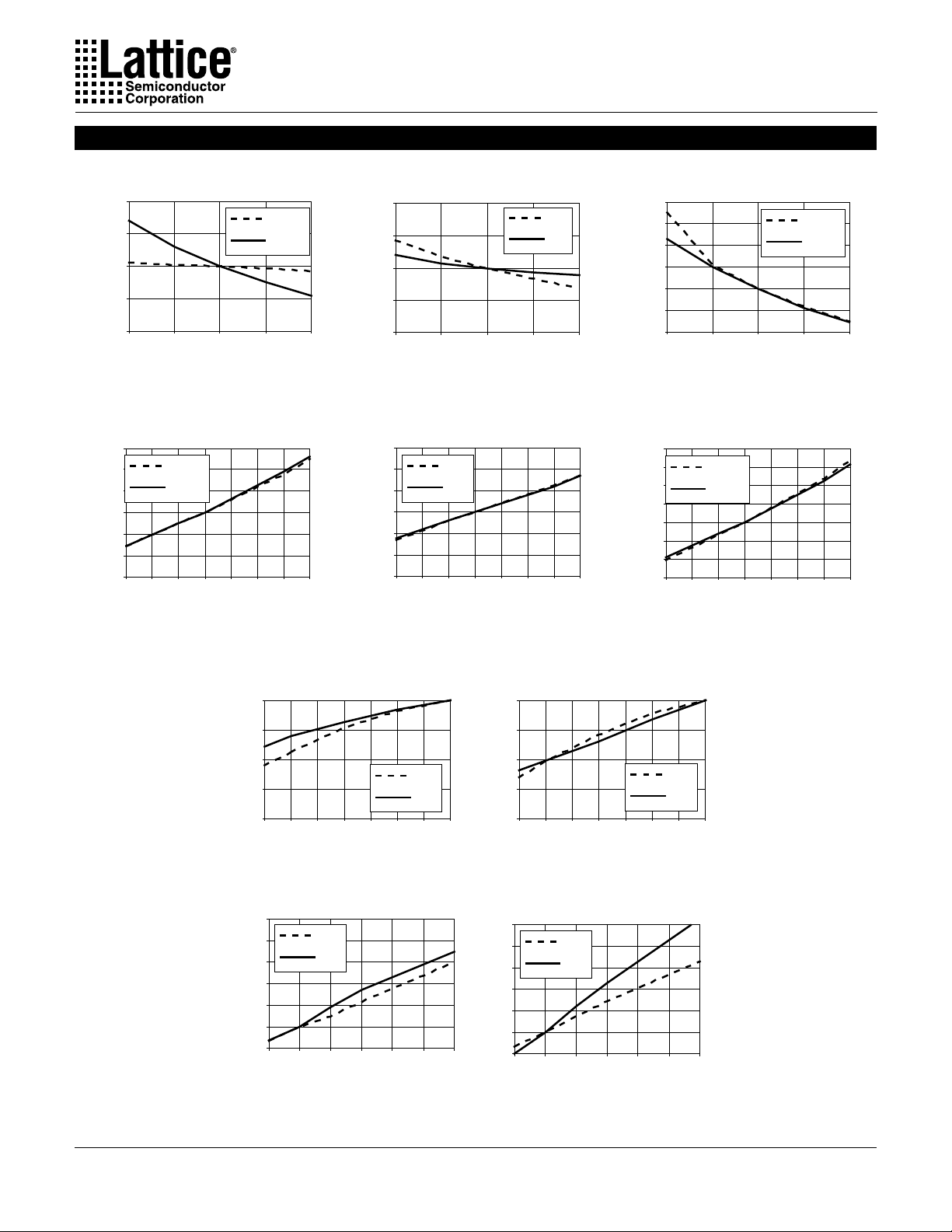

Typical AC and DC Characteristics
Specifications GAL20V8Z
GAL20V8ZD
Normalized Tpd vs Vcc
1.2
1.1
1
0.9
Normalized Tpd
0.8
4.50 4.75 5.00 5.25 5.50
Supply Voltage (V)
Normalized Tpd vs Temp
1.3
-55
-25
PT H->L
PT L->H
0
25
50
75
1.2
1.1
1
0.9
Normalized Tpd
0.8
0.7
Temperature (deg. C)
PT H->L
PT L->H
100
125
Normalized Tco vs Vcc
1.2
1.1
1
0.9
Normalized Tco
0.8
4.50 4.75 5.00 5.25 5.50
Supply Voltage (V)
Normalized Tco vs Temp
1.3
-25
RISE
FALL
0
25
50
75
1.2
1.1
1
0.9
Normalized Tco
0.8
0.7
-55
Temperature (deg. C)
RISE
FALL
100
125
Normalized Tsu vs Vcc
1.4
1.3
1.2
1.1
1
Normalized Tsu
0.9
0.8
4.50 4.75 5.00 5.25 5.50
PT H->L
PT L->H
Supply Voltage (V)
Normalized Tsu vs Temp
1.4
1.3
1.2
1.1
1
0.9
Normalized Tsu
0.8
0.7
-55
-25
PT H->L
PT L->H
0
25
50
75
Temperature (deg. C)
100
125
Delta Tpd vs # of Outputs
Switching
0
-0.5
-1
-1.5
Delta Tpd (ns)
-2
12345678
Number of Outputs Switching
Delta Tpd vs Output Loading
10
8
6
4
2
Delta Tpd (ns)
0
-2
0 50 100 150 200 250 300
RISE
FALL
Output Loading (pF)
RISE
FALL
Delta Tco vs # of Outputs
Switching
0
-0.5
-1
-1.5
Delta Tco (ns)
-2
12345678
Number of Outputs Switching
Delta Tco vs Output Loading
10
8
6
4
2
Delta Tco (ns)
0
-2
0 50 100 150 200 250 300
RISE
FALL
Output Loading (pF)
RISE
FALL
18
Typical AC and DC Characteristics
Specifications GAL20V8Z
GAL20V8ZD
Vol vs Iol
1.5
1.25
1
0.75
Vol (V)
0.5
0.25
0
0.00 20.00 40.00 60.00
Iol (mA)
Normalized Icc vs Vcc
1.30
1.20
1.10
1.00
0.90
Normalized Icc
0.80
0.70
4.50 4.75 5.00 5.25 5.50
Supply Voltage (V)
Voh vs Ioh
5
4
3
2
Voh (V)
1
0
0.00 10.00 20.00 30.00 40.00 50.00 60.00
Ioh(mA)
Normalized Icc vs Temp
1.2
1.1
1
0.9
Normalized Icc
0.8
-55 -25 0 25 50 75 100 125
Temperature (deg. C)
Voh vs Ioh
5
4.5
4
3.5
Voh (V)
3
2.5
0.00 1.00 2.00 3.00 4.00
Ioh(mA)
Normalized Icc vs Freq. (DPP
& ITD > 10MHz)
1.30
1.20
1.10
1.00
0.90
Normalized Icc
0.80
0 25 50 75 100
Frequency (MHz)
Delta Icc vs Vin (1 input)
5
4
3
2
Delta Icc (mA)
1
0
0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00
Vin (V)
Input Clamp (Vik)
0
10
20
30
40
50
Iik (mA)
60
70
80
90
-1.00 -0.80 -0.60 -0.40 -0.20 0.00
Vik (V)
Normalized Icc vs Freq. (ITD)
1
0.8
0.6
0.4
Normalized Icc
0.2
0
1 10 100 1000 10000
Frequency (KHz)
19
Loading...
