Latitude Run LATR2849 Assembling & Installation Instructions

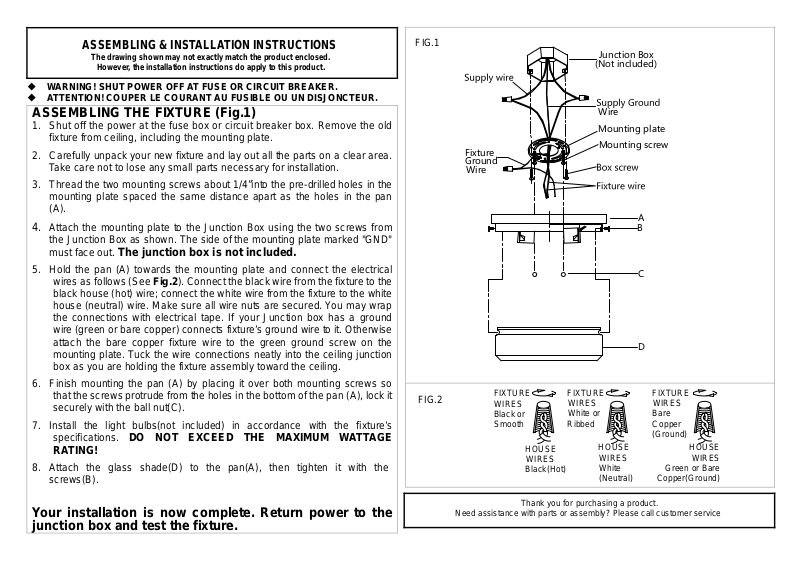

ASSEMBLING & INSTALLATION INSTRUCTIONS

j

The drawing shown may not exactly match the product enclosed.

However, the installation instructions do apply to this product.

 WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
 ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.

ASSEMBLING THE FIXTURE (Fig.1)

1. Shut off the power at the fuse box or circuit breaker box. Remove the old
fixture from ceiling, including the mounting plate.

2. Carefully unpack your new fixture and lay out all the parts on a clear area.
Take care not to lose any small parts necessary for installation.

3. Thread the two mounting screws about 1/4”into the pre-drilled holes in the
mounting plate spaced the same distance apart as the holes in the pan
(A).

4. Attach the mounting plate to the Junction Box using the two screws from

the Junction Box as shown. The side of the mounting plate marked "GND"
must face out.

5. Hold the pan (A) towards the mounting plate and connect the electrical

wires as follows (See Fig.2). Connect the black wire from the fixture to the
black house (hot) wire; connect the white wire from the fixture to the white
house (neutral) wire. Make sure all wire nuts are secured. You may wrap
the connections with electrical tape. If your Junction box has a ground
wire (green or bare copper) connects fixture’s ground wire to it. Otherwise
attach the bare copper fixture wire to the green ground screw on the
mounting plate. Tuck the wire connections neatly into the ceiling junction
box as you are holding the fixture assembly toward the ceiling.

6. Finish mounting the pan (A) by placing it over both mounting screws so

that the screws protrude from the holes in the bottom of the pan (A), lock it
securely with the ball nut(C).

7. Install the light bulbs(not included) in accordance with the fixture’s

specifications.

RATING!

8. Attach the glass shade(D) to the pan(A), then tighten it with the
screws(B).

The junction box is not included.

DO NOT EXCEED THE MAXIMUM WATTAGE

Your installation is now complete. Return power to the

unction box and test the fixture.

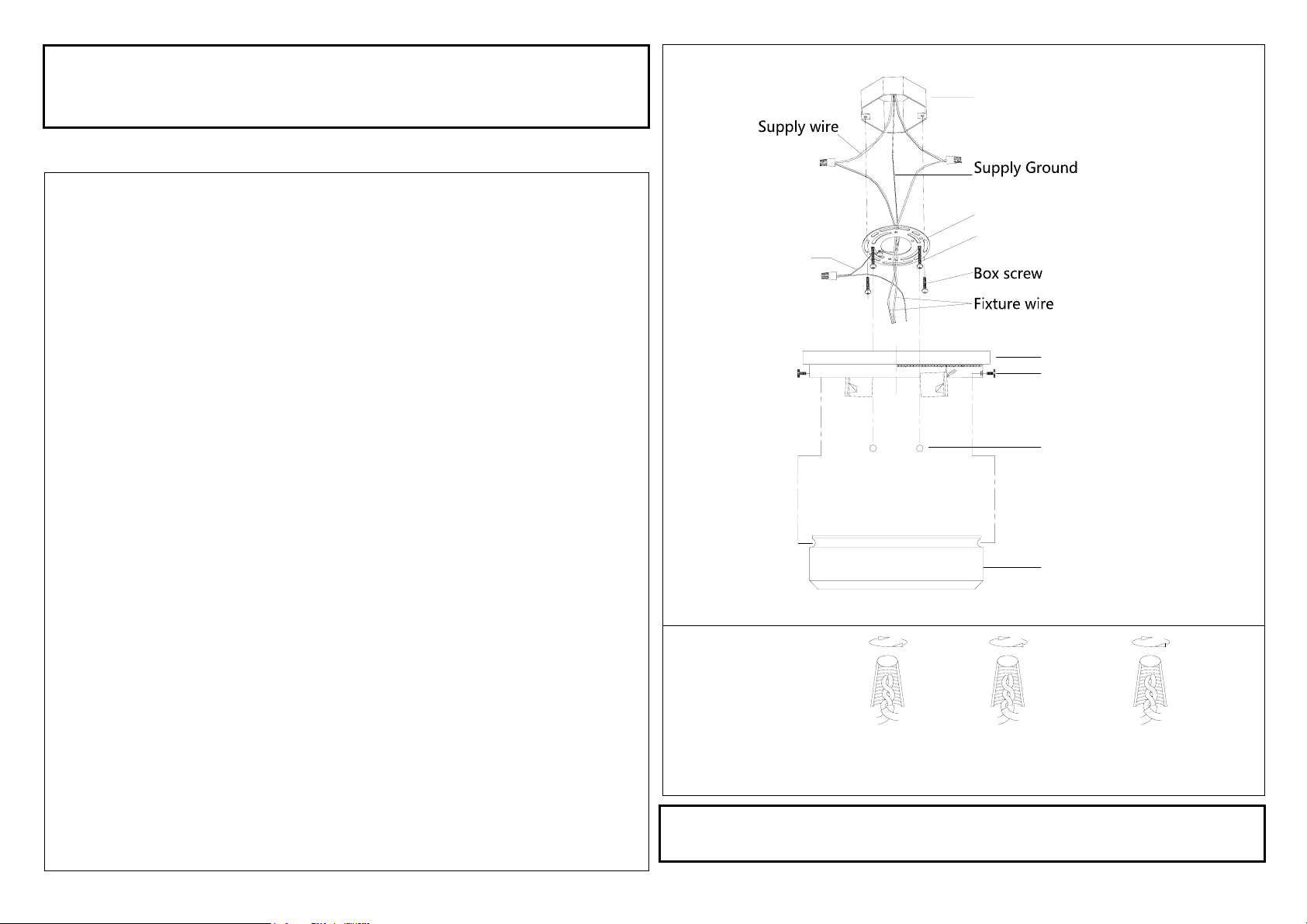

FIG.1

FIG.2

JunctionBox

(Notincluded)

Wire

Mountingplate

Fixture
Ground

Wire

Mountingscrew

A

B

C

D

FIXTURE
WIRES
Black or
Smooth

HOUSE
WIRES
Black(Hot)

Thank you for purchasing a product.

Need assistance with parts or assembly? Please call customer service

FIXTURE
WIRES
White or
Ribbed

HOUSE

WIRES
White

(Neutral)

FIXTURE
WIRES
Bare
Copper
(Ground)

HOUSE

WIRES

Green or Bare

Copper(Ground)
