LA STEELCRAFT EC35IH User Manual

Single sheave truck, cast aluminum
revolving, non-fouling, internal
halyard truck

1/8" x 7x19 Mil-C-5424
Stainless steel aircraft cable

Standard flag arrangement:
6' x 10'

Neoprene coated 2" diameter
steel counterweight

Nylon beaded retainer ring

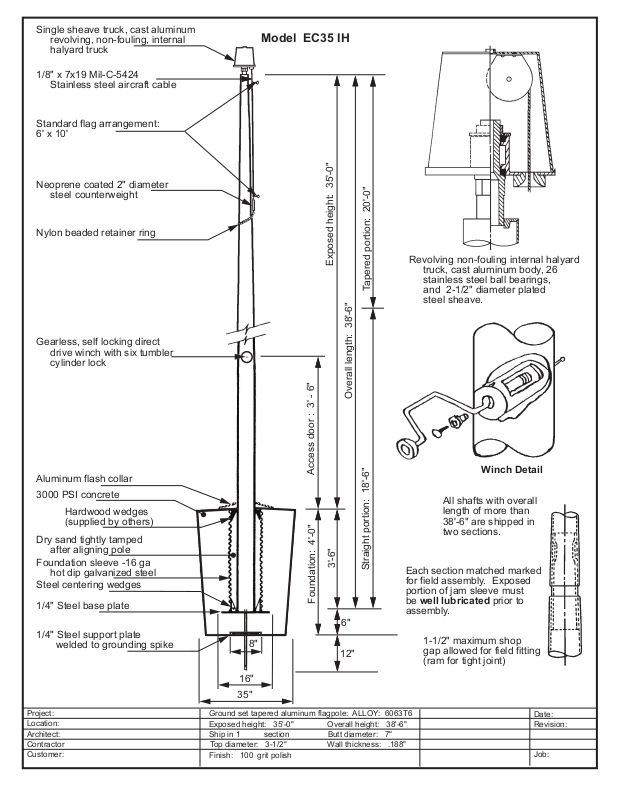

Model EC35 IH

Gearless, self locking direct
drive winch with six tumbler
cylinder lock

Aluminum flash collar

3000 PSI concrete

Hardwood wedges
(supplied by others)

Dry sand tightly tamped
after aligning pole

Foundation sleeve -16 ga
hot dip galvanized steel

Steel centering wedges

1/4" Steel base plate

1/4" Steel support plate
welded to grounding spike

8"

Exposed height: 35'-0"

Tapered portion: 20'-0"

Overall length: 38'-6"

Access door : 3' - 6"

3'-6"

Straight portion: 18'-6"

Foundation: 4'-0"

6"

12"

Revolving non-fouling internal halyard
truck, cast aluminum body, 26
stainless steel ball bearings,
and 2-1/2" diameter plated
steel sheave.

Winch Detail

All shafts with overall
length of more than
38'-6" are shipped in
two sections.

Each section matched marked
for field assembly. Exposed
portion of jam sleeve must
be well lubricated prior to
assembly.

1-1/2" maximum shop
gap allowed for field fitting
(ram for tight joint)

Project:
Location:
Architect:
Contractor
Customer:

16"

35"

Ground set tapered aluminum flagpole: ALLOY: 6063T6
Exposed height: 35'-0"
Ship in 1

Top diameter: 3-1/2"

Finish: 100

section

grit polish

Overall height: 38'-6"
Butt diameter: 7"
Wall thickness: .188"

Date:
Revision:

Job:
