STEELCRAFT PRODUCTS

P.O. Box 90365 - Pasadena, CA 91103
PHN 626-798-7401 FAX [phone]

30'-0"

MODEL

BBC-30Z

Z-SHAPED

BALANCE BEAM

(3) 1-3/8" X 3" X 10' STEEL CHANNEL
FINISHED IN ENAMEL WITH NON-SKID
SURFACE

SHEET

1 of 1

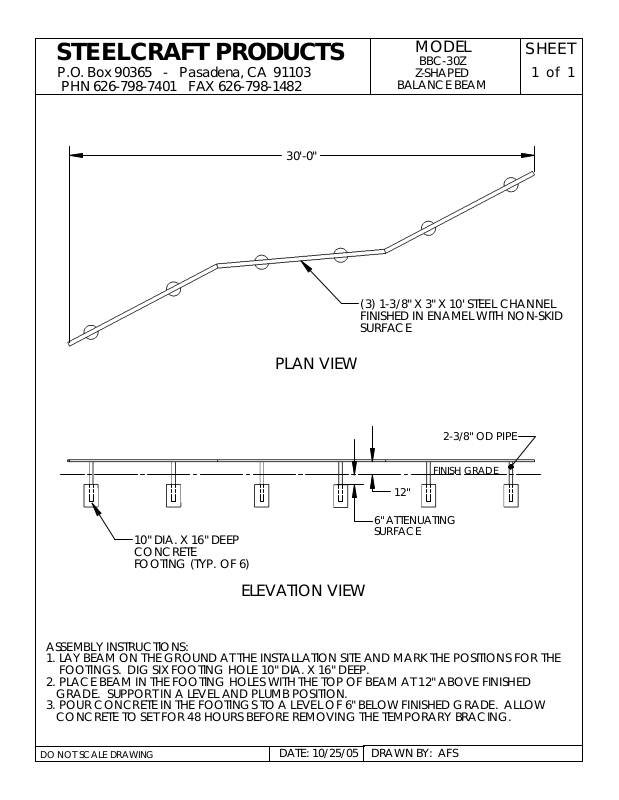

PLAN VIEW

2-3/8" OD PIPE

FINISH GRADE

12"

6" ATTENUATING

10" DIA. X 16" DEEP
CONCRETE
FOOTING (TYP. OF 6)

SURFACE

ELEVATION VIEW

ASSEMBLY INSTRUCTIONS:

1. LAY BEAM ON THE GROUND AT THE INSTALLATION SITE AND MARK THE POSITIONS FOR THE
FOOTINGS. DIG SIX FOOTING HOLE 10" DIA. X 16" DEEP.

2. PLACE BEAM IN THE FOOTING HOLES WITH THE TOP OF BEAM AT 12" ABOVE FINISHED
GRADE. SUPPORT IN A LEVEL AND PLUMB POSITION.

3. POUR CONCRETE IN THE FOOTINGS TO A LEVEL OF 6" BELOW FINISHED GRADE. ALLOW
CONCRETE TO SET FOR 48 HOURS BEFORE REMOVING THE TEMPORARY BRACING.

DO NOT SCALE DRAWING

DATE: 10/25/05

DRAWN BY: AFS
