Operating Instruction

Lassele Refrigerated Counters

Please read this user manual before you use this product.

If you request unnecessary services, you may waste money.

Thus, fix simple troubles by yourself which you have found.

R512A-773

- 2 -

1. Comprehension and preparation

2. How to use

3. References

1) Part name 4

(2) How to ground 10

(3) Caution 11

Installation 15 Temperature control 17

(1) Proper usage 18

(2) Cautions 19

(3) Cleaning 20

(4) Troubleshooting tips 21

(5) Before you call for service 22

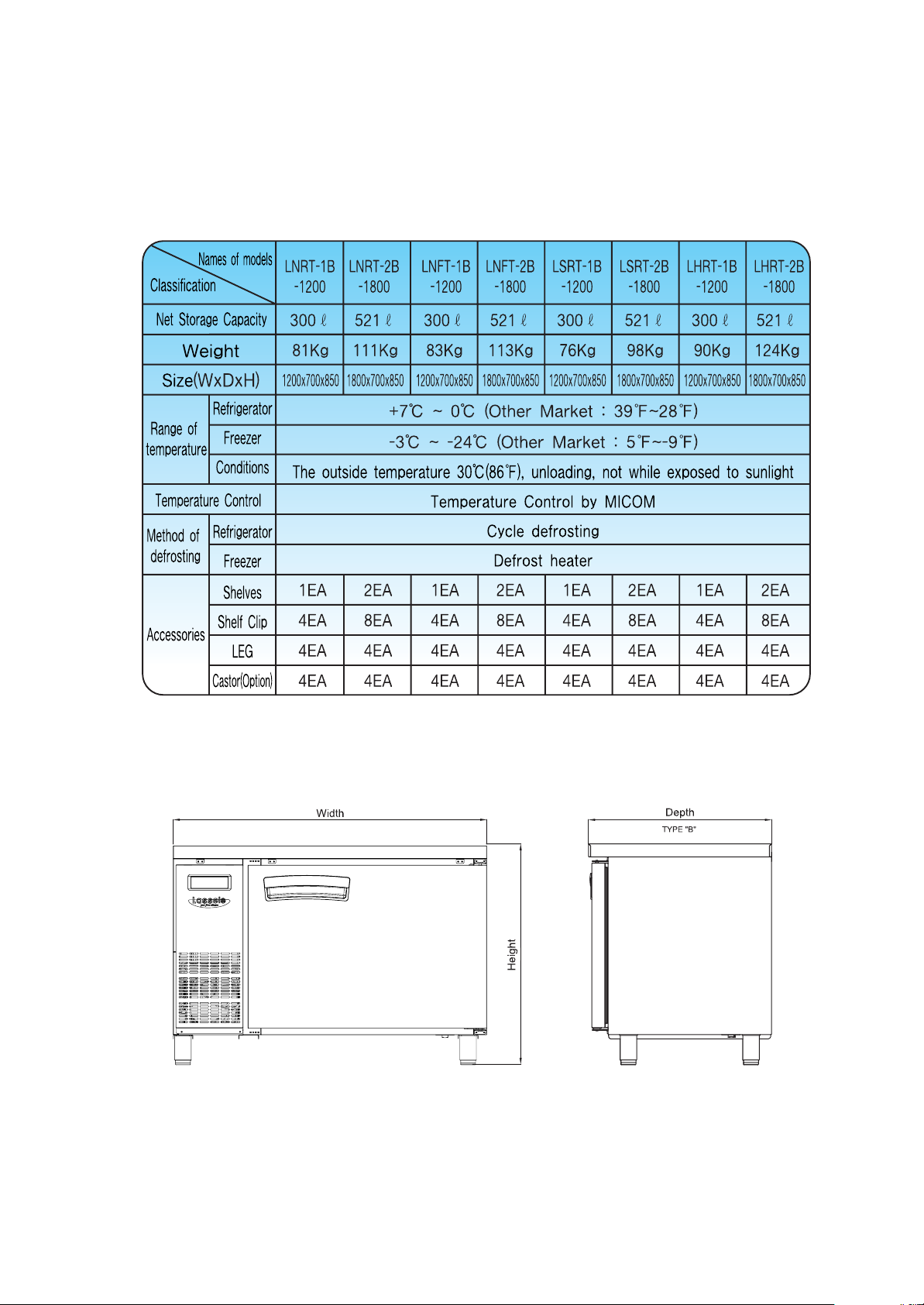

(6) Product dimension

•The temperature inside refrigerator depends on the frequency of door opening and closing, volume of food stored and the circumstance under which the product is installed.

•Set the temperature control at Weak if food in the refrigerator is a little.

•After a power outage or after the power cord is reconnected, the temperature previously selected will automatically be displayed.

•Don’t cool or freeze water or meat stock in the product as it may change other sorts of food in it. Use a refrigerator for meat stock to cool or freeze it.

•In the case that the ambient temperature of the product is below 10℃(50℉), food in refrigerator may be frozen.

•Set the temperature control according to the conditions of the ambient temperature.

•Don’t touch the vessels or food in refrigerator with a wet hand. Your hand may be frost-bitten.

•Don’t keep drugs, academic materials, herbal tonics (liquor made from deer antler or dog) or medicinal herbs in the product. - The company will not be responsible for spoiled drugs, academic materials, herbal tonics or medicinal herbs.

Table of Contents

- 3 -

The merits of the product

Glossy Appearance

Lustrous Stainless Steel brightens a room.

Power-saving Design

The product is designed to reduce greatly electric bills.

Powerful Cooling System

Rapid and powerful cooling system keeps your food fresh and safe longer without the loss of nutrition.

Low Noise and High Efficiency Compressor

The product with a compressor designed for Low Noise and High Efficiency makes quiet and powerful operation possible.

Safe Design

Built-in self test equipment which informs a rise in room temperature and a safe device which perceives the disorder of compressor are adopted.

Check Local electric rating.

*Plug into exclusive power socket. *Dont’t plug into multi-socket.

*Make sure to read and follow this manual before you use the product.

Appearance LNRT-1A/1B/C-900, LNRT-2A/2B/C-1200/1500, LNRT-3A/3B/C-1800(Refrigerator only)

LNFT-1A/1B/C-900, LNFT-2A/2B/C-1200/1500, LNFT-3A/3B/C-1800(Freezer only)

Appearance LERT-1B/C-900, LERT-2B/C-1200/1500, LERT-3B/C-1800(Refrigerator only)

LEFT-1B/C-900, LEFT-2B/C-1200/1500, LEFT-3B/C-1800(Freezer only)

- 4 -

Part name

※ The door quantity depends on the model specification.

Appearance LGRT-1B/C-900, LGRT-2B/C-1200/1500, LGRT-3B/C-1800(Refrigerator only)

Appearance LEGRT-1B/C-900, LEGRT-2B/C-1200/1500, LEGRT-3B/C-1800(Refrigerator only)

- 5 -

Part name

※ The door quantity depends on the model specification.

Appearance LNRT-1B/C-90-V, LNRT-2B/C-12VV, LNRT-2B/C-15VV, LNRT-3B/C-18-VVV

Appearance LNRT-1B/C-90-W, LNRT-2B/C-12-WW, LNRT-2B/C-15-WW, LNRT-3B/C-18-WWW

- 6 -

Part name

※ The door quantity depends on the model specification.

Appearance LHRT-1B/C-900, LHRT-2B/C-1200, LHRT-2B/C-1500,

LHRT-3B/C-1800 (Refrigerator only)

Appearance LSRT-1B/C-900, LSRT-2B/C-1200, LSRT-2B/C-1500

LSRT-3B/C-1800 (Refrigerator only)

- 7 -

Part name

※ The door quantity depends on the model specification.

Appearance LNRT-1B-1200, LNRT-2B-1800(Refrigerator only)

LNFT-1B-1200, LNFT-2B-1800(Freezer only)

Appearance LHRT-1B-1200, LHRT-2B-1800(Refrigerator only)

- 8 -

Part name

※ The door quantity depends on the model specification.

Appearance LSRT-1B-1200, LSRT-2B-1800(Refrigerator only)

- 9 -

Part name

- 10 -

How to ground

Connect a ground wire to prevent problems such as power leakage or electric shock.

* Power outlet for the product must be

grounded

* Power connection must be made using a

safety plug socket earthed according to the regulations. Follow local regulations!

-After connecting a ground wire to a copper ground plate, bury the wire beneath ground. Size of cooper plate: Over 0.7mm thick

Over 900cm²wide

-Connect the wire to a properly grounded

outlet

※ The places where a ground wire can’t

be connected

Never use the product for other purposes except for keeping food.

Especially, don’t let children play in the product. If the door of the product is closed,

they may choke.

A Ground Wire

Over 75 cm

A Cooper plate

properly grounded outlet

A Ground wire

a gas pipe

water pipe

telephone wire

Grounding Terminal

Connect exclusive Outlet Only

- 11 -

Caution

•As the proper use of product can prevent danger or physical loss, you should observe general cautions to use it safely.

The contents of warning and caution

Warning

The contents of signs

A man may die or may be seriously injured.

The sign represents NO.

The sign represents NO DISASSEMBLING.

The sign represents NO TOUCHING.

You must observe it.

You must unplug the power cord from outlet.

The sign represents the protective grounding to prevent any electric shock.

Caution

A man may be wounded or suffer from a physical loss.

Warning

Don’t overload an electrical outlet with several appliances or extension cords

•Electrical overheating and

fire may occur.

Don’t spray water directly inside or outside of refrigerator

•Fire or electric shock may occur.

Don’t touch an electric plug, electrical components and operating part located to the left side of the refrigerator with a wet hand

•You may be shocked electrically or your hand may be injured.

Don’t spray flammable and combustible materials around the product

•A burst or fire may occur.

Don’t let children sit on or go in the product. Don’t detach shelves to keep them separately

•If children enter the product, their lives may be dangerous.

Make sure that the grounding wire is connected

•If the grounding wire has not

been connected, a disorder or electric shock may occur.

No No

Grounding

No wet hand

- 12 -

Warning

Observe Observe

Unplug the power cord.

No disassembling

Don’t keep volatile and flammable materials in the product

•

If benzene, thinners, alcohol, ether, LP gas and

medicines are kept in it, they may burst.

Never dissemble, fix and convert it arbitrarily. Especially, don’t let children play, control or operate it

•

The wrong operation may cause fire, electric shock or damage.

If gas escapes, you should not touch the product and its plug, and you should ventilate at once

•

There is a real fire risk and burn risk once tiny

spark bursts into open flame.

Remove doors and their packing when discarding the product

•

Especially, don’t let children play in the product. If the door of product is closed, they may choke.

•

Please contact the place where you purchased the product or a consumer service center for additional information.

Don’t break, modify, bend with force, stretch or twist an electric cord: If the cord is damaged, fire or electric shock may occur.

Make sure that an electric plug is not pressed by the rear side of the product. Put it where it is easy to use the plug

•

If the electric plug is damaged, fire caused by overheating may occur.

emember to unplug the power cord when thunder and lightening occur and

when you don’t use it for a long time.

•

Even though you don’t use the product, it may be overheated if the power cord remains plugged. There is also fire or electric risk.

•

The appliance must be positioned so that the plug is accessible.

- 13 -

Caution

Install the product where rodents (mouse and so on) are not present: If they gnaw the wire, fire may occur.

If abnormal conditions (strange sound, smell and smoke) are founded, unplug the power cord immediately, and then contact the appointed customer service center.

When disconnect the power cord, pull on the plug, not the cord itself

•

Pulling on the cord can damage the cord and may result in fire or electric shock.

As the product is heavy, several people should move it together

•

Don’t lay it while carrying.

Don’t touch food or containers in the refrigerator with wet hands

•

Your hands may be frostbitten.

Don’t put the bowls filled with water, drugs and small metals around the machine room on the left side of the product

•

There is an electric shock, fire and burst risk or you may be hurt. The longevity of the product may be reduced. Its cooling function may weaken. It may result in malfunction.

Use a door knob when closing the refrigerator door

•

If you close the door with other parts except door knob, your fingers may be hurt

Don't pack the refrigerator with too much food

•

If the food pours down while opening the

door, you may be hurt. Cooling efficiency would be decreased accordingly.

No No

Unplug the power cord

Observe

- 14 -

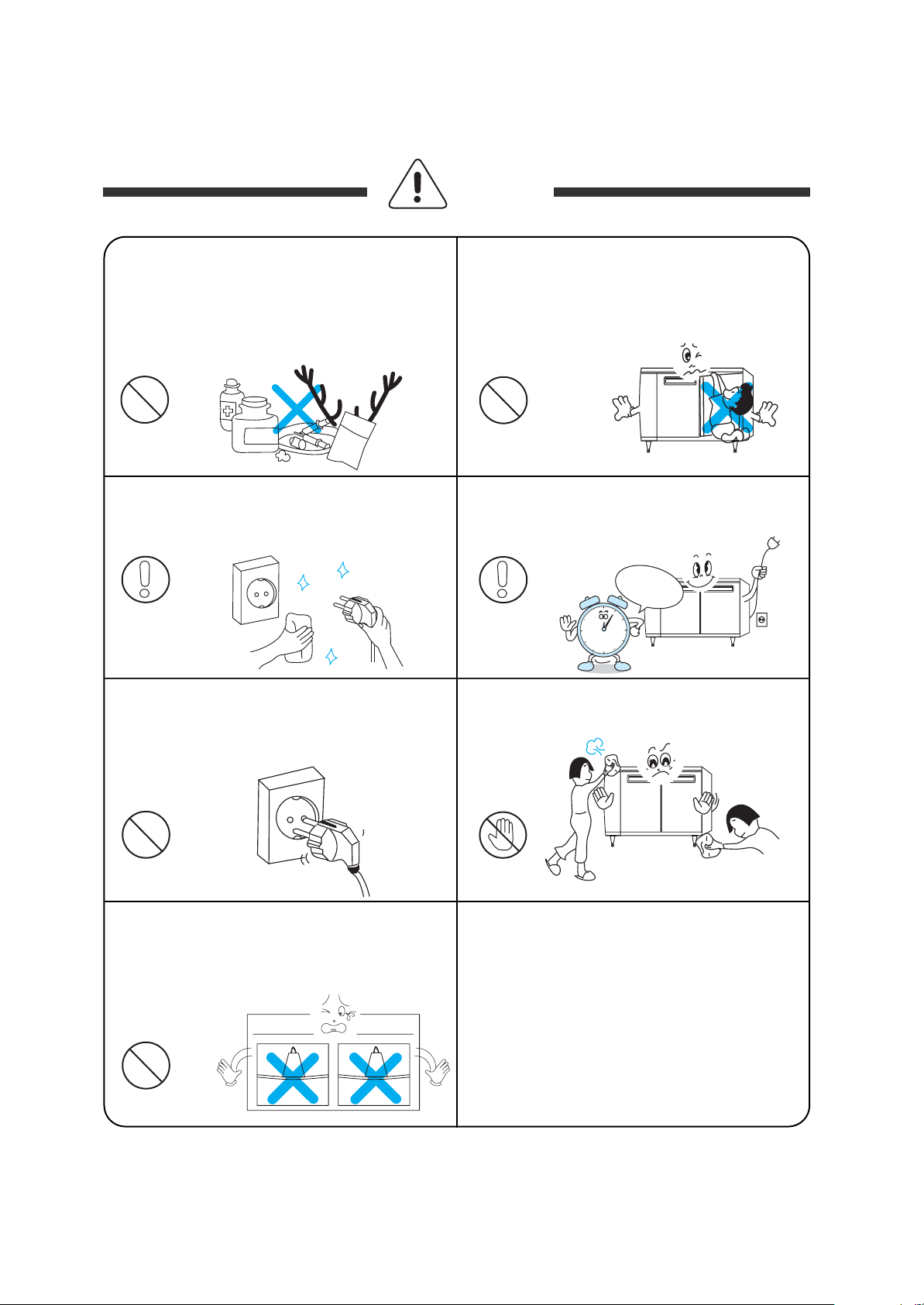

Caution

Keep drugs, reagents, academic materials, herbal tonics (liquor made from deer antler or dog) and medicinal herbs

•

If things which require the strict temperature control are put in the product, they may spoil or their unexpected reaction may result in a hazard.

•

The company is not responsible for drugs, academic materials, reagents and herbal tonics spoiled by the trouble of the product.

Don’t cling to the door or clime to the upper part of product. It is very dangerous

•

The product may fall down or you may be hurt.

Especially, let children be careful.

•

The company doesn’t compensate according to

the Consumer Protection Laws for damages or losses which have occurred owing to unstable action.

Make sure that plug pins are not wet with water or there is not dirt stuck around the pins. Insert the plug fully into the outlet not to be shaken

•

If dirt or foreign substances are stuck to the pins,

or the plug is connected unstably, fire may occur.

If you want to reconnect the power plug after you have pulled it off, replug it at least in 5 minutes.

•

If a cooler works too hard, it may result in a trouble.

Don’t plug the power plug if the hole of outlet is too big. It may result in an electric shock or fire.

Don’t put your hands in a part of the product or its left machine room They may be hurt.

5 minutes

later

Do not leave too much food on the shelf of the cool chamber.

* Maximum carrying capacity of the shelf is

under 30kg.

* The shelf might be bent in case of over 30kg.

Observe Observe

over 30kg

- 15 -

When the product is installed in a basement or in a wet or damp place

•

In the case that the product is installed in a basement or in a wet or damp place, purchase an earth leakage circuit breaker from an agent or after-sales service center and then connect it to the outlet. Electric leakage breaker.

Install the product indoors

•

It is indoor use only. If it is installed outdoors, the product may be damaged or its cooling efficiency may be decreased.

Install the product on the firm and even floor

•

The unstable installation may result in vibration and noise of the product. If the floor where the product is supposed to be installed is not flat, put a

strong board on it.

•

Fasten the product not to be shaken by turning the

height control screws of fixing legs to the left.

Install the product under a shelf or where there is nothing to fall down on the top.

Install it in a well-ventilated area

•

As cooling efficiency gets better in the wellventilated area, allow adequate space around the refrigerator for good air circulation as follows.

E.L.B

Installation

Turn the screw to the left to increase the height of product or turn it to the right to decrease it.

Over 50cm

over 15cm

Avoid the place where there is much corrosive gas to install it

•If the ambient temperature is high, cooling

efficiency will be reduced and electric fee will be increased.

•The color of its appearance may be changed or its

longevity may be reduced by briquette or corrosive gas.

over 10cm

- 16 -

Avoid places that are damp, dusty or where water splashes

•

If you install the product in a place which is damp or subject to water, it may result in a power leakage. If dust is piled up a lot in a machine room, condensation may be reduced and cooling efficiency may be decreased.

Avoid places that are exposed to direct sunlight or excessive heat

•

Avoid places that are exposed to direct sunlight

and excessive heat like electric or gas heater.

Connect a power plug into an electric outlet when 2-3 hours have passed after installation. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or qualified person in order to avoid any hazard.

Moist

- 17 -

Temperature control

● Continuous 5 second press on the button will toggle the power On/Off.

- If you turn the power off during operation,

every power becomes shut down.

At this moment if the power is turned on,

the fan motor inside the room will be activated immediately and the comp will start operation after 5 minutes of delay.

● One time push of the or button will make the set temperature changed.

● Continuous 3 second press on the button

will change the defrost fequency (5H, 8H).

● Press and at the same item for 3 sec and "SEL" will appear on the display.

Press once and "dS" will appear on the

display.

Press once to activate Force Defrost

and "dF" will appear on the display while the

Force Defrost is activating. After 30 minutes

from the defrost activation if the temperature

sensor inside the room senses the 5 degree

C, then the forced defrost stops.

● Refrigerator : +7℃ ~ -3℃

(Other Market : 39℉ ~ 28℉)

● Freezer : -3℃ ~ -24℃

(Other Market : 5℉ ~ -9℉)

- 18 -

Don't pack the refrigerator with too much food

•

As cooling circulation gets worse owing to too

much food, cooling time gets longer. Keep food

at proper intervals. (If you put food at the bottom

of product, cooling circulation becomes poor.

Thus, keep food on shelves.)

Keep food when 2 ~ 3 hours have passed

•

Put food into the refrigerator when 2 ~ 3 hours

have passed since it starts working, that is, when

the inside of product gets fully cold.

Wait until hot food is cooled down and then keep it.

•

If you put hot food directly, it may make its surrounding food spoil and electric fee will be increased.

Put food into plastic bags or containers with a cover before keeping them in the product.

•

Put juicy or smelly food into plastic bag or containers with a cover. They prevent food from being dry and changed. Thus, food can be kept longer and the smell inside the refrigerator can be reduced.

•

Take food after expiration date out of the

refrigerator.

Proper usage

Put the food when 2 ~ 3 hours have passed.

Wash and then keep vegetables or fruits.

•

Keep vegetables or fruits after washing and wiping them. Clean bottled or packed food not to soil other foods and then keep it.

- 19 -

When you don’t use the product for a long time

•

Take food out of the refrigerator and unplug the power cord.

•

Clean up and wipe the inside of product and then dry the inside for 2~3 hours.

•

If someone enters the unused refrigerator and then its door is closed, it is very dangerous. Thus, insert something between the door and a body of the product not to be closed completely.

When power is off

•

Don’t open the door more frequently than you need to.

When power is supposed to be off

•

Avoid keeping new food because it raises the

temperature inside the product

When tiny water droplets are formed

•

Tiny water droplets may be formed when humidity around the product is high or it rains. This phenomenon occurs when moisture in the air reach the cold side of refrigerator. Then, wipe the product with a dry towel.

When you carry or move the product

•

Be sure to unplug the power cord when you carry or move the product.

•

Be sure to carry the product with several people as it is very heavy.

•

See the manual when you operate again the product after placing it.

Cautions

Don’t open the door

more frequently than

you need to.

2~3hours....

Wipe the product with a dry towel.

Don’t open the door more frequently than you need to.

•

The frequent door opening may reduce cooling efficiency as the cold air in the product comes out.

Don’t open the

door more frequently

than you need to.

Don’t operate the product with the power plug.

•

If you operate the product with the power plug, you may be shocked electrically.

- 20 -

Before you clean the product

•

Clean the product once a month. If you clean it frequently, you can keep it clean and use it for a long time.

•

Unplug the power cord.

•

Especially, don’t sprinkle water directly on the top of machine room to clean the product. It may

cause power leakage and it may have the product tarnished.

•

Don’t sprinkle water directly to clean the product.

Washing the inside and outside of the product

•

Wash it with a soft cloth soaked in warm water.

•

Wash its serious stain with a soft cloth soaked in

neutral detergent. In the case that you use neural

detergent, be sure to wash it with clean water and

to wipe completely dampness with a dry cloth.

•

You can detach and wash shelves.

•

Don’t use thinner, benzene, oil, boiling water, a

rough brush, abrasive and hydrochloric acid which

can change the color and form of the product.

Packing of door (Door Gasket)

•

If you keep using door gasket stained with juice

or lactobacillus beverage, the gasket may be damaged in rapid. Especially, its lower part is apt to be dirty. Thus, wash it with a soft cloth soaked in a neutral detergent and wipe it with a clean cloth.

After cleaning

•

After cleaning, close the door tightly as food or other things may prevent the door packing from being adhered to the body of the product. Make sure that it is adhered to the body completely.

•

Make sure that the power cord is not damaged.

•

Make sure that electrical overheating is not

found from the power plug..

•

Make sure that the power plug is connected to

the outlet completely.

•

Please read the user’s manual thoroughly

before you use this product.

Cleaning

Wash it once

in a while

- 21 -

Diagnosis

Cooling system doesn’t work. Cooling function is weak.

1. Is the power plug connected properly?

2. Isn’t temperature control set at “weak”?

3. Isn’t the product exposed to direct sunlight and heaters?

4. Isn’t the rear side of refrigerator too close to the wall?

5. Don’t you open the door more frequently than you need to? Is the door closed tightly?

6. Don’t you put anything on the left side of machine room?

1. Connect the power plug.

2. Press the temperature button to set at “strong”

3. Avoid places that are exposed to sunlight or heaters.

4. Allow the space over 10cm from the back and side of the product.

5. Close the door tightly and don’t open it too frequently.

6. Don’t put anything on the left side of machine room for free air circulation. Otherwise, cooling efficiency may be decreased.

1. Isn’t the temperature control set at “strong”?

2. Isn’t the surrounding temperature below

10℃(50℉)?

3. Isn’t juicy food put where cold air comes

out?

1. Press the temperature control to set at “weak”.

2. In the case that the surrounding temperature

is below 10℃(50℉), move the product to a place whose surrounding temperature is in the rage of 10℃~35℃(50℉~95℉).

3. Put juicy food at the front side of shelv

es.

1. Isn’t the floor slant or weak to install the product?

2. Isn’t the back side of the product too close to the wall?

3. Isn’t there anything at the back and side of the product?

1. Don’t insects or foreign substances block the drainage at the rear side of the product?

1. Install the product where the floor is even and firm.

2. Allow the space over 10cm from the back and side of the product.

3. Don’t keep anything at the back and the side of the product.

1. Seal the juicy food before putting it in the

refrigerator.

2. Detach and wash the drainage from the

right back inside the refrigerator.

1. Don’t you use a fuse whose capacity is different or other substitutes?

2. Isn’t fuse broken?

1. Never use a fuse whose capacity is different or other substitutes.

2. Take a fuse out of a fuse holder and see if it is broken. If so, change the fuse with the same capacity fuse supplied to you after checking its rated voltage and electric current. Put the fuse into the fuse holder in the same way.

* Notice: Be sure to unplug the power cord

from an outlet before changing the fuse

Food in a refrigerator compartment is frozen.

You hear abnormal noise.

Water drops come down at the bottom of the refrigerator.

A fuse has a short circuit.

Checking Arrangement

Troubleshooting Tips

- 22 -

⇒ Hot wires have been installed to prevent tiny water

droplets from being formed. Especially, when the product is installed at first or during summer, you may feel that the product is hot but it is not out of order.

Cases No troubles.

The front side of product is hot.

⇒ In the case that you open the door again within 5~10

seconds after opening and closing the door, the door may not open very well owing to the difference of the inside pressure.

⇒ Wait for dozens of seconds and then open it, and it

will open easily.

The refrigerator door doesn’t work too well.

⇒ It is the sound of refrigerants flowing to cool the

inside of product.

You hear a sound that water flows. (Ex: Gurrhk, zigle zigle, bukbuk)

⇒ It is the sound occurred when the product starts

operating at first and the sound occurred when the compressor and motor work. You may feel the sound is big at first, but if the product works normally, the sound will be decreased after a while.

⇒ When the refrigerator temperature goes back to its

"normal" temperature, the compressor stops operating

and then such sound as tuk tuk and dalgrak may occur. However, it is not out of work.

You hear a sound, “tuk tuk”from the inside of product. (Ex: tuk tuk, dalgrak, woong~, dulkung)

⇒ In the case that the surrounding temperature and

humidity are high, the refrigerator door remains open for a while or juicy food is kept without a cover, water droplets may be formed.

Tiny water droplets are formed in the refrigerator compartment.

⇒ In the case that the surrounding humidity of the

product is high or that it rains during the rainy season, water droplets may be formed in the outside of product. This phenomenon occurs when moisture in the air reaches the cold side of the refrigerator and when humidity is very high. Then, wipe them with a dry towel.

Tiny water droplets are formed in the outside of product.

Before you call for service
