Spinnit EBM 2.1 Manual Paper Drill
R
-
USER’S MANUAL
Before operating this equipment, please read these
instructions completely and keep these operating
instructions for future reference.
485 Hague Street, Rochester, NY 14606 U.S.A.
Tel: 585-436-1934 Fax: 585-464-8665
www.lasscowizer.com [email protected]
Serial Number:
Date of Purchase:
Dealer:
Address:
Telephone Number:
Page 2
Table Of Contents
1 - Introduction
1 - Introduction
1.1
Your New EBM-2.1 Paper Drill.............
1.2
Shipping Damage Inspection...............
2 - Safety
2.1
Safety Instructions................................
2.2
Warning Labels.....................................
2.3
Grounding Instructions.........................
3 - Setting Up Your Machine
3.1
Loose Items Inventory..........................
3.2
Accessories Warning............................
3.3
Installing the Table Assembly...............
3.4
Assembly and Installation of the
Back-gauge..........................................
3.5
Installing the Paper Side Stops............
3.6
Installing the Chip Bag.........................
3.7

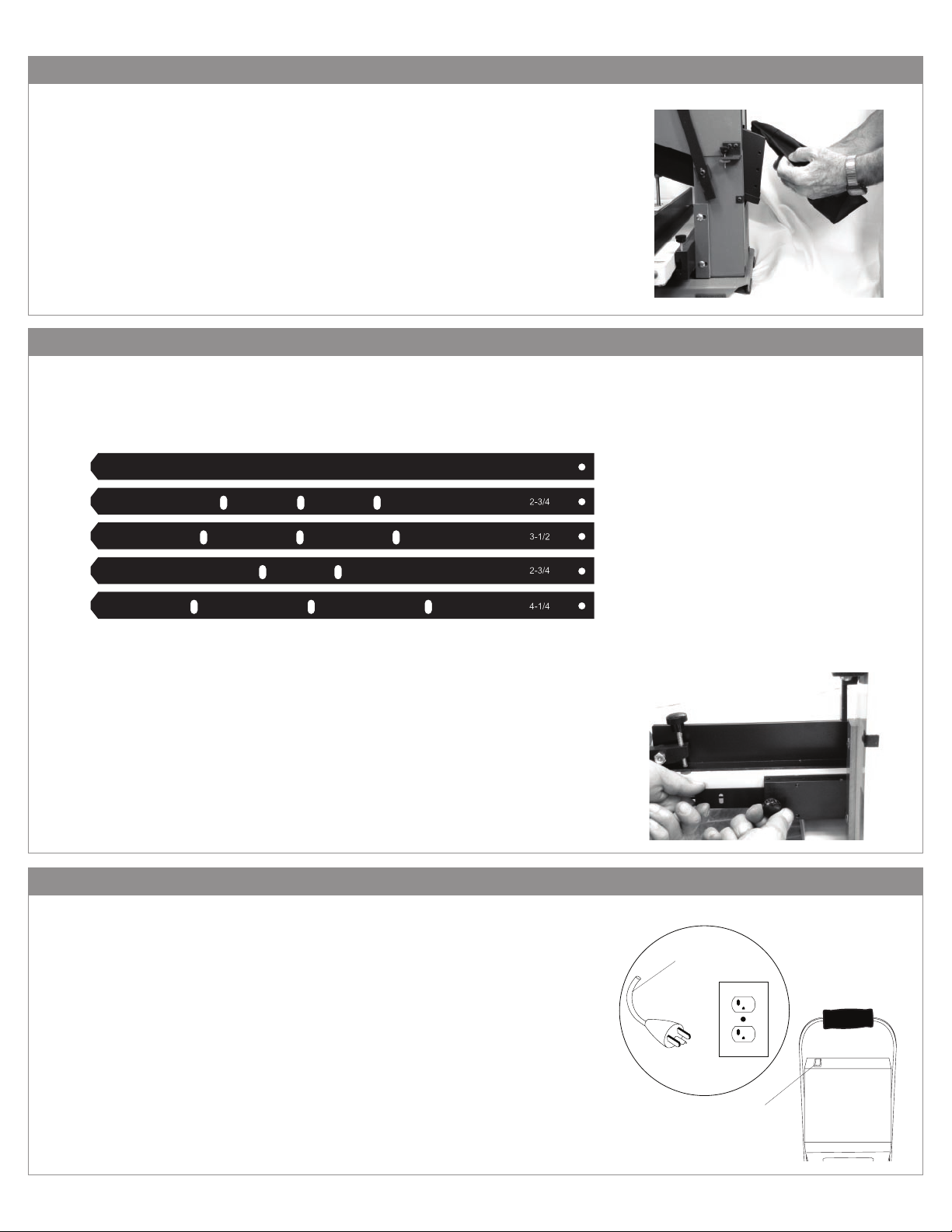

Choosing and Installing the Pattern
Bar........................................................
3.8
Electrical Instructions...........................
4 - Operation
4.1
Protective Guard..................................
4.2

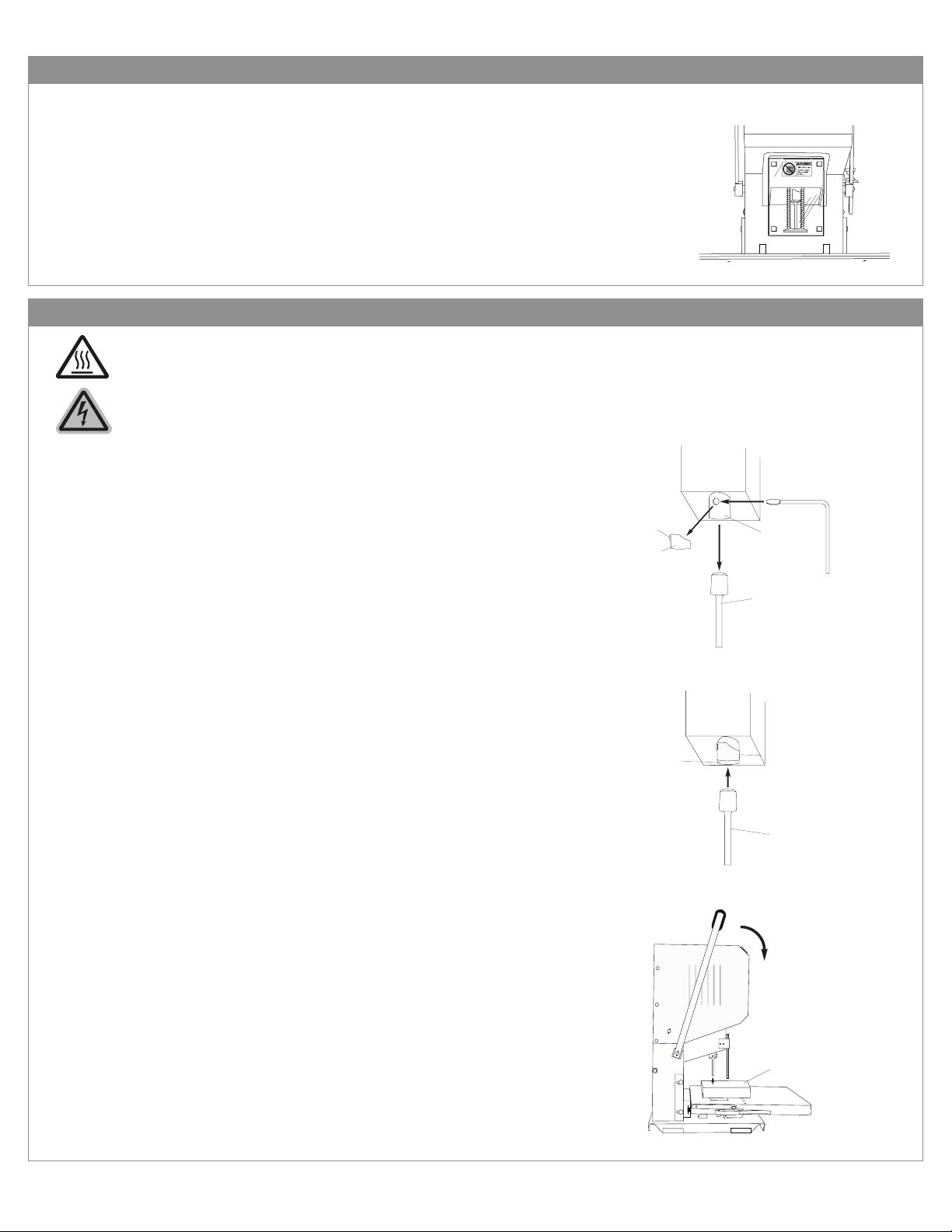

Drill Bit Removal and Installation.........
4.3
Leveling the Drill Bits............................
4.4

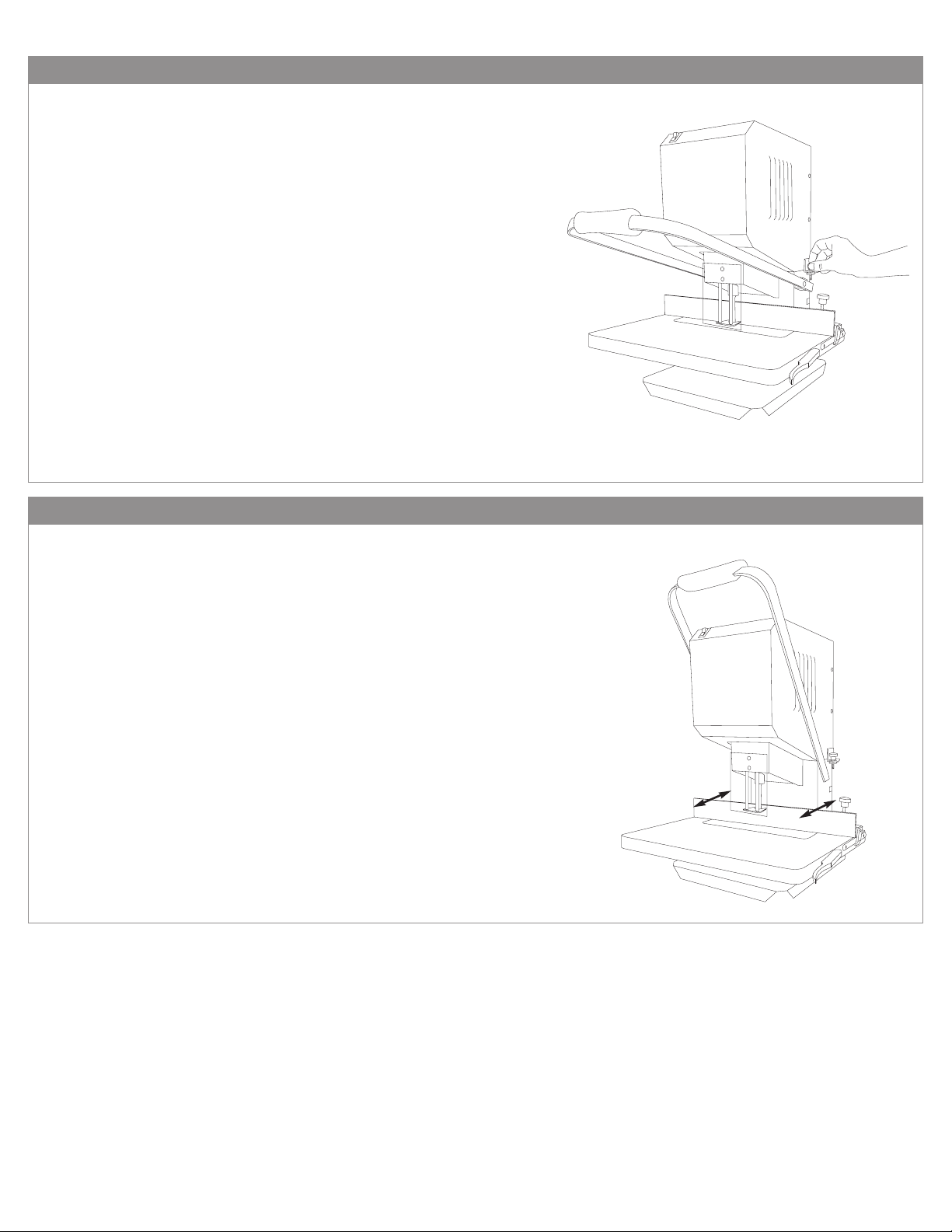

Adjusting the Back-Gauge...................
4.5
Drilling Procedures...............................
4.6
Traversing the Table.............................
4.7
Tips on Drilling......................................
Page 01
Page 01
Page 02
Page 03
Page 04
Page 05
Page 05
Page 06
Page 07
Page 07
Page 08
Page 08
Page 08
Page 09
Page 09
Page 10
Page 10
Page 11
Page 11
Page 11
1.1 - Your New EBM-2.1 Paper Drill
Thank you for your purchase of the Spinnit EBM-2.1
Paper Drill.
We ask that you take a moment to fill in the serial
number and other information on the front cover of the
manual. Please keep this manual as a reference for
future use.
For parts and service, please contact the Lassco-Wizer
Dealer from whom you purchased the machine. If you
require assistance in locating a Lassco-Wizer Dealer
please contact our customer service department at 585436-1934. Please have the model of your machine and
the serial number when you call.
If you wish to write to us, send correspondence to:
Lassco-Wizer
Attn: Customer Service
485 Hague Street
Rochester, NY 14606
R
1.2 - Shipping Damage Inspection
Remove the machine from the carton and inspect for
any shipping damage. If any damage is present, report
the damage to the carrier immediately; failure to do so
may void any warranties.
5 - Maintenance
5.1
Safety....................................................
5.2
Annual Lubrication................................
6 - Trouble Shooting Guide
6.1
Determining the Cause and Correction
to Certain Problems..............................
7 - Parts Diagrams
7.1

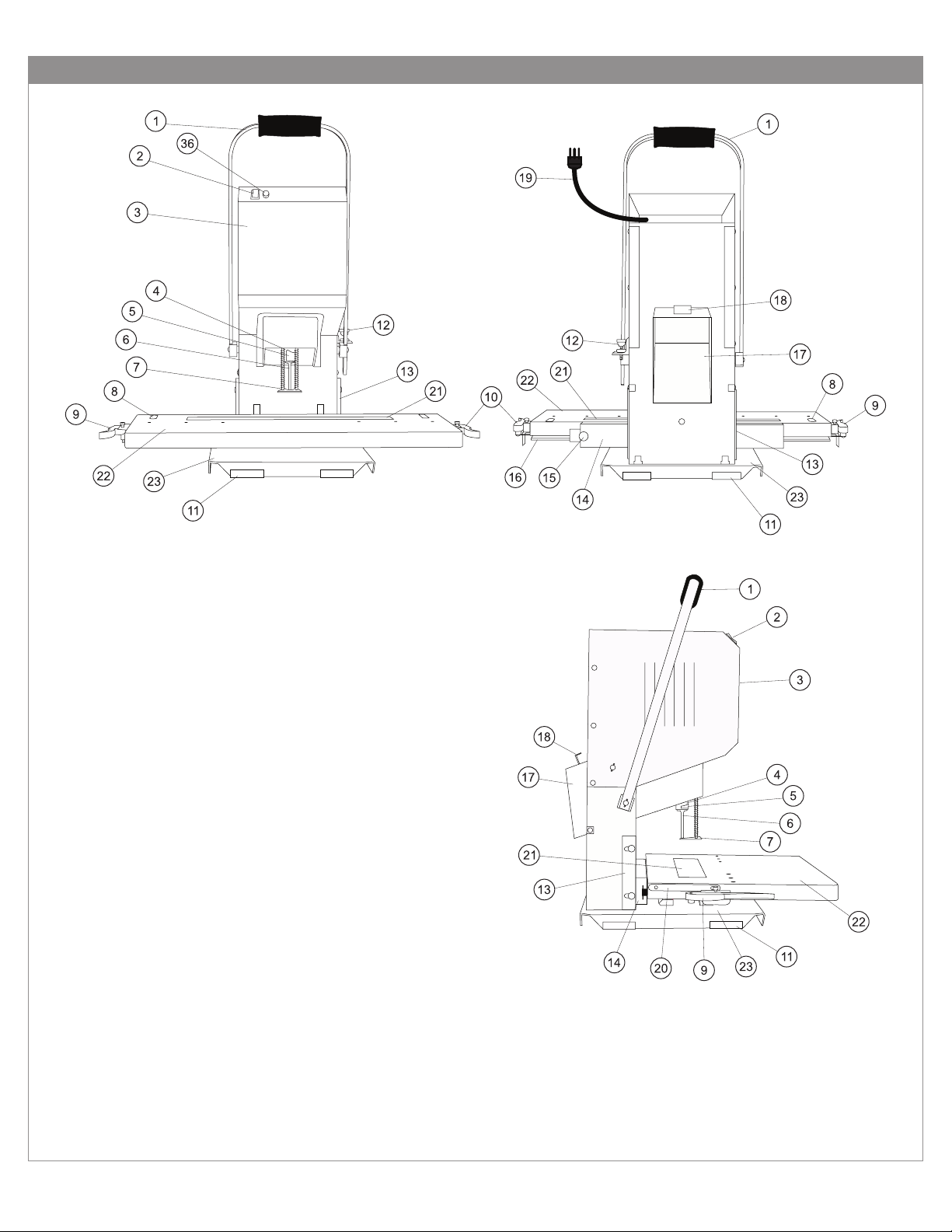

Front, Rear, and Side Views.................
7.2

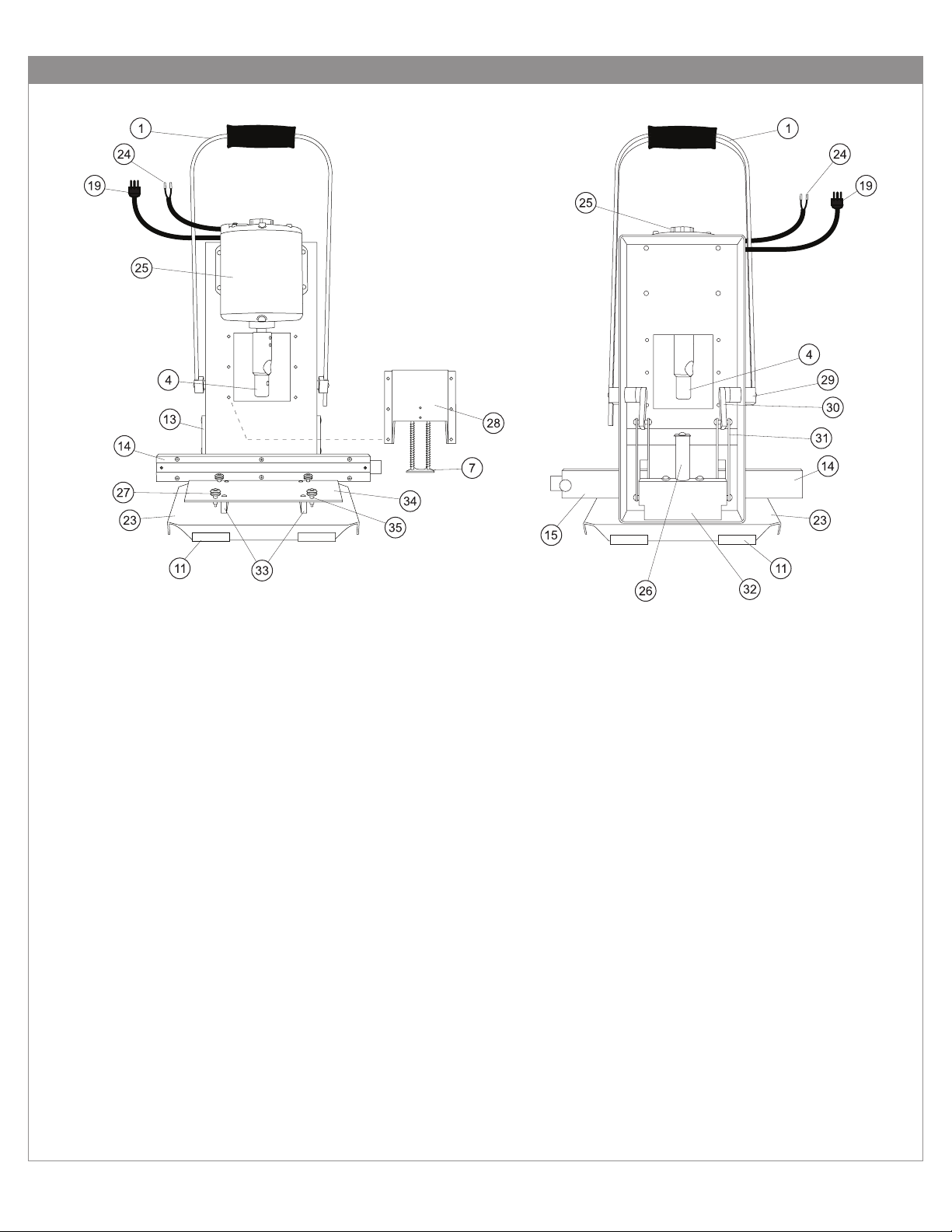

Internal Views.......................................
7.3
Parts List..............................................
Page 12
Page 12
Page 13
Page 14
Page 15
Page 16
Page 01
Page 3
2 - Safety
2.1 - Safety Instructions
All operators must read and understand the Users
Manual including all safety instructions before using this
equipment. Failure to fully understand the safety
instructions can result in personal injury. If after reading the
manual you are still uncertain about use, please
contact the dealer from whom you purchased the
machine for assistance. If you need contact information for
a Service Technician nearest you please call
585-436-1934.
SAFETY OF THIS EQUIPMENT IS THE RESPONSIBILITY
OF THE USER(S).
Please read and follow all warning labels on your machine.
INDUSTRIAL AND IN-PLANT USE ONLY. This equipment
is for use in industrial and in-plant areas only and must be
operated by trained and qualified personnel.
WEAR PROPER APPAREL. Do not wear loose
clothing , gloves, neckties, rings, bracelets, or other jewelry
which may get caught in moving parts. Non slip footwear
is recommended. Wear protective hair covering to contain
long hair.
Keep hands clear while operating machine.
ALWAYS USE SAFETY GLASSES. Also use face or dust
mask if drilling operation is dusty. Everyday eyeglasses only
have impact resistant lenses, they are NOT safety glasses.
KEEP GUARDS IN PLACE and in working order.
Always disconnect the power before servicing this machine.
Service should only be performed by a QUALIFIED TECH
NICIAN.
KEEP CHILDREN AWAY. All visitors should be kept a safe
distance from the work area.
MAKE WORKSHOP KID-PROOF with padlocks or master
switches.
DON’T FORCE MACHINE. It will do the job better and safer
at the rate for which it was designed.
USE RIGHT MACHINE. Don’t force tool or attachment to
do a job for which it was not designed.
MAINTAIN MACHINE WITH CARE. Keep tools sharp and
clean for best and safest performance. Follow instructions
for lubricating and changing accessories.
REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches
are removed from machine before turning it on.
KEEP WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
DISCONNECT MACHINE before servicing; when changing
accessories, such as drill bits, drill blocks, and the like.
REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure the power switch is in the off position before
plugging in.
USE RECOMMENDED ACCESSORIES. Consult the us
er’s manual for recommended accessories. The use of im
proper accessories may cause risk of injury to persons.
-
NEVER STAND ON MACHINE. Serious injury could occur
if the machine is tipped.
-
-
Always turn the machine to off mode and wait for the drills
to stop spinning before installing or removing drill bits. Keep
hands away from drills when operating. PLEASE NOTE
THAT THE DRILL BITS MAY BE HOT AFTER USE. PRO
CEDE WITH CAUTION WHEN CHANGING THE DRILL
BITS.
DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use
this machine in damp or wet locations, or expose it to rain.
Keep work area well lighted.
THIS MACHINE IS DESIGNED FOR ONE PERSON OP
ERATION. Never operate the machine with more than one
person.
DON’T OVERREACH. Keep proper footing and balance at
all times.
-
-
CHECK DAMAGED PARTS. Before further use of the ma
chine, a guard or other part that is damaged should be care
fully checked to determine that it will operate properly and
perform its intended function--check for alignment of moving
parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation.
A guard or other part that is damaged should be properly
repair or replaced.
NEVER LEAVE MACHINE RUNNING UNATTENDED.
TURN POWER OFF. Don’t leave machine until it comes to
a complete stop.
-
-
Page 02
Page 4
2 - Safety
2.2 - Warning Labels
English French
WARNING: DO NOT EXPOSE TO RAIN
OR USE IN DAMP LOCATIONS.
AVERTISSEMENT: NE PAS EXPOSER
À LA PLUIE ET NE PAS UTILISER DANS
LES EMPLACEMENTS HUMIDES
Page 03
Page 5
2.3 - Grounding Instructions
METAL SCREW
GROUNDING
PIN
COVER OF GROUNDED
OUTLET BOX
Diagram 2-10
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the outlet, have the proper outlet installed by a QUALIFIED
ELECTRICIAN.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The conductor with
insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor.
If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor
to a live terminal. Check with a QUALIFIED ELECTRICIAN or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded. Use only 3-wire extension cords that
have 3-prong grounding plugs and 3-pole receptacles that accept the machine’s plug.
This machine is intended for use on a circuit that has an outlet that looks like the one illustrated in diagram 2-10. The
machine has a grounding plug that looks like the plug illustrated in diagram 2-10. Make sure the machine is connected
to an outlet having the same configuration as the plug. No adapter is available or should be used with this machine.
If the machine must be reconnected for use on a different type of electric circuit, the reconnection should be made by
qualified service personnel; and after reconnection, the tool should comply with all local codes and ordinances.
Page 04
Page 6
3 - Setting Up Your Machine
3.1 - Loose Items Inventory
Please remove and inspect the following items:
FM4-4007: Side Stop Screws (4)FM4-4006: Paper Side Stops (2)EZ-114A: Table Assemlby (1)
EZ-115A: Back-gauge (1)
and FM7-7005: 1/4” Knob (1)
EZ-1016: Pattern Bars (set of 5)
EBM2-1034: 25” Drill Strip (1) HEX-18: Hex Wrench
1/8” (1)
Hollow Drill Bit (1)
(these items may be
installed)
HEX-332: Hex Wrench
3/32” (1)
EZ-1014: Table Stop (1)EZ-1028: Clamp Bracket (1)
SPIN-EZE: Drill Bit
Lubricant (1)
EBM2-1048: Chip
Bag (1)
EBM-32: Chuck Re-
lease Key (1)
CC-2: Chip Clearer (1)
1/4” Lock Washers (2) 10-32 Elastic Stop Nuts (2) EBM-76: Black Fiber
50-35: 5/16”-18 Elastic
Stop Nut (1)
Washer (1)
3.2 - Accessories Warning
USE RECOMMENDED ACCESSORIES. Only use accessories approved by a Lassco-Wizer. The use of improper accessories may cause risk of injury to persons.
Page 05
Page 7
3 - Setting Up Your Machine
V-Bars
Release
Handles
Underside of Table
Release Pin
Ta
ble Slide Stop
V-Rollers
Cam Spacers
Fork Plate
1/4” Lock Washers
10-32 Elastic Stop Nuts

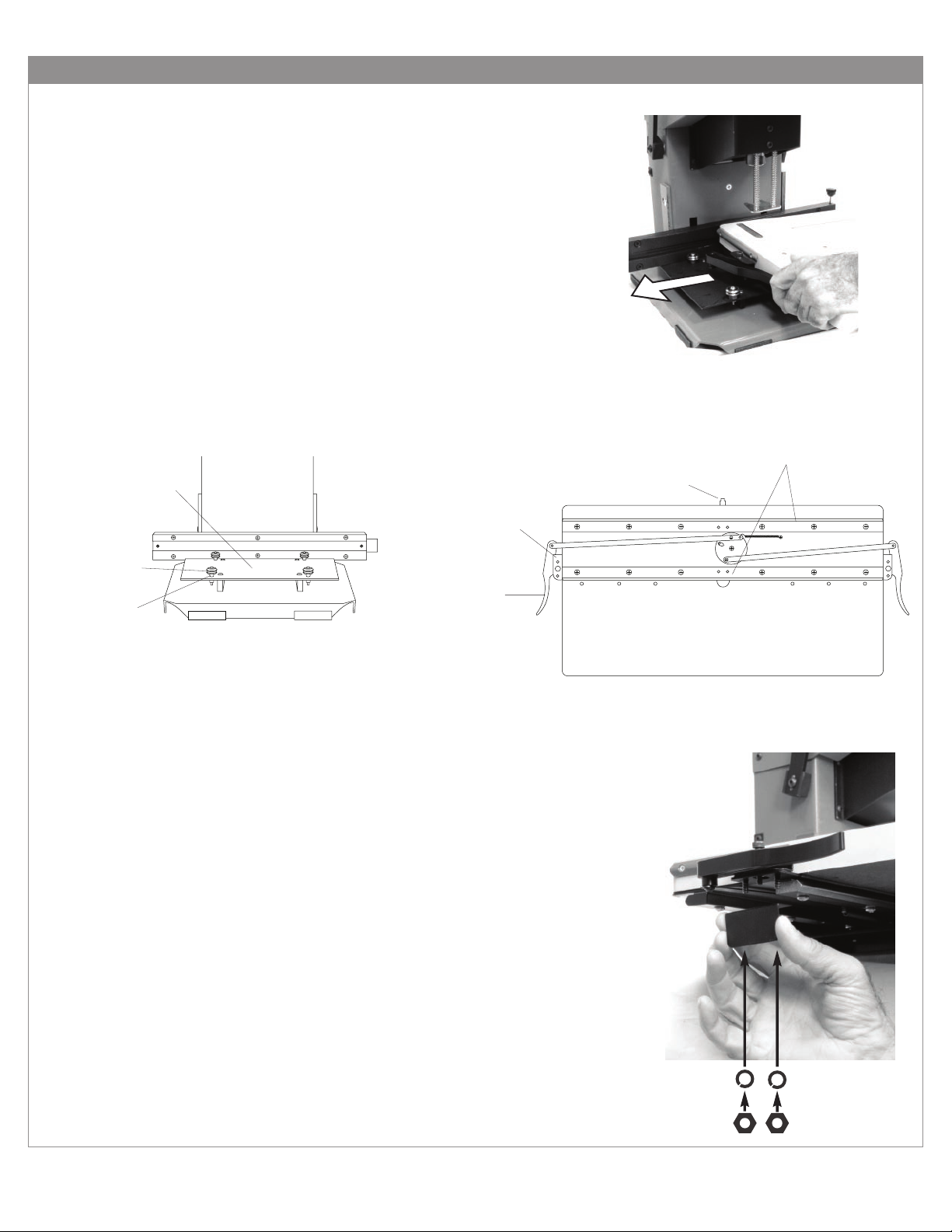

3.3 - Installing the Table Assembly
3.3.1
3.3.2
3.3.3
Grasping the Table and depressing the Release Handles to unlock
the Release Pin, slide the V-Bars located on the underside of the
Table into the V-Rollers on the Base of the machine as shown.
Please note that one of the Table Stops (EZ-1014) comes installed. Make sure when installing the Table onto the Base you
are sliding it from right to left (while facing the machine) to avoid
obstruction from the pre-installed Table Stop.
Please note that, although they are factory set, you may have
to adjust the cams on the V-Rollers if the Table is too tight or too
loose after installation. If so, remove the Table. With an open-end
wrench and holding the screw head in place with a screwdriver,
adjust the cam spacers under the V-Rollers. If the Table is too
tight, adjust the V-Rollers out towards the edge of the Fork Plate
(EZ-1000). If the Table is too loose, adjust the V-Rollers in toward
the center of the Fork Plate.
Diagram 3-20
Diagram 3-10
Diagram 3-30
3.3.4
Attach the second Table Stop (EZ-1014) to the underside of the
table using two (2) 1/4” lock washers and two (2) 10-32 Elastic
Stop Nuts as shown. Tighten with a wrench until secure.
Diagram 3-40
Page 06
Page 8
3 - Setting Up Your Machine
Clamp Bracket & 1/4” Knob
Black Fiber Washer
5/16”-18 Elastic Stop Nut
Threaded Stud

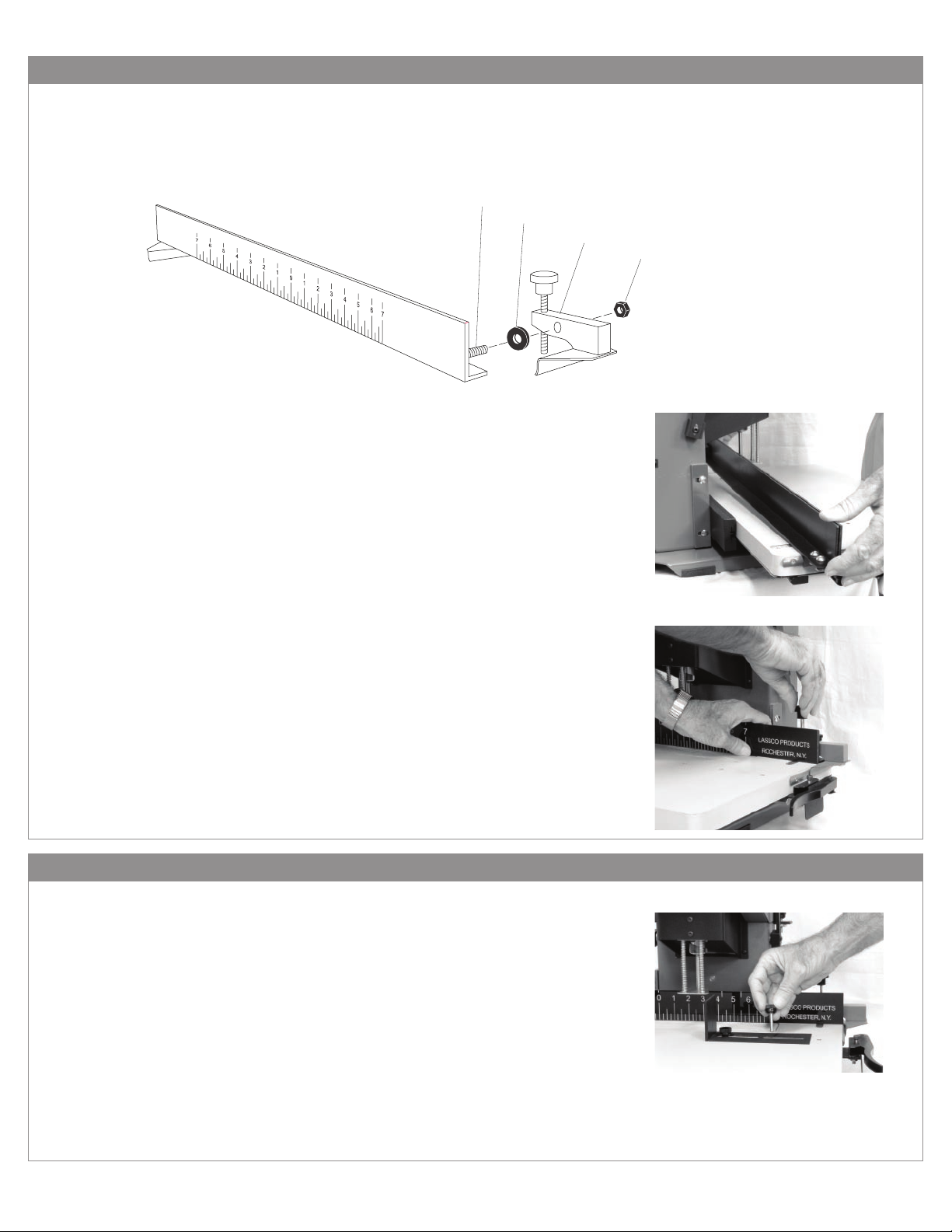

3.4 - Assembly and Installation of the Back-gauge
3.4.1
3.4.2
3.4.3
Assemble the Backgauge by placing the Black Fiber Washer (EBM-76) over the Threaded Stud. Place the Clamp
Bracket (EZ-1028) on the Threaded Stud with the knob end toward the center of the assembly. Tighten the Elastic
Stop Nut on the Threaded Stud with a wrench until it is snug, allowing the Clamp Bracket to move with slight resis
tance.
Diagram 3-50
Diagram 3-60
Attach the Backguage to the Table by hooking the left end over the
Side Iron (FM4-4003) on the side as shown in the accompanying
picture. Align both ends of the Backgauge using the Table Scales
(3S-14) so that it is squared correctly. When it is positioned as
desired tighten down the Clamp Bracket Knob as shown.
Do not position the Backgauge too close to the hollow drill bit so
that it touches. This can cause serious damage to the hollow drill
bit causing it to break or shatter. The Backgauge must be at least
1/8” from the circumference of the hollow drill bit.
-
3.5 - Installing the Paper Side Stops
3.5.1
Attach the Paper Side Stops (FM4-4006) using two (2) Side Stop
Screws (FM4-4007) each. Position the Paper Side Stop as de
sired and tighten down with light pressure.
-
Diagram 3-70
Diagram 3-80
Page 07
Page 9
3 - Setting Up Your Machine
Rocker Switch
Power Cord
3.6 - Installing the Chip Bag
3.6.1
3.6.2
Attach the chip bag as shown by stretching the open end over the
top hook of the chip chute. Continue fitting it around the entire
edge of the chip chute making sure it is snug.
Be sure to empty the chip bag regularly as needed. Failure to
empty the chip bag can result in clogging of the chip chute.
3.7 - Choosing and Installing the Pattern Bar
3.7.1
Your EBM-2.1 comes with five pattern bars included: four (4) common patterns and one blank pattern as shown in diagram 3-100.
Choose the pattern bar that lines up with your desired pattern.
Diagram 3-100
Diagram 3-90
Blank (Customizable)
3 holes 2-3/4” apart center to center
3 holes 3-1/2” apart center to center
3.7.2
Insert a Pattern Bar by loosening the Pattern Bar Stop (EZ-1022)
and inserting the desired pattern into the slot on the Pattern Bar
Guide as shown in diagram 3-110. Insert the angled end into the
slot as far as it will go so that the slot at the end of the Pattern Bar
lines up with the Pattern Bar Stop. When you have the pattern
correctly inserted, tighten down the Pattern Bar Stop through the
slot on the Pattern Bar locking it in place.
3.8 - Electrical Instructions
3.8.1
3.8.2
Your EBM-2.1 comes with an electrical cord containing the plug to
fit into a standard grounded 115V outlet. This machine has a full
load draw of 11 Amps.
Making sure that nothing is interfering with the drill bits, plug the
cord set into a grounded 115V outlet. To turn the machine on,
press the Rocker Switch on the front of the shroud.
2 holes 2-3/4” apart center to center
3 holes 4-1/4” apart center to center
(standard three ring binder)
Diagram 3-110
Diagram 3-120
Page 08
Page 10
4 - Operation
Chuck
Hole Guard
Drill Bit
Chuck Release Key
Tab
Chuck
Hole Guard
Drill Bit
SCRAP
4.1 - Protective Guard
4.1.1
Your EBM-2.1 comes with a protective guard installed. DO NOT
operate this machine without the guard in place.
Diagram 4-10
4.1.2
Please note that when you are performing certain operations such
as removing and installing drill bits, you will need to move the
guard out of the way. Making sure the power to the machine is
disconnected or locked-out, push the guard up and hold in place
while performing necessary operations or maintenance. The pro
tective guard should not be removed during operation.
4.2 - Drill Bit Removal and Installation
CAUTION: DRILL BITS MAY BE HOT AFTER USE. ALLOW DRILL BITS TO COOL
DOWN BEFORE TOUCHING.
BEFORE REMOVING OR INSTALLING THE DRILL BITS, DISCONNECT OR
LOCK-OUT THE POWER SUPPLY.
4.2.1
4.2.2
4.2.3
We recommend using a piece of card stock on the Table when
leveling the drill bit to avoid drilling into the drill strip. This will
lengthen the life of your drill bits and keep them sharper.
Remove the hole guard which is attached to the chuck. This is
done by grasping the bent end and sliding the guard off.
Using the Chuck Release Key (EBM-32), insert the tapered end
facing down into the chuck hole. With a clockwise motion turn the
Chuck Release Key 45 degrees. The drill bit will slide out of the
chuck. It is recommended that you hold onto the drill bit so that it
does not drop out of the chuck damaging the tip.
-
Diagram 4-20
Diagram 4-30
4.2.4
4.2.5
4.2.6
4.2.7
To install a drill bit, grasp the drill bit, and being careful to keep it
straight, press it up into the chuck.
Seat the drill bit by using a stack of scrap paper. Set the scrap on
the table. Step on the foot pedal slowly raising the table toward
the Drill Bit. Put light pressure on the hollow Drill Bit seating it
firmly in place.
Remove the scrap paper and turn the machine on to check the
concentricity of the bit. If the bit is not concentric, remove it and
repeat steps 4.2.2 through 4.2.5 until it is concentric.
When the drill bit is correctly installed replace the hole guard back
onto the chuck to protect debris from clogging the chuck.
Diagram 4-40
Page 09
Page 11
4 - Operation
4.3 - Leveling the Drill Bits
4.3.1
4.3.2
4.3.3
4.3.4
4.3.5
4.3.6
We recommend using a piece of card stock on the Table when
leveling the drill bits to avoid drilling into the drill strip. This will
lengthen the life of your drill bits and keep them sharper.
To level the drill bit to the Table follow steps 4.3.3 through 4.3.5.
Loosen the Leveling Knob on the right hand side of the ma
chine.
Pull down on the Handle to raise the Table until the hollow drill bit
is just touching the Drill Strip (EBM2-1034).
Hold the Handle in place and tighten down the Leveling Knob
until it hits the Handle Bracket. This will stop the Handle from
being pulled down too far.
It is important to always level the drill bit before each use and
after sharpening. This will make sure you don’t drill into the Drill
Strip--dulling the hollow drill bit.
4.4 - Adjusting the Back-gauge
4.4.1
Adjust the Back-gauge so that it is the correct distance from the
edge of the product to the center of the hole to be drilled by per
forming the following:
Diagram 4-40
-
-
Diagram 4-50
4.4.2
4.4.3
4.4.4
4.4.5
Loosen the Clamp Knob on the right side of the Back-gauge.
Using the two (2) Scales embedded in the rear corners of the
table, align the front edge of the Back-gauge with the desired
distance.
Zero (0) on these scales align with the center of the hollow drill
bits.
Tighten down the Clamp Knob when the Back-gauge
is positioned as desired.
Page 10
Page 12

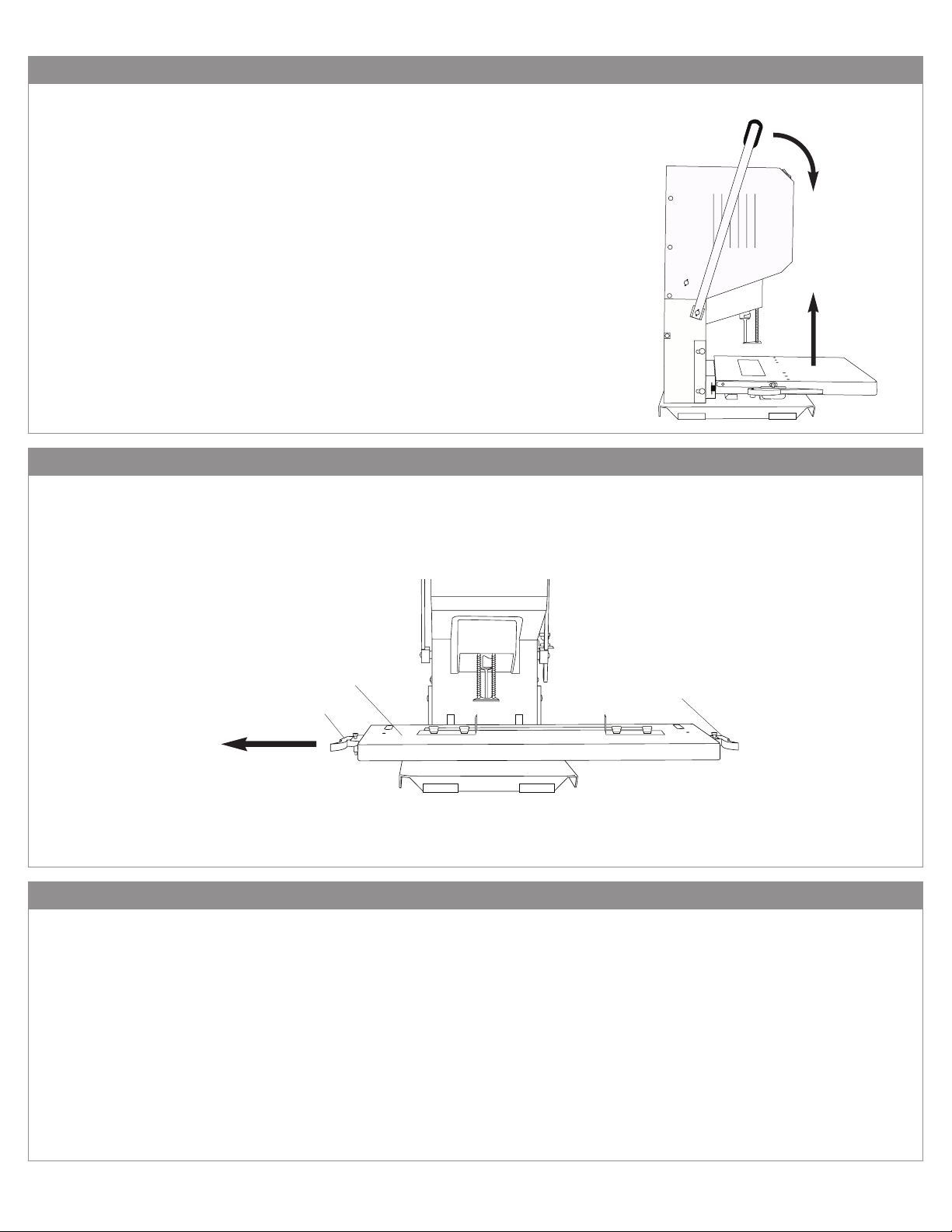

4 - Operation
Release Handle
Release Handle
Table
4.5 - Drilling Procedures
4.5.1
When you are ready to drill, set the product to be drilled on the
table and make sure it is secure using the Paper Side Stops. Turn
the machine on and holding the product firmly in place with one
hand, pull down on the Handle raising the Table up to meet the
drill bit. Using one consistent smooth stroke, put pressure on
the Handle so that the Table rises fully allowing the drill bit to drill
through the product. It is important you maintain a consistent
speed through the entire stack. It is also important you do not go
too slow or too fast. If you drill too slow you can burn the paper
leaving undesired marks. If you drill too fast, the drill bits will act
more like a punch and they will break or plug.
4.6 - Traversing the Table
4.6.1
To move the Table to the next desired hole on the pattern bar, press in on either of the Release Handles (EZ-1010)
located on both ends of the table. Pressing in the Release Handle releases the Release Pin allowing the table to tra
verse. Release the Handle and slide the Table until it locks into place in the next desired position.
Diagram 4-60
-
4.7 - Tips on Drilling
4.7.1
4.7.2
Use a sharp drill bit at all times... Using a drill bit sharpener, sharpen your drill bits regularly. Apply light pressure
when sharpening. Too much pressure may cause flaring of the tip. (Once a drill bit has a flared tip, it becomes
defective.)
Sharpening Stone... Use to debur the outside cutting edge of the drill bits for better performance.
Diagram 4-60
4.7.3
4.7.4
Lubricate drill bits occasionally... Use Drill-Ease or Spin-Eze. While the drill is running, simply touch the Drill-Ease
stick to the drill bit or brush on the Spin-Eze. Drill through scrap to remove any excess. This will allow for a smoother
cut.
Drill Strips...When drilling, a drill bit must stop slightly above the drill strip. Replace worn out drill strips regularly to
ensure proper drilling.
Page 11
Page 13

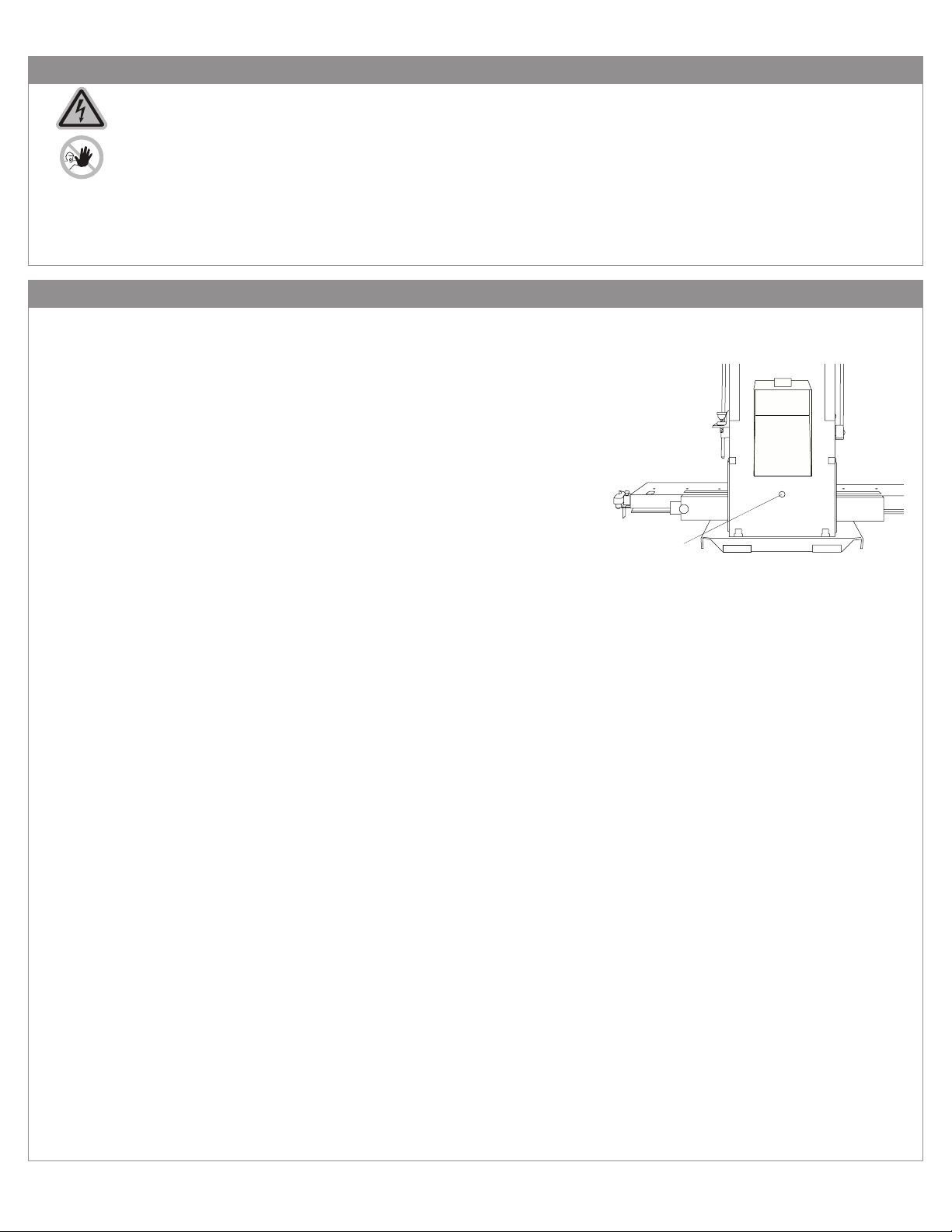

5 - Maintenance
Lift Pin Lubrication
Access Hole
5.1 - Safety
ALWAYS DISCONNECT THE POWER BEFORE PERFORMING MAINTENANCE
ON THIS MACHINE. MAINTENANCE SHOULD ONLY BE PERFORMED BY A
QUALIFIED TECHNICIAN.
5.2 - Annual Lubrication
5.2.1
5.2.2
Lubricating your EBM-2.1 should be done at least once every 12
months; however, it may be necessary to lubricate more often
depending on use. Whenever the Table starts becoming difficult
to lift, it may be time to lubricate.
Insert an oil can (not provided) into the hole on the rear panel just
below the Chip Chute. This hole provides direct access to the lift
pin. Lubricate the lift pin with a light machine oil.
Diagram 5-10
Page 12
Page 14
6 - Trouble Shooting Guide
Problem Cause Correction
Drill bit not concentric.
Foreign material in chuck or in
drill plug.
Inspect and clean.
Drill bit is bent. Replace drill bit.
Drill bit not seated in chuck
properly.
Reinsert drill bit correctly.
Chuck is not tight to spindle. Tighten set screw.
Drill bit not drilling. Drill bit plugged. Remove and clear chips. Check
for other foreign matter.
Drill bit dull. Sharpen drill bit.
Ta
ble lift system lifts
unevenly or is noisy.
Ball bushings in lift system dry or
worn.
Lubricate or replace.
Lift pin damaged. Replace lift pin.
Machine vibrates, wobbles,
resonates, etc.
Drive motor loose. Tighten.
Machine is sitting on eneven
surface.
Reposition drill to obtain
concentricity
Drill bits are out of concentricity
. Reinstall drill bits to obtain
concentricity.
Drill bit drills into drill
strip/drill bits not drilling
through bottom sheet of
paper.
Drill bit was not adjusted to card
stock/card stock not used.
Adjust per Operating Instructions.
Operator not allowing full travel of
table.
Drill per Operating Instructions
through full drilling cycle.
Ta
ble is too tight or too loose
when sliding.
V-Rollers under table out of
adjustment.
With an open-end wrench, and
holding screw head in place with
a screwdriver, adjust cam spacers
under the V-Rollers located on
the Fork Plate. See Setting Up
Your Machine.
Ta
ble pivots front and back. Table guides are out of adjust-
ment.
Loosen the two screws holding
the table guides located on the
sides of the upright and readjust.
In extreme conditions, the drill chuck and/or chip chute may
be plugged. Remove the drill bit, loosen the chip chute,
pull down, and clean. See Operating Instructions
Note:
6.1 - Determining the Cause and Correction to Certain Problems
Page 13
Page 15
7 - Parts Diagrams
7.1 - Front, Rear, and Side Views
Page 14
Page 16
7 - Parts Diagrams
7.2 - Internal Views
Page 15
Page 17
7 - Parts Diagrams
EZ-108A: Handle Assembly
FM5-5006: Rocker Switch (On/Off)
EZ-117A: Shroud Assembly
FMM5-5514: Chuck
FM5-5011: Chuck Release Guard
Hollow Drill Bit
EBM2-0111A: Pressure Foot Assembly
3S-14: Table Scale
EZ-1010L: Table Release Handle (Left)
EZ-1010R: Table Release Handle (Right)
EBM-44A: Channel Guard
FM4-4007: Paper Side Stop Knob (Table Height Adjustment Knob)
EZ-1034: Table Guide
EZ-107A: Pattern Bar Housing Assembly
EZ-1022: Pattern Bar Stop
EZ-1004: V-Rail
EBM2-110A: Chip Chute Assembly
EBM2-1047: Chip Bag Bracket
FM5-5008: Power Cord
FM4-4003: Side Iron
EBM2-1034: Drill Strip
EZ-1033: Table
EZ-1025: Base
Wire Harness
FM5-5002: 1/4 HP Motor
EBM2-1000: Lift Pin
EZ-1001: V-Roller
EBM2-111A: Housing Assembly
EBM2-1019: Pivot Hub
EBM2-103A: Pivot Arm Set Assembly
EZ-1026: Lift Bars
EZ-1023: Lift Pin Housing
EZ-1024: Fork
EZ-1000: Fork Plate
EZ-1003C: Cam Spacer
EBM-82: 6 Amp Fuse
7.3 - Parts List
Page 16
Loading...
