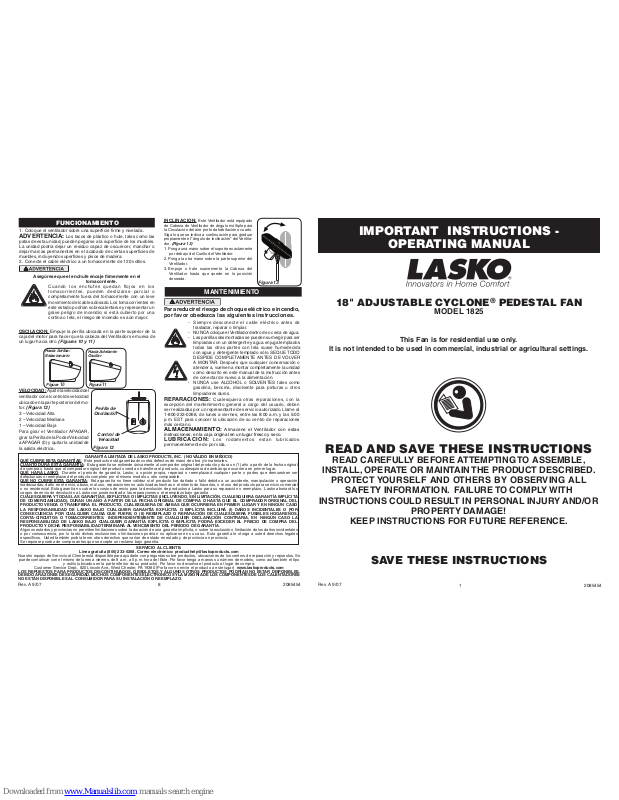

Lasko CYCLONE 1825, 2501 User Manual

8
2085454
18" ADJUSTABLE CYCLONE® PEDESTAL FAN
MODEL 1825
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE,
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL
SAFETY INFORMATION. FAILURE TO COMPLY WITH
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE!
KEEP INSTRUCTIONS FOR FUTURE REFERENCE.
IMPORTANT INSTRUCTIONS -
OPERATING MANUAL
SAVE THESE INSTRUCTIONS
1
2085454
Rev. A 9/07
Rev. A 9/07
REPARACIONES: Cualesqu iera otra s repara ciones, con la
excepción del mantenimiento general a cargo del us uario, deben ser realizadas por un representante de servicio autorizado. Llame al 1-800-233-0268, de lunes a viernes, entre las 8:00 a.m. y las 5:00 p.m. EST para conocer la ubicación de su centro de reparaciones más cercano.
ALMAC ENAMIENTO: Alma cene el Ventilado r c on e stas
instrucciones, en la caja original en un lugar fresco y seco.
LUBR IC ACION: Los roda mien tos e stan lubr icad os
permanentemente de por vida.
VELOCIDAD: Ajuste la velocidad del ventilador con el control de velocidad ubicado en la parte posterior del mo­tor. (Figura 12) 3 – Velocidad Alta 2 – Velocidad Mediana 1 – Velocidad Baja
Para girar el Ventilador APAGAR, girar la Perilla de la Poder/Velocidad a APAGAR (0) y quitar la unidad de la salida eléctrica.
INCLI NACION: Este Ventilador está equipado
de Cabeza de Ventilador de ángulo múltiple para la Circulación del aire por toda habitación o cuarto. Siga lo que se indica a continuación para graduar propiamente el "ángulo de inclinación" del Ventila­dor. (Figura 13)
1. Ponga una mano sobre el soporte exactamente por debajo del Cuello del Ventilador.
2. Ponga la otra mano sobre la parte superior del Ventilador.
3. Empuje o h ale suavemente la Cabeza del Ventilador hasta que qued e en la posición deseada.
OSCILACION: Empuje la perilla ubicada en la parte superior de la caja del motor para hacer que la cabeza del Ventilador se mueva de un lugar hacia otro. (Figuras 10 y 11)
FUNCIONAMIENTO
Hacia Adelante: Oscilar
Figura 12
Control de
Velocidad
Perilla de
Oscilación
0
1
2
3
Figura 13
MANTENIMIENTO
1. Coloque el ventilador sobre una supercie rme y nivelada.
ADVERTENCIA: Los tacos de plástico o hule, tales como las
patas de esta unidad, pueden pegarse a la supercie de los muebles. La unidad podría dejar un residuo capaz de oscurecer, manchar o dejar marcas permanentes en el acabado de ciertas supercies de muebles, incluyendo supercies y pisos de madera.
2. Conecte el cable eléctrico a un tomacorriente de 120 voltios.
Asegúrese que el enchufe encaje rmemente en el
tomacorriente.
Cua ndo los e nchu fes q ueda n f lojo s e n l os tom acor rie ntes, pue den de sliz arse par cial o completamente fuera del tomacorriente con un leve movimiento del cable adosado. Los tomacorrientes en este estado podrían sobrecalentarse y representar un grave peligro de incen dio; s i está cubierto por una cortina o tela, el riesgo de incendio es aún mayor.
- Si empre descon ecte el cable eléct rico antes de trasladar, reparar o limpiar.
- NUNCA coloque el Ventilador dentro de o cerca de agua.
- Las parrillas desmontadas se pueden sumergir para ser limpiadas con un detergente y agua.enjuga templados todas las otras partes con tela suave humedecida con agua y detergente templado sólo. SEQUE TODO DESPIDE COMPLETAMENTE ANTES DE VOLVER A MONTAR. Después que cualquier conservación o atender a, vuelven a montar completamente la unidad como descrito en este manual de la instrucción antes de conectar de nuevo a la alimentación.
- NUNCA use ALCOHOL o SOLVENTES tales como gasolina, bencina, disolvente para pinturas u otros limpiadores duros.
Hacia Arriba: Estacionario
Figura 10
Figura 11
Para reducir el riesgo de choque eléctrico e incendio, por favor obedezca las siguientes instrucciones.
This Fan is for residential use only.
It is not intended to be used in commercial, industrial or agricultural settings.
GARANTÍA LIMITADA DE LASKO PRODUCTS, INC. (NO VÁLIDO EN MÉXICO) QUÉ CUBRE ESTA GARANTÍAS: Este producto está garantizado contra defectos de mano de obra y/o materiales. CUÁNTO DURA ESTA GARANTÍA: Esta garantía se extiende únicamente al comprador original del producto y dura un (1) año a partir de la fecha original
de compra o hasta que el comprador original del producto venda o transera el producto, cualesquiera de ambas que ocurriera en primer lugar. QUÉ HARÁ LASKO: Durante el período de garantía, Lasko, a opción propia, reparará o reemplazará cualquier parte o par tes que demuestren ser defectuosas o reemplazará el producto completo por el mismo modelo u otro comparable. QUÉ NO CUBRE ESTA GARANTÍA: Esta garantía no tiene validez si el producto fue dañado o falló debido a un accidente, manipulación u operación inadecuadas, daño en el envío, abuso, mal uso, reparaciones no autorizadas hechas o el intento de hacerlas, o el uso del producto para servicio comercial o no residencial. Esta garantía no cubre los costos de envío para la devolución de productos a Lasko para su reparación o reemplazo. Lasko abonará los cargos de envío de devolución a Lasko con posterioridad a las reparaciones o el reemplazo bajo garantía
CUALESQUIERA Y TODAS LAS GARANTÍAS, EXPLÍCITAS O IMPLÍCITAS (INCLUYENDO, SIN LIMITACIÓN, CUALESQUIERA GARANTÍA IMPLÍCITA DE COMERCIABILIDAD), DURAN UN AÑO A PARTIR DE LA FECHA ORIGINAL DE COMPRA O HASTA QUE EL COMPRADOR ORIGINAL DEL PRODUCTO VENDA O TRANSFIERA EL PRODUCTO, CUALESQUIERA DE AMBAS QUE OCURRIERA EN PRIMER LUGAR Y EN NINGÚN CASO LA RESPONSABILIDAD DE LASKO BAJO CUALQUIER GARANTÍA EXPLÍCITA O IMPLÍCITA INCLUIRÁ (I) DAÑOS INCIDENTALES O POR CONSECUENCIA POR CUALQUIER CAUSA QUE FUERE, O (II) REEMPLAZO O REPARACIÓN DE CUALESQUIERA FUSIBLES HOGAREÑOS, CORTA-CIRCUITOS O TOMACORRIENTES. INDEPENDIENTEMENTE DE CUALQUIER DECLARACIÓN CONTRARIA, EN NINGÚN CASO LA RESPONSABILIDAD DE LASKO BAJO CUALQUIER GARANTÍA EXPLÍCITA O IMPLÍCITA PODRÁ EXCEDER EL PRECIO DE COMPRA DEL PRODUCTO Y DICHA RESPONSABILIDAD TERMINARÁ AL VENCIMIENTO DEL PERÍODO DE GARANTÍA.
Algunos estados y provincias no permiten limitaciones sobre la duración de una garantía implícita, o sobre la exclusión o limitación de los daños incidentales o por consecuencia, por lo tanto dichas exclusiones o limitaciones podrían no aplicarse en su caso. Esta garantía le otorga a usted derechos legales especícos. Usted también podría tener otros derechos que varían de estado en estado y de provincia en provincia. Se requiere prueba de compra antes que se acepte un reclamo bajo garantía.
SERVICIO AL CLIENTE:
Línea gratuita (800) 233-0268. Correo electrónico: producthelp@laskoproducts.com
Nuestro equipo de Servicio al Cliente está disponible para ayudarle con preguntas sobre productos, ubicaciones de los centros de reparación y repuestos. Se puede comunicar con el mismo de lunes a viernes, de 8 a.m. a 5 p.m. hora del Este. Por favor tenga a manos su número de modelo, como así también el tipo
y estilo (ubicados en la parte inferior de su producto). Por favor no devuelva el producto al lugar de compra.
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380 (Por favor no envíe el producto a este lugar) www.laskoproducts.com
LOS REPUESTOS PARA PRODUCTOS DISCONTINUADOS, OBSOLETOS Y ALGUNOS OTROS PRODUCTOS PODRÍAN NO ESTAR DISPONIBLES. DEBIDO A RAZONES DE SEGURIDAD, MUCHOS COMPONENTES ELECTRÓNICOS Y LA MAYORÍA DE LOS COMPONENTES DE LOS CALENTADORES NO ESTÁN DISPONIBLES AL CONSUMIDOR PARA SU INSTALACIÓN O REEMPLAZO.
2
2085454
7
2085454
Rev. A 9/07
Rev. A 9/07
1. Inclinarla Cabeza del Ventilador hacia atrás. Coloque la Rejilla Trasera en el Motor. (Figura 7)
2. Alinear la lengüeta de la Rejilla Trasera con la ranura en la parte superior de la cubierta delantera del Motor.
PASO 4: ENSAMBLE DEL ASPAY REJILLA
PASO 2: ENSAMBLE DEL PIE
COLOQUE LA BASE EN EL PISO
1. Utilizando un movimiento giratorio, inserte el extremo del tubo de diámetro
grande en el agujero de la Base. (Figura 5) El girar el tubo a medida que se lo empuja asegura que el tubo quede plenamente asentado en la Base.
2. Para ajustar la altura: a) Aoje la Tuerc a de Ajuste de Altura. b) Eleve o baje el Tubo de Extensión hasta obtener la altura
deseada.
c) Apriete la Tuerca de Ajuste de Altura.
1. Coloque el Conjunto de Cabezal con el Collar en el Tubo de Ex- tensión. (Figura 6)
2. Sostenga rmemente el Tubo de
Extensión y empuje el Conjunto de Cabezal hacia abajo con un
movimiento giratorio hasta que quede asentado en el Tubo de Extensión.
PASO 3: CONJUNTO DE LA CABEZA
1. Saque el conjunto de la tubería del cartón como muestra. (Figura 1)
2. Desaoje la Tuerca de Ajuste de Altura, girando en sentido contrahorario. (Figura 2)
3. Eleve la Extensión De La Tubería. (Figura 3)
4. Apriete la Tuerca de Ajuste de Altura, girando en sentido horario.
(Figura 4)
PASO 1: ARMADO DE LA TUBERÍA
3. As iente la Parrilla Trasera y sujetela con la Tuerca de Plástico hacia la Derecha. Deslice la Helice en el Eje del Motor. (Figura
8) Alinear la Ranura Del Cubo de la tapa con el Pasador del eje del motor. (Figura 8A)
4. Para asegurar la Helice, enroscarla hasta que quede
apretada en el Cubo de la Tapa haciéndola girar Hacia la Izuierda.
5. Con el cabezal del ventilador en posición vertical, alinee el Adorno
de la Parrilla Delantera de modo que quede horizontal y con el lado debido hacia arriba. Empiece en la parte superior de la parrilla y siga hacia abajo, insertando las Trabas de la Parrilla Trasera en las Ranuras de la Parrilla Delantera. (Figura 9)
Conjunto de
Cabezal
Figura 2
Figura 4Figura 3
Figura 1
Tuerca de Ajuste de
Altura
Tubería de Extension
Figura 5
Tubo de Extensión
Tuerca de Ajuste de
Altura
Base
Collar
Tubo de
Extensión
Figura 6
Rejilla
Trasera
Figura 7
Motor
Figura 8
Parrilla Trasera
Helice
Tuerca de
Plastico
Tapa de
Ventilador
Figura 8A
Pasador
Ranura del Cubo
Adorno
Ranuras
Trabas
Parrilla Trasera
Parrilla
Delantera
Figura 9
MODEL 5132
GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions should always be followed to re-
duce the risk of re, electrical shock and injury to persons, including the following:
SAVE THESE INSTRUCTIONS
Read all instructions before using this Fan.
1. Make certain the power source conforms to the electrical requirements of the Fan.
2. Make certain that the room is equipped with a working smoke detector.
3. Use this Fan only as described in this manual. Any other use not recommended by the manufacturer may cause re, electrical shock, or injury to persons.
4. To reduce the risk of personal injury and electric shock, the Fan should not be played with or placed where small children can reach it.
5. Unplug power cord before installing, servicing, or moving the Fan.
DO NOT DEPEND ON THE ON/OFF SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN SERVICING OR MOVING THE FAN. ALWAYS UNPLUG THE POWER CORD. ALWAYS TURN OFF AND UNPLUG FAN BEFORE LEAVING THE AREA. NEVER LEAVE CHILDREN UNATTENDED WHEN THE FAN IS ON OR PLUGGED IN.
6. This Fan must NOT be used in potentially dangerous locations such as ammable, explosive, chemical-laden or wet atmospheres where gasoline, paint or ammable liquids are used or stored.
7. DO NOT use Fan in or near a window. Rain may create an electrical hazard.
8. Completely assemble Fan, according to instructions, before connecting to power supply.
REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK - DO NOT USE THIS FAN WITH ANY SOLID STATE SPEED CONTROL DEVICES.
9. Where possible, avoid the use of extension cords because the extension cord may overheat and cause a re. If you must use an extension cord, minimize the risk of overheating by using the shortest cord possible and ensuring that it is UL listed. NEVER use a single extension cord to operate more than one Fan. Do not plug Fan into any other cord connected device, such as a power strip, cord reel, surge protec­tor, multiple outlet adapters or outlet-type air fresheners. The use of such devices may create a re hazard.
10. NEVER operate any Fan with a damaged cord or plug or after the Fan malfunctions, has been dropped or damaged in any manner.
11. NEVER insert or allow ngers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or re, or damage the Fan. To reduce the risk of re, DO NOT block or tamper with the Fan in any manner while it is in operation.
12. Always place the Fan on a stable, at, level surface when operating, to avoid the chance of the Fan overturning. Locate the Power Cord so the Fan or other objects are not resting on it. DO NOT run Power Cord under carpeting. DO NOT cover Power Cord with throw rugs, runners or the like. Arrange Power Cord away from room trafc and where it will not be tripped over.
13. This Fan is not intended for use in wet or damp locations. Never locate a Fan where it may fall into a bathtub or other water container. NEVER use Fan where ammable liquids are used or stored.
14. NEVER use Fan outdoors.
15. This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are conned. Please refer to National Electric Code (NEC) Article 547-7 (2002), or applicable state or local codes or standards relating to electrical requirements for Agricultural Buildings. THIS FAN DOES NOT MEET THE REQUIRMENTS OF NEC ARTICLE 547-7 (2002).
16. This Fan is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for Hazardous locations. THIS FAN DOES NOT MEET THE REQUIRMENTS OF
NEC ARTICLE 500 (2002).
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to t in a polarized outlet only one way. Match wide blade of plug to wide slot. Fully insert. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician. DO NOT attempt to defeat this safety feature. This plug is a safety feature, to reduce the risk of re, electric shock and personal injury. DO NOT remove, replace, repair or tamper with the originally supplied plug. If the Fan does not function properly, it may be due to the safety device incorporated in this plug. Return to an authorized service center or call 800-233-0268, Monday - Friday, between 8:00 a.m. and 5:00 p.m. EST. If the plug warning label is missing or damaged, call the toll free number for a replacement label.
6
2085454
3
2085454Rev. A 9/07
Rev. A 9/07
1. Take pipe assembly out of carton as shown. (Figure 1)
2. Loosen Height Adjustment Nut turning counter clockwise. (Figure 2)
3. Raise Extension Pipe. (F igure 3)
4. Tighten Height Adjustment Nut turning clockwise. (Figure 4)
STEP 1: PIPE ASSEMBLY
STEP 2: STAND ASSEMBLY
PLACE BASE FLAT ON FLOOR
1. W ith a twist ing m otion, insert the end of th e lar ge dia meter
pipe i nto hole in Base. (Figure 5) Turning pipe while pushing will assure pipe is fully seated in Base.
2. For Heigh t Adj ustm ent: a) Loo sen Height Adjustment Nut.
b) Raise or lower Extension Pipe to desired height.
c) Tighten Height Adjustment Nut.
1. Place Head Assembly with
Collar onto Extension Pipe. (Figure 6)
2. H oldi ng E xten sion Pip e rmly, twist Head Assembly downw ard unt il seat ed on Extension Pipe.
1. Tilt Head Assembly back. Put Rear Grill on Motor. (Figure 7)
2. A lign ta b of Pl astic Rear Grill with groove on top of front Motor
cover.
STEP 4: BLADE & GRILL ASSEMBLY
5. With fan head in upright position, align Ornament of Front Grill
so it is horizontal and right side up. By starting with the top of the grill and working down, insert Snaps on Rear Grill through Slots in Front Grill. (Figure 9)
3. Fully seat Rear Grill and secure with Plastic Nut turning Clockwise. Slide Blade onto Motor Shaft. (Figure 8) Align Groove on blade hub with Pin on motor shaft. (Figure 8A)
4. To secure Blade, screw Spinner onto Shaft Counter Clockwise until tight on Blade hub.
Figure 2 Figure 4
Figure 3
Figure 1
Height
Adjustment
Nut
Extension
Pipe
STEP 3: HEAD ASSEMBLY
Figure 5
Extension Pipe
Height
Adjustment Nut
Base
Head
Assembly
Collar
Extension
Pipe
Figure 6
Rear Grill
Figure 7
Motor
Rear Grill
Figure 8
Blade
Fan
Spinner
Plastic
Nut
Figure 8A
Pin
Ornament
Slots
Snaps
Rear Grill
Front Grill
Figure 9
Groove
INFORMACIÓN GENERAL DE SEGURIDAD
Al usar artefactos eléctricos, siempre deben tomarse precauciones básicas para reducir
el riesgo de incendio, choque eléctrico y lesiones a personas, incluyendo las siguientes:
CONSERVE ESTAS INSTRUCCIONES
Lea todas las instrucciones antes de usar este Ventilador.
6. Este Ventilador NO debe ser usado en lugares potencialmente peligrosos tales como atmósferas inamables, explosivas, cargadas de sustancias químicas o húmedas donde se usen o almacenen gasolina, pintura o líquidos inamables.
7. NOT use el Ventilador dentro de o cerca de una ventana. La lluvia podría crear un r iesgo eléctrico.
8. Arme el Ventilador completamente, siguiendo las instrucciones, antes de conectarlo a la fuente de alimentación eléctrica.
1. Asegúrese que la fuente de alimentación coincida con los requerimientos eléctricos del Ventilador.
2. Asegúrese que la habitación esté equipada con un detector de humo en funcionamiento.
3. Use este Ventilador únicamente como se describe en este manual. Cualquier otro uso no recomendado por el fabricante puede causar incendio, choque eléctrico o lesiones a personas.
4. Para reducir el riesgo de lesiones a personas y choque eléctrico, el Ventilador no debe ser encendido o colocado donde los niños pequeños puedan alcanzarlo.
5. Desconecte el cable eléctrico antes de instalar, reparar o trasladar el Ventilador.
NO DEPENDA DEL INTERRUPTOR DE ENCENDID O / APAGADO COMO ÚNICO MEDIO DE DESCONECTAR LA ALIMENTACIÓN ELÉCTRICA CUANDO ESTÉ REPARANDO O TRASLADANDO EL VENTILADOR. SIEMPRE DESCONECTE EL CABLE ELÉCTRICO. SIEMPRE APAGUE Y DESCONECTE EL VENTILADOR ANTES DE ABANDONAR EL ÁREA. NUNCA DEJE A LOS NIÑOS SIN ATENCIÓN CUANDO EL VENTILADOR ESTÉ ENCENDIDO O CONECTADO.
9. Donde sea posible, evite el uso de cables de alargue porque el cable de alargue podría sobrecalentarse y provocar un incendio. Si debe usar un cable de alargue, minimice el riesgo de sobrecalentamiento usando el cable más corto posible y garantizando que esté autorizado por UL (Underwriters Laboratories). NUNCA use un solo cable de alargue para hacer funcionar a más de un Ventilador. No conecte el Ventilador a cualquier otro dispositivo conectado a un cable, como un cable de contactos múltiples, protector de sobrecargas, adaptadores de tomacorrientes múltiples o refrescantes de aire tipo tomacorriente. El uso de tales dispositivos podría crear un riesgo de incendio.
10. NUNCA ponga en funcionamiento ningún Ventilador con un cable o enchufe dañado o después que el Ventilador haya tenido fallas de funcionamiento, haya sido arrojado o dañado de cualquier manera.
11. NUNCA inserte o permita que los dedos u objetos extraños ingresen en ninguna abertura de ventilación o escape, ya que esto podría causar un choque eléctrico o incendio, o dañar el Ventilador. Para reducir el riesgo de incendio, NO bloquee ni altere el Ventilador de ninguna manera mientras esté en funcionamiento.
12. Siempre coloque el Ventilador en una supercie estable, plana y nivelada mientras esté en funcionamiento, para evitar la posibilidad de que el Ventilador se caiga. Coloque el Cable Eléctrico de modo tal que el Ventilador u otros objetos no estén apoyados sobre el mismo. NO coloque el Cable Eléctrico debajo de las alfombras. NO cubra el Cable Eléctrico con tapetes, alfombras de hule o similares. Coloque el Cable Eléctrico lejos del paso de la habitación y donde nadie pueda tropezarse con él.
13. Este Ventilador no está destinado para ser usado en lugares húmedos o mojados. Nunca coloque un Ventilador donde pueda caer dentro de una tina de baño u otro recipiente de agua. NUNCA use un Ventilador donde se usen o almacenen líquidos inamables.
14. NUNCA use el Ventilador al aire libre.
15. Este Ventilador no es adecuado para usar en instalaciones de agricultura incluyendo áreas donde se almacene ganado, aves de corral u otros animales. Por favor consulte el Ar ticulo 547-7 (2002) del Código Eléctrico Nacional (NEC), o los códigos o normas estatales o locales aplicables con relación a los requisitos eléctricos para edicios destinados a las agricultura. ESTE VENTILADOR NO CUMPLE
CON LOS REQUISITOS DEL ARTICULO 547-7 DEL NEC (2002).
16. Este Ventilador no es adecuado para usar en lugares peligrosos. Por favor consulte el Artículo 500 del Código Eléctrico Nacional (NEC), o los códigos o normas estatales o locales aplicables con relación a los requisitos eléctricos para lugares peligrosos. ESTE VENTILADOR
NO CUMPLE CON LOS REQUISITOS DEL ARTICULO 500 (2002).
DISMINUYA EL RIESGO DE INCENDIO O GOLPES DE ELECTRICIDAD – NO USE ESTE VENTILADOR CON ARTEFACTOS DE CONTROL DE VELOCIDAD EN ESTADO SÓLIDO.
Este aparato tiene un enchuf e polarizado (una hoja es más anc ha que la otra). Para reducir el riesgo de choque eléctrico, este enchufe está dise ñado para encajar en un tomacor riente polarizado en solo un se ntido. Haga coincidir la hoja ancha del enchufe con la ranura ancha. Inserte completamente. Si el enchufe no encaja completamente en el tomacorriente, invierta el enchufe. Si aún así no encaja, comuníquese con un electricista calicado. NOT intente anular este dispositivo de seguridad. Este enchufe es un dispositivo de seguridad, para reducir el riesgo de incendio, choque eléctrico y lesiones personales. NO retire, reemplace, repare o altere el enchufe originalmente provisto. Si el Ventilador no funciona correctamente, puede deberse al dispositivo de seguridad incorporado en este enchufe. Devuélvalo a un centro de servicios autorizado o llame al 800-233-0268, de lunes a viernes, entre las 8:00 a.m. y las 5:00 p.m. EST. Si la etiqueta de advertencia del enchufe falta o está dañada, llame a la línea telefónica gratuita para obtener una nueva etiqueta.
Rev. A 9/07
4
2085454
Rev. A 9/07
5
2085454
INSTRUCCIONES IMPORTANTES -
MANUAL DE OPERACIÓN
LEA Y GUARDE ESTAS INSTRUCCIONES
LEA CUIDADOSAMENTE LAS INSTRUCCIONES ANTES DE
INTENTAR ARMAR, INSTALAR, USAR O DAR MANTENIMIENTO
AL PRODUCTO DESCRITO.
PROTÉJASE A SÍ MISMO Y A LOS DEMÁS CUMPLIENDO CON
TODA LA INFORMACIÓN DE SEGURIDAD. EL NO SEGUIR LAS INSTRUCCIONES PODRÍA RESULTAR EN LESIONES
PERSONALES Y/O DAÑOS A LA PROPIEDAD.
CONSERVE LAS INSTRUCCIONES COMO FUTURA REFERENCIA.
CONSERVE ESTAS INSTRUCCIONES
VENTILADOR DE PEDESTAL DE 45,7 CM
CYCLONE® AJUSTABLE
MODELO 1825
MAINTENANCE
SERVICING: All other servicing, with the exception of general
user-maintenanc e, should be performed by an authorized se rvice representative. Call 1-800-233-0268, Monday through Friday, be­tween the hours of 8:00 a.m. and 5:00 p.m. ES T for the location of your nearest se rvice center.
STORAGE: Store the Fan with these instructions, in the original
carton in a cool, dry place.
LUBRICATION: Motor is permanently lubricated.
OPERATION
OSCILLATION: Push down oscillation knob on motor housing to make fan head move from side to side. (Figures 10 and 11)
TILTING: This Fan is equipped with a multi-angle Fan Head for Whole­Room Air Circ ulation. Follow the steps below to properly adjust the "tilt angle" of your Fan. (Figure 13)
1. Pl ace one hand on the pole just under the Fan N eck.
2. Pl ace your other hand on top of Fan.
3. G entl y push o r pull th e Fan Head unti l it is in the desir ed position.
SPE ED: Control fan speed with Speed S witch at rear of motor.
(Figure 12)
3 - High Speed 2 - Medium Speed 1 - Low Speed
To turn the Fan OFF, turn the Power/ Speed Knob to OFF (0) and unplug the unit from the electrical outlet.
Down: Oscillate
Up: Stationary
Figure 10
Figure 11
Figure 12
0
1
2
3
Speed Switch
Oscillation
Knob
Figure 13
1. Place the Fan on a rm and level surface.
CAUTION: Plastic or rubber tabs, like the feet on this unit, may
stick to furniture surfaces and/or hardwood oors. The unit may leave a residue that could darken, stain or leave permanent blemishes on the nish of certain furniture surfaces, including wood surfaces, and/or hardwood oors.
2. Plug the cord set into a 120 volt outlet.
Be sure that the plug ts tightly into outlet.
When plugs t loosely into receptacles, they may slip partially or completely out of the receptacle with only the slight movement of the attached cord. Receptacles in this condition may overheat and pose a serious re hazard; if covered by a curtain or drape, the re hazard is even greater.
- Always unplug the cord before moving, servicing or cleaning.
- NEVER place the Fan in or near water.
- Disassembled grills may be immersed to be cleaned with a mild detergent and water.Wipe all other parts with soft cloth moistened with water and mild detergent only. DRY ALL PARTS COMPLETELY BEFORE REASSEMBLING. After any maintenance or servicing, completely reassemble unit as described in this instruction manual before reconnecting to the power supply.
- NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.
To reduce the risk of electrical shock and re
please observe the following instructions:
Este Ventilador es sólo para uso residencial.
No está destinado para ser usado en instalaciones comerciales, industriales o agricultura.
LASKO PRODUCTS, INC. LIMITED WARRANTY
(NOT VALID IN MEXICO) WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials. HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original
purchase or until the original purchaser of the product sells or transfers the product, whichever rst occurs. WHAT LASKO WILL DO: During the warranty period, Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted, or the use of the product for commercial or nonresidential service. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty repairs or replacement
ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL LASKO’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL LASKO’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.
Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specic legal rights. You may also have other rights which vary from state to state and province to province. Proof of purchase is required before a warranty claim will be accepted.
CUSTOMER SERVICE:
Toll-Free (800) 233-0268. Email: producthelp@laskoproducts.com
Our Customer Service team is available to assist you with product questions, service center locations, and replacement parts. They can be reached Monday
through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style (located on the underside of your product). Please
do not return product to place of purchase.
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380 (Please do not send product to this location)
www.laskoproducts.com PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT.
Loading...
