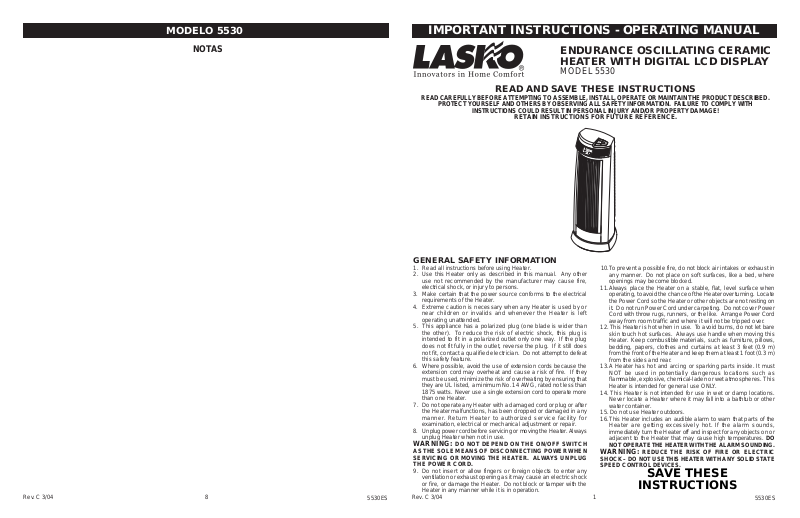

Lasko 5530 Operating Instruction
MODELO 5530
IMPORTANT INSTRUCTIONS - OPERATING MANUAL
NOTAS
ENDURANCE OSCILLATING CERAMIC
HEATER WITH DIGITAL LCD DISPLAY
MODEL 5530
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Rev. C 3/04
GENERAL SAFETY INFORMATION
1. Read all instructions before using Heater.
2. Use this Heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fire,
electrical shock, or injury to persons.
3. Make certain that the power source conforms to the electrical
requirements of the Heater.
4. Extreme caution is necessary when any Heater is used by or
near children or invalids and whenever the Heater is left
operating unattended.
5. This appliance has a polarized plug (one blade is wider than
the other). To reduce the risk of electric shock, this plug is
intended to fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does
not fit, contact a qualified electrician. Do not attempt to defeat
this safety feature.
6. Where possible, avoid the use of extension cords because the
extension cord may overheat and cause a risk of fire. If they
must be used, minimize the risk of overheating by ensuring that
they are UL listed, a minimum No. 14 AWG, rated not less than
1875 watts. Ne v er use a single e xtension cord to oper ate more
than one Heater.
7. Do not operate any Heater with a damaged cord or plug or after
the Heater malfunctions, has been dropped or damaged in any
manner. Return Heater to authorized service facility for
examination, electrical or mechanical adjustment or repair.
8. Unplug power cord before servicing or moving the Heater . Alw ays
unplug Heater when not in use.
WARNING: DO NOT DEPEND ON THE ON/OFF SWITCH
AS THE SOLE MEANS OF DISCONNECTING POWER WHEN
SERVICING OR MOVING THE HEATER. ALWAYS UNPLUG
THE POWER CORD.
9. Do not insert or allow fingers or foreign objects to enter any
ventilation or exhaust opening as it ma y cause an electric shock
or fire, or damage the Heater. Do not block or tamper with the
Heater in any manner while it is in operation.
8
5530ES
Rev. C 3/04 1
10.To prevent a possible fire, do not block air intakes or exhaust in
any manner. Do not place on soft surfaces, like a bed, where
openings may become blocked.
11.Always place the Heater on a stable, flat, level surface when
operating, to avoid the chance of the Heater ov erturning. Locate
the Power Cord so the Heater or other objects are not resting on
it. Do not run P o wer Cord under carpeting. Do not cov er Power
Cord with throw rugs, runners, or the like. Arrange Power Cord
away from room traffic and where it will not be tripped over.
12. This Heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. Always use handle when moving this
Heater. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes and curtains at least 3 feet (0.9 m)
from the front of the Heater and keep them at least 1 foot (0.3 m)
from the sides and rear.
13.A Heater has hot and arcing or sparking parts inside. It must
NOT be used in potentially dangerous locations such as
flammable, explosiv e, chemical-laden or wet atmospheres. This
Heater is intended for general use ONLY.
14. This Heater is not intended for use in wet or damp locations.
Never locate a Heater where it may fall into a bathtub or other
water container.
15. Do not use Heater outdoors.
16. This Heater includes an audible alarm to war n that parts of the
Heater are getting excessively hot. If the alarm sounds,
immediately turn the Heater off and inspect for any objects on or
adjacent to the Heater that may cause high temperatures. DO
NOT OPERATE THE HEATER WITH THE ALARM SOUNDING.
WARNING: REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK – DO NOT USE THIS HEATER WITH ANY SOLID STATE
SPEED CONTROL DEVICES.
SAVE THESE
INSTRUCTIONS
5530ES
MODEL 5530
MODELO 5530
OPERATION
The Heater may be operated by the manual controls located on
the Heater (as shown in
(shown in
1. Carefully remove the Heater from the bag and the carton.
2. Place the Heater on a firm, level surface.
3. Plug the cord set into a 120 V~ electrical outlet. When the Heater
is initially plugged in, the red light will come on indicating that there
is power to the unit. The red light will remain lit until the Heater is
unplugged from the electrical outlet.
4. Turn the Heater ON by pressing the Power Button (
5. The unit will display the current Room temperature.
6. Upon turning the Heater on, the unit will be in the High heat
mode. (1500 Watts)
7. Pressing the Mode Button at this point will set the Heater into
Low heat mode. (900 Watts)
8. Pressing the Mode Button once more will set the Heater into
Auto mode. Notice that the display now displays a Set tem-
perature indicator. (See Thermostat Instructions)
9.To turn the Heater OFF, press the Power Button (
OSCILLATION FUNCTION: This function will work in any mode.
Pressing the Oscillate Button will allow the Heater to oscillate
back and forth. To stop the oscillation, press the Oscillate Button
once more.
TIMER FUNCTION: This function will work in any mode. The timer
function allows you to set the length of operation from 1 hour to 8
hours. Pressing the Timer Button will increase the length of
operation by 1 hour each time the button is pressed. Once the
timer has been set, the timer will count down the hours in 1 hour
increments, showing on the display the remaining operating time ,
until the Heater will turn itself off. Pressing the Timer Button
once more after the display reflects 8 hours will reset the Heater
to continuously running.
Figure 3
Timer
Button
Power
Button
).
Oscillation
Button
Figure 1
Mode
Button
) or by your remote control
).
(Figure 1)
).
Tempera-
ture Control
Button
Figure 1
REMOTE CONTROL
1. Install the two “AAA” batteries supplied as shown in
2. The Remote Control Power Button is labeled as such.
3. All the functions performed with the Remote Control work identically to the Manual Controls.
POWER
.
(Figure 3)
+
+
Figure 3
SAFETY FEATURES
1.This Heater includes an audible alarm to warn that parts of the
Heater are getting excessively hot. If the alarm sounds,
immediately turn the Heater off and inspect for any objects on or
adjacent to the Heater that may cause high temperatures.
DO NOT OPERATE THE HEATER WITH THE
ALARM SOUNDING.
2. A thermal overload protector is built in to prevent overheating.
3. When an overheat temperature is reached, the Heater will be
automatically shut off. It can only resume operation when the
user resets the unit. (See reset instructions below)
To Reset Heater:
1. Unplug the Heater and wait 10 minutes for the unit to cool do wn.
2. After the 10 minutes, plug the unit in again and operate normally.
MAINTENANCE
WARNING: AL W A YS UNPLUG THE CORD BEFORE MOVING OR
SERVICING.
WARNING: DO NOT IMMERSE HEATER IN WATER!
CLEANING: IMPORTANT! DO NOT IMMERSE HEATER IN WA-
TER! Clean the Heater grill with the vacuum brush attachment
on your vacuum cleaner. This will remove lint and dirt from the
inside of the Heater. DO NOT ATTEMPT TO TAKE APART
HEATER. DO NOT REMOVE GRILL. Clean the body of the
Heater with a soft cloth.
CAUTION: Do not use gasoline, benzine, thinner, harsh
cleaners, etc. as they will damage the Heater. NEVER use
ALCOHOL OR SOLVENTS.
Figure 3
.
GARANTIA LIMITADA - NO ES VÁLIDA EN MÉXICO
EN CASO DE NECESIT AR PIEZAS, COMUNÍQ UESE CON EL F ABRICANTE P ARA PIEZAS DE REPUEST O AMP ARAD AS
POR LA GARANTÍA. SE DEBE INCLUIR UNA COPIA DEL RECIBO DE COMPRA JUNT O CON EL TIPO Y ESTILO DE LA
MÁQUINA, UBICADOS EN LA PARTE INFERIOR DE LA MISMA.
Este producto está garantizado por tres años a partir de la fecha de compra contra defectos de fabricación y/o de materiales. A
nuestra opción, las piezas que resulten defectuosas se reemplazar án o se reparar án, o se reemplazar á el producto entero.
Si se necesita reparación eléctrica o mecánica durante el período de garantía, envíe el producto completo, con porte pagado, al
centro de servicio más cercano. Llame al número dado abajo para encontrar el centro de servicio más cercano.
Si necesita una pieza de repuesto, debe especificar el tipo y el estilo del aparato . Esta información puede encontrarse en la
parte inferior del aparato. En cualquiera de los casos, se ruega suministrar una copia del recibo de compra.
Esta garantía no tiene validez si el daño se debe a un accidente, manejo o uso indebido, daños de transporte, abuso,
maltrato, reparaciones no autorizadas hechas o intentadas, o al uso comercial del producto.
TODAS LAS GARANTÍAS, EXPRESAS O IMPLÍCITAS, RIGEN DURANTE TRES AÑOS A P AR TIR DE LA FECHA DE COMPRA
ORIGINAL. ESTA GARANTÍA NO CUBRE EN NINGÚN CASO RESPONSABILIDAD DE DAÑOS DIRECT OS O INDIRECT OS.
En algunos estados no se permiten limitaciones de la duración de una garantía implícita, ni la exclusión o limitación de daños
directos o indirectos, por lo cual las limitaciones y exclusiones anteriores pueden quedar sin vigencia en su caso. Esta
garantía le otorga derechos legales específicos. También puede tener de derechos que varían de un estado a otro.
PARA PIEZAS:
Para Repuestos Llame al: 1-800-233-0268. DE LUNES A VIERNES, DESDE LAS 8 DE LA MAÑANA A LAS 4 DE LA
TARDE, HORA DEL ESTE. "POR FAVOR NO DEVUELVA EL PRODUCTO AL SITIO DONDE LO COMPRÓ". Cuando
llame, refiérasa al tipo y estilo del producto (situados en la base del producto).
PARA OBTENER ASISTENCIA TÉCNICA Y LAS DIRECCIONES DEL CENTRO DE SERVICIO:
Para cualquier pregunta, comentarios o para obtener la dirección de su centro de servicio más cercano, SÍRVASE
LLAMAR A NUESTRO "TELÉFONO DE EMERGENCIA" GRATUITO AL 1-800-233-0268, DE LUNES A VIERNES,
DESDE LAS 8 DE LA MAÑANA A LAS 5 DE LA TARDE, HORA DEL ESTE.
Cuando llame, refiérasa al nombre y número de modelo del producto
Departamento de Servicio para Equipos • 300 Confederate Drive Franklin, TN 37064
Para más información, por favor visite nuestro sitio web: www.laskoproducts.com
¡POR FAVOR, NO ENVÍE EL PRODUCTO A ESTA DIRECCIÓN!
THERMOSTAT INSTRUCTIONS
1. Press the Mode Button until the display shows AUTO.
2. T o adjust SET temperature, press the (+) to increase the desired
temperature and the (-) to decrease the desired
temperature.
3. When the air temperature reaches 3 degrees above the SET temperature, the heater will cut off.
4. When the air temperature drops 1 degree
perature, the unit will come back on.
Note: It is normal for the Heater to cycle ON and OFF as it maintains the SET temperature.
Rev. C 3/04
(Figure 2A)
Figure 2
(Figure 2)
below the SET tem-
Increase
Decrease
Figure 2A
SERVICE: All other servicing, with the exception of general usermaintenance, should be performed by an authorized service representative. Call 1-800-233-0268, Monday through Friday, between the hours of 8am and 5pm EST for the location of your
nearest service center.
STORAGE: Store the Heater with these instructions in the original carton in a cool, dry place.
2
5530ES
Rev. C 3/04
7
5530ES
