MODELO 5400
NOTAS
El manual imprimió en la China

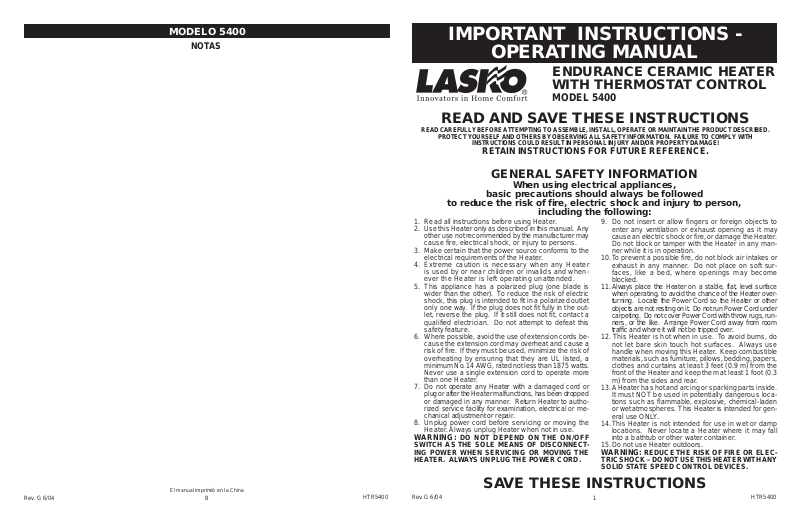

IMPORTANT INSTRUCTIONS -
OPERATING MANUAL
ENDURANCE CERAMIC HEATER
WITH THERMOSTAT CONTROL
MODEL 5400
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions should always be followed
to reduce the risk of fire, electric shock and injury to person, including the following:
1.Read all instructions before using Heater.
2.Use this Heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.
3.Make certain that the power source conforms to the electrical requirements of the Heater.
4.Extreme caution is necessary when any Heater is used by or near children or invalids and whenever the Heater is left operating unattended.
5.This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
6.Where possible, avoid the use of extension cords because the extension cord may overheat and cause a risk of fire. If they must be used, minimize the risk of overheating by ensuring that they are UL listed, a minimum No. 14 AWG, rated not less than 1875 watts. Never use a single extension cord to operate more than one Heater.
7.Do not operate any Heater with a damaged cord or plug or after the Heater malfunctions, has been dropped or damaged in any manner. Return Heater to authorized service facility for examination, electrical or mechanical adjustment or repair.
8.Unplug power cord before servicing or moving the Heater. Always unplug Heater when not in use.
WARNING: DO NOT DEPEND ON THE ON/OFF SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN SERVICING OR MOVING THE HEATER. ALWAYS UNPLUG THE POWER CORD.
9.Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or fire, or damage the Heater.
Do not block or tamper with the Heater in any manner while it is in operation.
10.To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not place on soft surfaces, like a bed, where openings may become blocked.
11.Always place the Heater on a stable, flat, level surface when operating, to avoid the chance of the Heater overturning. Locate the Power Cord so the Heater or other objects are not resting on it. Do not run Power Cord under carpeting. Do not cover Power Cord with throw rugs, runners, or the like. Arrange Power Cord away from room traffic and where it will not be tripped over.
12.This Heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use handle when moving this Heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9 m) from the front of the Heater and keep them at least 1 foot (0.3
m) from the sides and rear.
13.A Heater has hot and arcing or sparking parts inside. It must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres. This Heater is intended for general use ONLY.
14.This Heater is not intended for use in wet or damp locations. Never locate a Heater where it may fall into a bathtub or other water container.
15.Do not use Heater outdoors.
WARNING: REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK – DO NOT USETHIS HEATER WITH ANY SOLID STATE SPEED CONTROL DEVICES.
SAVE THESE INSTRUCTIONS
Rev. G 6/04 |
8 |
HTR5400 |
Rev. G 6/04 |
1 |
HTR5400 |
MODEL 5400
OPERATION (Figure 1)
1.Carefully remove the Heater from the plastic bag and the carton.
2.Make certain the unit is in the Off (
) position before plugging the Heater into the outlet.
3.Place the Heater on a firm and level surface.
4.Plug the cord set into a 120V electrical outlet. Be sure plug fits tightly in outlet. A loose fit will cause overheating and damage the plug. Plug and cord set may feel warm during normal usage.
5.Turn the Power Knob to the desired setting. (
) for Fan Only
(NO HEAT), (
) for Low Heat (900 Watts) and (
) for High Heat (1500 Watts).
6.For Heater operation, turn the Thermostat Knob to the highest setting (
). (See Thermostat Instructions)
7.The Power Light will remain lit until the unit is turned Off (
).
Fan
Low Only Off
Heat
High
Heat
Power |
Thermostat |
|
Knob |
Knob |
Figure 1 |
THERMOSTAT INSTRUCTIONS (Figure 2)
1.Allow the Heater to warm up the room before setting the thermostat.
2.When the desired temperature is reached, lower the thermostat until the Unit shuts off. This is done by turning the Thermostat Knob towards the (
).
3.The Heater will now automatically maintain the set temperature by cycling the unit on and off. To prevent the Heater from cycling, adjust the thermostat.
4.To adjust the thermostat, turn the Thermostat Knob towards the
(
) to increase the desired temperature and towards the (
) to decrease the desired temperature.
Decrease |
Increase |
Temperature |
Temperature |
SAFETY FEATURE
1.A thermal overload protector is built in to prevent overheating.
2.When an overheat temperature is reached, the Heater will automatically shut-off. It can only resume operation when the unit is
reset. (See reset instructions below).
To Reset Heater:
1.Unplug the Heater and wait 10 minutes for the unit to cool down.
2.After the 10 minutes, plug the Heater in again and follow the OPERATION INSTRUCTION described in this instruction manual.
TROUBLE SHOOTING TIPS
If your heater shuts off unexpectedly or fails to operate, one of the above-mentioned safety features may have been activated to prevent overheating.
1.Be sure the power cord is plugged into a working electrical outlet.
2.Check your Thermostat setting. The Heater may be off because it has reached the desired temperature setting.
If you have a problem that can not be resolve by the steps listed above, contact Technical Assistance at 800-233-0268, Monday through Friday, between the hours of 8am and 5pm EST.
MAINTENANCE
WARNING: ALWAYS UNPLUGTHE CORD BEFORE MOVING OR SERVICING.
WARNING: DO NOT IMMERSE HEATER IN WATER.
CLEANING: IMPORTANT! Clean the Heater grill with the vacuum brush attachment of your vacuum cleaner. This will remove lint and dirt from the inside of the Heater. DO NOT ATTEMPT TO TAKE APART THE HEATER. Clean the body of the Heater with a soft cloth.
CAUTION: Do not use gasoline, benzine, thinner, harsh cleaners, etc., as they will damage the Heater. NEVER use ALCOHOL OR SOLVENTS.
SERVICING: All other servicing, with the exception of general user-maintenance, should be performed by an authorized service representative. Call 1-800-233-0268, Monday through Friday, between the hours of 8am and 5pm EST for the location of your nearest service center.
STORAGE: Store the Heater with these instructions in the original carton in a cool, dry place.
Thermostat |
Figure 2 |
Knob |
Rev. G 6/04 |
2 |
HTR5400 |
MODELO 5400
GARANTÍA LIMITADA
EN CASO DE NECESITAR PIEZAS, COMUNÍQUESE CON EL FABRICANTE PARA PIEZAS DE REPUESTO AMPARADAS POR LA GARANTÍA. SE DEBE INCLUIR UNA COPIA DEL RECIBO DE COMPRA CON EL TIPO Y ESTILO DEL CALEFACTOR, UBICADOS EN LA PARTE INFERIOR DEL APARATO.
Este producto está garantizado por tres años a partir de la fecha de compra contra defectos de fabricación y/o de materiales. A nuestra discreción, las piezas que resulten defectuosas se reemplazarán o se repararán, o bien se reemplazará el producto entero.
Si se necesita reparación eléctrica o mecánica durante el período de garantía, envíe el producto completo, con porte pagado, al centro de servicio más cercano. Llame al número que se indica más adelante para encontrar el centro de servicio más cercano.
Si necesita una pieza de repuesto, debe especificar el tipo y el estilo del aparato. Esta información puede encontrarse en la parte inferior del aparato. En cualquiera de los casos, es necesario que envíe una copia del recibo de compra.
Esta garantía no tiene validez si el daño se debe a un accidente, manejo o uso indebido, daños de transporte, abuso, mal uso, reparaciones o intentos de reparación no autorizados, o al uso comercial del producto.
TODAS LAS GARANTÍAS, MANIFIESTAS O IMPLÍCITAS, RIGEN DURANTE TRES AÑOS A PARTIR DE LA FECHA DE COMPRA ORIGINAL. ESTA GARANTÍA NO CUBRE EN NINGÚN CASO RESPONSABILIDAD POR DAÑOS DIRECTOS O INDIRECTOS POR CAUSA ALGUNA.
En algunos estados no se permiten limitaciones de la duración de una garantía implícita, ni la exclusión o limitación de daños directos o indirectos, por lo cual las limitaciones y exclusiones anteriores pueden quedar sin vigencia en su caso. Esta garantía le otorga derechos legales específicos. Usted podría tener otros derechos que varían de un estado a otro.
PARA PIEZAS DE REPUESTO:
Para piezas de repuesto, favor de llamar al 1-800-233-0268, DE LUNES A VIERNES, DE 8:00 A.M. a 4:00 P.M., HORA
ESTÁNDAR DEL ESTE. “POR FAVOR, NO ENVÍE EL APARATO AL LUGAR DONDE LO COMPRÓ.”
Mencione el tipo y el estilo del producto (ubicados en la parte inferior del aparato) al llamar.
PARA APOYO TÉCNICO Y UBICACIONES DE CENTROS DE SERVICIO:
Para cualquier pregunta o comentario, o para solicitar información sobre el centro de servicio más cercano a su domicilio,
FAVOR DE LLAMAR A NUESTRA “LÍNEA GRATUITA” AL 1-800-233-0268, DE LUNES A VIERNES,
DE 8:00 A.M. A 5:00 P.M., HORA ESTÁNDAR DEL ESTE.”
Mencione el nombre y el número de modelo del producto al llamar. Appliance Service Dept. 300 Confederate Drive Franklin, TN 37064.
¡POR FAVOR, NO ENVÍE EL PRODUCTO A ESTA DIRECCIÓN!
Para más información, visite nuestro sitio en la Web: www.laskoproducts.com
Rev. G 6/04 |
7 |
HTR5400 |
