Laserworld ShowNET User Manual

Page 1
Manual / Bedienungsanleitung / Mode d‘emploi

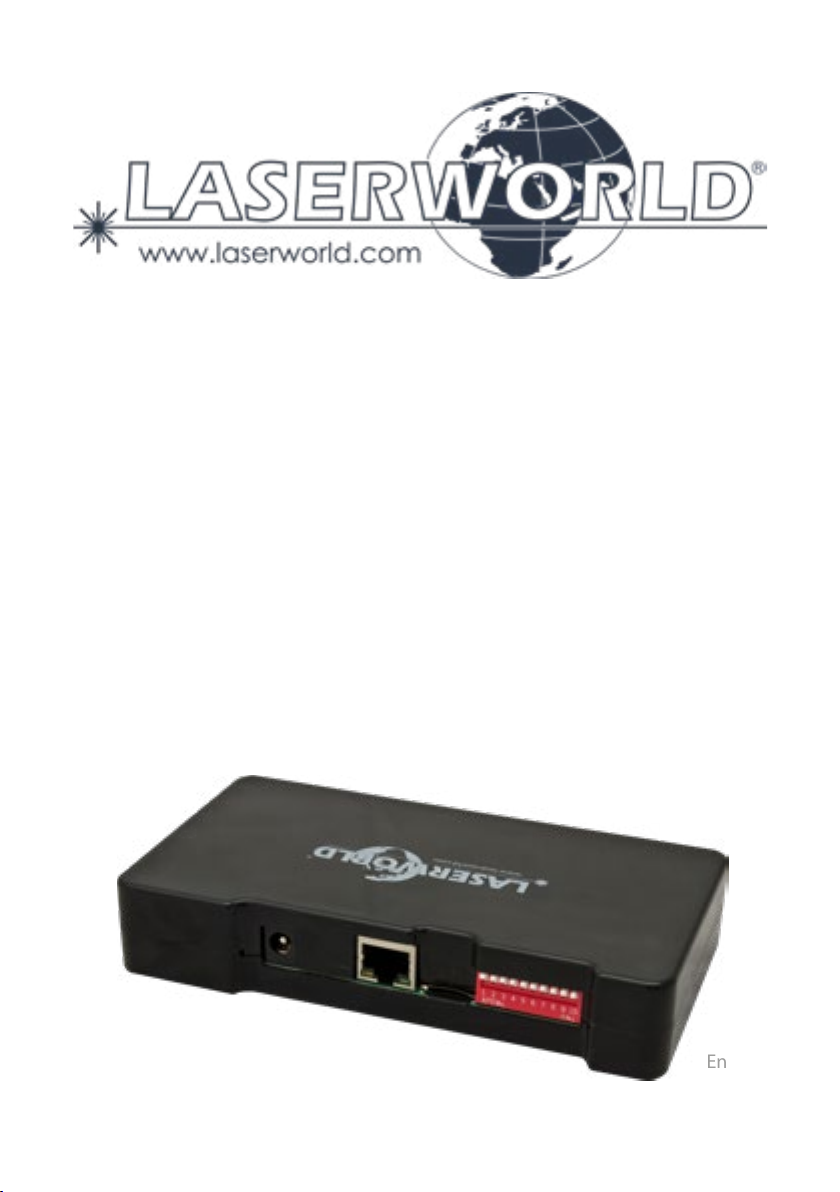

Laserworld ShowNET
Network Interface
Please read this manual carefully prior to product operation!
Bitte lesen Sie diese Bedienungsanleitung vor Inbetriebnahme des Produkts!
Avant d’utiliser cet appareil pour la première fois nous vous recommandons
de lire cette notice d’utilisation!
Deutsch
Français
05/2019
Page 2
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Legal notice:
Laserworld (Switzerland) AG reserves the right to make modications to its products, atten­ding to further technical developments. These modications do not necessarily have to be recorded in each case. This manual and its information have been made with due care. Laserworld AG cannot, howe­ver, take any responsibility for errata, bugs, or the resulting damages. The brands and product names mentioned in this manual are trade marks or registered trade marks of their respective owners.
Rechtlicher Hinweis:
Die Firma Laserworld (Switzerland) AG behält sich das Recht vor, Änderungen an ihren Pro­dukten vorzunehmen, die der technischen Weiterentwicklung dienen. Diese Änderungen werden nicht notwendigerweise in jedem Einzelfall dokumentiert. Diese Betriebsanleitung und die darin enthaltenen Informationen wurden mit der gebote­nen Sorgfalt zusammengestellt. Die Firma Laserworld AG übernimmt jedoch keine Gewähr für Druckfehler, andere Fehler oder daraus entstehende Schäden. Die in dieser Bedienungsanleitung genannten Marken und Produktnamen sind Warenzeichen oder eingetragene Warenzeichen der jeweiligen Titelhalter.
Information juridique :
L’entreprise Laserworld (Switzerland) AG se réserve le droit d’eectuer des modications con­cernant leurs produits et ainsi de répondre au développement technique. Ces modications ne seront pas nécessairement annoncées en tout cas spécique. Ce mode d’emploi et les in­formations contenues dedans ont été établis avec le soin minutieux qui s’impose dans ce cas. Laserworld (Switzerland) AG ne pourra pas être tenue responsable pour d’éventuelles erreurs d’impression ou dommages en résultants. En cas de doutes, veuillez toujours contacter Laserworld (Switzerland) AG . Les noms de
Network Control:
For network control (connecting the device to a Computer) please have a look at
chapter 5 „Operation“ -> 4. „Network operation“
Netzwerkbetrieb:
Informationen zum Netzwerkbetrieb (Verbin­dung mit dem Computer) nden Sie unter:
Kapitel 5 „Bedienung“ -> 4. „Netzwerkbetrieb“
Contrôle du réseau :
Pour le contrôle du réseau (connexion du péri­phérique à un ordinateur), veuillez consulter
marques et de produits utilisés dans ce mode d’emploi sont des marques de fabrique ou des marques déposées.
L’utilisation est réservée à un usage professionnel selon décret n°2007-665 du 2 mai 2007 relatif à la sécurité des appareils à laser sortant!
Article 4 bis :
« Les usages spéciques autorisés pour les appareils à laser sortant d’une classe supérieure à 2 sont les usages professionnels suivants : (…) 9° Spectacle et achage : Toutes les applications de trajectoire, de visualisation, de projection ou de reproduction
d’images en deux ou trois dimensions. »
chapitre 5 „Modes d’opérations / de fonctionne­ment“ -> 4. „Contrôle via réseau“
page 2 / 54 page 3 / 54
Page 3
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Content:
1. Scope of delivery & details
2. Preliminary warning notices
3. Initial operations, safety instructions
4. Device connections
5. Operation
6. Power Supply
Final statement
1. Scope of delivery & details
Please check if all listed parts are included and undamaged. Included in delivery:
1 x Network Interface 1 x Power Supply Unit 1 x Manual 1 x micro-SD Card
2. Preliminary warning notices
1. Please use the network interface only according to these instructions.
2. Do not use the network interface if there are any visible damages.
3. Do not operate the network interface at high humidity, in rain or in
dusty environments.
4. Protect the network interface against dripping or splashing water.
3. Initial operations, safety instructions
1. Make sure to use correct voltage; see in-
formation in this manual.
2. Installation has to be done by technical experienced and qualied persons ac­cording to safety regulations of the res­pective country.
3. If the network interface has been expo­sed to great temperature changes, do not switch it on immediately. Conden­sation water may damage the network interface.
4. Never use dimmer, RC or other electroni­cally switched sockets. Whenever possi­ble, do not use the network interface to­gether with large appliances (especially fog machines) on the same mains!
5. Ensure sucient ventilation and do not place the network interface on any warm or heat radiating surface.
page 4 / 54 page 5 / 54
Page 4
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface

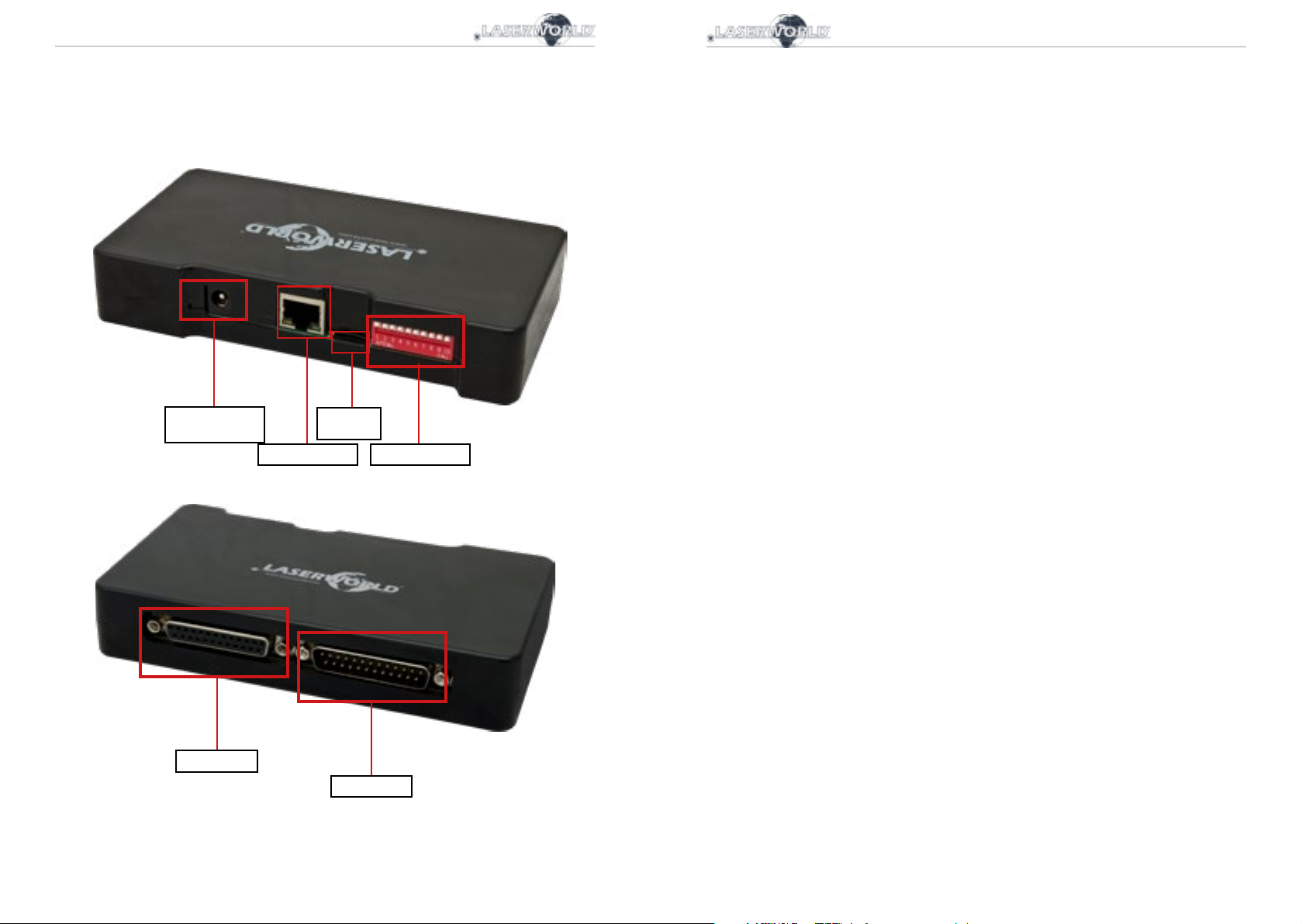

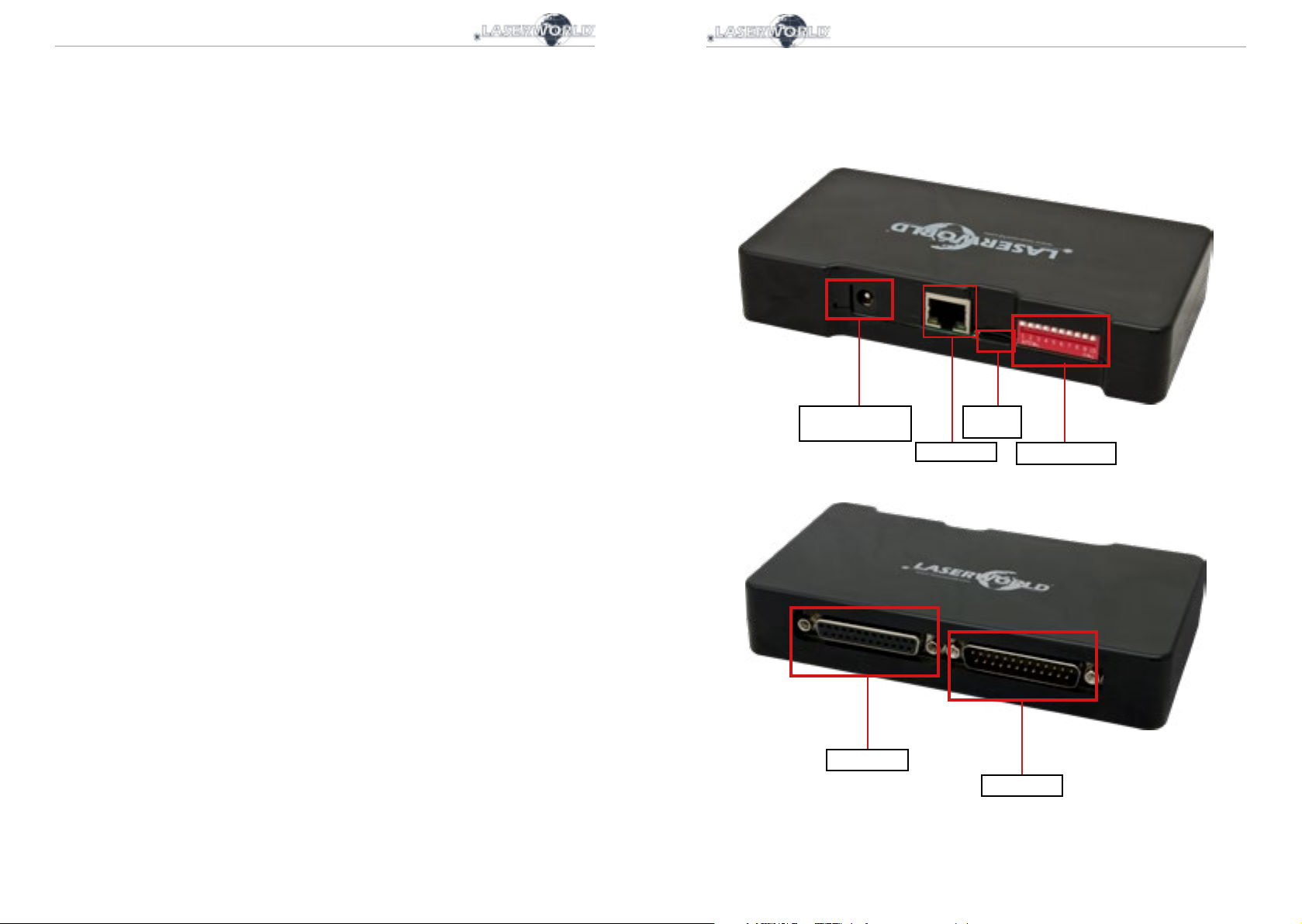

4. Device Connections
Power in (PSU 12V)
SD-Card
slot
LAN connection Address Settings
5. Operation

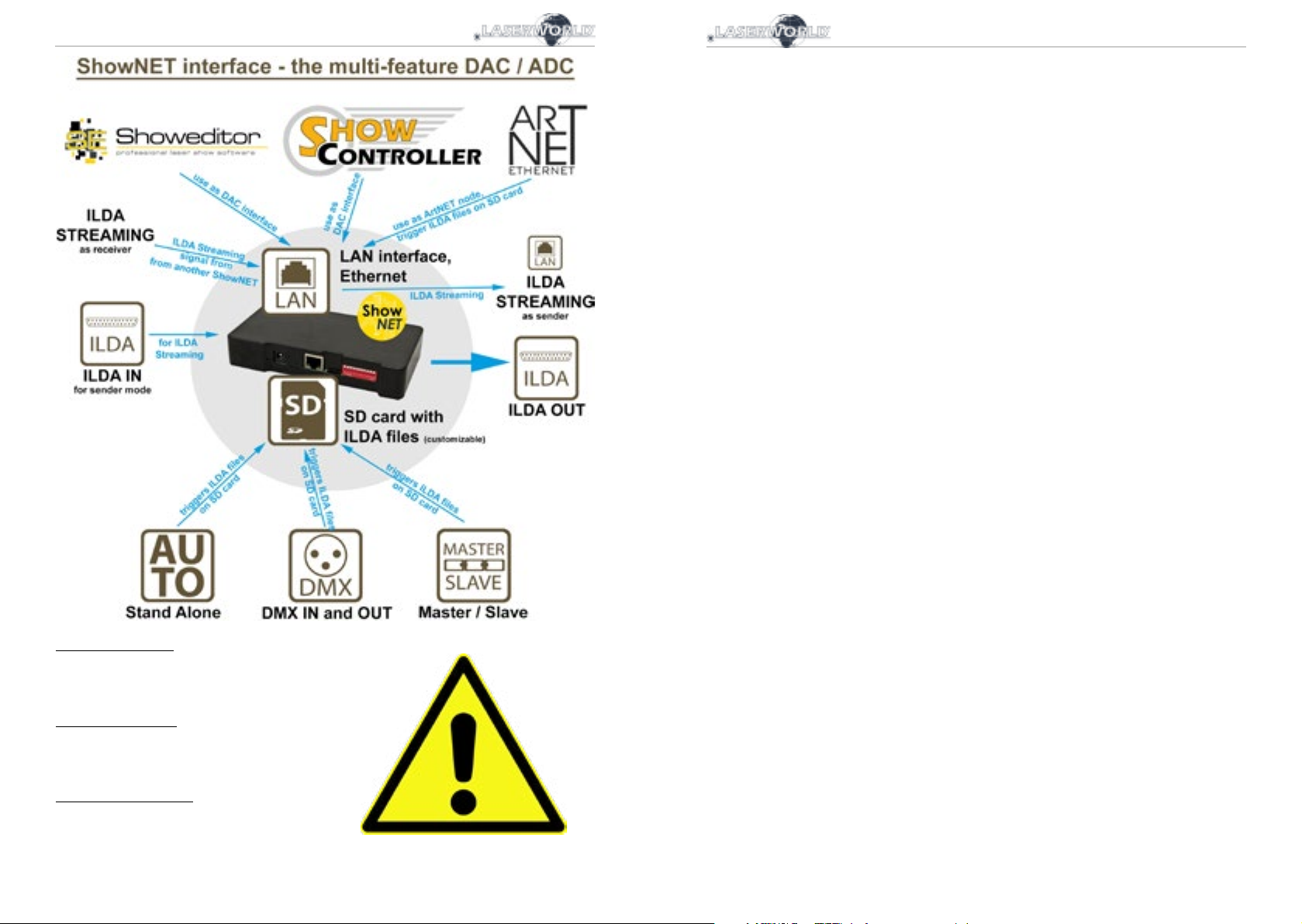

Technical overview:
- X/Y scanner output with 12 bit resolution (4096 dierent positions on each axis)
- Up to 6 color output with 8 bit resolution (256 dierent values per color channels): red, green, blue, intensity, user dened 1, user dened 2
- DMX512 input and output (non-isolated)
- 10/100 Mbit Ethernet port
- Flexible IP address setting: xed address, DHCP or AutoIP
- Micro-SD card slot for ILDA le playback (ILDA format code 5 RGB)
- Built-in laser gures for stand alone operation
- Stand alone operation via DMX control or auto trigger
- maximum scan speed of up to 150kpps
- Up to 16 devices can be used in parallel for multi-projector laser shows
The DIP switches can be used to select the desired operating mode. A change in the operation mode requires a restart of the device (unplug and replug the power supply). Do not change and DIP switch settings during operation, random and dangerous laser output can occur.
Operation Modes
(Firmware version: 20190520x - Admin tool: v1.33)
1. Download admin tool
For testing the show laser system and for other purposes, like uploading ILDA les to the SD card without the need for an external card reader, download the admin tool here: https://www.laserworld.com/shownet_mainboard
Open the „ShowNET-Admin_Tool.exe“ whenever this manual refers to the admin tool.
IMPORTANT: It‘s not possible to access the admin tool, when you are accessing the la­ser system via software (Showeditor, Showcontroller, etc.). When opening the admin tool while accessing the laser system in a non-direct-control operation mode, the admin tool asks to press on a button to switch to network mode for manual control.
ILDA out
ILDA in
2. Direct computer control
Connect the laser system to the ShowNET interface by using an ILDA cable. Do not con­nect the laser to the standard parallel port at the computer, but always use an appropria­te ILDA interface. Connect the ShowNET interface to your computer by using an ethernet cable (RJ45 standard). After that the laser can becontrolled by a show laser control soft­ware. Standard network switches can be used to connect multiple laser systems at once.
page 6 / 54 page 7 / 54
Page 5
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
a) SHOWEDITOR - free laser show software
The Showeditor laser software is included with this ShowNET mainboard for free. It is a full feature laser control software with LIVE and Timeline control mode and many free laser shows included in delivery. The software can be downloaded for free on:
https://www.showeditor.com
After downloading and installing the software, open the .exe le on the computer and use the software to operate the show laser system.
Details on installation and use of the software please nd on the aforementioned website.
b)
SHOWCONTROLLER - professional laser show and multimedia control software
suite
The ShowNET mainboard fully supports the direct control of the laser via Showcontroller as well. Showcontroller is a mightly software tool with many professional features. It is very intuitive and thus easy to get started with, too.
The Software and a Demo Version can be downloaded on:
https://www.showcontroller.com
A license can be obtained from where this interface has been purchased.
3. Trigger own eects and ILDA les on the SD card
This network interface comes with a microSD card that can hold ILDA les with laser frames and animations that can be triggered in dierent ways. It is possible to just use the standard les that come with delivery or change the les to new, custom ones.

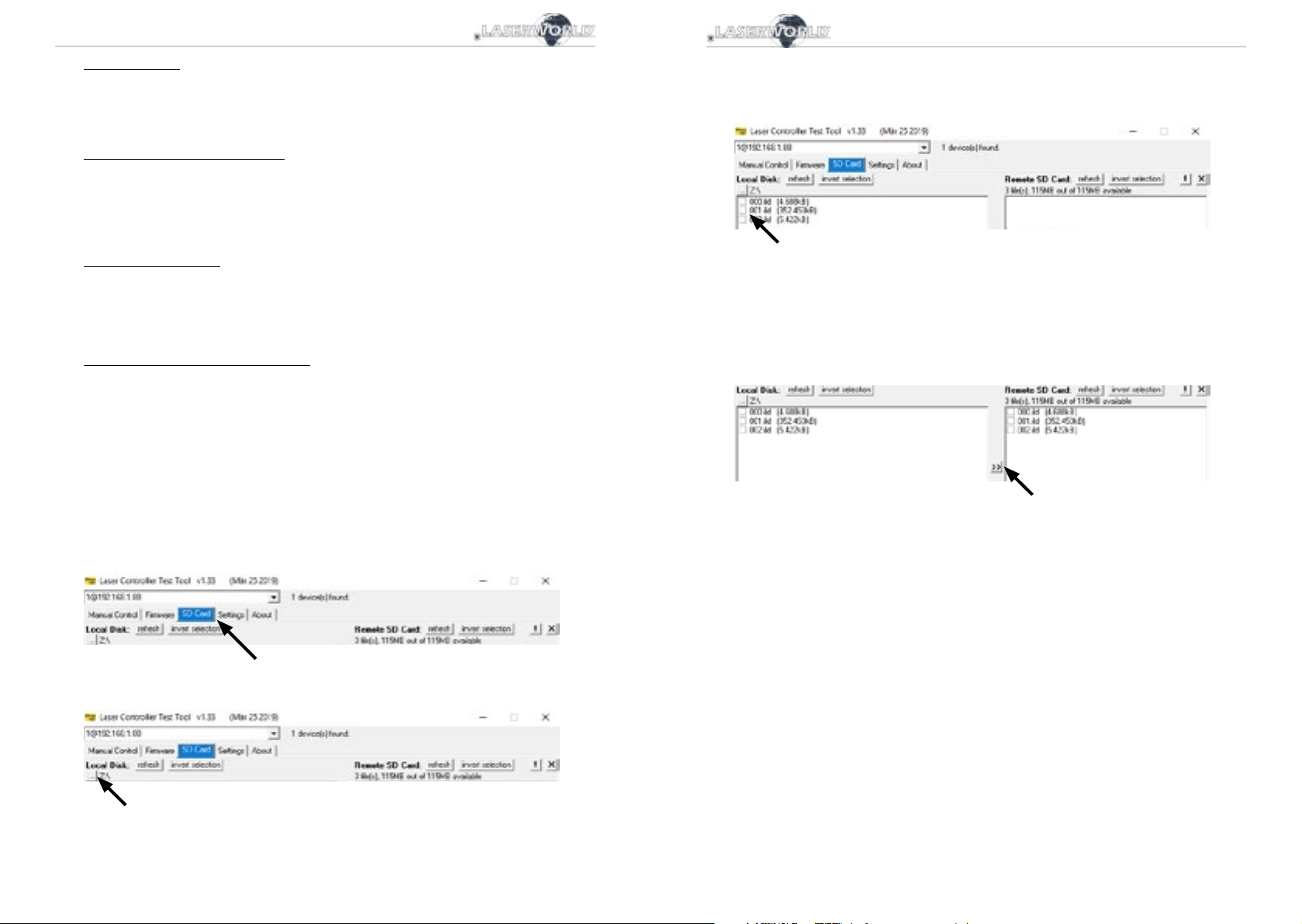

a) Upload own ILDA les to the SD card
Besides the possibility to just upload *.ild les to the microSD card with a standard card reader, it is also possible to remotely load ILDA les to the plugged in SD card via LAN without having to extract the SD card from the interface.

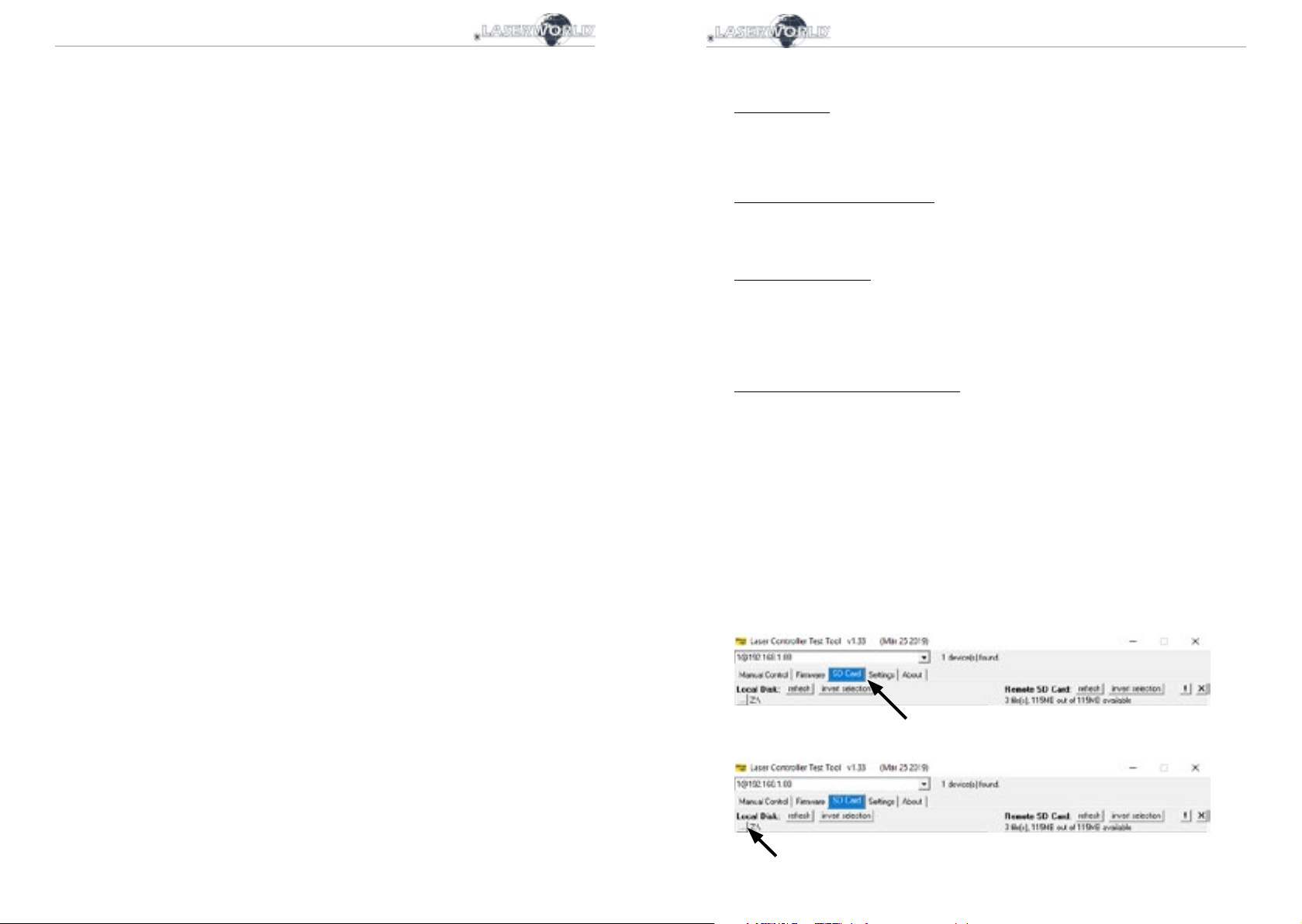

To change the ILDA les, open the admin tool and select the tab ‚SD Card‘ as shown in the picture below:

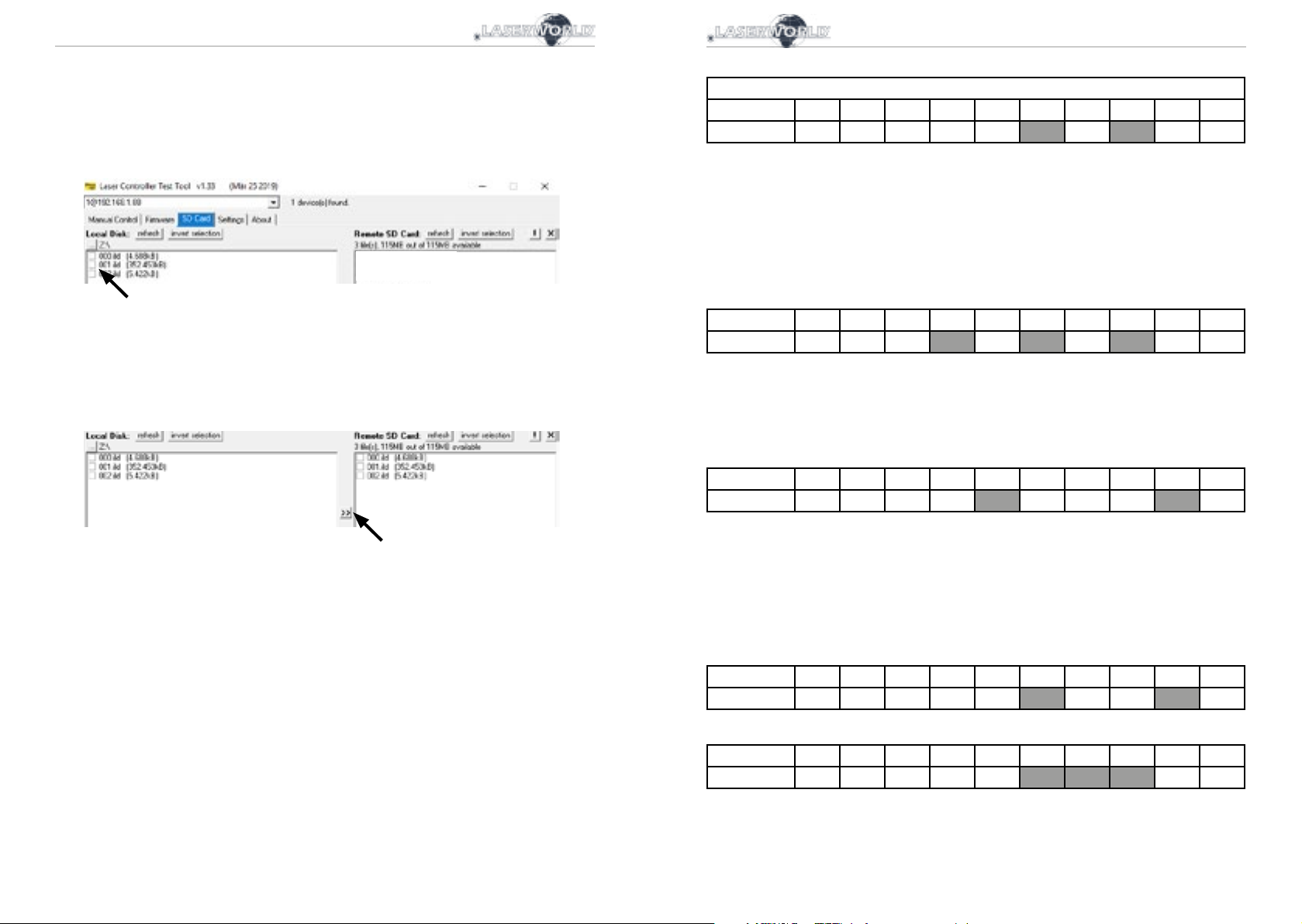

Select the folder with the ILDA les on the local hard drive by clicking on the button with the three points on it:
fader. To upload *.ild les greater than 6 MB, please use an external card reader. Otherwise the import may cause problems.
Select the *.ild les to be uploaded from the computer (left side) to the integrated SD card memory (right side).
Click on the button with the two arrows to the right to upload the *.ild les to the integ­rated SD card. The les are copied and saved now.
Be aware that, due to the optimized data structure on the interface, the upload of ILDA les can take a while! (several minutes!)
IMPORTANT: It is not possible to upload any other data than *.ild les to the SD card!
Due to the huge number of available micro SD cards in the market, it cannot be guaran­teed that all cards are compatible with the ShowNET interface. The use of standard sized (max. 2GB) SD cards instead of high capacity SDHC or XDHC cards is recommended.
It is also possible to copy the existing *.ild les on the SD card to the computer by selec­ting the les on the right side. Then click on the button with the two arrows to the left.
With the button ‚invert selection‘ it is possible to select all les with just one click. The button with the exclamation mark formats the SD card and thus deletes all exisiting
les. To delete single les, select the very *.ild le and then click on the button with the ‚X‘ on
it (next to the one with the exklamation mark). In case they got deleted by accident, the standard les card can be downloaded on
https://www.laser-interface.com
b) Stand-Alone Mode / Automatic Mode / Playback Mode
Dip switch setting
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 0 1 0 1 0 0
IMPORTANT: Custom laser les have to be stored in *.ild format and must be named with a number from ‚000.ild‘ to ‚255.ild‘. Each number represents a DMX value on the respective
page 8 / 54 page 9 / 54
In stand-alone mode the ILDA les on the plugged in SD card are triggered automatically.
Page 6
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
This setting is especially suitable for demo purposes or for xed laser installations.
The stand-alone mode allows for additional advanced features: As standard, the stand­alone mode cycles through the ILDA les on the SD cards and plays them consecutively and in a general loop.
If DIP switch 4 is activated too, the stand alone mode only plays one specic ILDA le and just loops this le.
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 1 0 1 0 1 0 0
Dip switch 1 can be used to step to the next le (just switch DIP switch 1 to on, then to o again)
Dip switch 2 can be used to step to the previous le (just switch DIP switch 2 to on, then to o again)
c) Demo Mode / Automatic Animation
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 1 0 0 0 1 0
In demo mode the ILDA les on the plugged in SD card are triggered automatically. The ILDA les are not only played back like in the stand alone mode, but they are also auto­matically animated by ShowNET‘s internal intelligence. This creates dynamic animations, even if only static frames are on the SD card.
This setting is especially suitable for demo purposes.
d) Master-Slave-Mode: Demo Mode
MASTER Unit:
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 0 1 0 0 1 0
SLAVE units:
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 0 1 1 1 0 0
To have the same eects show on all connected units, it is required to have the same pattern sets on all SD cards inside the units.
Use the dip switches to assign a certain address like in DMX mode:
switch 1 2 3 4 5 6 7 8 9 10
Binary DMX channel oset
1 2 4 8 16 32 64 128 256 Switch 10 has to be ON (up)
for ArtNet operation

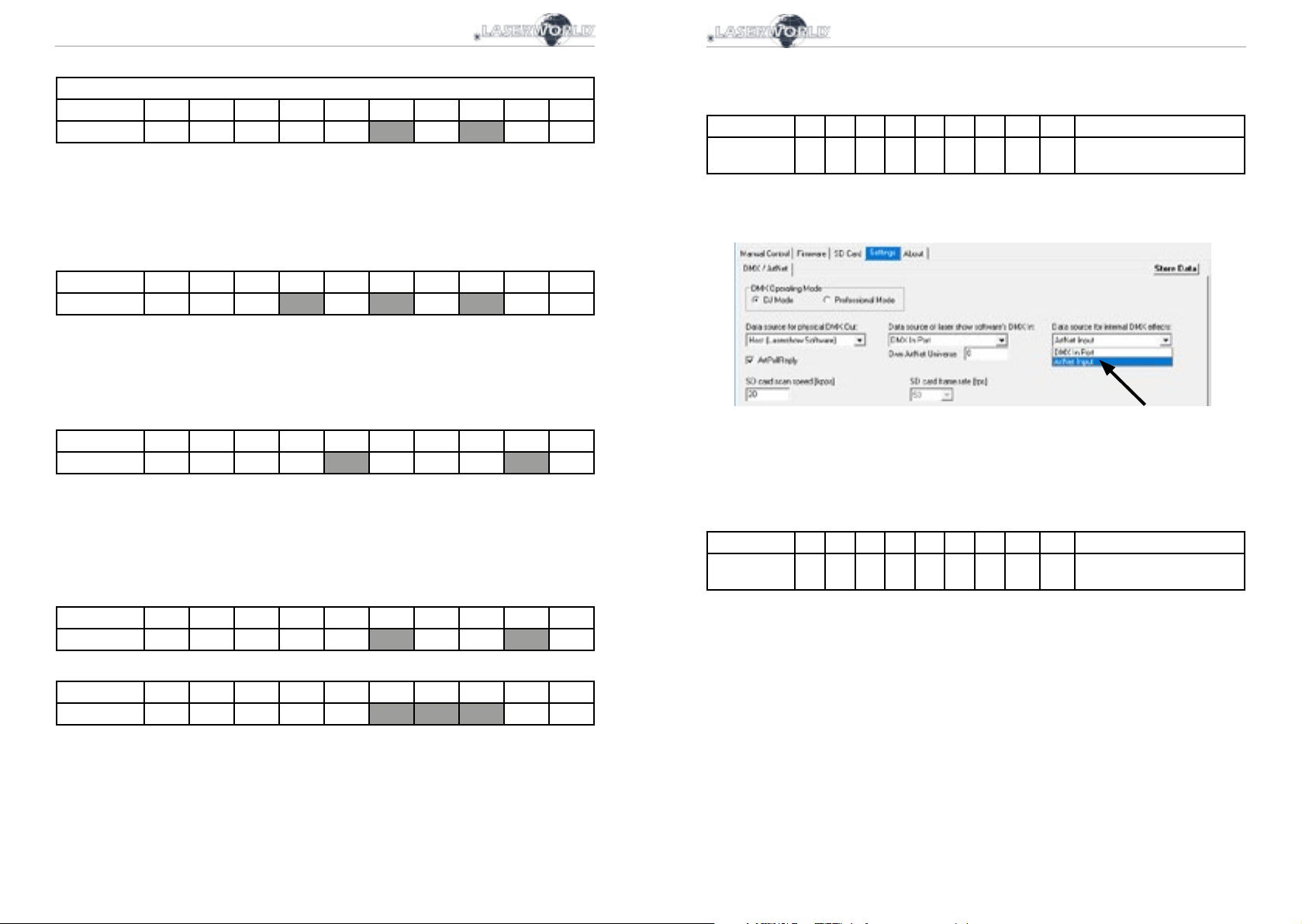

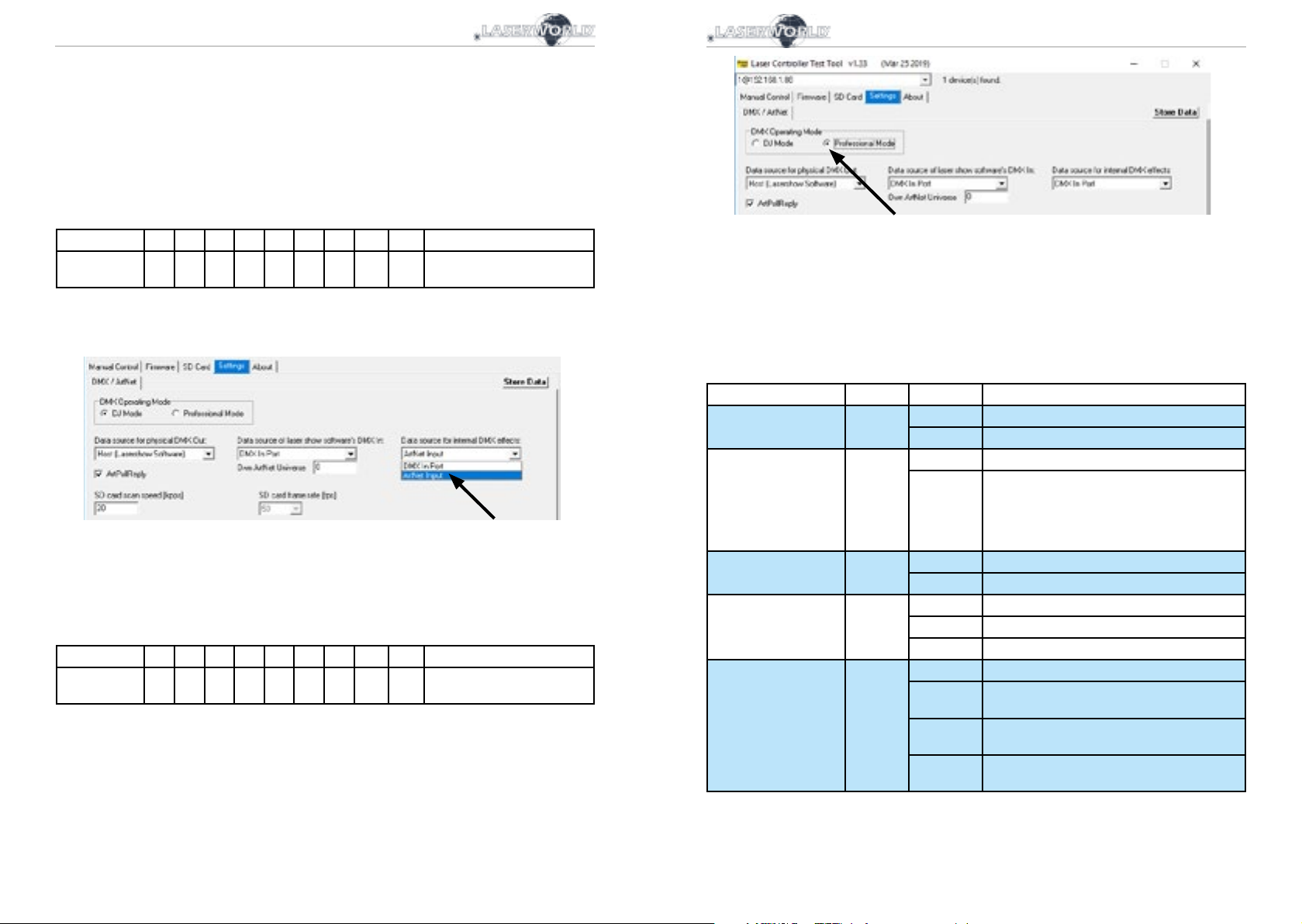

To activate ArtNet trigger, open the admin tool and navigate to the tab ‚Settings‘. Then change the ‚Data source for internal DMX eects‘ to ‚ArtNet input‘ as seen in the picture below:
Click on ‚Store Data‘ to save the changes. Click on ‚OK‘ twice and wait until another win­dow opens that asks to restart the ILDA interface. To do so, switch the laser system o and on again.
See the details on DMX Mode below for more information:
f) DMX Modes
switch 1 2 3 4 5 6 7 8 9 10
Binary DMX channel oset
1 2 4 8 16 32 64 128 256 Switch 10 has to be ON (up)
for DMX mode

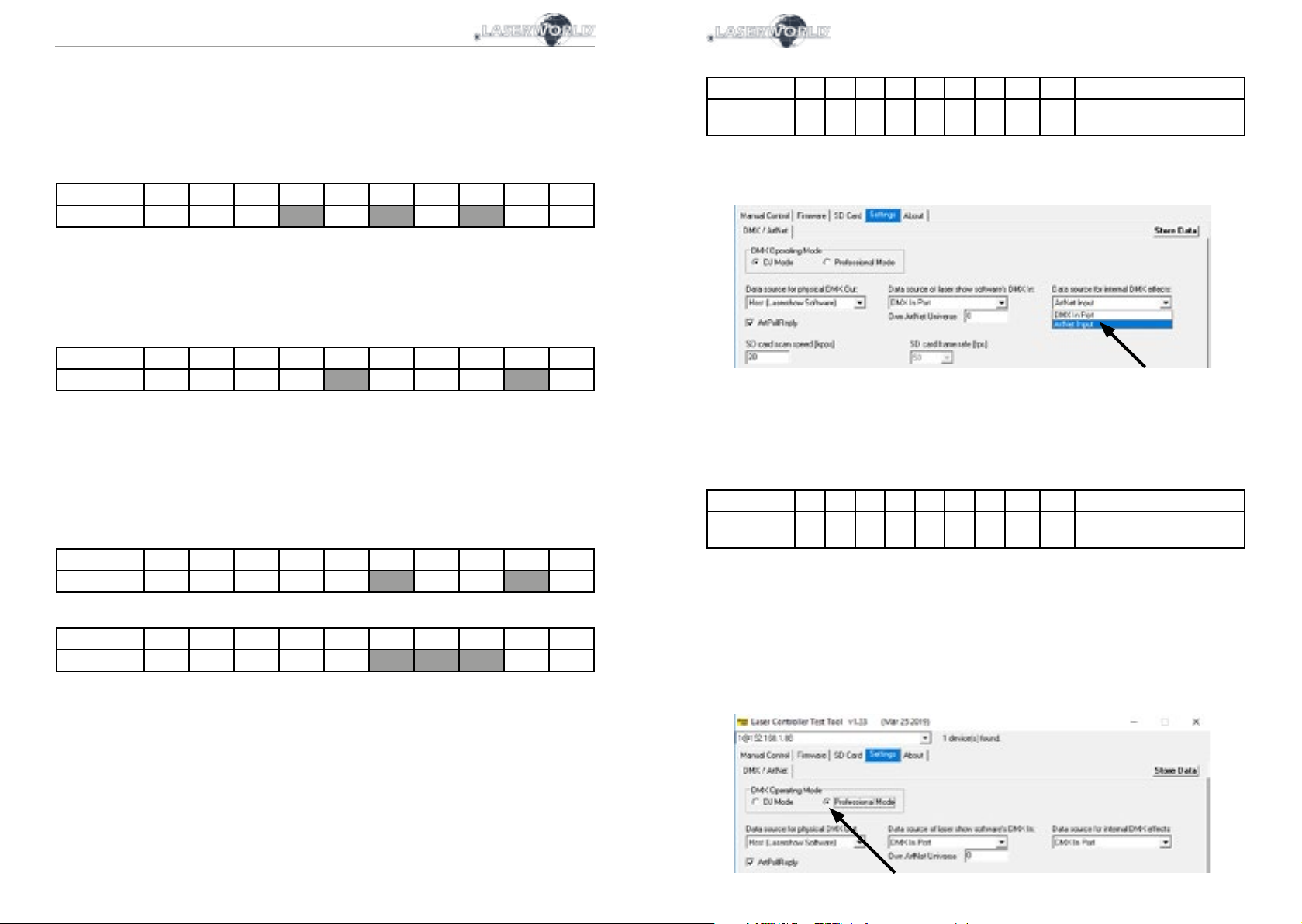

There are two DMX / ArtNet conguration modes: (1) DJ Mode & (2) Professional Mode. The DJ mode is more basic and comes with some pre-congured automations. It is sui-
table for most users. The Professional mode comes with some advanced features and requires deper know-
ledge of DMX / ArtNet to be handled properly. DJ mode is the standard option. To use the Professional mode, open the admin tool and
navigate to the tab ‚Settings‘.
e) ArtNet Operation
IMPORTANT: ArtNet operation requires the ShowNET interface to be connected in a DHCP environment (router with integrated switch is recommended). The address hand­ling must be managed through DHCP. For questions on DHCP, please refer to 4.1. DHCP Mode. Only ShowNET interfaces and the ArtNet controller must be used in the same network.
Avoid using other network devices in the same network.
page 10 / 54 page 11 / 54
Page 7
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Change the option.
Click on ‚Store Data‘ to save your changes. Click on ‚OK‘ twice and wait until another win­dow opens that asks to restart the ILDA interface. To do so, switch the laser system o and on again.
(1) DJ Mode
To get laser output, DMX channel 1 needs to have a value greater than 0 (recommended 64 to 192)
Channel Mode Value Function
1 Intensity DJ 0 Laser o
1 - 255 Increase intensity (full intensity = 255)
2 Pattern selection DJ 0 Blackout (000.ild must not exist)
1 - 255 Display patterns from SD card:
3 Pattern speed (Framerate)
4 Size DJ 0 - 127 Decreasing size X + Y-axis
5 Automatic size DJ 0 - 63 Full size
6 Rotate DJ 0 - 192 Manual rotation
7 Position X-axis coarse DJ 0 - 255 0 = center
8 Position X-axis ne DJ 0 - 255
9 Position Y-axis coarse DJ 0 - 255 0 = center
10 Position Y-axis ne DJ 0 - 255
DJ 0 - 15 Standard speed: 50 fps
16 - 255 Increasing speed from 0 fps to 100 fps
128 - 191 Decreasing size X-axis
192 - 255 Decreasing size Y-axis
64 - 127 Changing size automatically X + Y-axis
128 - 191 Changing size automatically X-axis
192 - 255 Changing size automatically Y-axis
193 - 224 Automatic rotation anti-clockwise
225 - 255 Automatic rotation clockwise
1 = 001.ild 2 = 002.ild ... and so on If no pattern is assigned to a number = blackout
(increasing speed)
(increasing speed)
(increasing speed)
(increasing speed)
(increasing speed)
Channel Mode Value Function
11 Color eects DJ 0 - 15 Show pattern in original colors
16 - 79 Show pattern in dierent colors (monochrome)
80 - 143 Re-color eects:
144 - 255 Automatic change of re-color eects
12 Color eects extended
13 Strobe DJ 0 - 15 None
14 Operation mode DJ 0 - 19 DMX
15 Scan speed DJ 0 - 31 Default
16 Safety zone size DJ 0 - 63 Size of horizontal safety zone
17 Safety zone intensity DJ 0 No reduction
18 Blanking DJ 0 - 192 Manual select how much of the laser pattern
19 Blankshift DJ 0 - 192 Manual select the pattern part the blanking of
DJ 0 - 127 Smooth color fade eect to the re-color eect
128 - 192 Blocking color eect to the re-color eect
193 - 255 Automatic change of color fade eects
16 - 255 Increasing strobe eect
20 - 83 Automatic position X & Y-axis
84 - 147 Automatic position X-axis
148 - 211 Automatic position Y-axis
212 - 233 Demonstration mode
234 - 255 Sound-to-light
32 - 255 Increasing scan speed (from 5 kpps to 30 kpps)
64 - 127 Size of horizontal safety zone
128 - 191 Size of vertical safety zone
192 - 255 Size of the vertical safety zone
1 - 128 Decrease brightness up to half brightness
129 - 255 Decrease brightness up to blackout
193 - 255 Automatic blanking (increasing speed)
193 - 255 Automatic blank shift (increasing speed)
Original colors are replaced by new colors
Value of channel 11 must be >15!
Value of channel 11 must be >15!
ATTENTION: If you‘re unsure about the maxi­mum scan speed, stay with the default setting!
Safety zone is the bottom side
Safety zone is the upper side
Safety zone is the left side
Safety zone is the right side
shall be blanked
channel 18 shall be applied to
page 12 / 54 page 13 / 54
Page 8
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface

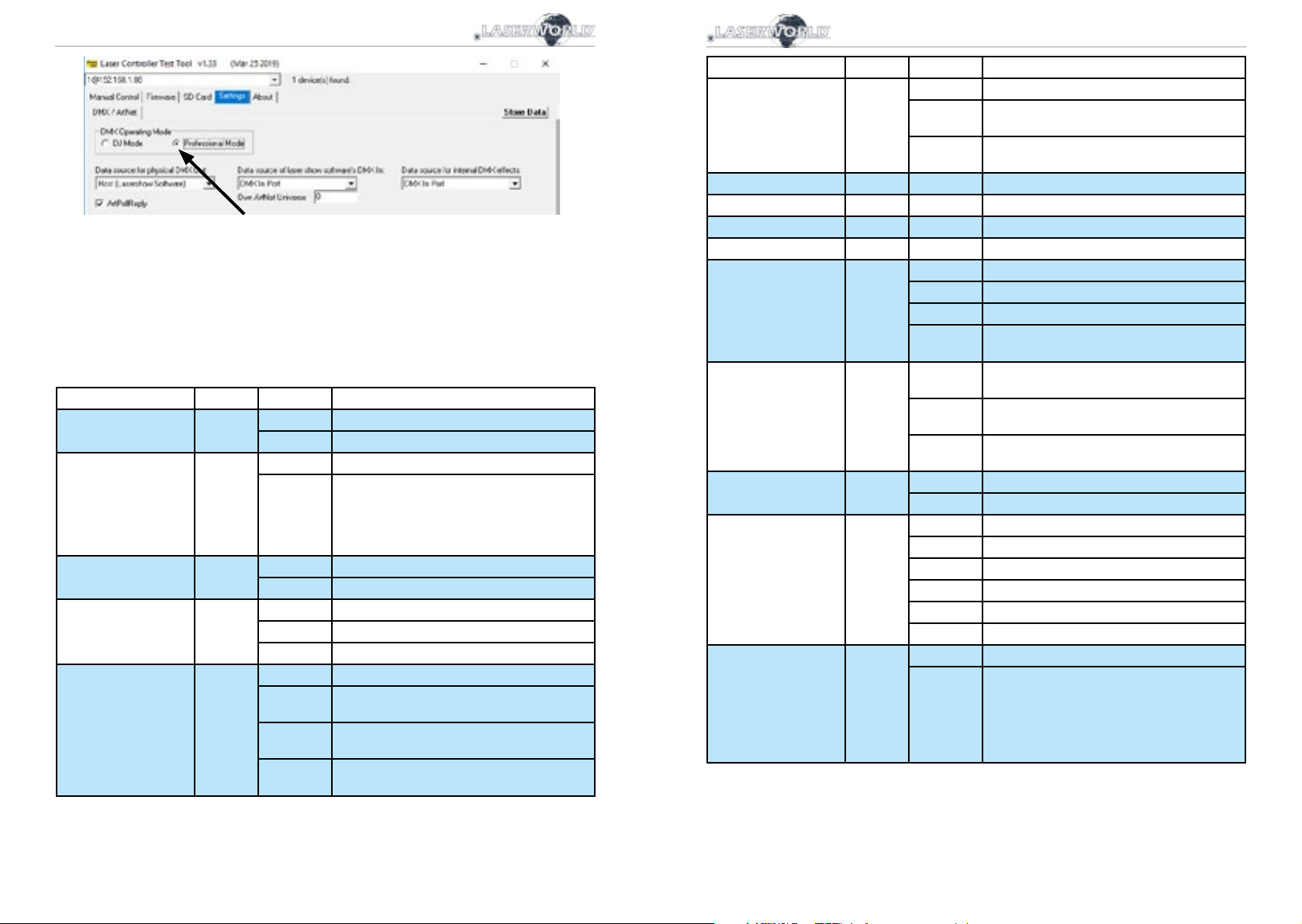

(2) Professional Mode
Channel Mode Value Function
1 Intensity Prof. 0 Laser o
1 - 255 Increase intensity (full intensity = 255)
2 Pattern selection Prof. 0 Blackout (000.ild must not exist)
1 - 255 Display patterns from SD card:
3 Pattern speed (Framerate)
4 Position X-axis coarse Prof. 0 - 255 From left (0) to right (255); center = 128
5 Position X-axis ne Prof. 0 - 255
6 Position Y-axis coarse Prof. 0 - 255 From bottom (0) to top (255); center = 128
7 Position Y-axis ne Prof. 0 - 255
8 Rotation coarse Prof. 0 - 255 Rotate; 0° = 128
9 Rotation ne Prof. 0 - 255
10 Size X-axis Prof. 0 - 255 From maximum (0) to minimum (255)
11 Size Y-axis Prof. 0 - 255 From maximum (0) to minimum (255)
12 Inversion Prof. 0 - 63 None
13 Color Selection Prof. 0 - 15 Original pattern colors
14 Red Prof. 0 - 255 Increase intensity red
15 Green Prof. 0 - 255 Increase intensity green
16 Blue Prof. 0 - 255 Increase intensity blue
Prof. 128 Standard speed 50 fps
0 - 127 Increasing speed from 0 fps tp 50 fps
129 - 255 Increasing speed from 50 fps to 100 fps
64 - 127 Invert X-axis
128 - 191 Invert Y-axis
192 - 255 Invert X + Y-axis
16 - 207 Color selection from red (16) through yellow
208 - 223 White with half intensity for each color channel
224 - 239 White with full intensity for each color channel
240 - 255 Enables channels 14 -16 to select a specic hue
1 = 001.ild 2 = 002.ild ... and so on If no pattern is assigned to a number = blackout
(48), green (80), cyan (112) and blue (144) up to purple (176) with color mixtures in between.
Only active if the value of channel 13 is 240 - 255
Only active if the value of channel 13 is 240 - 255
Only active if the value of channel 13 is 240 - 255
Channel Mode Value Function
17 Strobe Prof. 0 - 15 None
16 - 255 Increasing strobe eect
18 Scan speed Prof. 0 - 15 Default
16 - 255 Increasing scan speed (from 5 kpps to 40 kpps)
19 Safety zone size Prof. 0 - 63 Size of horizontal safety zone
64 - 127 Size of horizontal safety zone
128 - 191 Size of vertical safety zone
192 - 255 Size of vertical safety zone
20 Safety zone intensity Prof. 0 - 255 From max intensity (0) to no intensity (255)
21 Color balancing red
(for white balance)
22 Color balancing green (for white balance)
23 Color balancing blue
(for white balance)
IMPORTANT: Channels 24 - 34 are reserved for future features and must not be assigned
Prof. 0 - 255 From max intensity (0) to no intensity (255)
Prof. 0 - 255 From max intensity (0) to no intensity (255)
Prof. 0 - 255 From max intensity (0) to no intensity (255)
Safety zone is the bottom side
Safety zone is the upper side
Safety zone is the left side
Safety zone is the right side
Master to channel 14!
Master to channel 15!
Master to channel 16!
Important Note: Operate scanners/galvos only at appropriate speed according to the res­pective scan angle. Too high scan speed will damage the scanning system.
page 14 / 54 page 15 / 54
Page 9
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
4. Network Operation
Important:
Only ShowNET interfaces and potentially an ArtNet controller must be used in the same net­work. Avoid using other network devices in the same network.
Avoiding connectivity issues, Troubleshooting:
- Make sure that no rewall is blocking the network trac between the computer and the show laser device. The rewall has to be congured to grant network access to the laser show software.
- If the network connection does not work, try to temporarily disable the rewall. If this helps, create a matching rule and re-activate the rewall.
- Whenever the DIP switch settings for the network mode are changed (for example, change static IP address or switch from DHCP to AutoIP mode), the ShowNET device has to be restarted (disconnect it from the mains and plug it in again).
- The interface has to be connected to a 100Mbit or Gigabit Ethernet LAN. 10Mbit Ethernet is not suitable.
- The use of WIFI (WLAN) is not recommended. This will result in decreased output perfor­mance and unsafe operation.
Attention - maximum cable length:
When using ethernet cables with RJ45 connection, always pay attention to the maximum length of the very cable. E.g. : Cat 5e = max. 100 m Cat 6 = max. 50 m Cat 7 = max. 50 m Cat 8 = max. 30 m
You can use normal network switches to amplify the signal and extend the range!
Without amplication of the signal (e.g. via a switch) it is recommended to use ber trans­mission as soon as longer distances are required.
a) DHCP Mode
Dip switch setting
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 0 0 0 0 0 0
In this mode, the IP address is provided by a DHCP server. Therefore, a DHCP server has to be available in the network. For example, this could be a cheap 100MBit network router with integrated DHCP server. This option does not work if there is no device in the same network that can distribute and manage network addresses as DHCP! In this case, try AutoIP as connection method (e.g. if the interface is directly connected to the computer)!
b) AutoIP
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 0 1 0 0 0 0
In this mode, the IP address is negotiated automatically without the need for a DHCP server. A Windows computer with enabled AutoIP is necessary to use this feature. In Win­dows 7, 8 and 10, AutoIP is enabled by default. In Windows XP it has to be enabled ma­nually. Before trying to connect a ShowNET to the computer, make sure that the AutoIP feature is enabled. If AutoIP is selected, but there is a DHCP server in the network (e.g. in a router), the IP assignment cannot work sometimes. Use DHCP mode in this case.
c) Static IP address
Using a static IP address is the most stable option for network control. The IP address consists of 4 numbers, seperated by a point. The rst two number are always 192.168 and cannot be changed. The last two numbers (adr1 and adr2) can be congured with DIP switches. The resulting IP address will be something like
192.168.adr1.adr2
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0000 - adr2 = 50
1000 - adr2 = 51 0100 - adr2 = 52 1100 - adr2 = 53 0010 - adr2 = 54 1010 - adr2 = 55 0110 - adr2 = 56 1110 - adr2 = 57 0001 - adr2 = 58 1001 - adr2 = 59 0101 - adr2 = 60 1101 - adr2 = 61 0011 - adr2 = 62 1011 - adr2 = 63 0111 - adr2 = 64 1111 - adr2 = 65
00 - adr1 = 0 10 - adr1 = 1 01 - adr1 = 2 11 - adr1 = 254
1 0 0 0
The Windows computer needs to have an IP address within the same network subnet.
Example:
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 1 1 0 1 0 0 1 0 0 0
This will assign IP address 192.168.0.61 to the ShowNET interface. Assign a dierent IP address inside the same subnet to the Windows computer, for example
192.168.0.100 (subnet = 255.255.255.0)
page 16 / 54 page 17 / 54
Page 10
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
d) ILDA Streaming
The Laserworld ShowNET interface is capable to act as range extender for ILDA signals by tranforming an incoming ILDA signal on the ILDA IN interface to a standard UDP network signal and transferring this signal back to standard ILDA in a receiver unit (obviously an external ShowNET interface is required as sender for this kind of application!) . Do NOT send the signal over Wi, this transmission method is not suitable in a professional envi­ronment.
Sender-Receiver conguration for ILDA over LAN, range extender use
The sender uses an IP address range between 192.168.2.70 and 192.168.2.85 and trans­mits the signal to a receiver that has addresses in the range between 192.168.2.50 and
192.168.2.65. The specic IP addresses need to be set with DIP switches. Make sure there are no other devices in the same network that use the same IP addresses.
Final statement
Product and package leaving warehouse without faults. Users have to follow the local safety regulations and warnings of this manual. Damages through inappropriate use do not unterlie the sphere of inuence of manufacturer or dealer. Therefore no liability or warranty will be taken over. We cannot inform you in case of changes of this manual. If you have any questions, please contact your dealer. For service please contact your dealer or Laserworld. Please use only spare parts of Laserworld. Subject to change without notice. Because of the vast amount of data we cannot guarantee any correctness of given information.
Dip switch setting
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0)
0000 -> IP sender: 192.168.2.70 sends to 192.168.2.50 0001 -> IP sender: 192.168.2.71 sends to 192.168.2.51 0010 -> IP sender: 192.168.2.72 sends to 192.168.2.52 0011 -> IP sender: 192.168.2.73 sends to 192.168.2.53 0100 -> IP sender: 192.168.2.74 sends to 192.168.2.54
0101-> IP sender: 192.168.2.75 sends to 192.168.2.55 0110 -> IP sender: 192.168.2.76 sends to 192.168.2.56 0111 -> IP sender: 192.168.2.77 sends to 192.168.2.57 1000 -> IP sender: 192.168.2.78 sends to 192.168.2.58 1001 -> IP sender: 192.168.2.79 sends to 192.168.2.59 1010 -> IP sender: 192.168.2.80 sends to 192.168.2.60 1011 -> IP sender: 192.168.2.81 sends to 192.168.2.61 1100 -> IP sender: 192.168.2.82 sends to 192.168.2.62 1101 -> IP sender: 192.168.2.83 sends to 192.168.2.63 1110 -> IP sender: 192.168.2.84 sends to 192.168.2.64 1111 -> IP sender: 192.168.2.85 sends to 192.168.2.65
sender: 0 receiver: 1
0 1 1 0 0
Example:
Sender IP address setting:
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 1 0 0 1 1 0 0
This assigns IP address 192.168.2.71 to the Sender. The corresponding receiver needs this IP address setting:
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 1 1 0 1 1 0 0
This assigns IP address 192.168.2.51 to the receiver. The only dierence between sender and receiver conguration is dip switch 5, which is 0 for the
sender and 1 for the receiver.
Laserworld (Switzerland) AG
Kreuzlingerstrasse 5 8574 Lengwil Switzerland
Registered oce: 8574 Lengwil / Switzerland Company number: CH-440.3.020.548-6 Commercial Registry Kanton Thurgau CEO: Martin Werner VAT no. (Switzerland): 683 180 UID (Switzerland): CHE-113.954.889 VAT no. (Germany): DE 258030001 WEEE-Reg.-No. (Germany): DE 90759352
www.laserworld.com info@laserworld.com
representative according to EMVG: Ray Technologies GmbH Managing Director: Martin Werner Mühlbachweg 2 83626 Valley / Germany
6. Power Supply
Use the power supply (included in delivery) to connect the ShowNET Interface to mains.
page 18 / 54 page 19 / 54
Page 11
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Inhaltverzeichnis:
1. Lieferumfang & Hinweise
2. Einleitende Warnhinweise
3. Schritte zur Inbetriebnahme, Sicherheitshinweise
4. Anschlüsse / Schnittstellen
5. Bedienung
6. Stromversorgung
Abschließende Erklärung
1. Lieferumfang & Hinweise
Bitte prüfen Sie, ob Sie die Lieferung vollständig erhalten haben und die Ware unbeschädigt ist. Im Lieferumfang enthalten sind:
1 x Netzwerk Interface 1 x Netzteil 1 x Bedienungsanleitung 1 x microSD Karte
2. Einleitende Warnhinweise
1. Das Netzwerk Interface nur gemäß dieser Bedienungsanleitung verwenden.
2. Bitte das Netzwerk Interface nicht verwenden, wenn sichtbare Beschädigungen vorlie-
gen.
3. Niemals direkt in den Strahl des austretenden Lasers blicken. Erblindungsgefahr!
4. Das Netzwerk Interface nicht bei hoher Luftfeuchtigkeit, Regen oder in staubiger Umgebung einsetzen.
5. Vor Tropf-/Spritzwasser schützen.
3. Schritte zur Inbetriebnahme, Sicherheitshinweise:
1. Es muss sichergestellt sein, dass das Netz­werk Interface mit der richtigen Span- nung betrieben wird (siehe Angaben in dieser Bedienungsanleitung).
2. Die Installation darf nur von technisch versiertem Fachpersonal gemäss der im jeweiligen Land geltenden Sicherheits­bestimmungen installiert werden.
3. Wenn das Gerät großen Temperatur- schwankungen ausgesetzt war, schalten Sie es nicht unmittelbar danach an. Kon­denswasser könnte beim Netzwerk Inter­face zu Schäden führen.
4. Benutzen Sie niemals Dimmer-, Funk­oder andere elektronisch gesteuerten Steckdosen! Falls möglich benutzen Sie das Netzwerk Interface nicht zusammen mit anderen großen elektrischen Ver­brauchern (insbesondere Nebelmaschi­nen) auf derselben Leitung/Phase!
5. Sorgen Sie immer für eine ausreichende Belüftung und stellen Sie das Interface auf keine warmen oder wärmeabstrah­lenden Untergründe.
page 20 / 54 page 21 / 54
Page 12
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
4. Anschlüsse / Schnittstellen
Stromzufuhr
(Netzteil 12V)
5. Bedienung
Funktionsübersicht:
- X/Y Scanner-Ausgabe mit 12 bit Auösung (4096 verschiedene Positionen auf jeder Achse)
- Ausgabe von bis zu 6 Farben (lizensabhängig) mit 8 bit Auösung (256 verschiedene Werte je Farbkanal): Rot, Grün, Blau, Intensität, benutzerdeniert 1, benutzerdeniert 2
- DMX512 Eingang und Ausgang (nicht-isoliert)
- 10/100 Mbit Ethernet-Port
- Flexible IP-Adresseinstellung: xe Adresse, DHCP oder AutoIP
- Micro-SD Kartenslot für ILDA-Datei-Wiedergabe (ILDA Format Code 5 RGB)
- Integrierte und vorgefertigte Muster für den Automatikbetrieb
- DMX- oder Automatikmodus
- maximale Scangeschwindigkeit mit bis zu 150 kpps (lizensabhängig)
- es können bis zu 16 Geräte parallel eingesetzt werden
Zur Auswahl der Betriebsmodi können die DIP-Schalter genutzt werden. Der Modus muss ein­gestellt werden, bevor das Gerät eingeschaltet wird. Ein Moduswechsel bei angeschlossenem und ausgabebereitem Projektor kann zu ungewollter Laserausgabe führen.
SD-Karten
Slot
Netzwerkanschluss Adressierung
Betriebsmodi
(Firmware: 20190520x - Admin tool: v1.33)
1. Admin-Tool herunterladen
Zum Testen des Lasersystems und für andere Zwecke, wie z.B. speichern von ILDA-Datei­en auf der eingesteckten SD-Karte, kann das Admin-Tool hier heruntergeladen werden: https://www.laserworld.com/shownet_mainboard
Önen Sie „ShowNET-Admin_Tool.exe“, wenn diese Anleitung auf das Admin-Tool Bezug nimmt.
WICHTIG: Es ist nicht möglich, mit dem Admin-Tool auf den Laser zuzugreifen, wenn gleichzeitig eine Lasersoftware auf den Showlaser zugreift (Showeditor, Showcontroller, etc.). Wenn Sie das Admin-Tool önen, während Sie auf das Lasersystem in einem nicht direkt gesteuerten Betriebsmodus zugreifen, fordert das Admin-Tool sie auf, eine Taste zu drücken, um in den Netzwerkmodus für manuelle Steuerung zu wechseln.
2. Direkte Ansteuerung mit dem Computer
Verbinden Sie den Laser über ein ILDA-Kabel mit dem ShowNET Interface. Schließen Sie
ILDA out
ILDA in
den Laser nicht direkt an den Standard parallel Port ihres Computers, sondern verwenden Sie immer eine geeignetes ILDA-Interface. Danach kann der Showlaser mittels Lasersoft­ware angesteuert werden. Verwenden Sie ein Ethernet-Kabel (RJ45-Standard), um den LAN-Anschluss des ShowNET Interfaces mit dem Computer zu verbinden. Mit Netzwerk-Switches können mehrere La­ser gleichzeitig verbunden und angesteuert werden.
page 22 / 54 page 23 / 54
Page 13
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
a) SHOWEDITOR - kostenlose Lasersteuerungs-Software
Die Software Showeditor ist kostenlos im Lieferumfang jeder ShowNET enthalten. Es handelt sich um eine komplette Lasersteuerungssoftware mit Live- und Timeline-Steue­rungsmodi, die sehr viele kostenlose Lasershows beinhaltet. Die Software kann kostenlos hier heruntergelanden werden:
https://www.showeditor.com
Nach dem Herunterladen und der Installation der Software önen Sie die dazugehörige .exe-Datei auf Ihrem Computer, um den Showlaser mit der Software zu steuern.
Details zur Installation und zur Bedienung der Software nden sie ebenfalls auf der zu­vorgenannten Webseite.
b)
SHOWCONTROLLER - professionelle Lasershow- und Multimedia-Software
Das ShowNET Interface unterstützt auch die direkte Steuerung mit dem Showcontroller. Showcontroller ist ein mächtiges Software-Tool mit vielen professionellen Funktionen. Diese sind intuitiv zu bedienen und damit auch für Einsteiger geeignet.
Die Software und eine Demo-Versionen können hier heruntergeladen werden:
https://www.showcontroller.com
Eine Software-Lizenz kann z.B. erworben werden, wo dieses Interface gekauft wurde.
3. Eigene Eekte und ILDA-Dateien auf der SD-Karte abspielen
Das ShowNET Interface bietet einen SD-Karten-Slot. Auf einer microSD-Karte (im Liefer­umfang enthalten) lassen sich Laserbilder und -animationen in Form von ILDA-Dateien speichern. Diese können auf verschiedene Weise angesteuert werden. Es ist möglich, nur die im Lieferumfang enhtaltenen Standard-Eekte zu verwenden, oder diese mit selbst erstellten Dateien auszutauschen.
a) Eigene ILDA-Dateien auf einer eingesteckten SD-Karte speichern
Um ILDA-Dateien hochzuladen, önen Sie das Admin-Tool und navigieren zur Register­karte ‚SD Card‘, wie im unteren Bild zu sehen.
Wählen Sie den Ordner mit den ILDA-Dateien auf Ihrer lokalen Festplatte aus, indem Sie auf die Schaltäche mit den drei Punkten klicken:
Um *.ild-Dateien größer als 6 MB hochzuladen, verwenden Sie bitte einen externen Kar­tenleser. Andernfalls kann der Import zu Problemen führen. Wählen Sie die *.ild-Dateien aus, die vom Computer (linke Seite) in den integrierten SD­Kartenspeicher (rechte Seite) hochgeladen werden sollen.
Klicken Sie auf die Schaltäche mit den beiden Pfeilen nach rechts, um die *.ild-Dateien auf die eingesteckte microSD-Karte hochzuladen. Die Dateien werden kopiert und ge­speichert.
Beachten Sie, dass der Upload von ILDA-Dateien aufgrund der optimierten Daten­struktur auf dem Interface einige Zeit dauern kann (mehrere Minuten)!
WICHTIG: Es ist nicht möglich, andere Dateien als *.ild-Dateien auf die microSD-Karte hochzuladen!
Aufgrund der Vielzahl der am Markt verfügbaren microSD-Karten kann nicht garantiert werden, dass alle Karten mit dem Interface kompatibel sind. Die Verwendung von SD­Karten in Standardgröße (max. 2 GB) anstelle von SDHC- und XDHC-Karten mit hoher Kapazität wird empfohlen.
Es ist auch möglich, die vorhandenen *.ild-Dateien auf der SD-Karte auf den Computer zu kopieren, indem Sie die Dateien auf der rechten Seite auswählen und dann auf die Schaltäche mit den beiden Pfeilen nach links klicken.
Die Schaltäche ‚invert selection‘ erlaubt, alle Dateien mit nur einem Klick auszuwählen. Die Schaltäche mit dem Ausrufezeichen formatiert die SD-Karte und löscht damit alle
auf ihr vorhandenen Dateien. Um einzelne Dateien zu löschen, wählen sie die gewünschte Datei aus und klicken dann
auf die Schaltäche mit dem ‚X‘ (neben der mit dem Ausrufezeichen). Für den Fall, dass sie versehentlich gelöscht wurden, können die Standard-Dateien hier
erneut heruntergeladen werden: https://www.laser-interface.com
WICHTIG: Benutzerdenierte Lasergraken müssen im *.ild-Format gespeichert und mit einer Nummer von ‚000.ild‘ bis ‚255.ild‘ versehen sein. Jede Zahl repräsentiert einen DMX­Wert von 0 bis 255.
page 24 / 54 page 25 / 54
Page 14
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
b) Automatikmodus
DIP-Schalter Einstellung
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0) 0 0 0 0 0 1 0 1 0 0
Im Automatikmodus werden die *.ild-Dateien auf einer eingesteckten SD-Karte automa­tisch abgespielt. Dieser Modus eignet sich besonders für feste Installationen.
Der Automatik-Modus bietet eine weitere Einstellung: Standardmäßig werden alle auf der SD-Karte bendlichen ILDA-Dateien nacheinander abgespielt.
Möchte man nur eine einzige ILDA-Datei (z.B. ein Logo) darstellen, muss man dazu DIP­Schalter 4 auf An stellen.
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0) 0 0 0 1 0 1 0 1 0 0
Mittels DIP-Schalter 1 kann die nächste Datei ausgewählt werden (dazu den Schalter auf die An-Position und dann wieder auf die Aus-Position stellen)
Mittels DIP-Schalter 2 kann die nächste Datei ausgewählt werden (dazu den Schalter auf die An-Position und dann wieder auf die Aus-Position stellen)
c) Demo-Modus
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0) 0 0 0 0 1 0 0 0 1 0
Im Demo-Modus werden die ILDA-Dateien auf einer eingesteckten SD-Karte automa­tisch abgespielt. Im Gegensatz zum Automatikmodus werden diese zusätzlich animiert. Das gilt auch für statische Muster auf der SD-Karte. Dies Modus eignet sich besonders zu Demonstrationszwecken.
d) Master-Slave im Demo-Modus
MASTER-Projektor:
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0) 0 0 0 0 0 1 0 0 1 0
SLAVE-Projektoren:
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0) 0 0 0 0 0 1 1 1 0
Damit auf allen Projektoren dieselben Eekte dargestellt werden, müssen auf allen SD­Karten dieselben *.ild-Dateien in derselben Reihenfolge gespeichert sein.
Es dürfen sich nur ShowNET-Interfaces und der ArtNet-Controller im selben Netzwerk benden.
Verwenden Sie die DIP-Schalter, um wie im DMX-Modus eine Adresse festzulegen:
Schalter 1 2 3 4 5 6 7 8 9 10
Binärer DMX­Kanal-Oset
1 2 4 8 16 32 64 128 256 Schalter 10 muss sich auf Posi-
tion An benden (oben)
Um die ArtNet-Steuerung zu aktivieren, önen Sie das Admin-Tool und navigieren Sie zur Registerkarte ‚Settings‘. Ändern Sie die Auswahl ‚Data source for internal DMX eects‘ zu ‚ArtNet input‘, wie auf dem Bild unten zu sehen:
Klicken Sie auf ‚Store Data‘, um die Änderungen zu speichern. Klicken sie zwei Mal auf ‚OK‘ und warten Sie, bis sich ein weiteres Fenster önet, das Sie dazu auordert, das ILDA­Interface neu zu starten. Schalten Sie dazu den Laser aus und wieder an.
Weitere Informationen und Details entnehmen Sie bitte dem folgenden Kapitel:
f) DMX-Modi
Schalter 1 2 3 4 5 6 7 8 9 10
Binärer DMX­Kanal-Oset
1 2 4 8 16 32 64 128 256 Schalter 10 muss sich auf Posi-
tion An benden (oben)
Es gibt zwei DMX- / ArtNet-Modi:
(1) DJ Modus & (2) Professional Modus. Der DJ Modus bietet grundlegende manuelle Einstellungen, während andere bereits vor-
konguriert sind. Daher eignet dieser Modus sich für die meisten Nutzer. Der Professional Modus bietet einige Einstellungen für fortgeschrittene Nutzer und be-
darf erweitertes Verständnis von DMX / ArtNet für die korrekte Anwendung. Der DJ Modus ist standardmäßig ausgewählt. Um den Professional Modus auszuwählen,
önen Sie das Admin-Tool und navigieren zur Registerkarte ‚Settings‘:
e) Steuerung mit ArtNet
WICHTIG: Um mit ArtNet angesteuert werden zu können, muss sich der Showlaser in einer DHCP-Umgebung benden (Router mit integriertem Switch wird empfohlen). Die Vergabe der IP-Adresse muss über DHCP geschehen. Weitere Informationen zu DHCP n­den Sie unter Punkt 4.1. DHCP Modus.
page 26 / 54 page 27 / 54
Page 15
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Kanal Modus Wert Funktion
6 Drehung DJ 0 - 192 Manuelle Drehung
Ändern Sie die Einstellung durch einen Klick auf ‚Professional Mode‘.
Klicken Sie auf ‚Store Data‘, um Ihre Änderungen zu speichern. Klicken Sie zwei Mal auf ‚OK‘ und warten Sie, bis sich ein weiteres Fenster önet, das sie auordert, das ILDA-Inter­face neu zu starten. Schalten Sie dazu den Laser aus und wieder an.
(1) DJ Modus
Um eine Laserausgabe zu erhalten, stellen Sie für DMX-Kanal 1 einen Wert größer als 0 ein (z.B. ein Wert zwischen 128 und 159 für den Automatikmodus).
Kanal Modus Wert Funktion
1 Helligkeit DJ 0 Laser aus
1 - 255 Helligkeit erhöhen (volle Helligkeit = 255)
2 Musterauswahl DJ 0 Blackout (000.ild darf nicht existieren)
1 - 255 Gespeicherte Muster darstellen:
3 Bildrate der Muster DJ 0 - 15 Standard: 50 fps
16 - 255 Ansteigend von 0 fps bis 100 fps
4 Größe DJ 0 - 127 Größe verringern X + Y-Achse
128 - 191 Größe verringern X-Achse
192 - 255 Größe verringern Y-Achse
5 Größe automatisch ändern
DJ 0 - 63 Volle Größe
64 - 127 Größe automatisch ändern X + Y-Achse
128 - 191 Größe automatisch ändern X-Achse
192 - 255 Größe automatisch ändern Y-Achse
1 = 001.ild 2 = 002.ild ... und so weiter Falls eine Nummer nicht exisitert = Blackout
(Geschwindigkeit wird erhöht)
(Geschwindigkeit wird erhöht)
(Geschwindigkeit wird erhöht)
193 - 224 Automatische Drehung entgegen Uhrzeigersinn
225 - 255 Automatische Drehung im Uhrzeigersinn
7 Position X-Achse grob DJ 0 - 255 0 = Mitte
8 Position X-Achse fein DJ 0 - 255
9 Position Y-Achse grob DJ 0 - 255 0 = Mitte
10 Position Y-Achse fein DJ 0 - 255
11 Farbeekte DJ 0 - 15 Originalfarben
16 - 79 Einfarbige Muster
80 - 143
144 - 255 Automatische Änderung der Originalfarben
12 Erweiterte Farb­eekte
13 Strobo DJ 0 - 15 Kein Strobo-Eekt
14 Bedienungs-Modus DJ 0 - 19 DMX
15 Scangeschwindigkeit DJ 0 - 31 Standard
DJ 0 - 127 Hinzufügen eines Farbverlaufs
128 - 192 Hinzufügen von Farbblöcken
193 - 255 Automatische Änderung von Farbverläufen
16 - 255 Ansteigender Strobo-Eekt
20 - 83 Automatische Positionierung X & Y-Achse
84 - 147 Automatische Positionierung X-Achse
148 - 211 Automatic Positionierung Y-Achse
212 - 233 Automatikmodus
234 - 255 Musikmodus
32 - 255 Ansteigende Scangeschwindigkeit
(Geschwindigkeit wird erhöht)
(Geschwindigkeit wird erhöht)
Originalfarben werden durch neue Farben ersetzt
(Geschwindigkeit wird erhöht)
Der Wert von Kanal 11 muss >15 sein!
Der Wert von Kanal 11 muss >15 sein!
(Geschwindigkeit wird erhöht)
(von 5 kpps bis 30 kpps) ACHTUNG: Überanspruchen Sie die Scanner nicht! Sollten Sie die höchstmögliche Scan­geschwindigkeit Ihrer Scanner nicht kennen, bleiben Sie bei der Standard-Einstellung!
page 28 / 54 page 29 / 54
Page 16
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Kanal Modus Wert Funktion
16 Größe der Safety Zone
DJ 0 - 63 Größe der horizontalen Safety Zone
Die Safety Zone bendet sich unten
64 - 127 Größe der horizontalen Safety Zone
Die Safety Zone bendet sich oben
128 - 191 Größe der vertikalen Safety Zone
Die Safety Zone bendet sich links
192 - 255 Größe der vertikalen Safety Zone
Die Safety Zone bendet sich rechts
17 Intensität der Safety Zone
DJ 0 Keine Reduktion der Helligkeit
1 - 128 Helligkeit verringern bis zur Hälfte
129 - 255 Helligkeit verringern bis zum Blackout
18 Blanking DJ 0 - 192 Manuelle Auswahl, wie viel des Musters ausge-
blendet wird
193 - 255 Automatisches Ausblenden
(Geschwindigkeit wird erhöht)
19 Blanking Auswahl DJ 0 - 192 Manuelle Auswahl, auf welche Teile des Musters
Kanal 18 (Blanking) angewendet werden soll
193 - 255 Automatische Auswahl
(Geschwindigkeit wird erhöht)
(2) Professional Modus
1 Helligkeit Prof. 0 Laser aus
1 - 255 Helligkeit erhöhen (volle Helligkeit = 255)
2 Musterauswahl Prof. 0 Blackout (000.ild darf nicht existieren)
1 - 255 Gespeicherte Muster darstellen:
3 Bildrate der Muster Prof. 128 Standard: 50 fps
0 - 127 Ansteigend von 0 fps bis 50 fps
129 - 255 Ansteigend von 50 fps bis 100 fps
4 Position X-Achse grob Prof. 0 - 255 Von links (0) nach rechts (255); Mitte = 128
5 Position X-Achse fein Prof. 0 - 255
6 Position Y-Achse grob Prof. 0 - 255 Von unten (0) nach oben (255); Mitte = 128
7 Position Y-Achse fein Prof. 0 - 255
8 Drehung grob Prof. 0 - 255 0° = 128
9 Drehung fein Prof. 0 - 255
10 Größe X-Achse Prof. 0 - 255 Von Maximum (0) bis Minimum (255)
1 = 001.ild 2 = 002.ild ... und so weiter Falls eine Nummer nicht exisitert = Blackout
11Größe Y-Achse Prof. 0 - 255 Von Maximum (0) bis Minimum (255)
12 Invertierung Prof. 0 - 63 Keine
64 - 127 X-Achse invertieren
128 - 191 Y-Achse invertieren
192 - 255 X + Y-Achse invertieren
13 Farbauswahl Prof. 0 - 15 Originalfarben
16 - 207 Farbauswahl von rot (16) über gelb (48), grün
(80), cyan (112) und blau (144) bis zu lila (176) mit Farbmischungen dazwischen.
208 - 223 Weiß mit halber Helligkeit je Farbkanal
224 - 239 Weiß mit vollerHelligkeit je Farbkanal
240 - 255 Ermöglicht die Auswahl eines Farbtons mit den
Kanälen 14 - 16.
14 Rot Prof. 0 - 255 Helligkeit erhöhen rot
Kanal 13 muss zwischen 240 - 255 liegen!
15 Grün Prof. 0 - 255 Helligkeit erhöhen grün
Kanal 13 muss zwischen 240 - 255 liegen!
16 Blau Prof. 0 - 255 Helligkeit erhöhen blau
Kanal 13 muss zwischen 240 - 255 liegen!
17 Strobo Prof. 0 - 15 Kein Strobo-Eekt
16 - 255 Ansteigender Strobo-Eekt
18 Scangeschwindigkeit Prof. 0 - 15 Standard
16 - 255 Ansteigende Scangeschwindigkeit
(von 5 kpps bis 40 kpps)
19 Größe der Safety Zone
Prof. 0 - 63 Größe der horizontalen Safety Zone
Die Safety Zone bendet sich unten
64 - 127 Größe der horizontalen Safety Zone
Die Safety Zone bendet sich oben
128 - 191 Größe der vertikalen Safety Zone
Die Safety Zone bendet sich links
192 - 255 Größe der vertikalen Safety Zone
Die Safety Zone bendet sich rechts
20 Intensität der Safety Zone
21 Farbbalance Rot
(für die Weißbalance)
22 Farbbalance Grün
(für die Weißbalance)
23 Farbbalance Blau
(für die Weißbalance)
Prof. 0 - 255 Von maximaler Helligkeit (0) bis zum Blackout
(255)
Prof. 0 - 255 Von Maximum (0) bis Minimum (255)
Master zu Kanal 14!
Prof. 0 - 255 Von Maximum (0) bis Minimum (255)
Master zu Kanal 15!
Prof. 0 - 255 Von Maximum (0) bis Minimum (255)
Master zu Kanal 16!
WICHTIG: Die Kanäle 24 - 34 sind für zukünftige Funktionen reserviert und
dürfen nicht zugeordnet werden!
page 30 / 54 page 31 / 54
Page 17
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Bei diesem Modus wird die IP-Adresse über einen DHCP-Server bezogen. Dieser muss im
Wichtiger Hinweis:
Netzwerk verfügbar sein. Das könnte z.B. ein günstiger 100 MBit Netzwerk-Router mit integriertem DHCP-Server sein.
Betreiben Sie die Scanner/Galvos nur mit der angegebenen Geschwindig­keit bezogen auf den Winkel. Eine zu schnelle Wiederholfrequenz führt zu Schäden am Scan-System.
Dieser Modus funktioniert nicht, wenn sich kein geeignetes Gerät im selben Netzwerk bendet, das anderen Geräten Netzwerkadressen als DHCP-Server zuweisen kann. Ver­wenden Sie in diesem Fall den AutoIP Modus (z.B. wenn der Laser direkt mit dem Com­puter verbunden ist).
4. Netzwerkbetrieb
Wichtig:
Es dürfen sich nur ShowNET-Interfaces und der ArtNet-Controller im selben Netzwerk ben­den. Vermeiden Sie den Einsatz von anderen Geräten im selben Netzwerk.
Vermeidung von Verbindungsproblemen, Troubleshooting:
- Stellen Sie sicher, dass keine Firewall den Netzwerkverkehr zwischen dem Computer und dem Showlaser blockiert. Die Firewall muss so konguriert sein, dass sie den Netzwerk­zugri auf die Lasershow-Software ermöglicht.
- Wenn die Netzwerkverbindung nicht funktioniert, versuchen Sie, die Firewall vorüber­gehend zu deaktivieren. Sollte dies helfen, erstellen Sie eine entsprechende Regel und aktivieren Sie die Firewall erneut.
- Sobald die DIP-Schalter-Einstellungen für den Netzwerkmodus geändert werden (z.B. Ändern der statischen IP oder Wechsel von DHCP- auf AutoOP-Modus), muss das Interface neu gestartet werden (vom Strom trennen und wieder einschalten).
- Das ShowNET-Interface muss an ein Gigabit Ethernet LAN oder eines mit mindestens 100 Mbit angeschlossen sein. 10 Mbit Ethernet ist nicht ausreichend.
- Übertragen Sie das Netzwerksignal nicht über W-LAN, diese Art der Verbindung ist nicht stabil genug für den professionellen Einsatz im Showbereich.
Achtung - maximale Kabellänge:
Beim Einsatz von Ethernet-Kabeln mit RJ45-Anschluss ist immer auf die maximale Länge des jeweiligen Kabels zu achten, z.B.: Cat 5e = max. 100 m Cat 6 = max. 50 m Cat 7 = max. 50 m Cat 8 = max. 30 m
Sie können normale Netzwerk-Switches verwenden, um das Signal zu verstärken und damit die Reichweite zu erhöhen!
Ohne Verstärkung des Signals (z.B. mittels Switch) wird empfohlen, Glasfaserübertragung einzusetzen, sobald größere Entfernungen benötigt werden.
a) DHCP Modus
DIP-Schalter-Einstellungen
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0) 0 0 0 0 0 0 0 0 0 0
b) AutoIP
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0) 0 0 0 0 0 1 0 0 0 0
Bei diesem Modus wird die IP-Adresse automatisch und ohne den Einsatz eines DHCP­Servers vergeben. Ein Windows-PC mit aktiviertem AutoIP ist nötig, um dieses Feature verwenden zu können. In Windows 7, 8 und 10 ist AutoIP standardmäßig aktiviert. In Windows XP muss diese Option manuell eingestellt werden. Bevor sie die ShowNET mit einem Computer verbinden, stellen Sie sicher, dass AutoIP ein­gestellt ist. Sollte sich ein DHCP-Server im Netzwerk benden (z.B. in einem Router), funk­tioniert AutoIP unter Umständen nicht korrekt. Verwenden Sie dann den DHCP Modus.
c) Statische IP-Adresse
Die statische IP-Adresse ist die stabilste Option des Netzwerkbetriebs. Die IP-Adresse besteht aus 4 Zahlenblöcken, die durch einen Punkt abgetrennt sind. Die ersten beiden Zahlenblöcke sind immer 192.168 und können nicht geändert werden. Die hinteren beiden Zahlenblöcke (adr1 and adr2) können mit den Dip-Schaltern modiziert werden. Die sich ergebende IP-Adresse sollte dieser in etwa gleichen:
192.168.adr1.adr2
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0) 0000 - adr2 = 50
1000 - adr2 = 51 0100 - adr2 = 52 1100 - adr2 = 53 0010 - adr2 = 54 1010 - adr2 = 55 0110 - adr2 = 56 1110 - adr2 = 57 0001 - adr2 = 58 1001 - adr2 = 59 0101 - adr2 = 60 1101 - adr2 = 61 0011 - adr2 = 62 1011 - adr2 = 63 0111 - adr2 = 64 1111 - adr2 = 65
00 - adr1 = 0 10 - adr1 = 1 01 - adr1 = 2 11 - adr1 = 254
1 0 0 0
page 32 / 54 page 33 / 54
Page 18
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Der Windows-PC benötigt eine IP-Adresse innerhalb desselben Netzwerk Subnetzes.
Beispiel:
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0) 1 1 0 1 0 0 1 0 0 0
Diese Einstellung würde die IP-Adresse 192.168.0.61 dem Interface zuweisen. Zuweisung einer anderen IP-Adresse innerhalb desselben Subnetzes an den Windows PC, z. B.
192.168.0.100 (Subnetz = 255.255.255.0)
d) ILDA-Streaming
Das Laserworld ShowNET-Interface kann auch als Reichweitenverlängerung für ILDA­Signale dienen. Ein ankommendes ILDA-Signal wird auf der ILDA-IN-Schnittstelle in ein Standard-UDP-Netzwerksignal umgewandelt über das Netzwerk an eine Empfängerein­heit übertragen und dort wieder in ein Standard-ILDA-Signal umgewandelt (dafür wird als Sender ein externes ShowNET-Interface benötigt!). Übertragen Sie das Netzwerksignal jedoch nicht über W-LAN, diese Art der Verbindung ist nicht stabil genug für den professionellen Einsatz im Showbereich.
Sender-Empfänger Konguration für ILDA über LAN, Nutzung als Reichweitenver­längerung
Der Sender nutzt den IP-Adressbereich zwischen 192.168.2.70 und 192.168.2.85 und überträgt das Signal zum Empfänger, dessen IP-Adresse zwischen 192.168.2.50 und
192.168.2.65 liegt. Die jeweilige IP-Adresse muss mittels DIP-Schalter festgelegt werden. Bitte stellen Sie sicher, dass sich keine anderen Geräte im selben Netzwerk benden, die die gleichen IP-Adressräume nutzen.
DIP-Schalter-Einstellungen
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0)
0000 -> IP sender: 192.168.2.70 sendet an 192.168.2.50 0001 -> IP sender: 192.168.2.71 sendet an 192.168.2.51 0010 -> IP sender: 192.168.2.72 sendet an 192.168.2.52 0011 -> IP sender: 192.168.2.73 sendet an 192.168.2.53 0100 -> IP sender: 192.168.2.74 sendet an 192.168.2.54
0101-> IP sender: 192.168.2.75 sendet an 192.168.2.55 0110 -> IP sender: 192.168.2.76 sendet an 192.168.2.56 0111 -> IP sender: 192.168.2.77 sendet an 192.168.2.57 1000 -> IP sender: 192.168.2.78 sendet an 192.168.2.58 1001 -> IP sender: 192.168.2.79 sendet an 192.168.2.59 1010 -> IP sender: 192.168.2.80 sendet an 192.168.2.60 1011 -> IP sender: 192.168.2.81 sendet an 192.168.2.61 1100 -> IP sender: 192.168.2.82 sendet an 192.168.2.62 1101 -> IP sender: 192.168.2.83 sendet an 192.168.2.63 1110 -> IP sender: 192.168.2.84 sendet an 192.168.2.64 1111 -> IP sender: 192.168.2.85 sendet an 192.168.2.65
Sender: 0 Empfänger: 1
0 1 1 0 0
Beispiel:
Sender IP-Adresseinstellung:
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0) 0 0 0 1 0 0 1 1 0 0
Diese Einstellung weist dem Sender die IP-Adresse 192.168.2.71 zu. Das dazugehörige Empfänger-Interface benötigt daher folgende Adresseinstellung:
Schalter 1 2 3 4 5 6 7 8 9 10
An (1) / Aus (0) 0 0 0 1 1 0 1 1 0 0
Diese Einstellung weist dem Empfänger die IP-Adresse 192.168.2.51 zu. Der einzige Unterschied zwischen Sender und Empfänger ist die Schaltereinstellung des Schalters
mit der Nummer 5, die beim Sender 0, beim Empfänger 1 ist.
6. Stromversorgung
Stromversorgung über das Netzteil (im Lieferumfang enthalten)
Verwenden Sie das im Lieferumfang enthaltene Netzteil zur Stromversorgung des ShowNET Interfaces.
page 34 / 54 page 35 / 54
Page 19
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Abschließende Erklärung
Sowohl Produkt als auch Verpackung sind beim Verlassen der Fabrikation einwandfrei. Der Benutzer des Geräts muss die lokalen Sicherheitsbestimmungen und die Warnhinweise in der Betriebsanleitung beachten. Schäden, die durch unsachgemäße Handhabung entstehen, unterliegen nicht dem Einussbereich der Herstellers und des Händlers. Somit wird keine Haf­tung bzw. Gewährleistung übernommen. Sollten Änderungen an dieser Bedienungsanleitung vorgenommen werden, können wir Sie darüber nicht in Kenntnis setzen. Bitte kontaktieren Sie für Fragen Ihren Händler. Für Servicefragen wenden Sie sich bitte an Ihren Händler oder aber an Laserworld. Verwenden Sie auschließlich Laserworld-Ersatzteile. Änderungen vorbehalten. Aufgrund der Datenmenge kann keine Gewähr für die Richtigkeit der Angaben gegeben werden.
Laserworld (Switzerland) AG Kreuzlingerstrasse 5 CH-8574 Lengwil Schweiz
Verwaltungsrat: Martin Werner
Sitz der Gesellschaft: Lengwil / Schweiz Firmennummer: CH-440.3.020.548-6 Verwaltungsrat: Martin Werner MWSt. Nummer Schweiz: 683 180 UID: CHE-113.954.889 UST-IdNr: DE 258030001 WEEE-Reg.-Nr.: DE 90759352 www.laserworld.com info@laserworld.com
Table des matières:
1. Contenu et informations
2. Avertissements d’usage et précautions avant d’utiliser cet appareil
3. Démarches pour la mise en service, mesures de précaution:
4. Comment brancher l’appareil
5. Modes d’opérations
6. Source d‘alimentation
Explication nale
representative according to EMVG: Ray Technologies GmbH Managing Director: Martin Werner Mühlbachweg 2 83626 Valley / Germany
page 36 / 54 page 37 / 54
Page 20
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
1. Contenu et informations
Nous vous prions de vérier si vous avez reçu l’intégralité de la marchandise et si la marchan­dise est intacte. Sont compris dans le volume de livraison:
1 x Interface réseau 1 x Bloc d‘alimentation 1 x Mode d‘emploi 1 x Carte microSD
2. Avertissements d’usage et précautions avant d’utiliser cet appareil
1. Utilisez cet appareil seulement selon ce mode d’emploi.
2. N’utilisez pas cet appareil en cas de dommages visibles sur le boitier ainsi que si le câble
d’alimentation est endommagé.
3. Ne pas utiliser cet appareil dans un environnement humide ou pluvieux / poussié- reux.
4. Protéger l‘Interface réseau de l’humidité et des projections d’eau.
3. Démarches pour la mise en service, mesures de précaution:
1. Veuillez-vous assurer de brancher
l’appareil sur une prise électrique déliv- rant la tension de fonctionnement cor­recte (voire les instructions dans ce mode d’emploi).
2. Cet interface réseau ne doit être installé
que par des ouvriers qualiés en tech-
nique selon les normes et règlementa­tions de sécurité des pays respectifs.
3. Si l’appareil a été exposé à de gran­des uctuations de température, ne
l’allumez pas tout de suite car la conden­sation pourrait endommager les circuits électroniques.
4. N’utilisez jamais de variateurs, de prises de courant radio ou autres prises de cou­rant! Si possible, n’utilisez pas l’appareil laser ensemble avec d’autres forts con­sommateurs électriques sur le même câble / la même phase!
5. Veuillez toujours assurer une ventilation adaptée et éviter de poser l’appareil sur des surfaces chaudes et/ou réectrices.
4. Comment brancher l’appareil - connectiques
Alimentation électrique (PSU 12 V)
Connexion LAN Réglages d‘adresse
Carte SD s‘emboîter
Sortie ILDA
Entrée ILDA
page 38 / 54 page 39 / 54
Page 21
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
5. Modes d’opérations / de fonctionnement
Aperçu technique :
- Sortie scanner sur XY avec une résolution de 12 bits (4096 positions par axe)
- Sortie couleur avec une résolution de 8 bits (256 valeurs diérentes par canal de couleur) : rouge, vert, bleu, signal intensité couplé au canal vert.
- Entrée et sortie DMX512 (non isolée)
- Connexion réseau 100Mbit Ethernet
- Réglage d’adresse IP exible : adresse statique, DHCP ou AutoIP
- Slot pour carte microSD pour lecture de frames ILDA, animations ou shows entiers (code format ILDA 4/5 RGB)
- Mode autonome et entrée/sortie DMX via adaptateur DMX (disponible en supplément)
- Vitesse de balayage maximale d’env. 100.000 points par seconde (pps)
- Gestion simultanée de maximum 16 interfaces ShowNET pour un show laser
- Convertisseur ArtNet vers DMX intégré
Les diérents modes d’opérations sont sélectionnables via les boutons DIP Switch en face ar­rière de l’appareil. Veuillez noter que tout changement de mode requière un redémarrage pour être pris en compte (éteignez l‘interface réseau, changez les DIP Switch puis redémarrez-le). Ne modiez en aucun cas les boutons DIP Switch avec l‘interface réseau sous tension.
Modes d’opérations / de fonctionnement
(La version rmware : 20190520x - Admin tool : v1.33)
1. Télécharger le logiciel « Admin tool »
Pour tester le projecteur laser ainsi que pour d’autres applications, telles que le téléchar­gement de chiers ILDA sur la carte SD, veuillez télécharger le logiciel d’administration « Admin tool » ici : https://www.laserworld.com/shownet_mainboard
Lancez le chier « ShowNET-Admin_Tool.exe » chaque fois que ce mode d’emploi fait référence au logiciel d’administration / Admin Tool.
IMPORTANT : il est impossible d’accéder au logiciel d’administration lorsque vous accé­dez au projecteur laser via un logiciel tel que Showeditor ou bien Showcontroller. Lors de l’ouverture de l’Admin tool en accédant au projecteur laser en mode de fonctionnement à commande non directe, l’Admin tool vous demandera d’appuyer sur un bouton pour basculer en mode réseau à commande manuelle.
a) SHOWEDITOR - logiciel show laser gratuit
Le logiciel laser Showeditor est inclus gratuitement avec l‘interface ShowNET. C’est un logiciel de contrôle laser comprenant un mode de contrôle LIVE ainsi que TIMELINE et de nombreux shows laser gratuits sont inclus avec. Le logiciel peut être téléchargé gratuitement sur :
https://www.showeditor.com
Après avoir téléchargé et installé le logiciel, ouvrez le chier .exe sur l’ordinateur et utilisez le logiciel pour contrôler votre projecteur laser. Des détails sur l’installation et l’utilisation du logiciel sont disponibles sur le site web susmentionné.
b)
SHOWCONTROLLER - suite logicielle professionnelle de contrôle laser et multi-
média
L‘interface ShowNET prend également en charge le contrôle direct du laser via le logiciel Showcontroller. Il s’agit d’un logiciel puissant doté de nombreuses fonctionnalités profes­sionnelles. Ce logiciel est très intuitif et permet une prise en main aisée.
Le logiciel ainsi qu’une version démo sont téléchargeables sur :
https://www.showcontroller.com
Une licence d’activation Showcontroller peut être obtenue via votre revendeur.
3. Déclenchement des chiers ILDA de la carte SD et propres eets
L#interface ShowNET possède une mémoire interne (carte SD) pouvant contenir des chiers ILDA avec des images et animations laser pouvant être déclenchées de diéren­tes manières. Il est possible d’utiliser uniquement les chiers standards fournis par défaut ou de les remplacer par de nouveaux chiers personnalisés.
a) Téléchargez vos propres chiers ILDA sur la carte SD
Outre la possibilité de simplement télécharger des chiers * .ild sur la carte SD avec un lecteur de carte standard, il est également possible de charger à distance des chiers ILDA sur la carte SD via un réseau local. Pour modier les chiers ILDA, ouvrez l’outil d’administration (Admin tool) et sélectionnez l’onglet ‘ SD Card’ comme indiqué dans l’image ci-dessous :
2. Contrôle direct via ordinateur
Connectez le projecteur laser à l’interface ShowNET à l’aide d’un câble ILDA. Ne connec­tez pas le laser au port parallèle standard de votre ordinateur mais utilisez toujours une interface ILDA appropriée. Après cela, le projecteur laser peut être contrôlé par un logiciel de show laser.
Utilisez un câble Ethernet standard (norme RJ45) pour connecter le port LAN de l‘interface ShowNET à votre ordinateur. Les switchs / HUB réseaux peuvent être utilisés pour con­necter plusieurs projecteurs à la fois à votre ordinateur de contrôle.
page 40 / 54 page 41 / 54
Sélectionnez le dossier contenant les chiers ILDA sur le disque dur local en cliquant sur le bouton avec les trois points :
Page 22
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
IMPORTANT: Les chiers laser personnalisés doivent être stockés au format * .ild et doi­vent être nommés avec un numéro allant de «000.ild» à «255.ild». Chaque nombre repré­sente une valeur DMX sur le fader respectif. Pour télécharger des chiers * .ild supérieurs à 6 Mo, utilisez un lecteur de carte externe. Sinon, l‘importation peut causer des problèmes.
Sélectionnez les chiers * .ild à télécharger de l’ordinateur (côté gauche) vers la carte SD interne (côté droit).
Cliquez sur le bouton avec les deux èches à droite pour télécharger les chiers * .ild sur la carte SD. Les chiers sont copiés et sauvegardés maintenant.
Sachez que, en raison de la structure de données optimisée sur la carte mère, le téléchargement de chiers ILDA peut prendre un certain temps! (jusqu’à plusieurs minutes!)
IMPORTANT: Il n‘est pas possible de télécharger d‘autres données que des chiers * .ild sur la carte SD!
En raison du grand nombre de cartes micro SD disponibles sur le marché, il n’est pas garanti que toutes les cartes soient compatibles avec la carte mère du système laser. L‘utilisation de cartes SD de format standard (max. 2 Go) au lieu de cartes SDHC ou XDHC de grande capacité est recommandée.
Il est également possible de copier les chiers * .ild existants sur la carte SD sur l‘ordinateur en sélectionnant les chiers sur le côté droit. Cliquez ensuite sur le bouton avec les deux èches à gauche.
Avec le bouton «Inverser la sélection», il est possible de sélectionner tous les chiers en un seul clic.
Le bouton avec le point d‘exclamation formate la carte SD et supprime ainsi tous les chiers existants.
Pour supprimer des chiers individuels, sélectionnez le chier * .ild en question, puis cli­quez sur le bouton avec le «X» dessus (à côté de celui avec le point d’expression).
Au cas où ils seraient supprimés par accident, les chiers standards de la carte SD peuvent être téléchargés sur
https://www.laser-interface.com
b) Mode autonome / Mode automatique / Mode de lecture
Réglage DIP Switch
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 0 1 0 1 0 0
En mode autonome, les chiers ILDA sur la carte SD sont déclenchés automatiquement. Ce mode de fonctionnement est particulièrement adapté à la démonstration ou aux ins­tallations laser xes.
Le mode autonome permet des fonctionnalités avancées supplémentaires: En standard, le mode autonome parcourt les chiers ILDA sur les cartes SD et lit la séquence de mani­ère consécutive et générale.
Si le commutateur DIP 4 est également activé, le mode autonome ne lit qu‘un chier ILDA spécique en boucle.
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 1 0 1 0 1 0 0
Le commutateur DIP 1 peut être utilisé pour passer au chier suivant (il sut d’activer le commutateur DIP 1, puis de le désactiver à nouveau)
Le commutateur DIP 2 peut être utilisé pour revenir au chier précédent (il sut de bas­culer le commutateur DIP 2 sur ON, puis à nouveau sur OFF)
c) Mode demo / Animation automatique
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 1 0 0 0 1 0
En mode demo, les chiers ILDA sur la carte SD sont déclenchés automatiquement. Les chiers ILDA ne sont pas seulement lus comme en mode autonome, mais ils sont éga­lement automatiquement animés par l’intelligence interne de ShowNET. Cela crée des animations dynamiques, même si la carte SD ne contient que des images statiques.
Ce paramètre est particulièrement adapté aux ns de démonstration.
d) Maitre-esclave en mode demo
Réglage de l’appareil Maitre :
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 0 1 0 0 1 0
Réglage des appareils esclaves :
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 0 1 1 1 0 0
Pour que les mêmes eets apparaissent sur toutes les unités connectées, il est nécessaire d’avoir les mêmes motifs dénis sur toutes les cartes SD à l’intérieur des unités.
page 42 / 54 page 43 / 54
Page 23
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
e) Contrôle via ArtNet
IIMPORTANT: pour utiliser ArtNet, le projecteur laser doit être connecté dans un environ­nement DHCP (un routeur avec commutateur intégré est recommandé). La gestion des adresses doit être gérée via DHCP. Pour les questions sur DHCP, veuillez-vous référer au point 4.1. Mode DHCP. Seules les interfaces ShowNET et le contrôleur ArtNet doivent être utilisés sur le même réseau.
Évitez d’utiliser d’autres périphériques réseau sur le même réseau.
Utilisez les commutateurs DIP pour attribuer une adresse donnée comme en mode DMX :
switch 1 2 3 4 5 6 7 8 9 10
Binary DMX channel oset
1 2 4 8 16 32 64 128 256 Switch 10 has to be ON (up)
for ArtNet operation
Changez la sélection. Cliquez sur «Store Data» pour enregistrer les modications. Cliquez deux fois sur «OK»
et attendez qu’une autre fenêtre demandant de redémarrer l’interface ShowNet s’ouvre.
Pour ce faire, éteignez puis rallumez le système laser. Pour activer le déclenchement via ArtNet, ouvrez l‘outil d‘administration et accédez à l‘onglet „Settings“. Changez ensuite la „Source de données pour les eets DMX internes“ en „Entrée ArtNet“ comme indiqué dans l’illustration ci-dessous :
(1) Mode DJ
Pour obtenir une sortie laser, le canal DMX 1 doit avoir une valeur supérieure à 0 (recom-
mandé : 64 à 192).
Canal Mode Valeur Fonction / descriptif
1 Intensité DJ 0 Laser éteint
1 - 255 Intensité croissante (pleine puissance = 255)
2 Sélection des motifs DJ 0 Blackout (chier 000.ild ne doit pas exister)
Cliquez sur «Store Data» pour enregistrer les modications. Cliquez deux fois sur «OK» et attendez qu’une autre fenêtre demandant de redémarrer l’interface ShowNet s’ouvre. Pour ce faire, éteignez puis rallumez le système laser.
Voir les détails sur le mode DMX ci-dessous pour plus d‘informations :
f) Modes DMX
switch 1 2 3 4 5 6 7 8 9 10
Binary DMX channel oset
1 2 4 8 16 32 64 128 256 Switch 10 has to be ON (up)
for DMX mode
Il existe deux modes de conguration DMX / ArtNet : (1) Mode DJ et (2) Mode professionnel. Le mode DJ est plus basique et vient avec des automatisations précongurées. Il convi-
ent à la plupart des utilisateurs.
1 - 255 Achage des animations ILDA de la carte SD :
3 Vitesse du motif (Framerate)
4 Taille DJ 0 - 127 Taille décroissante en X et Y
5 Automatic size DJ 0 - 63 Taille maximale
DJ 0 - 15 Vitesse standard : 50 fps
16 - 255 Vitesse croissante de 0 fps à 100 fps
128 - 191 Taille décroissante en X
192 - 255 Taille décroissante en Y
64 - 127 Changement automatique de taille en X + Y
128 - 191 Changement automatique de taille en X
192 - 255 Changement automatique de taille en Y
1 = 001.ild 2 = 002.ild; Et de suite Si aucun motif n‘est attribué à un numéro = blackout
(vitesse croissante)
(vitesse croissante)
(vitesse croissante)
Le mode professionnel comprend certaines fonctionnalités avancées et nécessite une connaissance approfondie de DMX / ArtNet pour être géré correctement.
Le mode DJ est l‘option standard. Pour utiliser le mode Professionnel, ouvrez l’outil d’administration et accédez à l’onglet ‚Settings‘.
page 44 / 54 page 45 / 54
Page 24
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Canal Mode Valeur Fonction / descriptif
6 Rotation DJ 0 - 192 Rotation manuelle
193 - 224 Rotation sens anti-horaire automatique
(vitesse croissante)
225 - 255 Rotation sens horaire automatique
(vitesse croissante)
7 Position X grossier DJ 0 - 255 0 = centre
8 Position X n DJ 0 - 255
9 Position Y grossier DJ 0 - 255 0 = centre
10 Position Y n DJ 0 - 255
11 Eets de couleurs DJ 0 - 15 Motif en couleurs d’origine
16 - 79 Motif en diérentes couleurs (monochromes)
80 - 143 Eets de re-coloriage :
Couleurs d’origine remplacées par de nouvelles
144 - 255 Changement automatique de l’eet de re-
coloriage (vitesse croissante)
12 Eets de couleur étendus
DJ 0 - 127 Eet de fondu de couleur lisse jusqu’à eet de
recoloriage. La valeur du canal 1 doit être >15 !
128 - 192 Blocage de l‘eet de couleur à l‘eet de re-
coloriage. La valeur du canal 11 doit être> 15 !
193 - 255 Changement automatique de l’eet de fondu.
13 Strobe DJ 0 - 15 Aucun eet de strobe
16 - 255 Eet strob (vitesse croissante)
14 Mode de fonctionnement
DJ 0 - 19 DMX
20 - 83 Positionnement automatique en X et Y
84 - 147 Positionnement automatique en X
148 - 211 Positionnement automatique en Y
212 - 233 Mode démo
234 - 255 Mode musical
15 Vitesse de scan DJ 0 - 31 Valeur par défaut
32 - 255 Vitesse de scan croissante (de 5kpps à 30kpps).
ATTENTION : Si vous n’êtes pas sûre de la valeur maximale, restez avec la valeur par défaut.
16 Taille zone de sécurité
DJ 0 - 63 Taille horizontale de la zone de sécurité
Zone de sécurité est la partie inférieure
64 - 127 Taille horizontale de la zone de sécurité
Zone de sécurité est la partie supérieure
128 - 191 Taille verticale de la zone de sécurité
Zone de sécurité est la partie gauche
192 - 255 Taille verticale de la zone de sécurité
Zone de sécurité est la partie droite
Canal Mode Valeur Fonction / descriptif
17 Intensité zone de sécurité
DJ 0 Pas de réduction
1 - 128 Luminosité diminuée jusqu’à moitié
129 - 255 Luminosité diminuée jusqu’au Blackout
18 Blanking DJ 0 - 192 Sélection manuelle du pourcentage de masque
appliqué au motif
193 - 255 Blanking automatique (vitesse croissante)
19 Blankshift DJ 0 - 192 Sélection manuelle du motif ou le blanking du
canal 18 est appliqué
193 - 255 Blankshift automatique (vitesse croissante)
(2) Mode Professionnel
Canal Mode Valeur Fonction / descriptif
1 Intensité Prof. 0 Laser éteint
1 - 255 Intensité croissante (pleine puissance = 255)
2 Sélection des motifs Prof. 0 Blackout (chier 000.ild ne doit pas exister)
1 - 255 Achage des animations ILDA de la carte SD :
3 Vitesse du motif (Framerate)
Prof. 128 Vitesse standard : 50 fps
0 - 127 Vitesse croissante de 0 fps à 50 fps
129 - 255 Vitesse croissante de 50 fps à 100 fps
4 Position X grossier Prof. 0 - 255
5 Position X n Prof. 0 - 255
6 Position Y grossier Prof. 0 - 255 De bas (0) à haut (255) – position centrale = 128
7 Position Y n Prof. 0 - 255
8 Rotation grossière Prof. 0 - 255 Eet de rotation, 0° = 128
9 Rotation ne Prof. 0 - 255
10 Taille axe X Prof. 0 - 255 De taille maximale (0) à taille minimale (255)
11 Taille axe Y Prof. 0 - 255 De taille maximale (0) à taille minimale (255)
12 Inversion Prof. 0 - 63 Aucune
64 - 127 Inversion de l’axe X
128 - 191 Inversion de l’axe Y
192 - 255 Inversion des axes X et Y
1 = 001.ild 2 = 002.ild; Et de suite Si aucun motif n‘est attribué à un numéro = blackout
De gauche (0) à droite (255); position centrale = 128
page 46 / 54 page 47 / 54
Page 25
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Canal Mode Valeur Fonction / descriptif
13 Eets de couleurs Prof. 0 - 15 Motif en couleurs d’origine
16 - 207
208 - 223
224 - 239
240 - 255
14 Rouge Prof. 0 - 255 Variation de la puissance ROUGE (de 0 à 100%)
15 Vert Prof. 0 - 255 Variation de la puissance VERT (de 0 à 100%)
16 Bleu Prof. 0 - 255 Variation de la puissance BLEU (de 0 à 100%)
17 Strobe Prof. 0 - 15 Aucun eet de strobe
16 - 255 Eet strob (vitesse croissante)
18 Vitesse de scan Prof. 0 - 15 Valeur par défaut
16 - 255 Vitesse de scan croissante (de 5kpps à 40kpps).
19 Taille zone de sécurité
20 Intensité zone de sécurité
21 Ajustement balance blanc – réglage ROUGE
22 – Ajustement balan­ce blanc – réglage VERT
23 Ajustement balance blanc – réglage BLEU
IMPORTANT : Canaux 24 – 34 sont réservés pour des fonctions futures et ne doivent pas être attribués.
Prof. 0 - 63 Taille horizontale de la zone de sécurité
64 - 127 Taille horizontale de la zone de sécurité
128 - 191 Taille verticale de la zone de sécurité
192 - 255 Taille verticale de la zone de sécurité
Prof. 0 - 255 Intensité maximale (0) à blackout total (255)
Prof. 0 - 255 Permet le réglage de la balance « blanc ». Régla-
Prof. 0 - 255 Permet le réglage de la balance « blanc ». Régla-
Prof. 0 - 255 Permet le réglage de la balance « blanc ». Régla-
Sélection de couleurs du rouge (16) au jaune (48), vert (80), cyan (112) et bleu (144) jusqu’au violet (176) avec des mélanges de couleurs entres les diérentes valeurs.
Blanc avec demi-intensité pour chaque canal couleur
Blanc avec pleine intensité pour chaque canal couleur
Active les canaux 14 – 16 pour sélectionner une teinte spécique en réglant R – G – B individuellement.
Only active if the value of channel 13 is 240 - 255
Uniquement actif lorsque canal 13 est supérieur à 240
Uniquement actif lorsque canal 13 est supérieur à 240
ATTENTION : toujours vérier de ne pas surchar­ger les scanners. Si vous n’êtes pas sûre de la va­leur maximale, restez avec la valeur par défaut.
Zone de sécurité est la partie inférieure
Zone de sécurité est la partie supérieure
Zone de sécurité est la partie gauche
Zone de sécurité est la partie droite
ge de la puissance maximale (0) à blackout total (255). Canal 14 est canal maître.
ge de la puissance maximale (0) à blackout total (255). Canal 15 est canal maître.
ge de la puissance maximale (0) à blackout total (255). Canal 16 est canal maître.
Note importante : Utilisez les scanners / galvos uniquement à la vitesse appropriée en fonc-
tion de l’angle de projection correspondant. Une vitesse de scan / vitesse de balayage trop élevée endommagera irrémédiablement les scanners.
4. Contrôle via réseau
Important :
Seules les interfaces ShowNET et potentiellement un contrôleur ArtNet doivent être utilisées sur le même réseau. Évitez d’utiliser d’autres périphériques réseau sur le même réseau.
Eviter les problèmes de connectivité, Troubleshooting :
- Assurez-vous qu‘aucun pare-feu ne bloque le trac réseau entre l‘ordinateur et l’interface ShowNet / le projecteur équipé d’une interface ShowNet interne. Le pare-feu doit être conguré pour accorder un accès réseau au logiciel show laser (Showeditor / Showcon­troller).
- Si la connexion réseau ne fonctionne pas, essayez de désactiver temporairement le pare­feu. Si cela fonctionne, créez une règle d’exception et réactivez le pare-feu.
- Chaque fois que les paramètres du commutateur DIP pour le mode réseau sont modiés (par exemple, changer l‘adresse IP statique ou passer du mode DHCP au mode AutoIP), l’interface ShowNet doit être redémarré (couper l’alimentation et rallumer).
- L‘interface doit être connectée à un réseau local Ethernet 100 Mbits ou Gigabit. Une vites­se réseau de 10 Mbits Ethernet ne convient pas.
- L‘utilisation de WIFI (WLAN) n‘est pas recommandée. Cela entraînera une baisse des per­formances d’émission et un fonctionnement non sécurisé.
Attention à la longueur maximale du câblage Ethernet :
Lorsque vous utilisez des câbles Ethernet avec connexion RJ45, faites toujours attention à la longueur maximale du câble. Par exemple : Cat 5e = max. 100 m Cat 6 = max. 50 m Cat 7 = max. 50 m Cat 8 = max. 30 m
Vous pouvez utiliser des Switch réseau normaux pour amplier le signal et étendre la portée !
Sans amplication du signal (par exemple via un Switch), il est recommandé d‘utiliser la transmission par bre optique dès que des distances plus longues sont nécessaires.
a) Mode DHCP
Réglage DIP Switch
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 0 0 0 0 0 0
page 48 / 54 page 49 / 54
Page 26
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Dans ce mode, l‘adresse IP est fournie par un serveur DHCP. Par conséquent, un serveur DHCP doit être disponible sur le réseau. Par exemple, il pourra s’agir d’un routeur réseau 100 Mbits avec serveur DHCP intégré. Cette option ne fonctionne pas s‘il n‘y a pas de péri­phérique dans le même réseau capable de distribuer et de gérer les adresses réseau en tant que DHCP! Dans ce cas, essayez AutoIP comme méthode de connexion (par exemple, si le laser est directement connecté à l’ordinateur)!
b) Mode AutoIP
Réglage DIP Switch
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 0 0 1 0 0 0 0
Dans ce mode, l‘adresse IP est négociée automatiquement sans avoir besoin d‘un serveur DHCP. Un ordinateur Windows avec AutoIP activé est nécessaire pour utiliser cette fonc­tionnalité. Sous Windows 7, 8 et 10, AutoIP est activé par défaut. Sous Windows XP, il doit être activé manuellement. Avant d‘essayer de connecter l’interface ShowNET à l‘ordinateur, assurez-vous que la fon­ction AutoIP est activée. Si AutoIP est sélectionné mais qu’il existe un serveur DHCP sur le réseau (par exemple dans un routeur), l’attribution d’IP ne peut parfois pas fonctionner. Utilisez le mode DHCP dans ce cas.
c) Adresse IP statique
L‘utilisation d‘une adresse IP statique est l‘option la plus stable pour le contrôle via réseau. L‘adresse IP est composée de 4 chires, séparés par un point. Les deux premiers numéros sont toujours 192.168 et ne peuvent pas être modiés. Les deux derniers numéros (adr1 et adr2) peuvent être congurés avec des commutateurs DIP. L‘adresse IP résultante sera du genre :
192.168.adr1.adr2
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0000 - adr2 = 50
1000 - adr2 = 51 0100 - adr2 = 52 1100 - adr2 = 53 0010 - adr2 = 54 1010 - adr2 = 55 0110 - adr2 = 56 1110 - adr2 = 57 0001 - adr2 = 58 1001 - adr2 = 59 0101 - adr2 = 60 1101 - adr2 = 61 0011 - adr2 = 62 1011 - adr2 = 63 0111 - adr2 = 64 1111 - adr2 = 65
00 - adr1 = 0 10 - adr1 = 1 01 - adr1 = 2 11 - adr1 = 254
1 0 0 0
L‘ordinateur Windows doit avoir une adresse IP dans le même sous-réseau.
Exemple:
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 1 1 0 1 0 0 1 0 0 0
Ceci assignera l‘adresse IP 192.168.0.61 à l‘interface ShowNet. Attribuez une adresse IP diérente au sein du même sous-réseau à l‘ordinateur Windows, par exem-
ple 192.168.0.100 (sous-réseau = 255.255.255.0)
d) Streaming ILDA
L’interface Laserworld ShowNET peut servir d’extension de portée pour les signaux ILDA en transformant un signal ILDA entrant sur l’interface ILDA IN (ShowNet en mode émet­teur) en un signal réseau UDP standard et en reconvertissant ce signal en signal ILDA standard via une interface ShowNet (en mode récepteur). Il est évident qu’une interface externe est requise en tant qu’émetteur pour ce type d’application!). N‘envoyez en aucun cas le signal via Wi, cette méthode de transmission ne convient pas dans un environne­ment professionnel.
Conguration émetteur-récepteur pour Streaming ILDA via réseau local, utilisati­on en mode « range extender »
L’émetteur (ShowNet en mode émetteur) utilise une plage d‘adresses IP comprise ent­re 192.168.2.70 et 192.168.2.85 et transmet le signal à un récepteur (ShowNet en mode récepteur) dont les adresses sont comprises entre 192.168.2.50 et 192.168.2.65. Les adresses IP spéciques doivent être dénies avec les commutateurs DIP. Assurez-vous qu‘aucun autre périphérique du même réseau n‘utilise les mêmes adresses IP.
Réglage DIP Switch
switch 1 2 3 4 5 6 7 8 9 10
ON (1) / OFF (0)
0000 -> IP émetteur : 192.168.2.70 émet vers 192.168.2.50 0001 -> IP émetteur : 192.168.2.71 émet vers 192.168.2.51 0010 -> IP émetteur : 192.168.2.72 émet vers 192.168.2.52 0011 -> IP émetteur : 192.168.2.73 émet vers 192.168.2.53 0100 -> IP émetteur : 192.168.2.74 émet vers 192.168.2.54
0101-> IP émetteur : 192.168.2.75 émet vers 192.168.2.55 0110 -> IP émetteur : 192.168.2.76 émet vers 192.168.2.56 0111 -> IP émetteur : 192.168.2.77 émet vers 192.168.2.57 1000 -> IP émetteur : 192.168.2.78 émet vers 192.168.2.58 1001 -> IP émetteur : 192.168.2.79 émet vers 192.168.2.59 1010 -> IP émetteur : 192.168.2.80 émet vers 192.168.2.60 1011 -> IP émetteur : 192.168.2.81 émet vers 192.168.2.61 1100 -> IP émetteur : 192.168.2.82 émet vers 192.168.2.62 1101 -> IP émetteur : 192.168.2.83 émet vers 192.168.2.63 1110 -> IP émetteur : 192.168.2.84 émet vers 192.168.2.64 1111 -> IP émetteur : 192.168.2.85 émet vers 192.168.2.65
Emetteur : 0 Récepteur : 1
0 1 1 0 0
page 50 / 54 page 51 / 54
Page 27
Manual: Laserworld ShowNET - Network Interface Manual: Laserworld ShowNET - Network Interface
Exemple:
Adressage IP de l’émetteur :
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 1 0 0 1 1 0 0
Ce réglage assignera l’adresse IP 192.168.2.71 à l’émetteur. Le récepteur correspondant devra avec l’adressage IP suivant :
switch 1 2 3 4 5 6 7 8 9 10
On (1) / O (0) 0 0 0 1 1 0 1 1 0 0
Ce réglage assignera l’adresse IP 192.168.2.51 au récepteur. La seule diérence entre la conguration de l’émetteur et celle du récepteur est le commutateur DIP
5, qui est égal à 0 pour l’émetteur et à 1 pour le récepteur.
6. Source d‘alimentation
Connectez le câble d‘alimentation avec l‘interface ShowNET et l‘alimentation électrique.
Remarque nale
Ce produit, de même que son emballage, sont en parfait état lors de l’envoi. Celui qui utilise cet appareil laser doit respecter les règlements de sécurités locales ainsi que les avertissements expliqués dans notre mode d’emploi. Les dommages qui sont provoqués par une utilisation non convenable ne peuvent pas être prévus ni par le fabricant ni par le marchand. Par consé­quent la marque décline toute responsabilité ou garantie. En cas de modications / améliorations de ce mode d’emploi, nous ne pourrons pas vous aver­tir. Veuillez-vous renseigner sur notre site internet ou auprès de votre marchand. Pour les questions liées au service, demandez à votre marchand ou adressez-vous à Laser­world. Utilisez uniquement des pièces de rechange Laserworld. Nous nous réservons le droit d’eectuer des modications, améliorations à ce mode d’emploi. Laserworld décline toute res­ponsabilité en cas d’inexactitudes ou d’erreurs dans le présent mode d’emploi.
Laserworld (Switzerland) AG Kreuzlingerstrasse 5 CH-8574 Lengwil Suisse
Conseil d‘administration: Martin Werner
Siège social: Lengwil / Suisse Nr de société: CH-440.3.020.548-6 Conseil d‘administration: Martin Werner MWSt. Nummer Schweiz: 683 180 UID: CHE-113.954.889 UST-IdNr: DE 258030001 WEEE-Reg.-Nr.: DE 90759352 www.laserworld.com info@laserworld.com
Représentant selon EMVG: Ray Technologies GmbH Managing Director: Martin Werner Mühlbachweg 2 83626 Valley / Allemagne
page 52 / 54 page 53 / 54
Page 28
Manual: Laserworld ShowNET - Network Interface
page 54 / 54
Loading...
