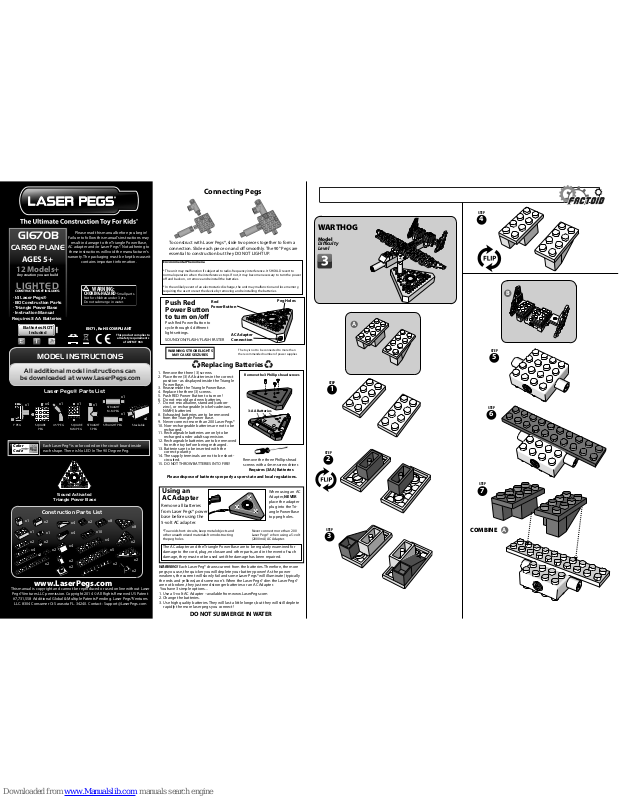

Laser Pegs GI670B Model Instructions

Please read this manual before you begin!

Failure to follow this manual’s instructions may

result in damage to the Triangle Power Base,
AC adapter and/or Laser Pegs®. Not adhering to
these instructions will void the manufacturer’s

warranty. The packaging must be kept because it

contains important information.

This manual is copyright and cannot be reproduced or used online without Laser

Pegs®Ventures LLC permission. Copyright 2014 © All Rights Reserved US Patent
#7,731,558 Additional Global & Multiple Patents Pending. Laser Pegs®Ventures

LLC. 8304 Consumer Ct Sarasota FL. 34240. Contact: [e-mail]

Each Laser Peg® is color coded on the circuit board inside
each shape. There is No LED In The 90 Degree Peg.

www.LaserPegs.com

Color
Code

WARNING:

CHOKING HAZARD-Small parts.

Not for children under 3 yrs.
Do not submerge in water.

All additional model instructions can

be downloaded at www.LaserPegs.com

MODEL INSTRUCTIONS

EN71, RoHS COMPLIANT

This product complies to

all safety requirements

of ASTM F 963

G1670B

CARGO PLANE

AGES 5+

LIGHTED

CONSTRUCTION SET INCLUDES:

• 14 Laser Pegs®

• 80 Construction Parts

• Triangle Power Base

• Instruction Manual
Requires 3 AA Batteries

Batteries NOT

Included

Laser Pegs® Parts List

Construction Parts List

SQUARE

PEG

45° PEG

STRAIGHT PEG

STRAIGHT
M-M PEG

StackableSTRAIGHT

T-PEG

Y PEG

12 Models+

Any creation you can build

SQUARE

M-M PEGG

x8

x8

x2

x2

x4

x4 x1

x4

x2

x4

x4

x4

x2

x2

x4

x2

x1

x1

x1

x2

x2

x1

x1

x1

x1

x2

x2

x2

x2

x2

x1

x5

x10

To construct with Laser Pegs®, slide two pieces together to form a
connection. Slide each piece on and o smoothly. The 90° Pegs are
essential to construction but they DO NOT LIGHT UP.

Connecting Pegs

WARNING! Each Laser Peg® draws current from the batteries. Therefore, the more
pegs you use, the quicker you will deplete your battery power! As the power
weakens, the current will slowly fail and some Laser Pegs® will illuminate (typically
the reds and yellows) and some won’t. When the Laser Pegs® dim the Laser Pegs®
are not broken, they just need stronger batteries or an AC Adapter.
You have 3 simple options...

1. Use a 5-volt AC Adapter –available from www.LaserPegs.com

2. Change the batteries.

3. Use high quality batteries. They will last a little longer, but they will still deplete
rapidly the more laser pegs you connect!

Using an
AC Adapter

Remove all batteries
from Laser Pegs® power
base before using the
5-volt AC adapter.

When using an AC
Adapter, NEVER
place the adapter
plug into the Tri­angle Power Base
top peg holes.

*To avoid short-circuits, keep metal objects and
other unauthorized materials from obstructing
the peg holes.

The AC adapter and the Triangle Power Base are to be regularly examined for
damage to the cord, plug, enclosure and other parts, and in the event of such
damage, they must not be used until the damage has been repaired.

Never connect more than 200
Laser Pegs® when using a 5-volt
(2000mA) AC Adapter.

Please dispose of batteries properly as per state and local regulations.

1. Remove the three (3) screws.

2. Place three (3) AA batteries in the correct
position - as displayed inside the Triangle
Power Base.

3. Reassemble the Triangle Power Base.

4. Replace the three (3) screws.

5. Push RED Power Button to turn on!

6. Do not mix old and new batteries.

7. Do not mix alkaline, standard (carbon­ zinc), or rechargeable (nickel-cadmium,
NiMH) batteries!

8. Exhausted batteries are to be removed
from the Triangle Power Base.

9. Never connect more than 200 Laser Pegs®

10. Non-rechargeable batteries are not to be
recharged.

11. Rechargeable batteries are only to be
recharged under adult supervision.

12. Rechargeable batteries are to be removed
from the toy before being recharged.

13. Batteries are to be inserted with the
correct polarity.

14. The supply terminals are not to be short­ circuited.

15. DO NOT THROW BATTERIES INTO FIRE!

Replacing Batteries

Environmental Phenomena

* The unit may malfunction if subjected to radio-frequency interference. It SHOULD revert to
normal operation when the interference stops. If not, it may become necessary to turn the power
o and back on, or remove and reinstall the batteries.

* In the unlikely event of an electrostatic discharge, the unit may malfunction and lose memory,
requiring the user to reset the devise by removing and reinstalling the batteries.

WARNING: STROBE LIGHTS
MAY CAUSE SEIZURES

DO NOT SUBMERGE IN WATER

Remove the 3 Phillips head screws

3-AA Batteries

Remove the three Phillips head
screws with a 4mm screw driver.

Requires (3AA) Batteries

Red
Power Button

SOUND/ON/FLASH/FLASH FASTER

Peg Holes

AC Adapter
Connection

Push Red
Power Button
to turn on/o

Push Red Power Button to
cycle through 4 dierent
light settings.

Sound Activated

Triangle Power Base

The toy is not to be connected to more than
the recommended number of power supplies

WARTHOG

Model

Diculty
Level

1

STEP

2

STEP

3

STEP

4

STEP

5

STEP

6

STEP

7

STEP

COMBINE

A

A

B

Copyright 2014 © All Rights Reserved Global & Multiple Patents Pending.

US Patent #7,731,558

www.LaserPegs.com

13

STEP

8

STEP

9

STEP

10

STEP

11

STEP

12

STEP

14

STEP

15

STEP

17

STEP

16

STEP

C
