Laser Optronix LD200, LD400 User's Operation Manual
LD200/400 Laser Globe Camera
User Operation Manual
Thank you for using our company’s products. Please read this operation
manual carefully before using it, as it can provide you with correct technical
indicators and the things that you should pay attention to!
Please contact us if you come across problems that are not mentioned in
this instruction. We will supply you with satisfying technical support.
2
Active Laser Dome Camera
integrate laser illumination, color block camera into a whole dome
camera；
synchronous zoom + super wide angle： 2°〜45°；
23X visible CCD camera；
Independent developed laser diode; long lifetime up to 20000 hours；
0.05°~360°/s high speed；
Laser Dome Camera LD200/400 PTZ www.laseroptronix.se
3
Intelligence function：auto reversal、presetting、cruise、self-
checking、record pattern etc；
Technical Indicators
Power supply
AC24V±10%
Interface

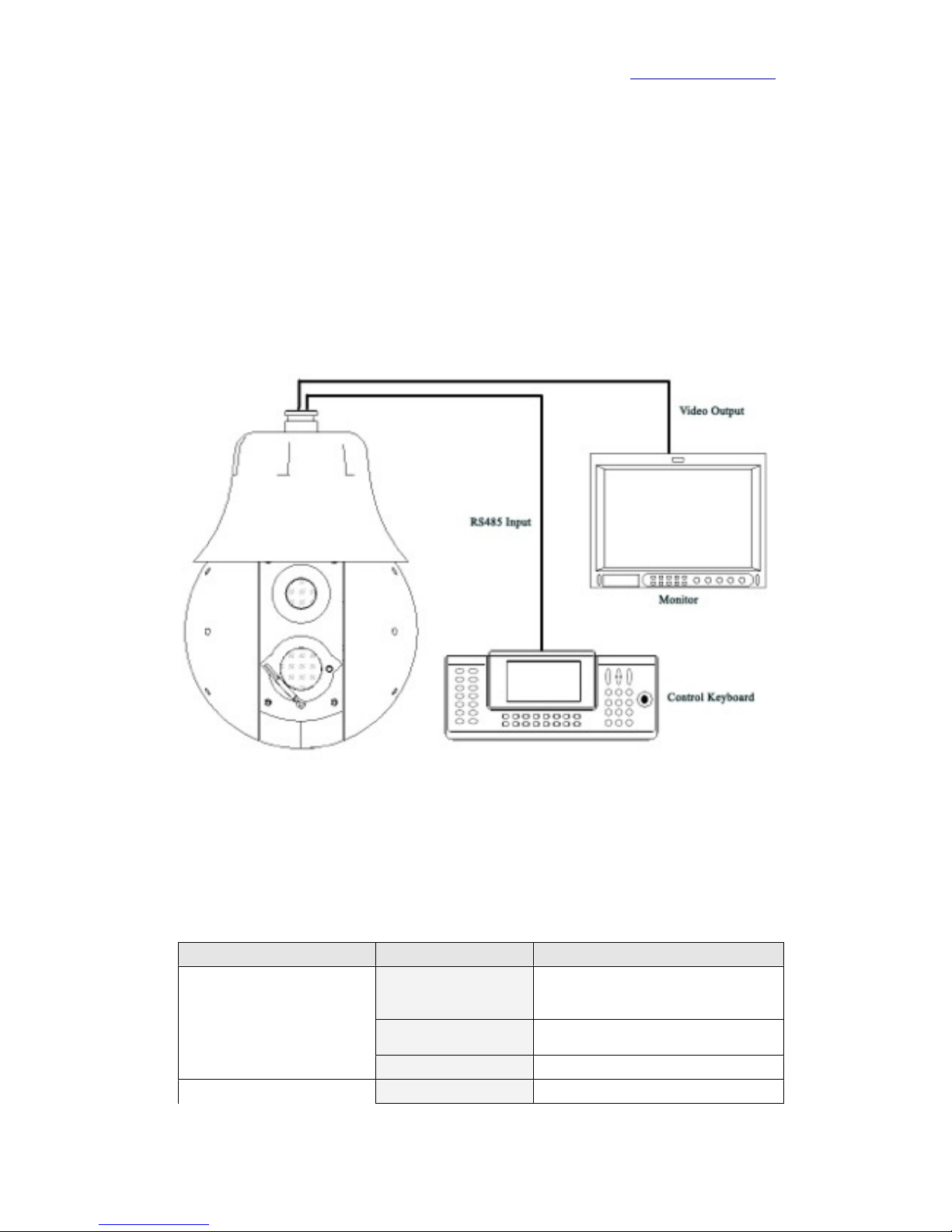

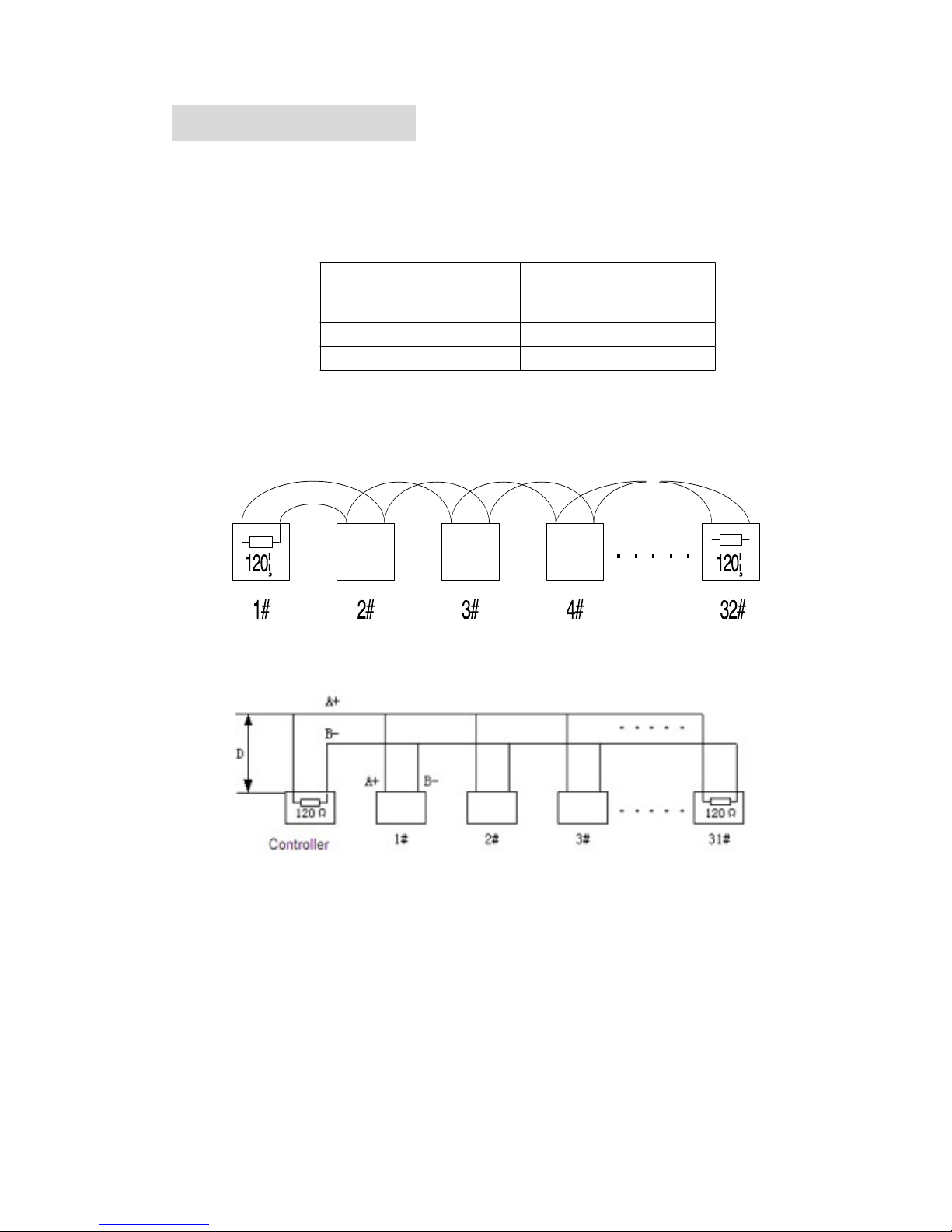

RS485、compound video output、AC24V
Technical
Performance
Night vision distance＞200m（to people）；
day vision distance＞400m
Technical
Indicators
MTBF
≥10000 hours
Technical
Indicators
Fatigue Test
Continuously 10000 times test
Laser spot
When power on, laser spot is biggest (default)
Safety
Indicators
Thunder proof
Consistent with GB / T 17626.5-1998 AC
power cord less than Grade Three; DC, signal,
control and other input line can afford surge
(impact) interference of Grade Two
Working
temperature
-25℃〜+55℃
Environmental
Storage
temperature
-40℃〜+80℃
Environmental
Indicators
Protection
Grade
IP65
Environmental
Indicators
Vibration
Indicators
Comply with GB/T 1857.10
Color CCD
Camera
Model
23X，1/4’’ infrared sensitive CCD
Pan Speed
0.05°~360°/s
Pan Range
360°
Tilt Speed
0.05°~180°/s
Tilt Range
0°~180°，auto reversal
Pantilt
Presets
At most 256
Pantilt
Function
Scan speed
0.5°〜30 °/s
Pantilt
Function
Cruise function
6 tracking paths
Pantilt
Function
Self-checking
40s
Pantilt
Function
Wiper
Has wiper
Laser power
4W
Illuminating
Lighting Angle
2°~45°，big angle synchronous zoom
Illuminating
function
Illuminating
Zoom Speed
3S quick zoom
By Laseroptronix www.laseroptronix.se
Laser Dome Camera LD200/400 PTZ www.laseroptronix.se
4
Warning：Remind user of potential danger!
1. Please read this instruction carefully before installing this device.
2. Please obey the warnings on the device and the instruction.
3. During the process of transporting and using, please avoid strong vibration and
compress in order to protect the optic and electronic components.
4. Please use the power supply equipped by us and obeys the methods of instruction
to connect the wire.
5. Don’t open the device by yourself, or else it may cause electric shock or machine
damage. If there are problems, please contact us and remember that never try to
mend it by yourself.
6. In order to protect the machine and people, this device need to be settled on firm
pan-tilt.
7. Please install appropriate lightning proof equipment to avoid thunder.
8. Use this device within the limitation of humidity and temperature.
9. To protect the imaging components from damaging, please don’t let the camera aim
at sun and other objectives of high light or aim at static bright objectives for a long
time.
10. Don’t look the laser window in close distance, or else it may hurt your eyes.
11. This is a class 3B laser unit so it is dangerous for the eyes at short ranges. Do
never stare into the laser aperture at front.
Attention
1. Don’t hide the sensitive components in front of the machine in order to make sure
the device would work normally.
2. If the night vision device is out of power supply, please restart it after 30 seconds.
Laser Dome Camera LD200/400 PTZ www.laseroptronix.se
5
Safety Warning:
Non insulation voltage to people
Please don’t stare at Laser Window when
power on. Class 3B laser unit
Avoid eyes staring straight
Laser Dome Camera LD200/400 PTZ www.laseroptronix.se
6
The First Part Introduction
Part Ⅰ---Features
Adopt laser illuminating system, long lighting distance and wide lighting field
low light color to black camera, can realize continuous monitoring day and night
shifting pan-tilt, realize omnidirectional no blind spot monitoring and high accurate
orientation
high intelligence, easy to operate and maintain
uneasy to be discovered
smart shell with professional design, light, firm, thermostabilization, anti-corrosion,
waterproof and acid rain proof
low power consumption, little heat, stable performance
Part Ⅱ---Technical Indicators
Item
LD200/400 PTZ
camera
Integrated camera
illuminator
Infrared laser illuminator
Configuration
Power supply
AC24V±15% Iin≥2.5A
Configuration
interface

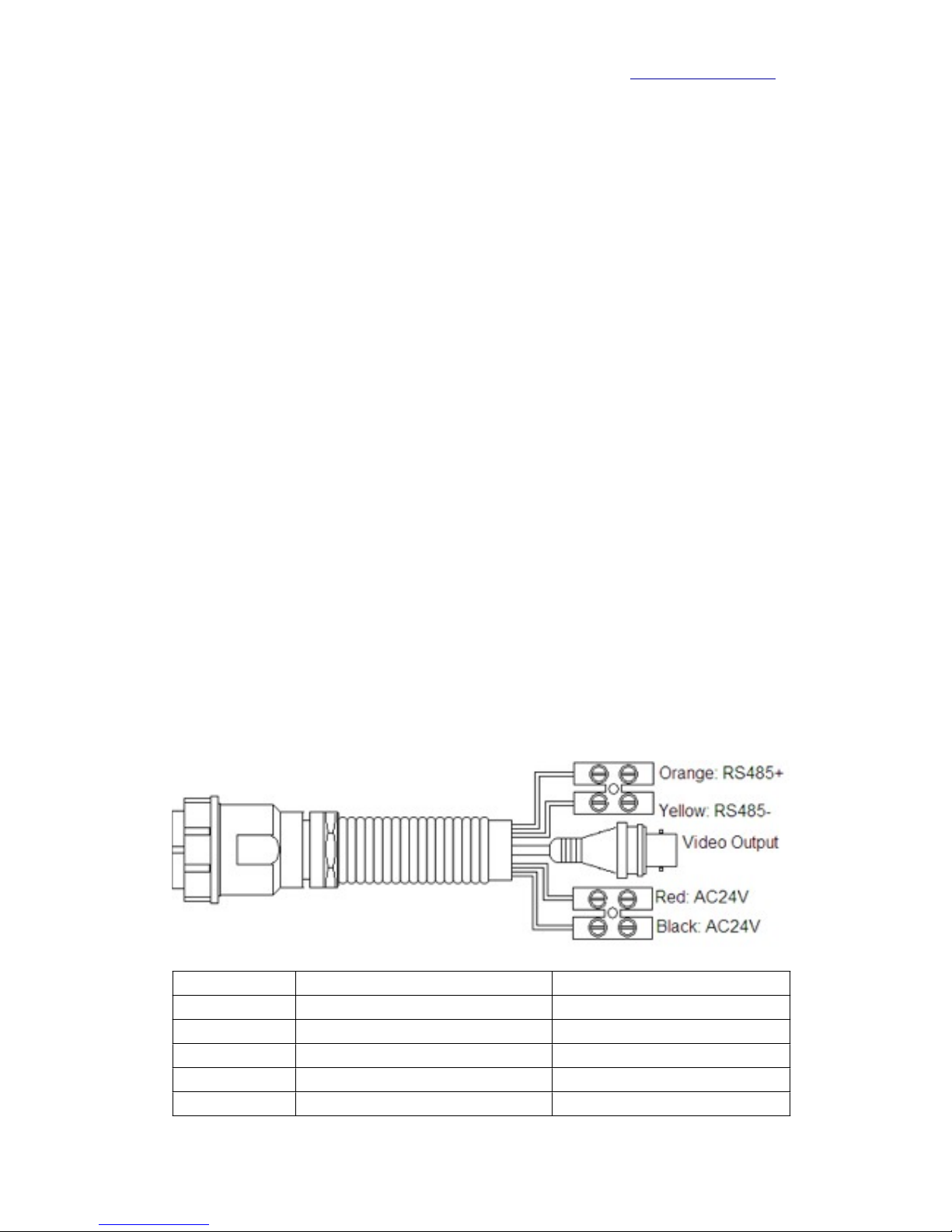

RS485、video output、AC 24V power supply
capability
Night vision distance＞200m;
Daytime vision distance＞400m
Technical
indicators
Power
consumption
≤50W
Technical
indicators
weight
7.5Kg
Technical
indicators

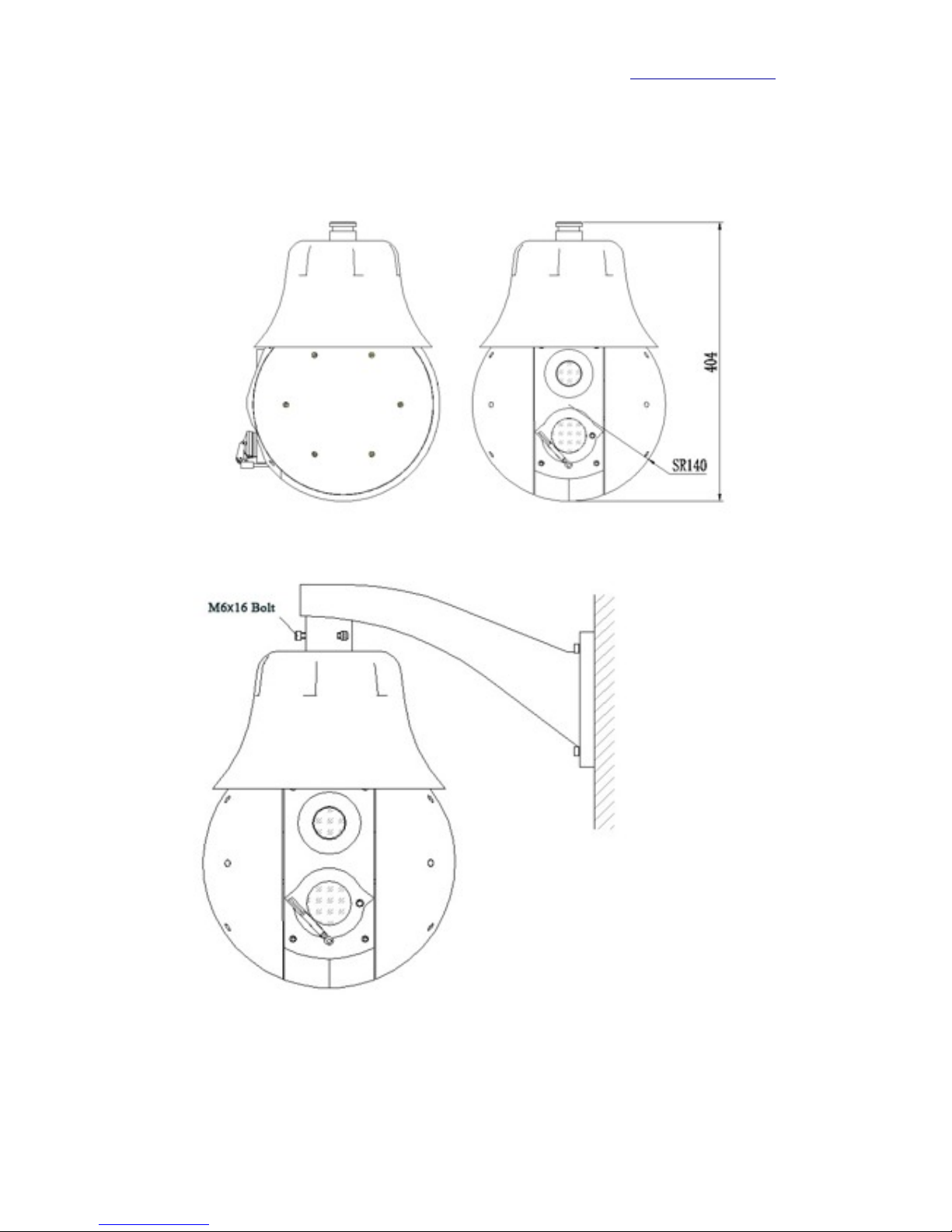

dimension
404*280*280
Working
temperature
-25℃〜+ 55℃
Storage
tempeature
-40℃〜+ 80 ℃
Environment
Anti-impact
≥4G
Environment
indicators
Salt-fog proof
Continuously spray fog for 48 hours under PH6.5-7.2
Environment
indicators
Protection Grade
IP65
Environment
indicators
Relative Humidity
90%
Valid pixel
752（H）X582（V）
Focal length
f＝4.1~73.8mm
FOV
2.8°〜48°
Video camera
Signal-to-noise
≥50db
Video camera
indicators
Video output
VBS：1.0Vp-p
Video camera
indicators
Quick 1/50,1/75,1/100,1/120,1/150,1/215,1/300,1/425,
1/600,1/1000,1/1250,1/1750,1/2500,1/3500,1/6000,1/10000
Video camera
indicators
Electronic Shutter
Slow 1x,2x,3x,6x,12x,25x
Illuminating
elements
Infrared laser illuminator
Wave length
808nm
Illuminator
Lighting angle
2°~45° Field of view
Laser Dome Camera LD200/400 PTZ www.laseroptronix.se
7
Illuminator
Power
consumption
10w
Illuminator
Illuminator control
automatic/ menu manual control
Pan speed
0.05°~360°/s
Tilt speed
0.05°~180°/s
Basic function
Presets
256
Basic function
of pan-tilt
Scanning speed
0.5°〜30 °/s
Basic function
of pan-tilt
Cruising function
6
Basic function
of pan-tilt
Self-check
40s
Note: The AC24V power supply’s input voltage should be
AC187V~AC253V. The voltage cannot be higher than AC253V, or else it
will cause product damage.
Part III---Function Introduction
1. infrared laser illuminating system
a. Realize electronic varifocus adjust of lighting source, laser beam angle
continuously adjustable
b. Laser beam expanding and shaping, light
intensity homogenization, light spot uniformity,
good lighting effect
c. Using the technology of laser power soft starting
and illuminator automatically control the
temperature, the lifetime of the laser illuminator
is prolonged.
d. High laser o u tput effici e ncy, l ow powe r
consumption, stable performance
e. Using sensitive components to realize the
automatic “ON” or “OFF” of the laser. At daytime,
the laser illuminator will not start; when the illumination is lower than set , the
illuminator will automatically start.
Laser Dome Camera LD200/400 PTZ www.laseroptronix.se
MAIN MENU
= = = = = = = = = = = = = =
1 DISPLAY SETUP
2 CAMERA SETUP
3 CONTROL SETUP
4 PROGRAM
5 CAM DEFAULT SET
6 COMMUNICATION SETUP
7 SYSTEM RESET
8 EXIT
DISPLAY SETUP
= = = = = = = = = = = = = = = =
1 ID DISPLAY ON
2 ID POS TOP-L
3 TITLE DIS OFF
4 PRESET POS 0 1
5 CAM DISPLAY OFF
6 RETURN
