Page 1
LASERFORCE RADIO BASE STATION
USER MANUAL
Page 2
FCC INFORMATION
Information to the user (FCC Part 15.105)
NOTE: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Modification Warning (FCC Part 15.21)
Warning: Any changes or modifications not expressively approved by Laserforce
International could void the user's authority to operate this equipment.
Page 3

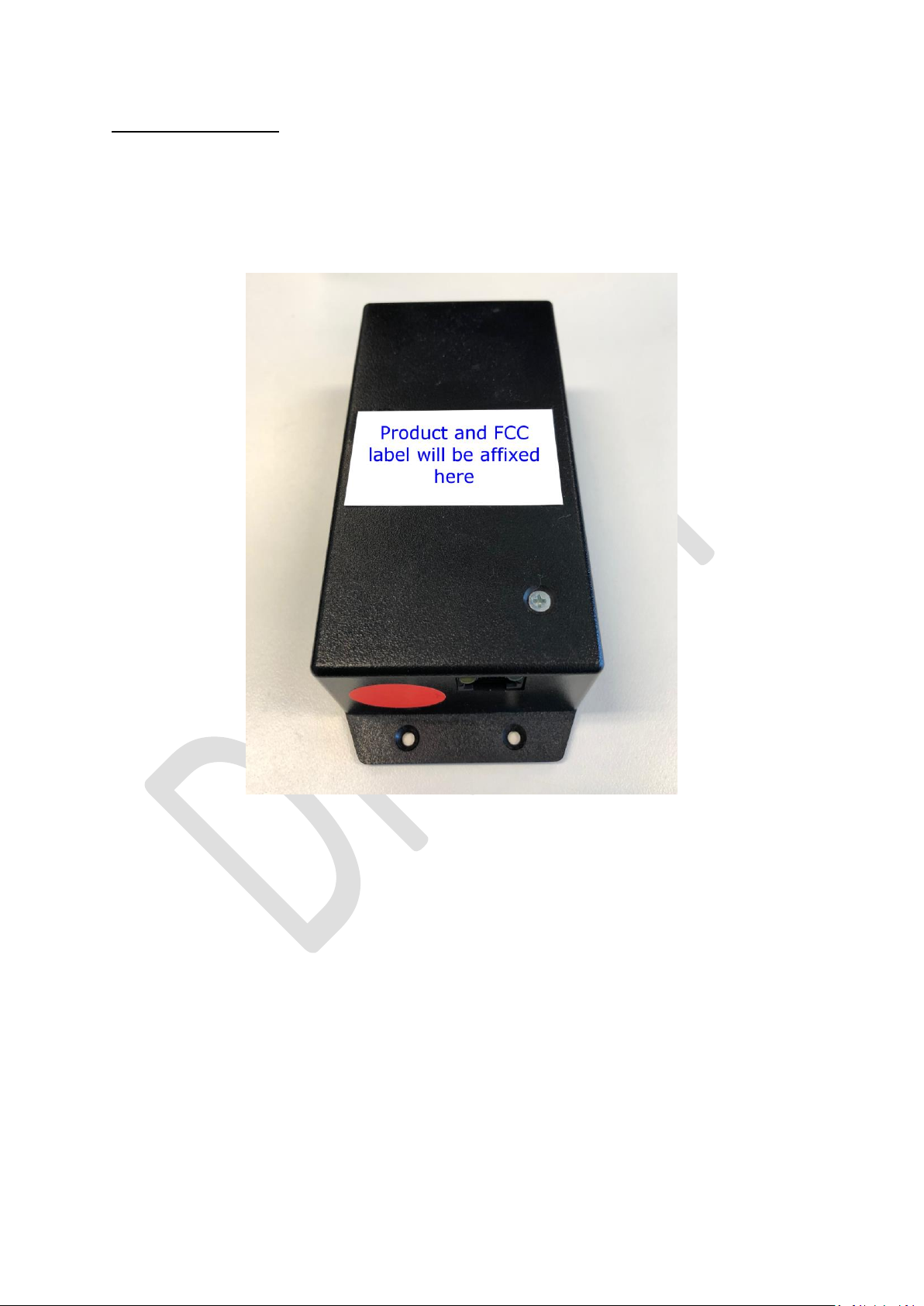

RADIO BASE STATION
The Laserforce system relies on radio communication between the Battlesuit and the
computer. This is achieved through the use of a radio base station which is cabled to the
computer and installed by one of our technical personnel upon installation. The radio base
station once installed operates without any interaction with the user.
The radio base station in the has a short antenna and operates in the 2.4Ghz frequency
band, which is the same frequency as wireless networks and some cordless phones.
However, the Laserforce system uses complex error checking to filter out any interference
with any other equipment. The Laserforce system also does not interfere with other
equipment.
The radio base station requires an Ethernet cable which returns to a POE switch that is in
turn connected to the main Laserforce PC. It does not require separate power cabling as the
power is supplied over the Ethernet cable by Power-Over-Ethernet POE. The location of the
base stations won't be finalised until the installation team has inspected the site. The radio
base station is installed by one of our trained technical experts and does not come in
contact with the user.
The radio waves of the radio base station are substantially affected by metal surfaces.
