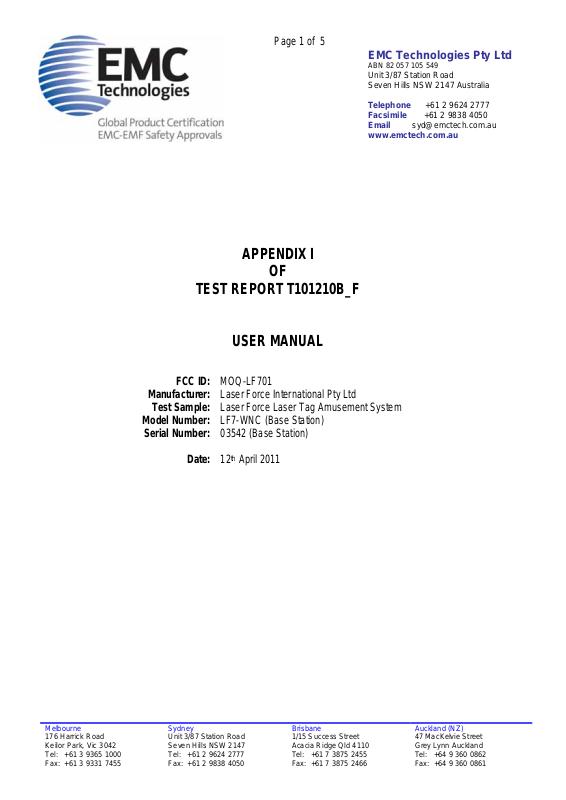

Page 1
Page 1 of 5
EMC Technologies Pty Ltd
ABN 82 057 105 549
Unit 3/87 Station Road
Seven Hills NSW 2147 Australia
APPENDIX I
OF
TEST REPORT T101210B_F
USER MANUAL
FCC ID:
Manufacturer:
Test Sample:
Model Number:
Serial Number:
Date:
MOQ-LF701
Laser Force International Pty Ltd
Laser Force Laser Tag Amusement System
LF7-WNC (Base Station)
03542 (Base Station)
th
12
April 2011
Melbourne
176 Harrick Road
Keilor Park, Vic 3042
Tel: +61 3 9365 1000
Fax: +61 3 9331 7455
Sydney
Unit 3/87 Station Road
Seven Hills NSW 2147
Tel: +61 2 9624 2777
Fax: +61 2 9838 4050
Brisbane
1/15 Success Street
Acacia Ridge Qld 4110
Tel: +61 7 3875 2455
Fax: +61 7 3875 2466
Auckland (NZ)
47 MacKelvie Street
Grey Lynn Auckland
Tel: +64 9 360 0862
Fax: +64 9 360 0861
Page 2
LASERFORCE RADIO BASE
STATION USER MANUAL
Page 3
Laserforce International
55 Ipswich Road
Brisbane, QLD
AUSTRALIA 4102
Ph: (+) 617 3391 0155
Fax: 617 3891 6337
www.laserforcetag.com
Dear Operator,
Please find enclosed your Laserforce radio base station user manual. This document
contains much of what you need to know about the radio base station pertaining to
the Laserforce system. Take the time to read it through, and become familiar with its
contents.
Please contact your Laserforce team or myself if you have any queries or require
any clarifications at all about any of the information provided in this document.
Yours sincerely,
Sam Kelly
Laserforce International
Page 4
RADIO BASE STATION
The Laserforce system relies on radio communication between the battlesuit and the
computer. This is achieved through the use of a radio base station which is cabled to
the computer and installed by one of our technical personnel upon installation. The
radio base station once installed, operates without any interaction with the user.
The radio base station in the Gen6 system has a short antenna and operates on a
2.4Ghz frequency, which is the same frequency as wireless networks and some
cordless phones. However, the Laserforce system uses complex error checking to
filter out any interference with any other equipment. The Laserforce system also
does not interfere with other equipment.
The radio base station requires a mains power point, but the location of this won’t be
finalised until the installation team has inspected the site. The radio base station is
installed by one of our trained technical experts and does not come in contact with
the user.
The radio waves of the radio base station are seriously affected by metal surfaces.
Page 5
FCC INFORMATION
Information to the user (FCC Part 15.105)
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the
interference at his own expense.
Modification Warning (FCC Part 15.21)
Warning: Any changes or modifications not expressively approved by Laserforce
International could void the user's authority to operate this equipment.
