Version: 1.7 Page 1 9/15/2006

USER GUIDE

For Laser® MVP

Multimedia Video Player

Page 2

Version: 1.7 Page 2 9/15/2006

Contents

1． Unique Features…………………………………….……………….3 2． Locating the Controls……………………………….………………4 3． Basic Operation…………………………………….……………….5 4． Operating buttons………………………………….………………..7 5． Play Music………………………………………….………………..7 6． Movie mode……………………………………….…………………9 7． Recording Voice……………………………………………………..9 8． Play Recorded Files……………….……………………………….10 9． Operate FM Radio……………..…………………………………..12 10． Use Tel Book………………………..………………………………13 11． E-Book function………………….………………..………………13 12． JPEG Album……………..……………………….………………14 13． Game Function…….…………………………………………….. 16 14． System Setting…………………………………………………….16

15. Use USB Disk…………………….………………………………..18

16. Firmware Upgrade…………………….…………………………..19

17. Others setting………………………………………………………21

18. AMV Converter Tool operation …………………….……………30

Page 3

Version: 1.7 Page 3 9/15/2006

Laser® MVP is a brand-new generation of digital portable device, supporting MP3/WAV music format, digital recording, FM stereo radio, AMV format playback, JPEG photograph browse and E-book text reading .Its perfect

sound quality, great reliability and exquisite appearance make it a masterpiece.

1．Unique Features

● Exquisite Appearance

Unique ultra slim design

● Multi-video Player

e.g.: MP1, MP2, MP3, WMA, WMV, ASF and WAV Music format

● Firmware Upgrade

Providing the latest updated features via firmware upgrade from the website

● FM Function

You may easily listen to FM stations and set your favorite stations by using Auto search or Manual Search. The player can save 40 (20 for each Band) local stations .

● Driver Free Disk Management

You may manage your files directly through “Portable Disk” in “ My Computer” on Winows2000 Operating

System or above without driver installation.

● “Private Space” Disk Mode

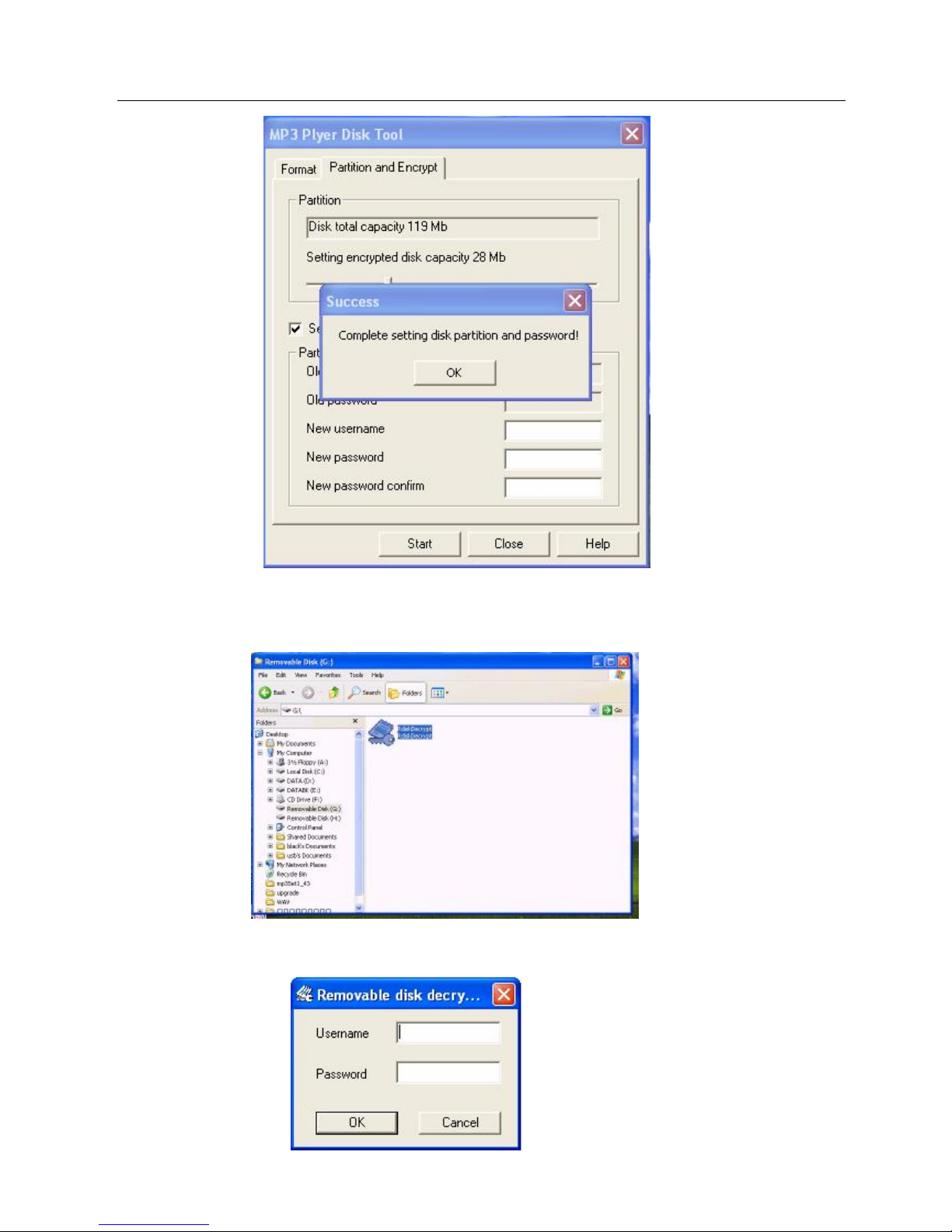

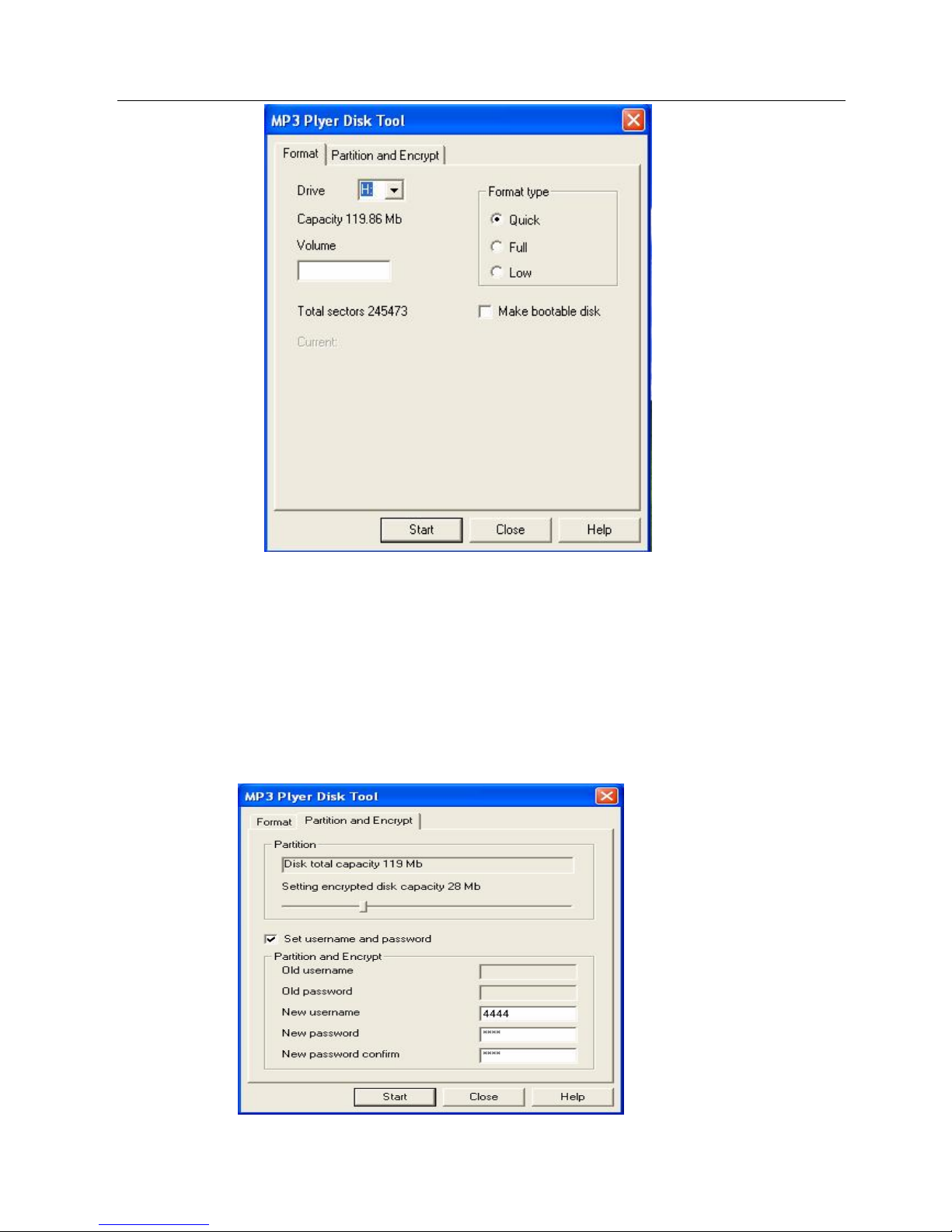

The flash memory can be divided into two parts by using the accessory tools and one is encrypted to hide the

contents (to prevent viewing by others)

● Record/ Replay

The player supports recording through built-in microphone and saves as WAV and ACT formats. Meanwhile it

supports real digital A-B replay or comparison replay.

● 7 Preset EQ

Normal, Rock, Pop, Classic, Soft, Jazz and DBB

● Multi-play Mode

Page 4

Version: 1.7 Page 4 9/15/2006

Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, Intro.

● Power Off

Programmable Sleep Timer and Power Off mode.

● GUI (Graphic User Interface) MENU

Animated MENUs with corresponding characters make it easy to operate.

Declaration

¯ Thank you for your purchase. ¯ Please read this manual carefully before using your new player. ¯ Contents in this manual may change possibly for better service. ¯ We have the right to make changes to this manual without notice. ¯ The pictures and diagrams used in this manual are a guide only and may not correspond to the actual

product.

¯ If the actual operations of your player is not the same as the instruction in this manual, please visit our

Website for latest product information – www.laserco.net

2． Locating the Controls

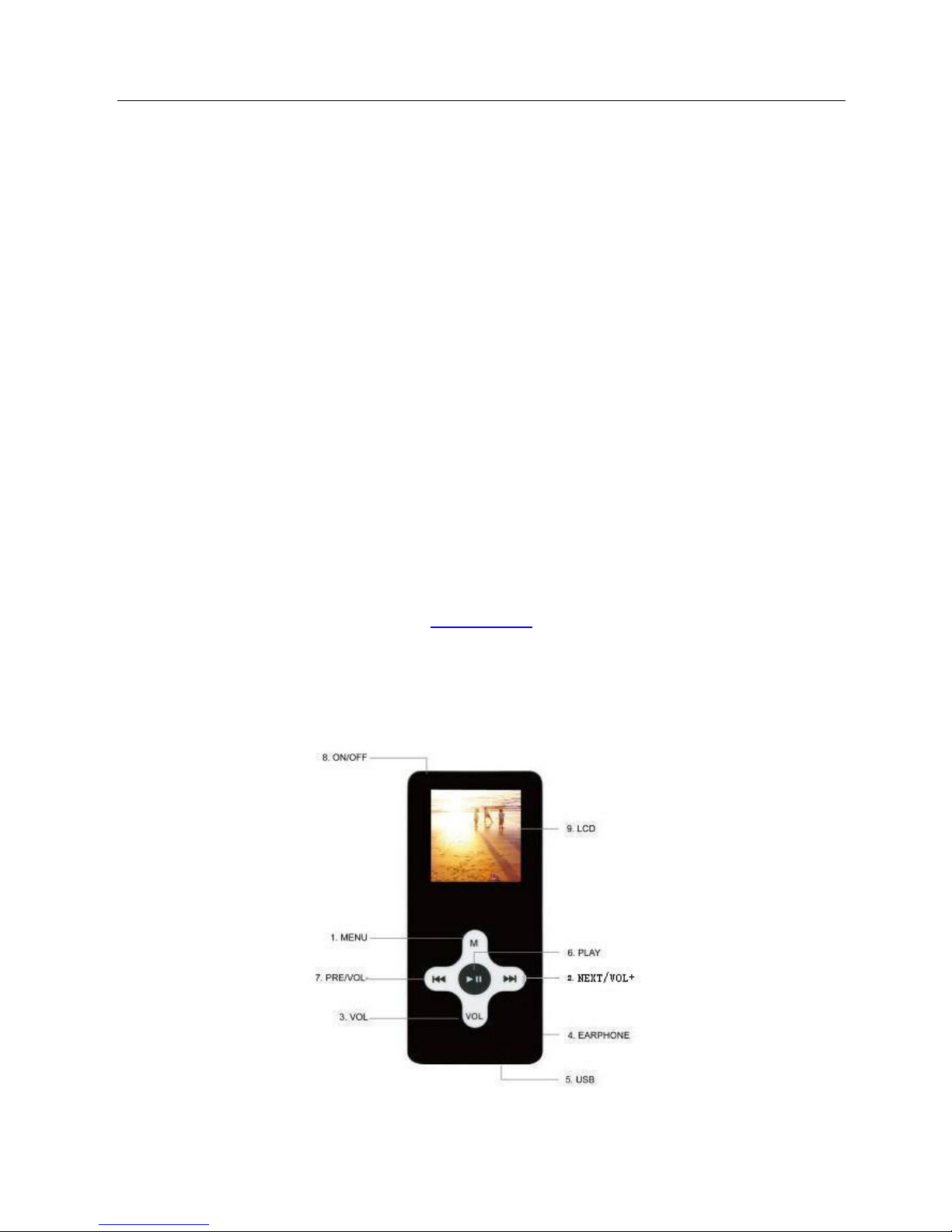

l Appearance & Keys

Page 5

Version: 1.7 Page 5 9/15/2006

l LCD Window

l Battery

The player is in multilevel level battery monitoring system.

Indicates that the internal battery is fully charged.v Indicates low battery power and battery should be charged up.

3. Basic Operation

l Entering MENU System

Pressing MENU button will enter the menu system, including main MENU (press and hold MENU button at Stop state),

submenu at Play state (press MENU button to enter) and submenu at stop state (press MENU button to enter).

l Browsing

○Browsing music files or menu options :

Press :/9 button

○ Fast forward or fast backward when playing：

Press and hold :/9 button

S/N Description S/N Description

Menu button

Play / Stop / turn on/off button

Next track/Forward (:)

Previous track/ Rewind (9)

volume control button(VOL)

Power switch

Earphone jack 9 LCD display

USB port

S/N Description S/N Description

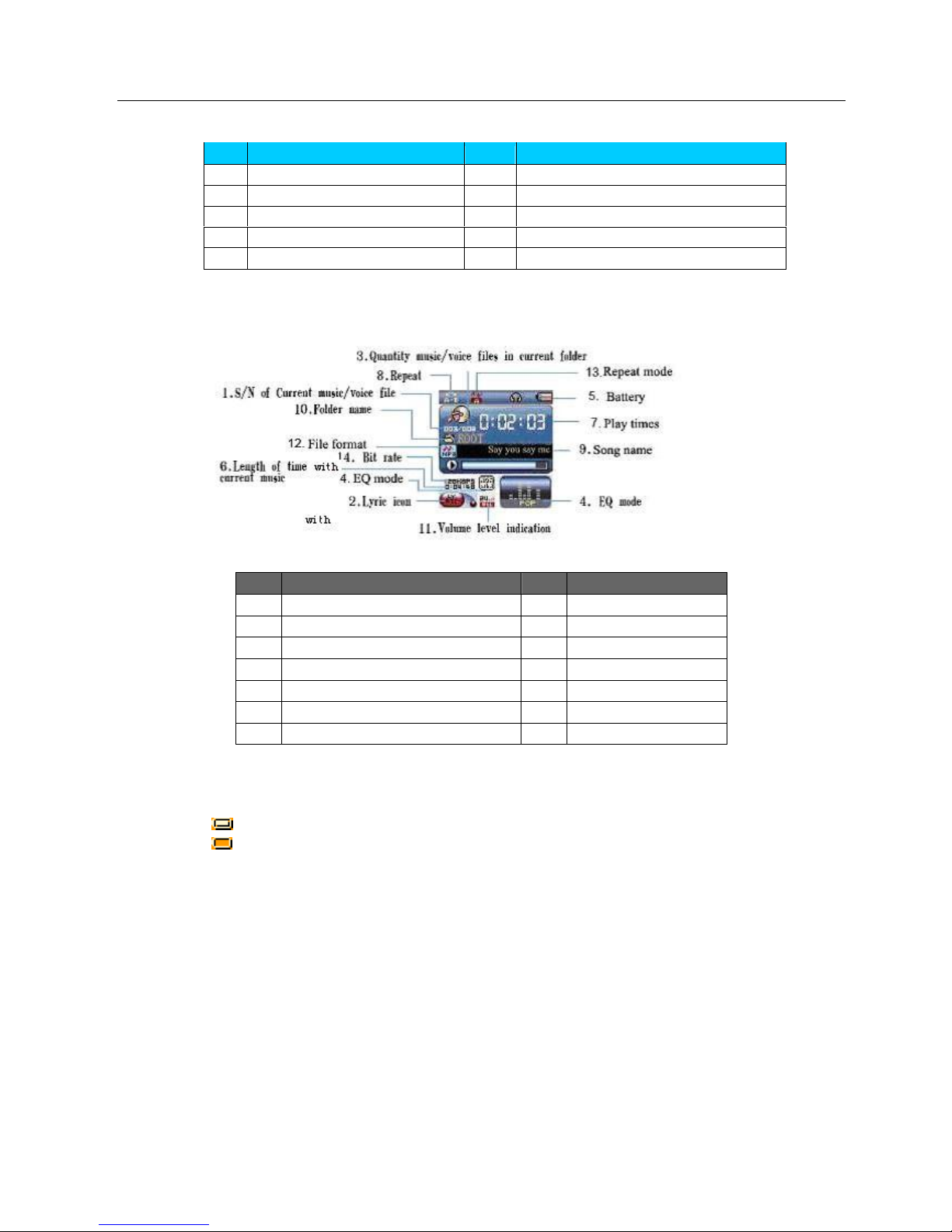

1 S/N of Current music/voice file 8 ID3 information 2 Lyric icon 9 Song name 3 Quantity of music/voice files in current folder 10 Folder name 4 EQ mode 11 Volume level indication 5 Battery indication 12 File format 6 Length of time with current music 13 Replay mode 7 Playback time 14 Bit rate

Page 6

Version: 1.7 Page 6 9/15/2006

l Entering Different Modes

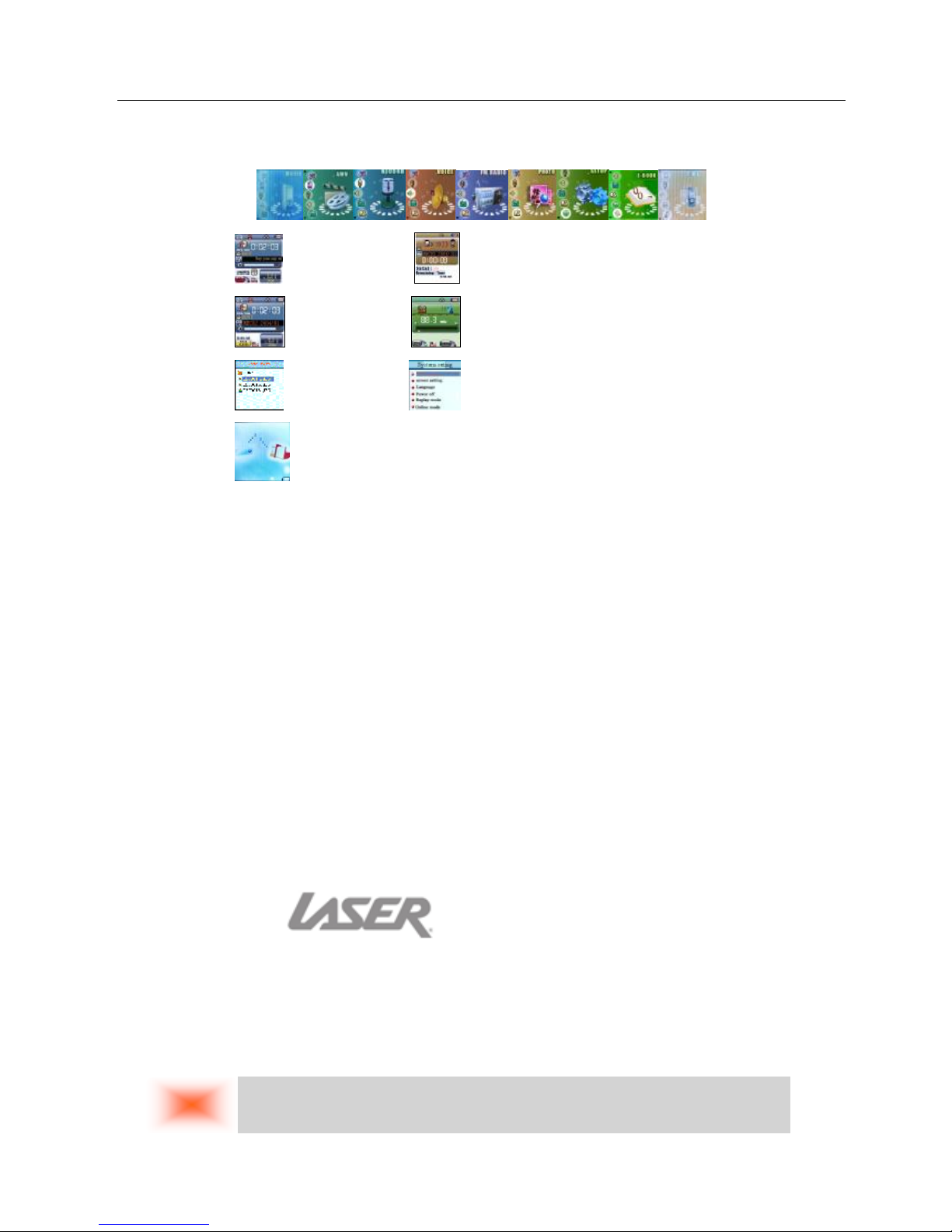

You may enter different modes from the main MENU.

Music mode: Record mode:

Voice mode: FM mode:

Browsing Pictures: System Setting:

USB Mode when connecting to PC:

l Volume Control

At the music mode, voice mode and FM mode, press VOL buttons to enter the volume control

interface and then press the :/9 button to adjust volume

l Power On/Off

1． Turn on automatically

w After pushing the Power button ( OFF→ON) , the player will turn on automatically and enter

powered on state:

w w When connecting the USB cable to PC, the player will turn on automatically and enter USB mode：

Remark:

Press MENU button to return to the main MENU at the modes. When connecting the USB cable to PC. Press and hold PLAY button then will go back to USB mode.

Page 7

Version: 1.7 Page 7 9/15/2006

2． Turn the unit ON/OFF manually

♦ When the player in switched off, press and hold Play button to turn the unit on ♦ When the player is switched on, press and hold Play button to turn the unit off

l Play& Stop (Pause when recording)

Press the PLAY button

4. Operating buttons

l Music mode and Voice mode

Buttons

Operation

Stop Status Play Status Play Submenu Stop Submenu

press and hold

Turn off Turn off Turn off Turn off

PLAY

Press Play Stop Exit from MENU Exit from MENU Press and

hold

Enter main MENU Enter main MENU Enter main MENU Enter main MENU

Press Enter Stop-submenu Enter Playing- submenu Confirm current option

or enter next submenu

Confirm current option or enter next submenu

Press next song Play next song Switch submenu Switch submenu

Press on Continuous forward

browse

Fast forward Continuous forward Continuous forward

Press Previous song Play previous song Switch submenu Switch submenu

Press on

Continuous backward

browse

Fast backward Continuous backward Continuous backward

Press and hold

Enter voice REC state

Enter repeat state X X

VOL

Press Enter volume control

state

Enter volume control state

X X

l Record Mode

Operation

Action

Stop Status Record Status

press and hold turn off stop recording

PLAY

press start recording pause recording press and hold enter main MENU X

press enter Record submenu X

l FM Mode

Operation Action

FM Status FM Submenu

press and

hold turn off turn off

Play

press X quit from MENU

press and

hold enter main MENU enter main MENU

press Enter submenu confirm current option or enter next submenu push increase 100KHz gradually or stop search switch submenu

press on Increase 100KHz search continuously continuous forward push decrease 100KHz gradually or stop search switch submenu

Push on decrease 100KHz search continuously continuous backward

Vol

press Enter volume control interface. X

5. Play Music

l Basic Operation

1. Connect the earphone to the player 2. Push POWERàON

Page 8

Version: 1.7 Page 8 9/15/2006

EQ options list:

3. Press and hold PLAY button to power on

the

player, and then enter the main MENU:

4.press MENU button to enter the Music mode:

5. Press the PLAY button to play music

6. Choose music

9 button：to choose previous track.

: button：to choose next track.

7. Volume control Press the VOL button to enter volume control

interface and the press the:/9 button to adjust

volume.

l EQUALIZER Mode

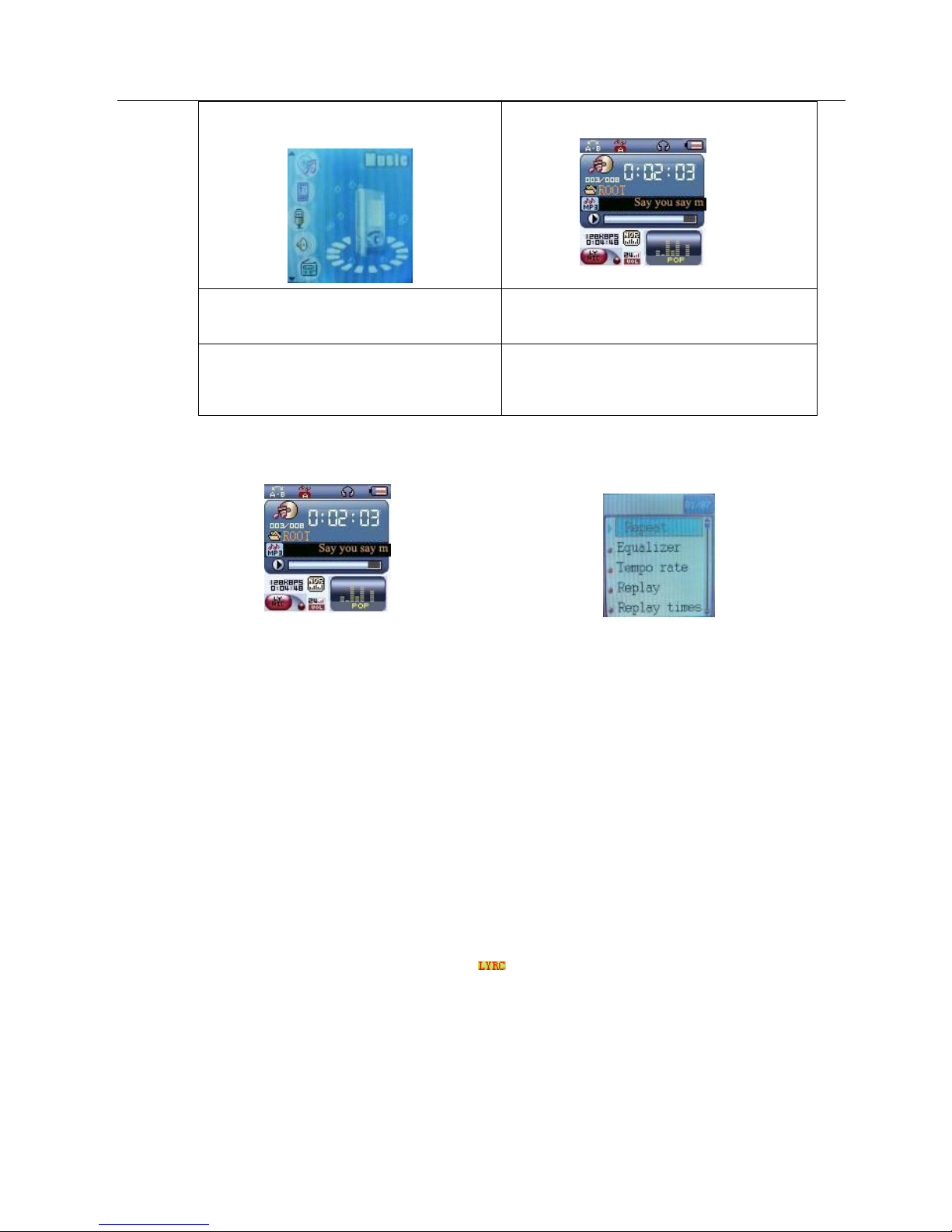

1.When playing music

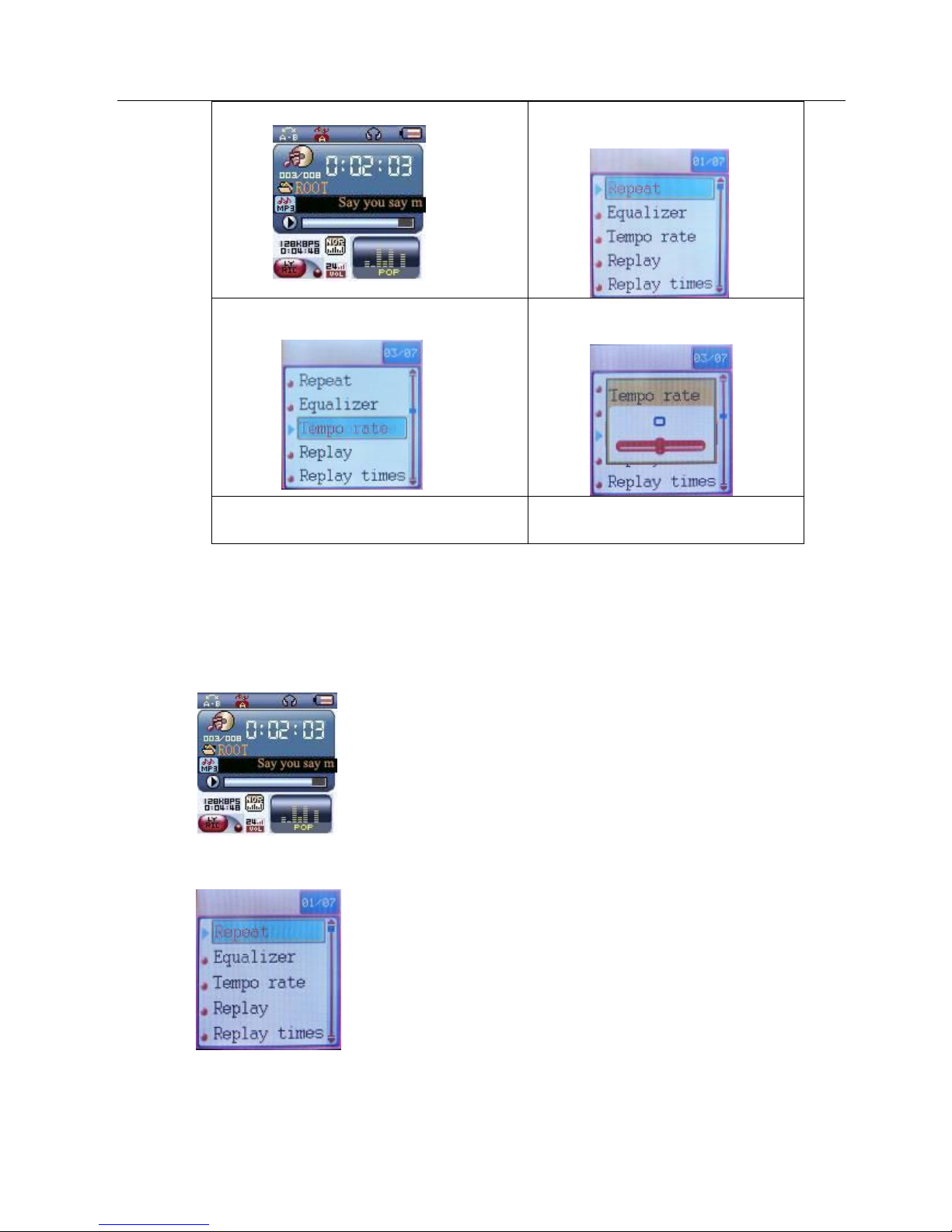

2.Press the MENU button to enter Play Submenu

3. Press:button to choose Equalizer option 4. Press the MENU button to enter EQ

selection

MENU.

5.Press : button to switch, and press MENU button to confirm

l Lyric Display

This player supports “*.LRC” lyric files (user can download from internet or use the lyrics editor to edit

it. ), and lyrics may be synchronous displayed while playing music.

Ÿ How to use lyric files?

Save the lyric file with the same name as that of the corresponding music file.

For example.: Music file name: GiGi-Sky.mp3 Lyric file name: GiGi-Sky.LRC.

Ÿ How to know whether the lyrics exist?

If the current song has matching lyric files, the lyric sign will be displayed at the top of music mode.

Page 9

Version: 1.7 Page 9 9/15/2006

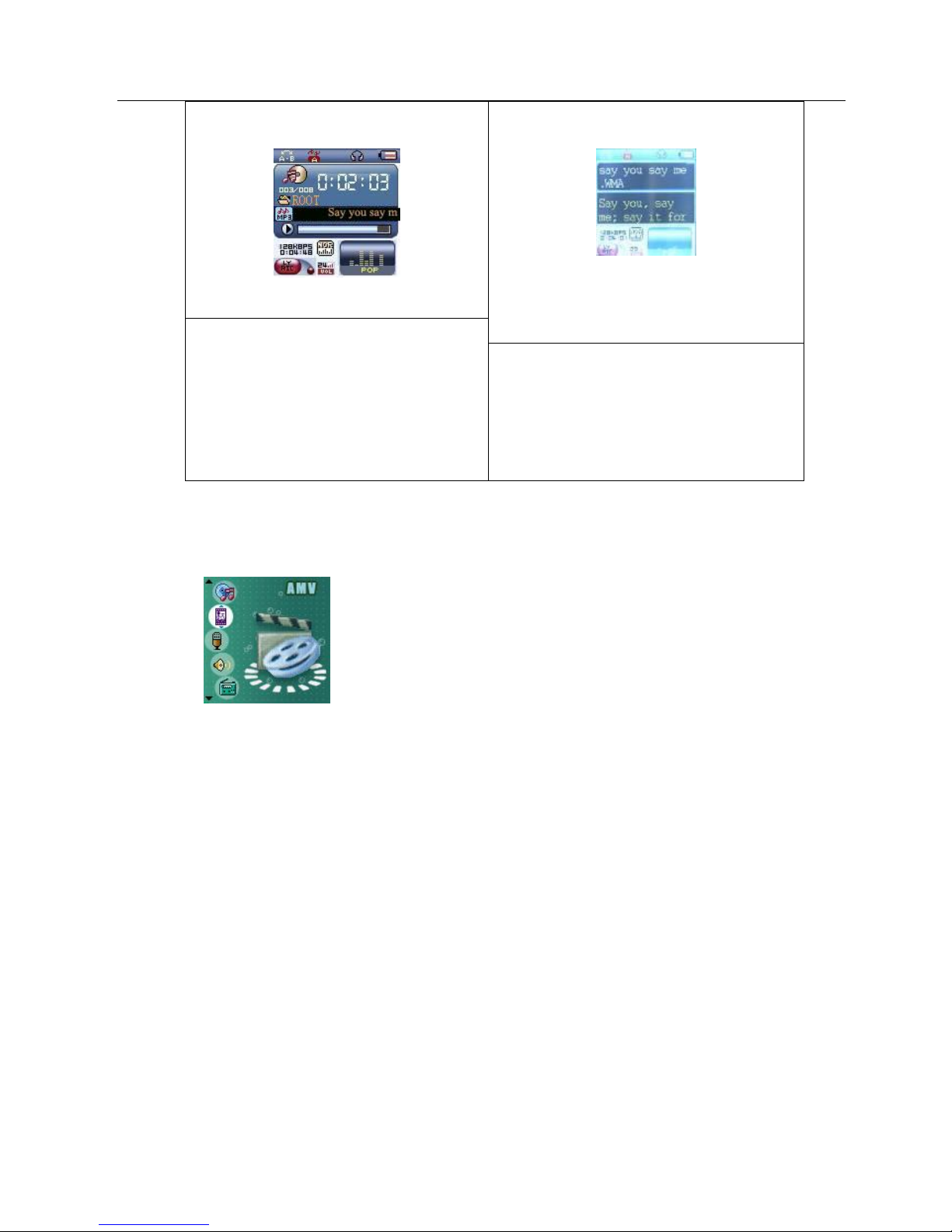

1. Current song has matching lyric files

2. Press and hold MODE

to enter the Lyric Interface

when playing.

2. Press MENU button to

return to Music play

mode.

4. Browse lyrics manually. Press VOL to browse lyrics.

6. Movie mode

1. Enter the main MENU and press the : button to select “AMV” mode.

2. Press MENU to enter.

3. Press PLAY to start playing AMV files

4. Choose movie

9 button：to choose previous file.

: button：to choose next file.

5. Volume control

Press the VOL button to enter volume control interface and the press the:/9 button to adjust volume.

7. Record Voice

Make sure that the battery is not in the status of “low battery”.

The player may save 99 recording files under each directory.

Page 10

Version: 1.7 Page 10 9/15/2006

l Recording in Record Mode

1. At the main MENU.

2. Press : button to choose recording mode.

4. Press Play button to start recording.

5. Press Play button again to pause recording.

6.Press Play button to continue recording.

7.Press and hold Play button to stop recording.

3. Press MENU button to enter Record mode

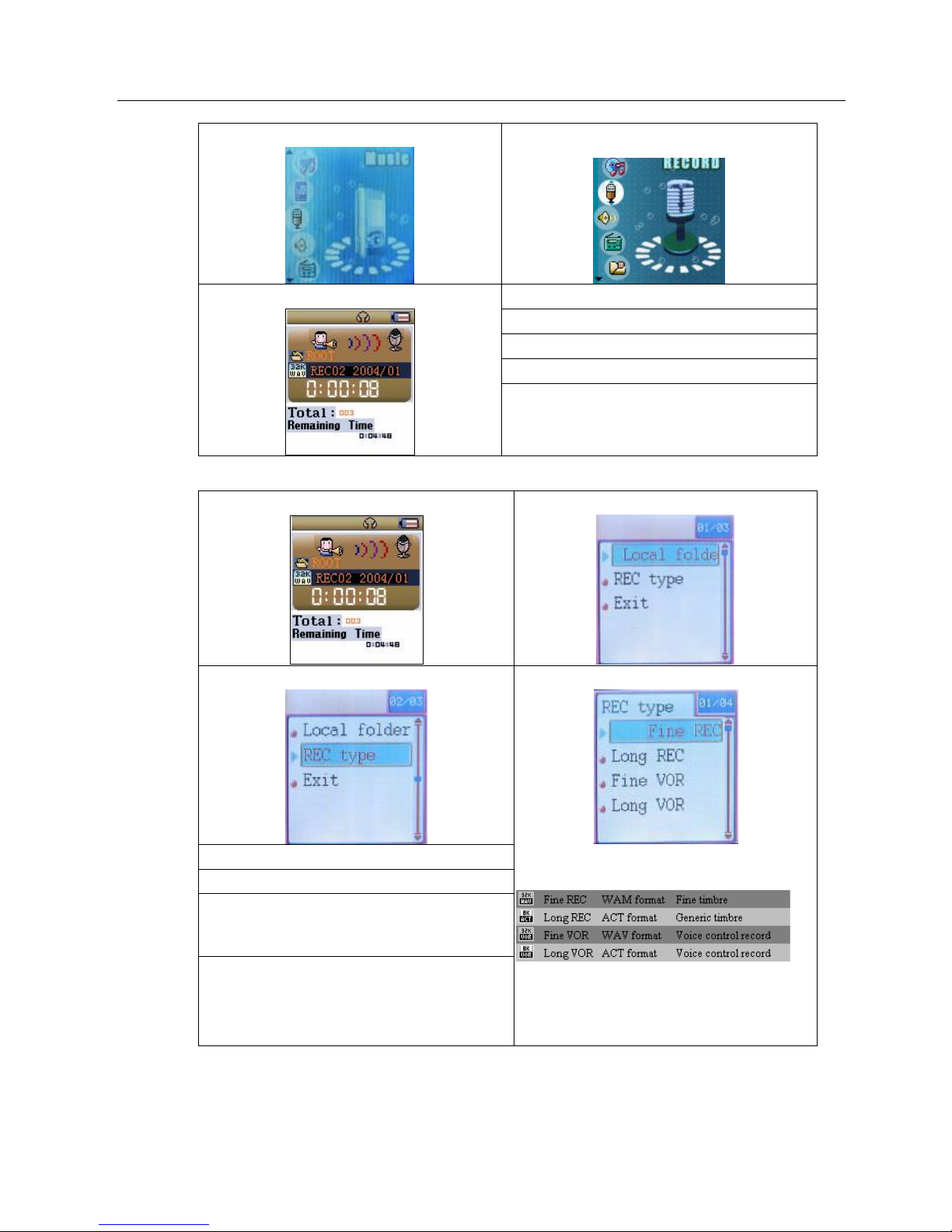

l Select REC type

1. At the record mode stop interface：

2. Press MENU button to enter record submenu

3. Press : button to select “ REC type” option

5. Press : button to select desired recording type

6. Press MENU to confirm the type selected

7. Press PLAY button to start recording

Note: Voice control will automatically pause the recording when no sound is present.

4. Press MENU button enter this option

8. Play Recorded Files

Ÿ REC type：

Page 11

Version: 1.7 Page 11 9/15/2006

1.Enter the main MENU

2. Press : button to choose “ Voice mode”

4. Press PLAY button to start playing.

8. Choose music

9 button：to choose previous record file

: button：to choose next record file.

3.Press MENU button to enter Voice mode interface

9. Volume control Press the VOL button to enter volume control

interface and the press the:/9 button to adjust

volume.

u Convert ACT format files to WAV format files

The ACT format files can be converted to WAV format files through the accessory installation tools.

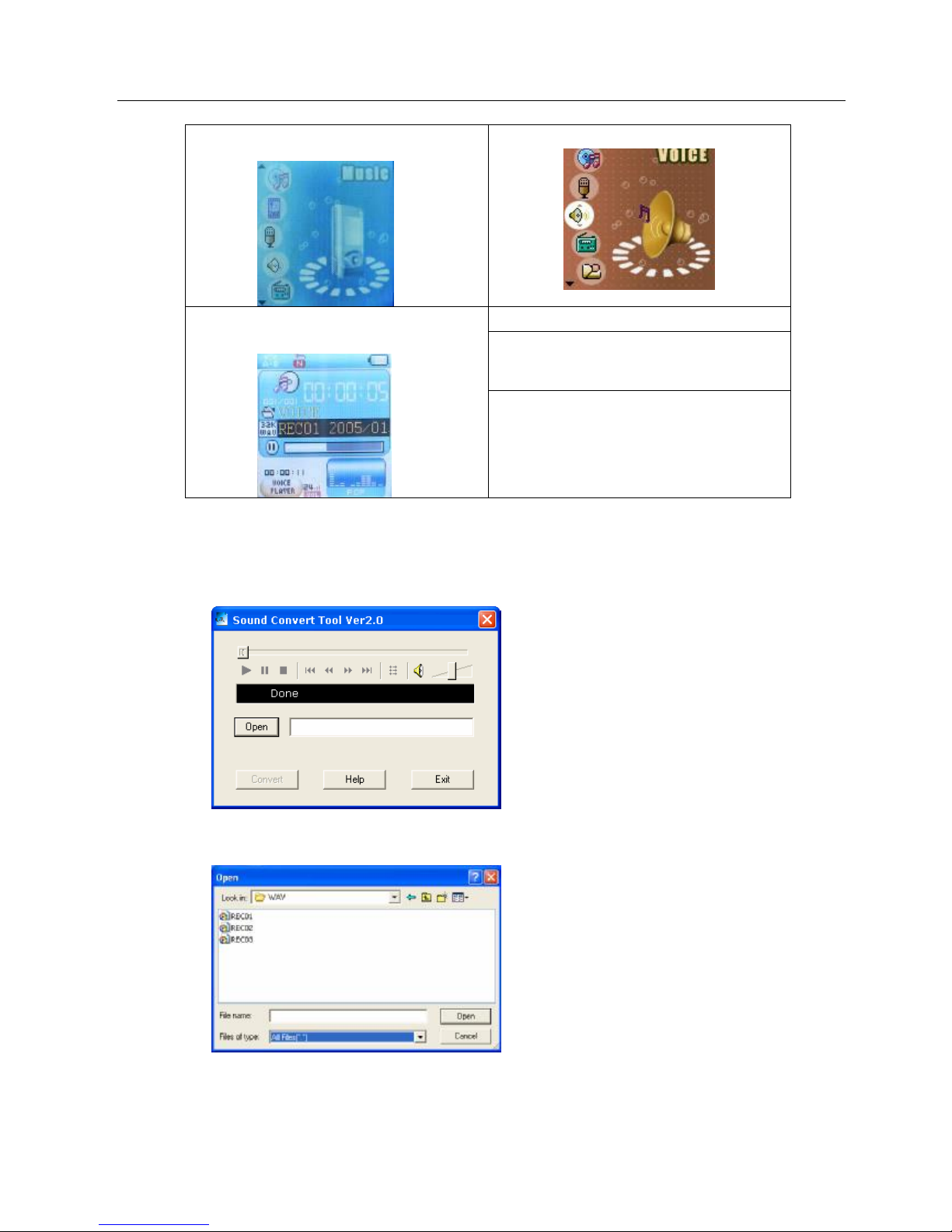

1. Run “Sound Convert Tool” program, and click “Open” button.

2. Choose the ACT format files need conversion

Page 12

Version: 1.7 Page 12 9/15/2006

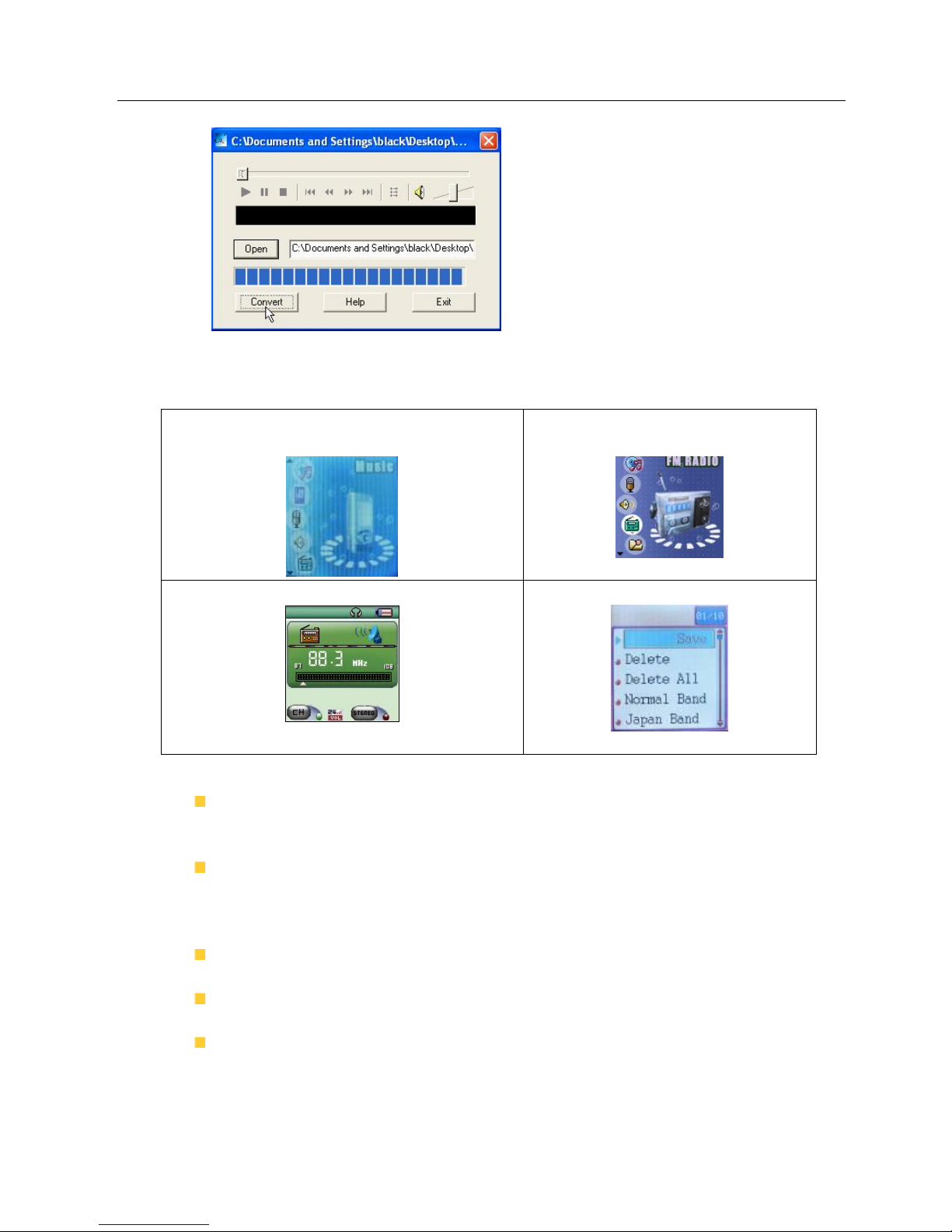

Besides the conversion from ACT to WAV, the accessory tool can also play WAV and MP3 files.

3. Click the “Convert” button, the conversion starts

9. Operate FM Radio

1. Enter the main MENU

2. Press : switch to select FM Mode.

3. Press MENU button to enter FM mode

4. Press MENU button to enter FM submenu，

Submenu options introduction:

Auto Search

At FM mode press the button to start search stations automatically, then the player can auto scan any

frequency between 87.5MHZ and 108MHZ

Manual search

Press 9 /:button = forward or backward single step 100KHZ to manually search for a station；Press

the 9/: button for about 2 seconds, and the player scans forward or backward and stops at the scanned station. If you want to stop scanning, press 9/: switch to stop.

Save the manual searched stations

Enter FM submenu and search “ Save” option, and then Again press MENU button to save current station.

Listen to the saved stations

If there exist more than one station, press PLAY button to listen to the station in sequence.

FM Record

Press MENU button to enter FM submenu, and then press ( button to choose “MP3 Record” or

“ Fine REC” or “ Long REC” options, and then press MENU button to enter FM Record interface

and start recording; （Other operations are same as the section of “Record Voice”）。

Page 13

Version: 1.7 Page 13 9/15/2006

Look over the Telephone Book information, which stores information including name, mobile telephone number, telephone number, E-mail, IM and FAX numbers. Detailed operation is as follows:

Note:

s The player supports US Band (FM87 - 108MHz) and Japan Band (FM76-90MHz), suitable for different areas.

For Oceania, please choose the US band. (Press MENU button to enter FM submenu, and press : button to

select desired frequency channel.)

s If the current station is in STEREO status, an icon “ ” will be displayed on the LCD. s To delete saved stations please refer to the file deletion section

10. Using the Telephone Book

l Browse Telephone Book information

l Import Telephone Book information

l Export Telephone Book information

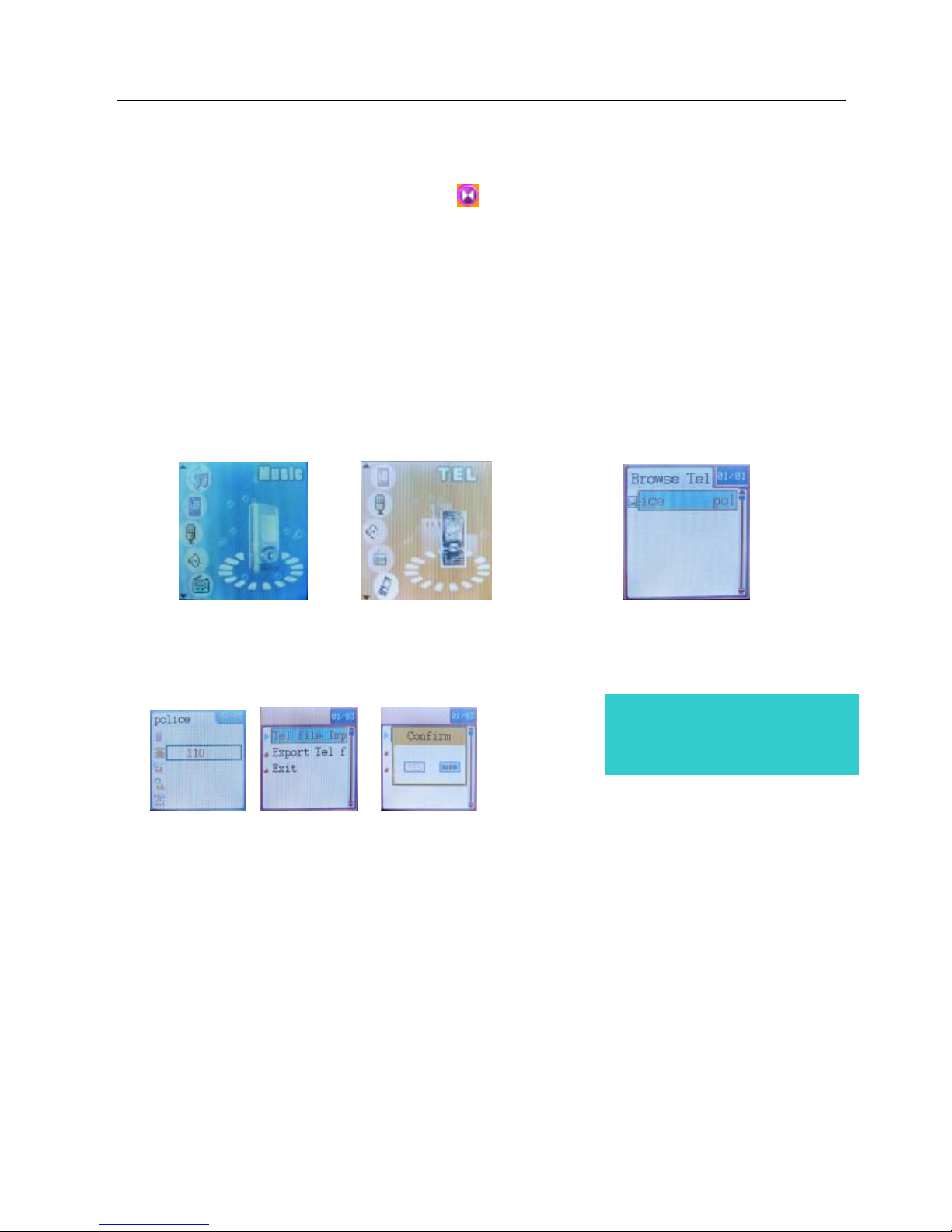

1. Enter the main MENU 2. Press the : button to select “Tel Book”

3. Press the MENU button to confirm and enter。

4. –Press the PLAY button to select the “Browse file”; Press the MENU button to import Tel file and export Tel file function.

5. Press the : button to select name, which will be needed to browse object. And press the MENU button to enter.

6. Press the PLAY button to return to select object interface.

Remark:The Tel_save.bin file must be imported before entering this MENU, otherwise the LCD will display “empty”

Use this function to import new Tel Book information to this player. Detail operating steps is as follows:

1. Use the telephone directory processing tool created Tel_save.bin file.

2. After connecting the player to PC, the Tel_save.bin file needs to be copied to the root directory of the player .

3. Enter the Tel Book MENU, and then select and enter “ import Tel file” option , after turning on the player。

4. Confirm to import Tel_save.bin file to the player.

Use this function to export Tel Book information, which be saved to this player and generate a file that can be edited through the telephone directory processing tool in accessory CD on PC. Detailed operating steps is as follows:

1. Enter the Tel Book mode, and then select and enter “export Tel file”

2. Confirm to export Tel Book data .

3. After connect the player to PC，user can find Tel_Expt.bin file at the root of the disk .

Page 14

Version: 1.7 Page 14 9/15/2006

11. E-Book function This function supports all TXT file.

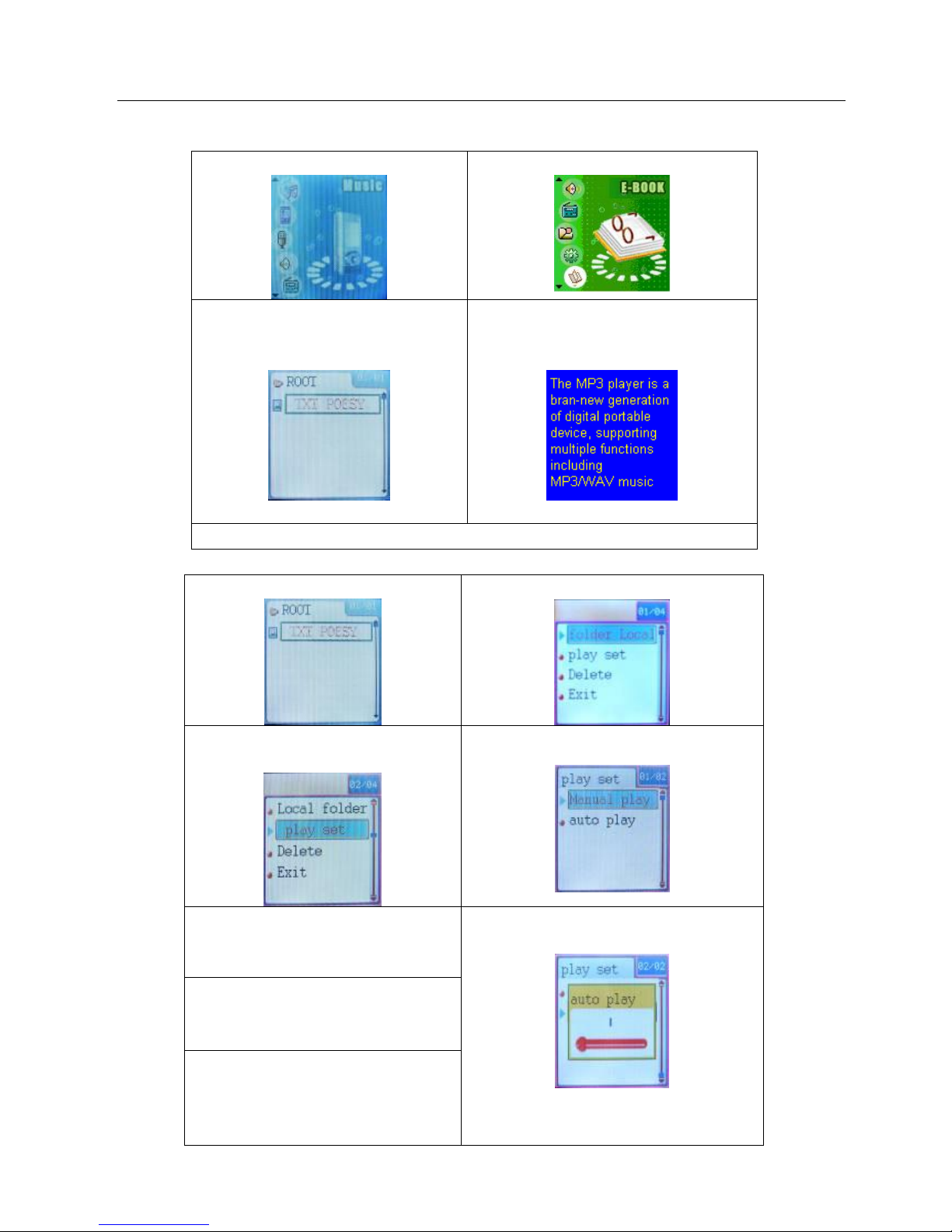

1. Enter the main MENU.

2. Press : button to choose “ E-Book”

3. press MENU

button to enter TXT file

selection MENU （ if no text file

s are

present the display will read“ No files” ）

4. Press :

button to select desired text file to

read, and then press Play

button to enter

text interface

5. Press :/9 button to turn the pages in sequence.（only suitable for ”Manual play” ）

l Play set

1. At the text file selection MENU

2. Press MENU button to enter submenu

3. Press : button to choose “ play set” option:

4. Press MENU button to enter this option:

5. Press : button to choose “ Manual play” or “ auto play” options, and then press MENU button to confirm.

7. Press (/( button to adjust “auto play”

speed，press MENU button to confirm.

Remark：When reading E-

BOOK, press and

hold MENU button to fast exit from picture interface and return to the main menu ; press PLAY button to exit from E-BOOK also。

6. When chose the “ auto play” options and then enter this interface as follows:

Page 15

Version: 1.7 Page 15 9/15/2006

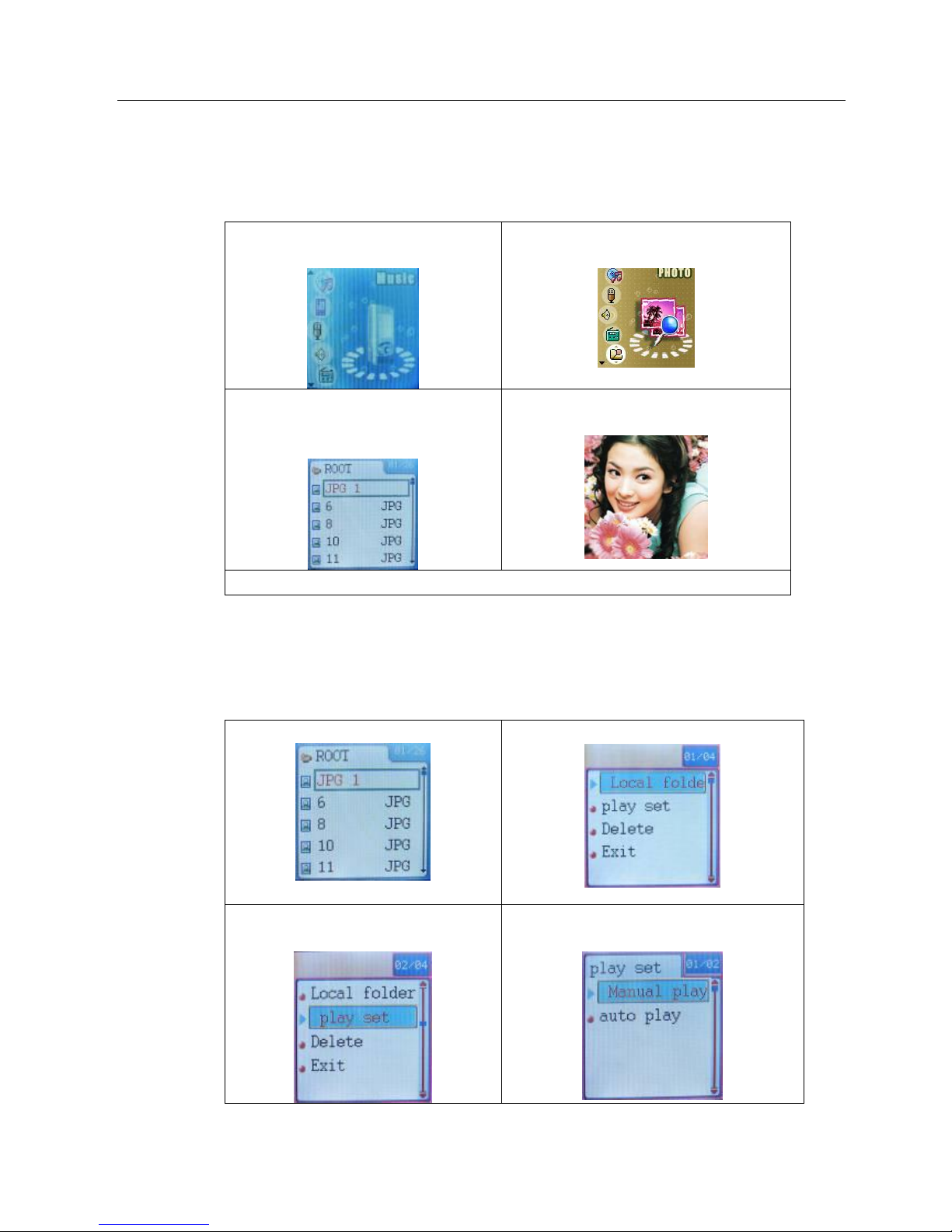

12. JPEG Album

This function supporting all JPEG format picture in network.

1. At the main MENU

2. Press :

button to choose “ JPEG Album”

option:

3.press MENU button

to enter picture

selection（if no pictures are present

, the

display will read “ No files)

4. Press : button to choose desired picture, an

then press Play button to view

5. Press : /9 button to browse picture in sequence..（only suitable for ”Manual play” ）。。

l Play set

1. At the picture selection MENU:

2. Press MENU button to enter picture submenu

3. Press : button to select the “ play set ” option:

4. Press MENU button to enter the interface as follows：

Page 16

Version: 1.7 Page 16 9/15/2006

5. Press : button to choose “ Manual play” or “ auto play” options, then press MENU button to confirm.

7. Press :/9 button to adjust “ auto play” speed，press MENU button to confirm.

Remark：when viewing pictures, press and hold MENU button to

exit from picture interface

and return to the main menu ; press PLAYbutton to exit from picture interface also。

6. When chose “ Auto

play” options and then

press MENU this interface as follows:：

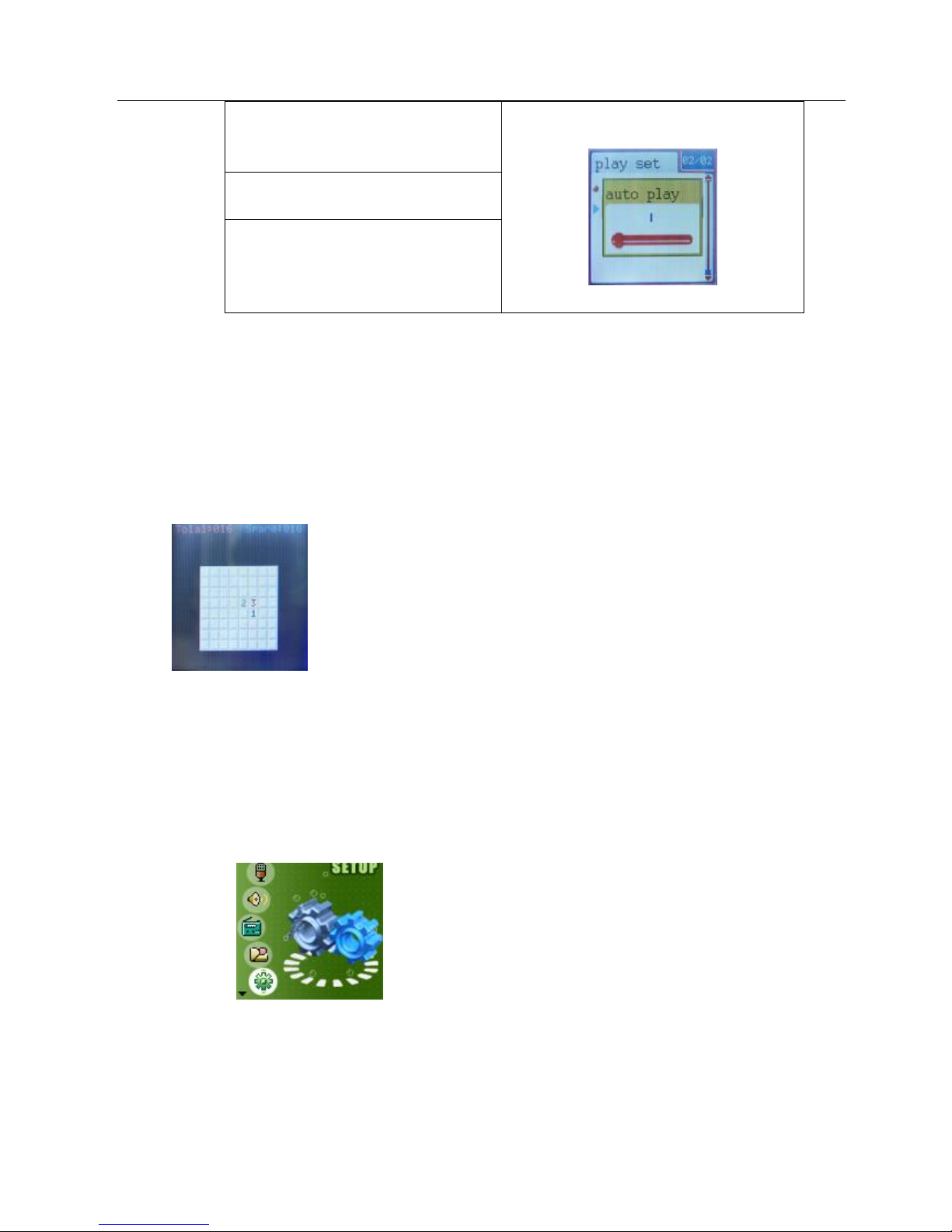

13. Game

There are a number of games preloaded in the Laser MVP. We have supplied the instructions for one of the games that may be on the unit.

The object of Minesweeping is to locate all the mines as quickly as possible without uncovering any of them. If you uncover a mine, you lose the game.

Game view:

14. System Settings

System parameters can be set here and every option varies according to firmware upgrading

At the MENU, press : to select the “SETUP”:

Press MENU button to enter system settings :

Remark: You can uncover a square by clicking it. If you uncover a mine, you lose the game. If a number appears on a square, it indicates how many mines are in the eight squares that surround the numbered one. To mark a square you suspect contains a mine, please press the PLAY button to inset red flag.

Button explain:

MENU button: enter game/uncover a square

: Button: right e 9 Button: left

VOL+: down VOL-: up PLAY button: inset red flag (dig mine).

Page 17

Version: 1.7 Page 17 9/15/2006

l Parameters

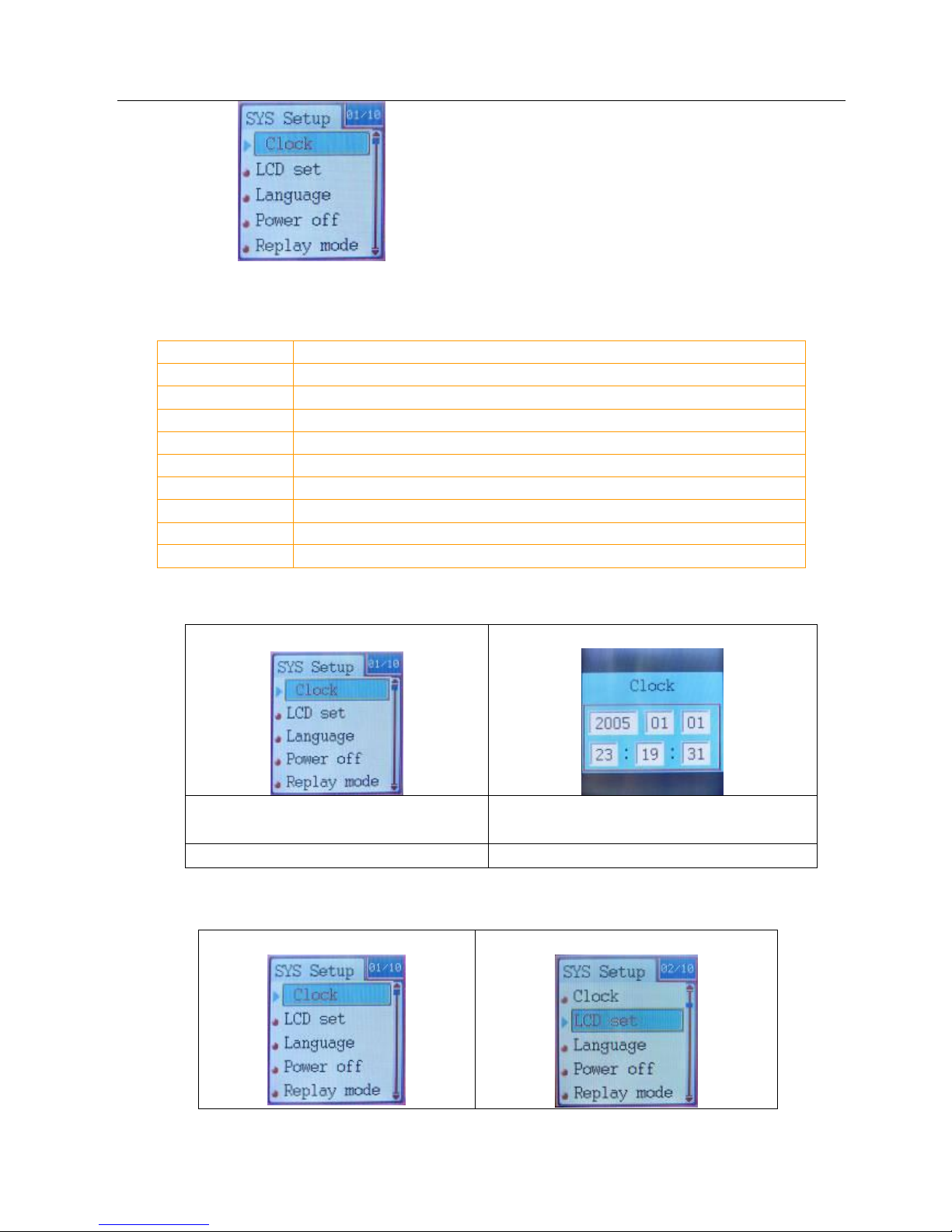

Clock Set the date and time when recorded files are saved LCD set Set the period of time (seconds) when Backlight stays on without any operation Language Set different language Power off Set a fixed time after which the player will turn power off automatically Replay mode Set working states on Replay mode Online Mode An option specially designed for “Private Space” function Memory info. Show memory capacity and percentage that has been used Firmware Version Show firmware version Firmware Upgrading Only used for firmware upgrading Exit Exit from current interface

l Instruction

○ “Clock” set

1. System Setting Interface

2. Press MENU to enter Record Time Interface.

3. Press PLAY to set time in sequence of “ YY-MM-DD”

4. Push :/9 button to adjust numbers

5. Press MENU to confirm and exit.

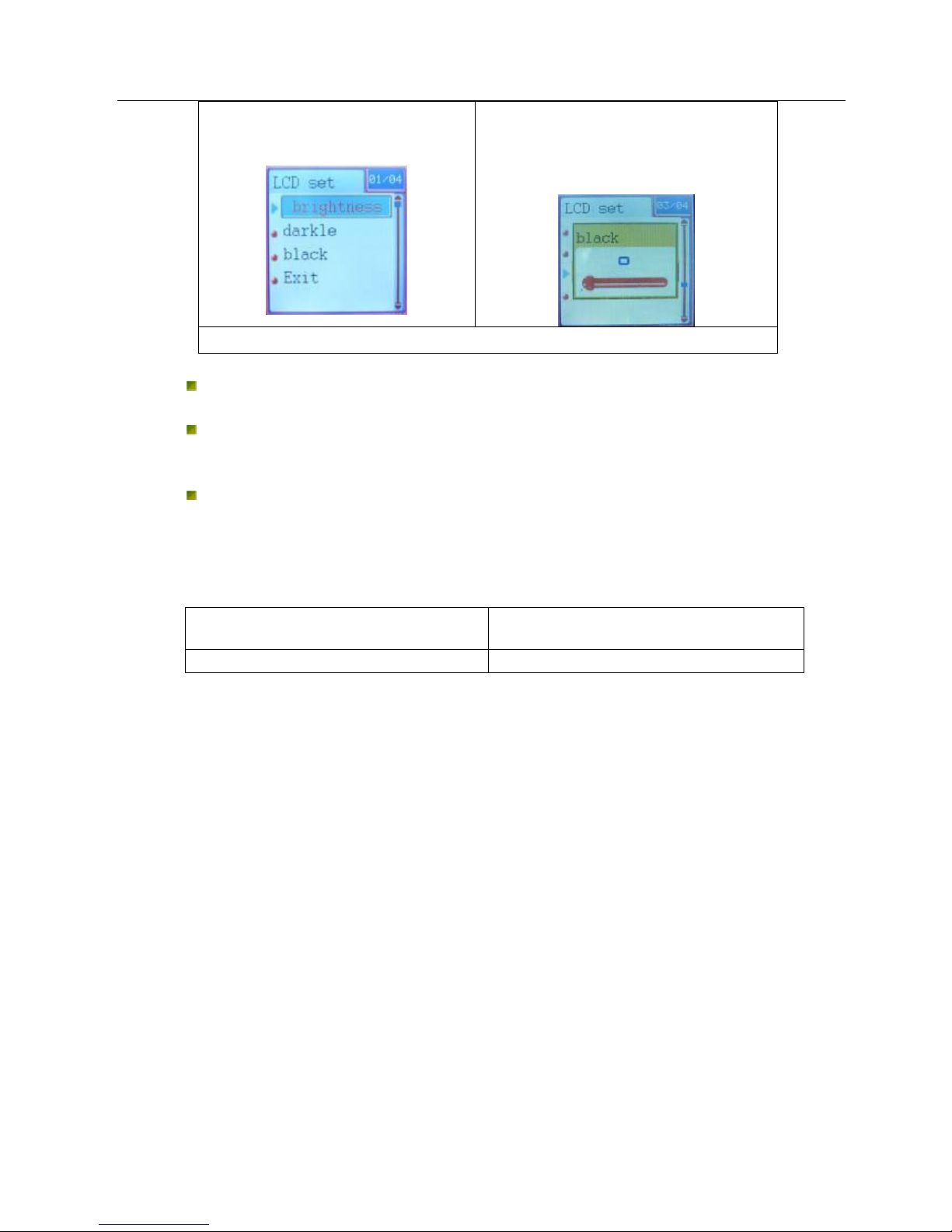

○ “LCD set” setting

Operating steps is as follows:

1．At System Setting interface,

2. Press : key to select “ LCD set” option,

Page 18

Version: 1.7 Page 18 9/15/2006

3．Press MENU button to enter “ LCD set

”

submenu:

4．Press : button to choose, and press

button to confirm and enter adjust interface as follows (e.g.: Black):

5. Press :/9 button to adjust time（Unit：second）， and press MENU to confirm and exit.

brightness

Set light and shade contrast of OLCD screen

Darkle mode

Set fixed period of time (unit: second) , before the player will turn off the screen dark automatically. If “ 0” is selected, function is invalid.

Black mode

Set fixed period of time (unit: second) , before the player will turn the screen off automatically. If “ 0” is selected, function is invalid.

○ “Language” setting

1. At System setting interface, press :/( button

to select “Language” icon:

2. Press MENU button to enter “Language”

setting interface:

3.Press (/ ( button to select desired language.

4．Press MENU to confirm to exit.

○ Power Off Operating steps refer to Language setting.

Off Timer mode refers that after a fixed period of time (unit: second) when no operation of keys at Stop mode, the player will turn off automatically to save power. If “0” is selected, power saving function is

invalid.

Sleep Timer lets you select a fixed period of time (unit: minute) for the player to turn off automatically

when no keys are pressed no matter which mode the player is in. This function is specially designed

for listening to music before sleep. Note: Setting of Sleep Timer is valid only once and the set time

will be cleared after power off.

○ Replay Mode

Operating steps refer to Equalizer Setting Manual Replay means that at A-B Replay Mode the endpoint B can be set manually only.

Auto Replay means that at A-B Replay Mode the endpoint B can be set automatically. (Especially for

English Reading files without music)

Page 19

Version: 1.7 Page 19 9/15/2006

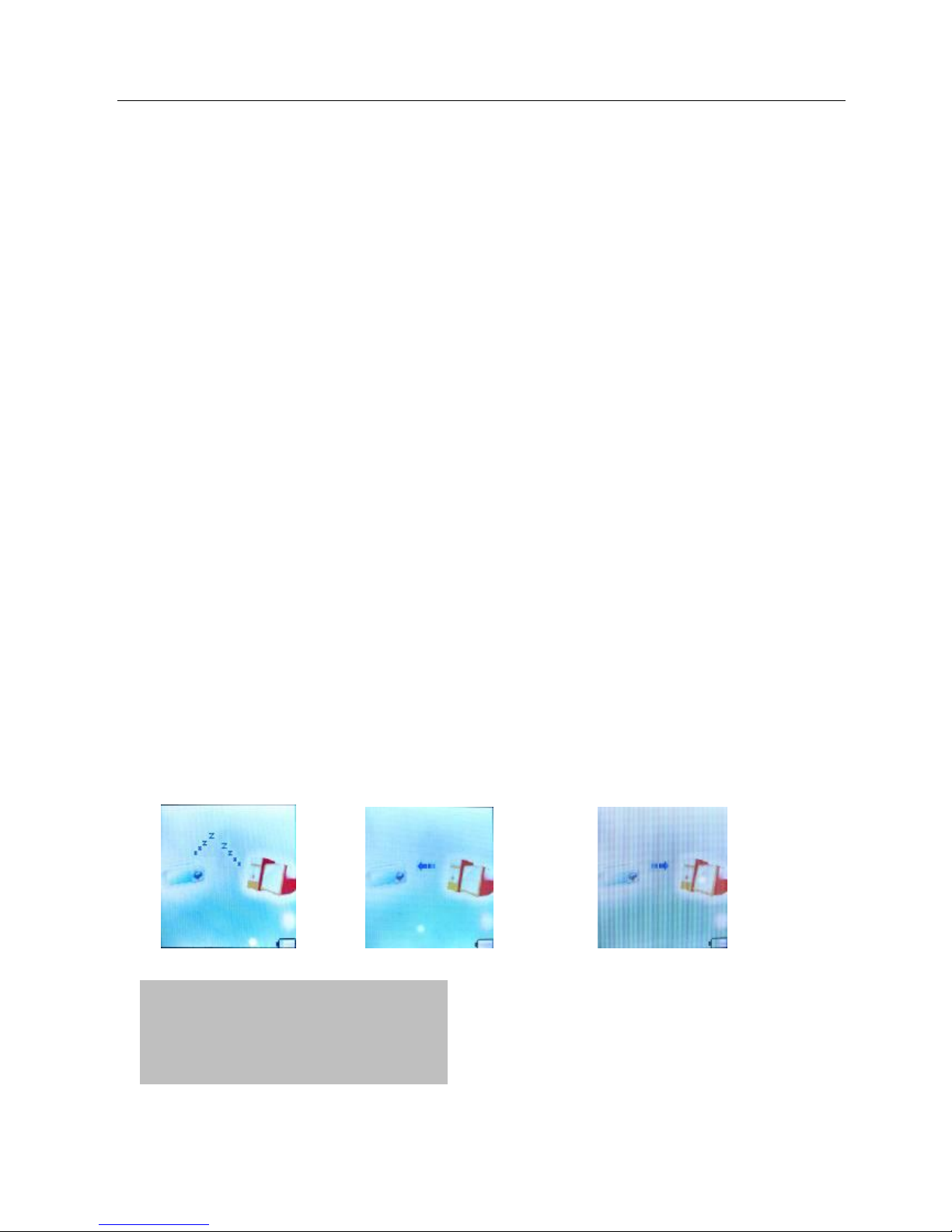

1. Waiting state :

○Creating new folders

The player can identify the 99 folders set up in

the U-disk.

2. Downloading state:

3.Uploading state:

○ Online Mode

Operating steps refers to Equalizer setting.

Some operating systems (under Windows 2K SP4) can not support two driver letters in one USB disk.

Thus, if “Private Space” function is on, choose which disk you are going to use, i.e., “single ordinary disk”

or “single encrypted disk”, in order for correct display of selected disk after connecting to PC.

○ Memory Info. The number displayed represents total memory capacity and the percentage refers the capacity used.

○ Firmware Version

Firmware Version information the player uses can be obtained here. ○ Firmware Upgrade

It is specially designed for Firmware Upgrade.

15. Use USB Disk

The player supports standard USB disk function under Windows®98 (driver needed), Windows®2000 and

above (driver free), Mac OS 10.3 and above, Linux 2.4.2 and above. The player supports power supply through USB. At waiting Mode, press MENU to exit to main MENU, then select to enter desired mode.

The player also supports Suspend Mode.

How to connect to PC? Power on the player and plug the USB cable to enter the following Mode 1.

The player may display the following mode after connecting to PC:

16. Firmware Upgrade

The player supports firmware upgrading or maintenance through installing special tools on PC.

Page 20

Version: 1.7 Page 20 9/15/2006

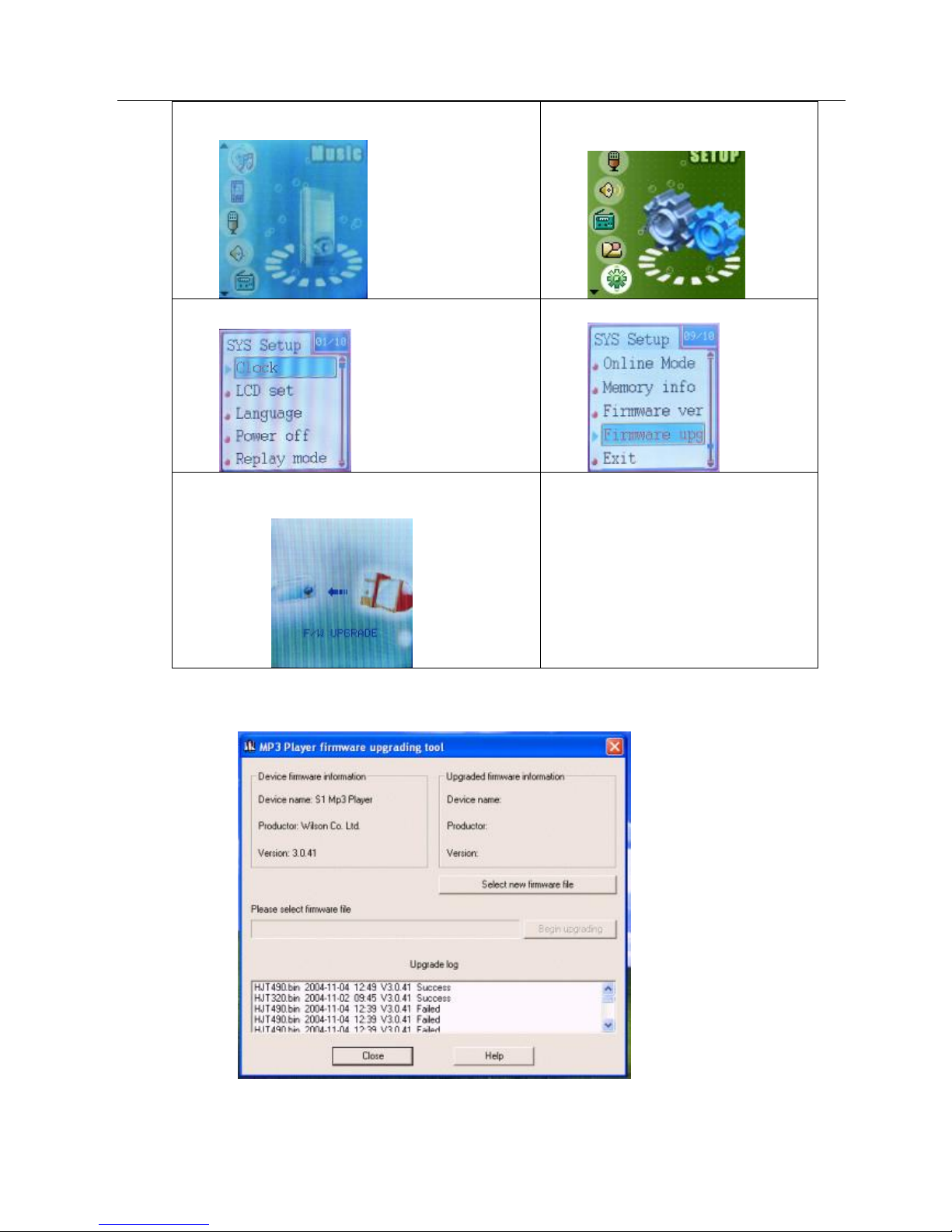

1. Enter the main MENU.

2. Press : button to select “ SETUP”

3. Press MENU button to enter System Setting.

4. Press :

button to choose “ Firmware upgrade” option

5. Press MENU button to enter “ firmware upgrade” interface

5. Connect the player to PC

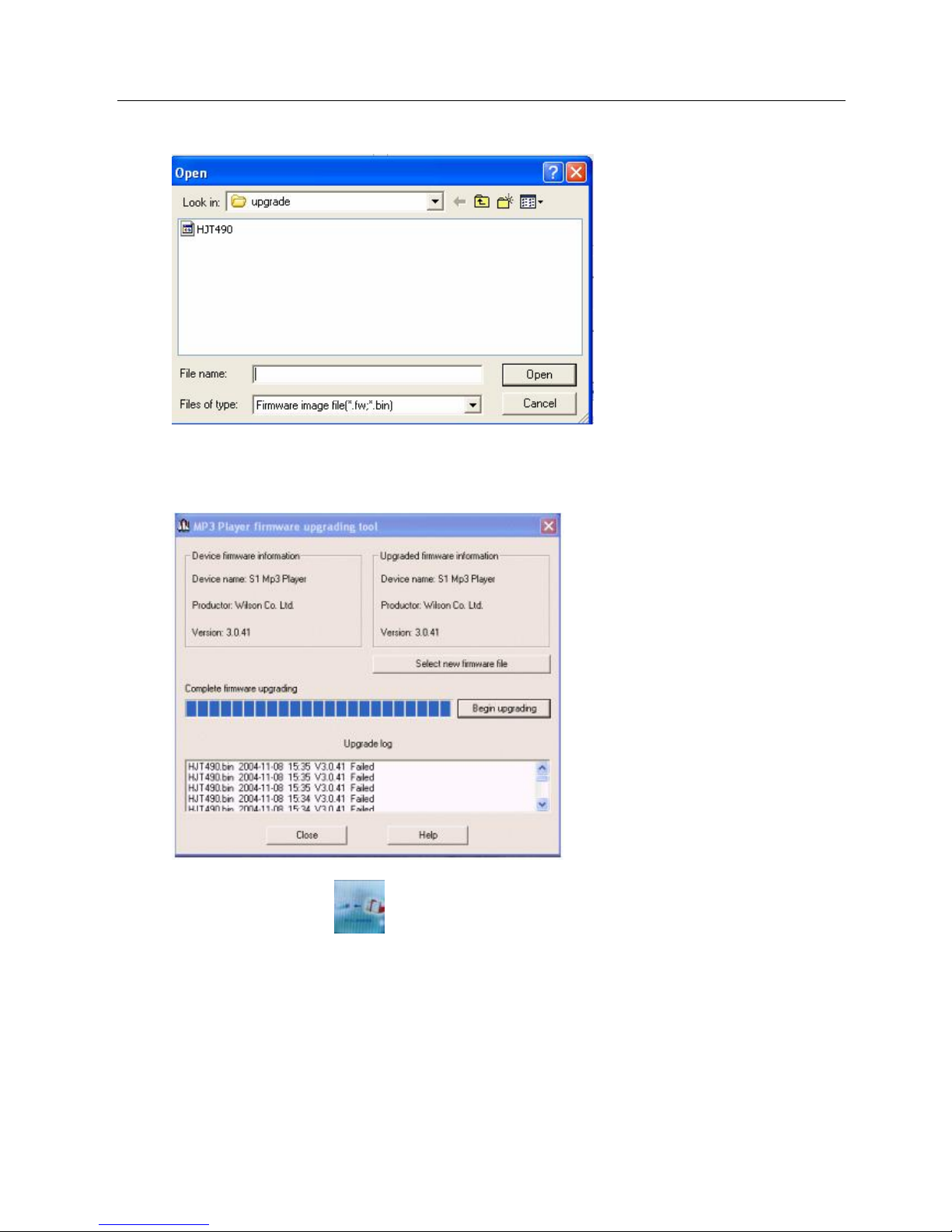

7. Run the “MP3 Player Update” program in upgrading tools on PC, then click “ Select new firmware file”

button. the UI is as follows:

Page 21

Version: 1.7 Page 21 9/15/2006

9. Choose new firmware program (You may find it in accessory CD or download from our website.）

10. Click “Start” button, the system starts upgrading.

11. The Unit will display

12. If upgrade is successful, the player will reset.

F Notice:

Ÿ Firmware upgrade is an operation to promote and optimize the performance of the player. Even if the firmware works without

upgrading, there is not any influence on the normal operation of the player. Ÿ Incorrect operation of firmware upgrading may cause the player to operate abnormally. Please read the manual carefully before operation. Firmware upgrading should only be performed by people with sound knowledge in computer hardware.

Ÿ The firmware is specially programmed for this player only.

Page 22

Version: 1.7 Page 22 9/15/2006

17. Other settings

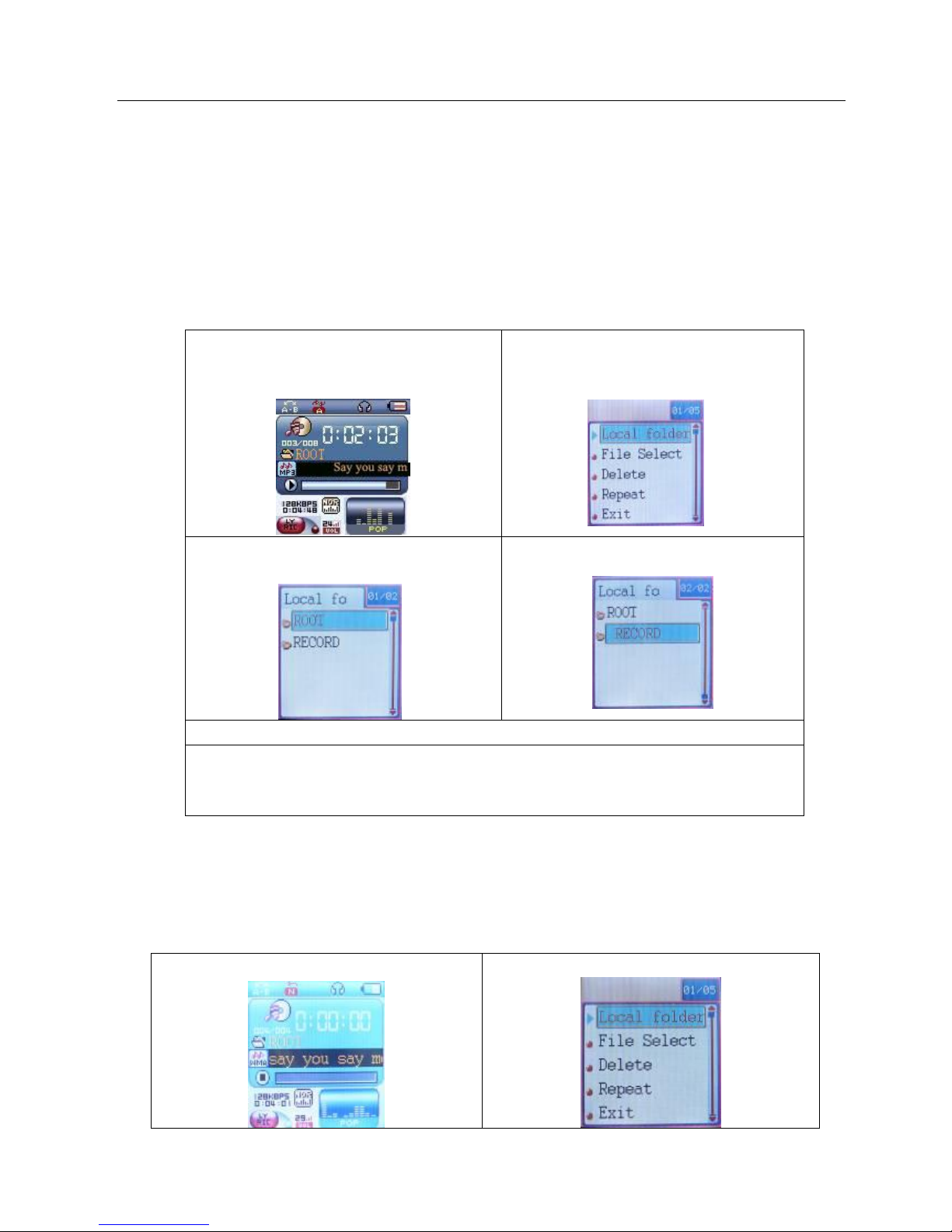

l Select Folders (At Stop Submenu)

Users can save files in different folders (folders should be created on PC in advance), to manage and play

files according to different types. The player supports identification of 99 subdirectories.

1. At Stop interface. (Current example is at Music Mode, and folders can be selected at Record mode， Voice Mode, JPEG Album and E-book also.)

2. Press MENU button to enter Stop Submenu.

3. Press MENU button again to enter Select Folder interface.

4. Press :/ 9buttons to choose folders.

5. Press MENU button to confirm the folders selected. Note: Independent folders can be set at corresponding modes as Music Mode, Record Mode, Voice

Mode, JPEG Album mode and E-

book mode i.e., three modes are not bound to correspond with the same

folder.

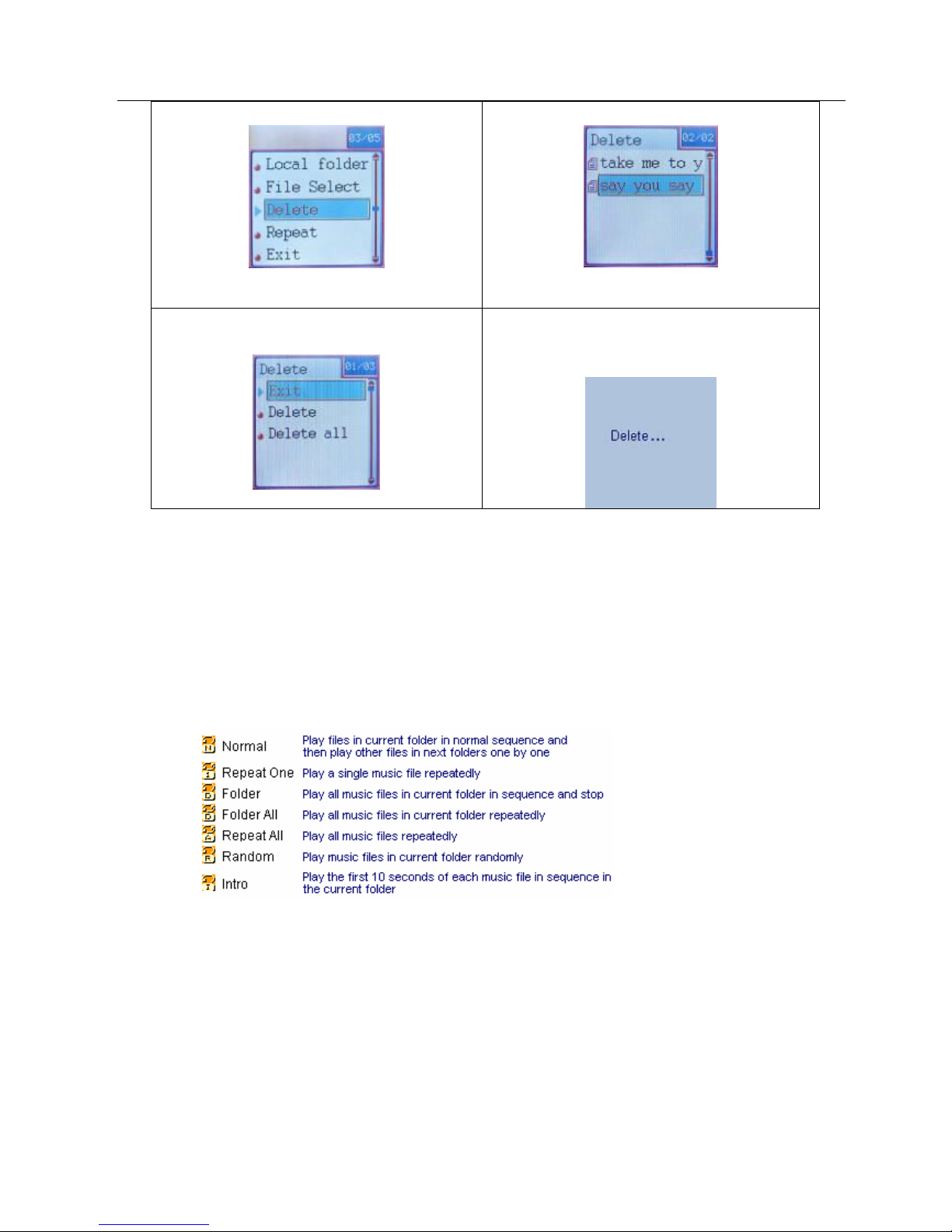

l Delete File (At Stop Submenu)

Files and FM stations can be deleted at corresponding modes as Music Mode, Voice Mode and FM Mode.

1. At the stop interface. (No stop interface exists at FM Mode)

2. Press MENU button to enter stop submenu

Page 23

Version: 1.7 Page 23 9/15/2006

3. Press : buttons to choose “ Delete” option.

4. Press MENU button to enter Delete file folder

5. Press MENU button to enter Delete file folder submenu

6. Press : button to choose “ Delete” or “ Delete all” , and Press MENU button to confirm and deletion starts.

Remark: “Delete All” means to delete all the relevant files at current mode in current folder. (For example, at Music Mode

executing “Delete All”, all the music files in current files may be deleted, while recorded files will not change.) The deleting interface is much simpler at FM Mode, only to the 3rd step. It is the saved stations to be deleted.

Note: When deleting files on PC, please take care to eject the player safely before pulling out USB cable, otherwise files may not be deleted.

l Play Mode (Play Submenu)

When playing music and recorded files, different play modes can be selected.

Enter play/stop submenu to enter

The first option in Play Submenu is Play Mode. The player will play files according to the mode selected.

l Tempo Rate (Play Submenu)

When playing music (Only for MP3 formats) or recorded files, a different tempo rate can be set (faster or

slower) without changing the tone.

Page 24

Version: 1.7 Page 24 9/15/2006

1. When playing music

2. Press MENU button to enter Play Submenu is as follows:

3. Press : button to choose Tempo Rate option

4. Press MENU button

to enter Tempo Rate

interface is as follows:

5.Press : button to quicken tempo rate and press 9 button to slow down tempo rate.

l Replay Mode

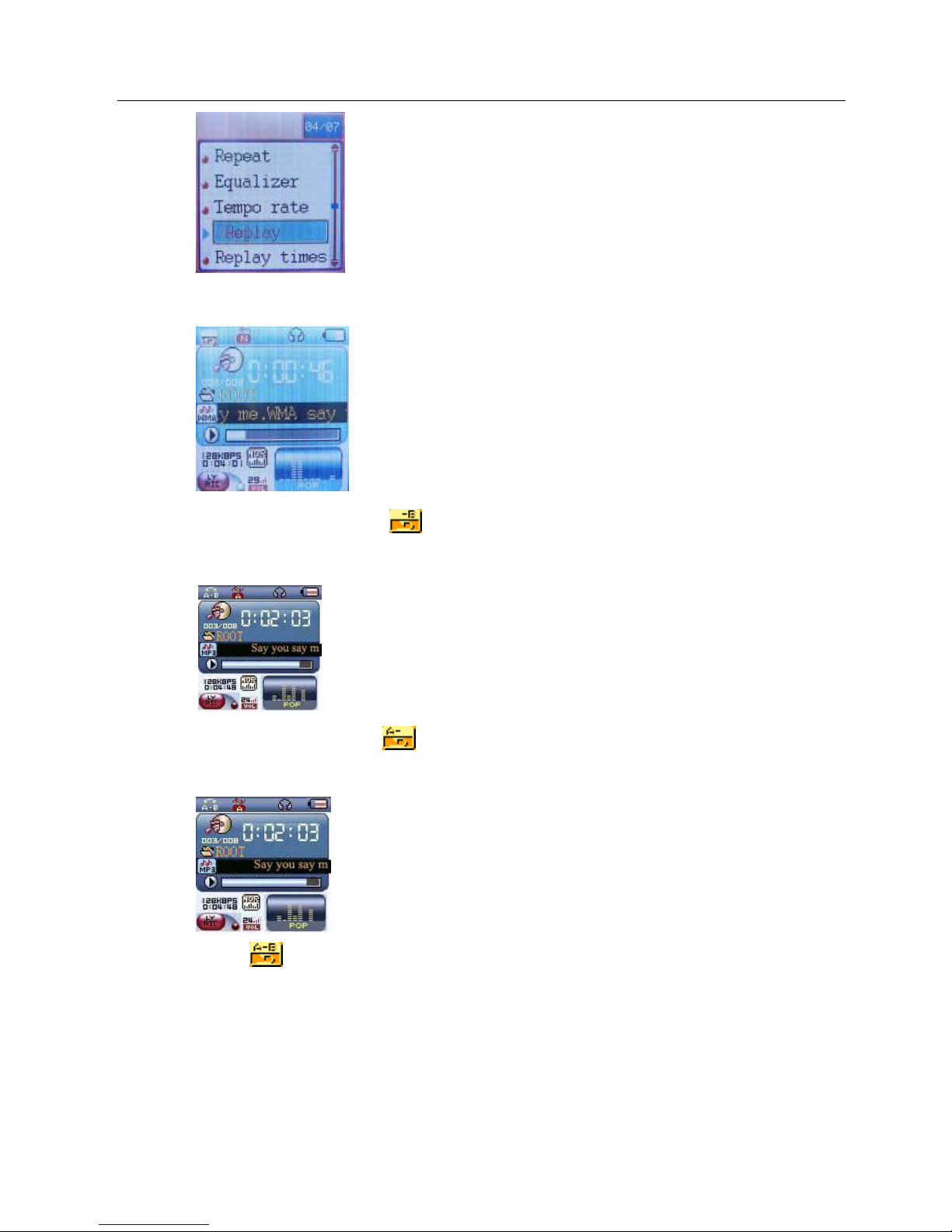

○ A-B Replay

1. At Music Mode or Voice Mode

2. Press MENU to enter Play Submenu.

3. Press : to select “Replay”.

Page 25

Version: 1.7 Page 25 9/15/2006

4. Press MENU to enter Replay.

: “A” flickers in Replay Mode icon and start point is to be set.

5. Press : to set “A”.

After “A” set, “B” flickers in icon , and endpoint B needs to be set.

6. Press : to set “B”.

Replay icon is fixed and A-B segment replay begins. When replay times count up to times set in advance, the player will quit from Replay Mode. At Replay Mode, pressing 9 can set “A” again to select another segment. (Setting of replay times refers to “Replay Times” in the : section.

○ Follow Read (This function does not exist in Voice Mode)

1. Replaying A-B segment, Press : to enter Follow Read Mode.

Page 26

Version: 1.7 Page 26 9/15/2006

2. Replay icon changes to Follow Read icon , and recording commences. The recording time

is as long as A-B segment.

3. After recording time, the icon changes to , and original sound is played. Press : button to enter

Comparison.

¯ At this mode, pressing 9 button will return to A-B Replay Mode.

○ Comparison (This function does not exist in Voice Mode)

1. Enter this mode, Replay icon changes to and original sound is played.

2. After playing the original sound, the icon changes to , and the recorded sound of users is played

3. After playing the original sound, the recorded sound is played again. The whole procedure will not stop (without limitation by Replay Times) until press MENU to exit.

¯ At this mode pressing 9 will return to Follow Read Mode. ¯ At the three modes above, pressing MENU will exit from Replay Mode directly.

l Replay Times (Play Submenu)

Operating steps refer to Backlight setting. Replay times mean that after A-B segment has been replayed up to fixed times, it will exit from Replay Mode.

l Replay Gap (Play Submenu)

Operating steps refer to Backlight setting. Replay gap means the break period between different playing

times (unit: second).

l Privacy Recommendation

Private Space function

Many users are concerned by the possibility of information disclosure and private data accessed by others.

The “Private Space” function provided by this player completely solves the issue. Users may divide the USB disk of this player into two disks (users may see two driver letters on Windows®

XP, However Windows® 2000 users should install Service Pack 4, otherwise only one drive letter can be seen. (Users running Windows® 2000 without SP4 must choose “single ordinary disk” or “single encrypted disk” in

“Online Mode” of “Sys Setting” MENU.), and one part can be encrypted as private space which needs password to access to. (If users do not encrypt both parts, USB memory may be treated as two disks.) Connect the player to PC.

1. Run the accessory installation tools “MP3 Player Disk Tool”.

Page 27

Version: 1.7 Page 27 9/15/2006

2. The first is format tool. Choose “ Partition and encrypt” option, and set a desired capacity for the encrypted

disk, then choose the setting of username or password. Fill the username in the blank “New username”, and password in the blank “New password”, then input the same password again in the blank “New password Confirm”. After the above operation, click “Start” button, and partition starts.

3. Partition finishes with dialogue as follows:

Page 28

Version: 1.7 Page 28 9/15/2006

4. Press “OK”, then PC may restart.

5. Two disks may be displayed after restarting (only one driver letter may be displayed when under Windows

2K ). Click to access the encrypted disk and there is a executable file

6. Run the executable file “RdiskDecrypt.exe”, and input username and password in dialog box. If they are

correct, disk can be accessed and files can be copied.

Page 29

Version: 1.7 Page 29 9/15/2006

7. Username and password is required to access to the encrypted disk in every connection to PC.

F Note: Dividing one disk into two parts may erase the data in it. Please backup the data in disk

before division. And merging two parts to one may also erase the data.

F Warning: Do not lose the user name and password you’ve input, otherwise you can not

access the encrypted disk and you have to merge the two parts to cancel the encrypted disk with all files being deleted.

Trouble Shooting

No Power ¯ Check whether the player is turned ON.

No sound is heard from headphone.

¯ Check whether Volume is set “0”

and connect the headphone

plugs firmly.

¯ Check whether the headphone plug is dirty. ¯ Corrupted MP3

may make a static noise and the sound may

cut off. Make sure that the music files are not corrupted. Characters in LCM are corrupted

¯ Check whether the right language has been selected.

FM Reception is poor.

¯ Adjust the position of the headphone and player. ¯ Turn off the power of other electric devices near the player. ¯ The headphone may be used as the antenna.

Download of music files fails.

¯ Check whether USB

cable is damaged and is connected

properly.

¯ Check whether driver is installed correctly. ¯ Check whether the player’s memory is full.

Specification

Dimension 90*40*8mm Weight 45g LCM Window 1.5” CSTN screen PC connection USB2.0 Flash memory 128M－2GB Battery Max Play time:5 hours

Sample rate 8KHz Recording format WAV（ 32K bps）. ACT（8K bps）

Record

Recording time 35 hours（ACT，128M Flash） Max output of headphone （L）10mW＋（R）10mW（ 32Ohm）

MP3 bit rate 8K bps – 320K bps WMA. WMV. ASF bit rate 5K bps – 384K bps Frequency response 20Hz to 20KHz SNR 85dB

MP3. WMA. WMV. ASF

Distortion <0.05% Receiving frequency range 76MHz – 90MHz / 87.5MHz – 108MHz Stations saved 20＋20 Max output of headphone （L）10mW＋（R）10mW（32Ohm）

FM radio

SNR 45dB Music format MP1. MP2. MP3. WMA. WMV. ASF. WAV Working temperature -5 to 40 ℃

multi- language show

Simple Chinese ，Trad Chinese ，Japanese ，Korean ，English ，French ，Italian， German ，Spanish ，

Swedish ，Portugal ，Denmark , Dutch, Russian, Czech Operating System Windows98/SE/ME/2K/XP. Mac OS 10. Linux 2.4.2

Note: Product design and specification may change without notice.

http://www.laserco.net
