Page 1
Part No. 8570
Instructions
Engine Timing Master Kit
PSA 1.0, 1.2 EB2 Petrol
www.lasertools.co.uk
Page 2
This kit brings together early and late tools for the EB0 & EB2 wet belted engines
from the PSA group in to one complete kit.
• The kit includes all the tools that allow the most cost effective method of timing
these engines depending on the cam cover fitted. Early EB2 engines have a one
piece cam cover that must be removed to access the cams where later engines
have a split plastic cam cover allowing a simpler method of timing to be used. The
kit provides the tools do the job in both ways allowing significant time saving to
be made on the later engines.
• Note: tool also available in separate kits – see Laser Part Nos. 6200, 8352 & 8207
for further details.
• Applications found across the Citroën, DS, Peugeot & Vauxhall/Opel ranges.
• Engine applications include: OB0 & EB2 engines (both 1.0L & 1.2L engines),
please see full applications list in downloads.
• Includes the Laser 8207 timing belt checking tool. To refit the water pump belt
use stretchy belt installation tool - Laser 7595.
• Equivalent to OEM 0109 2A, EN-52127-1, 0109-2B, 0197-N, EN-52127-2, J-01092C & J-0109-2D.
Use in accordance with OEM instructions.

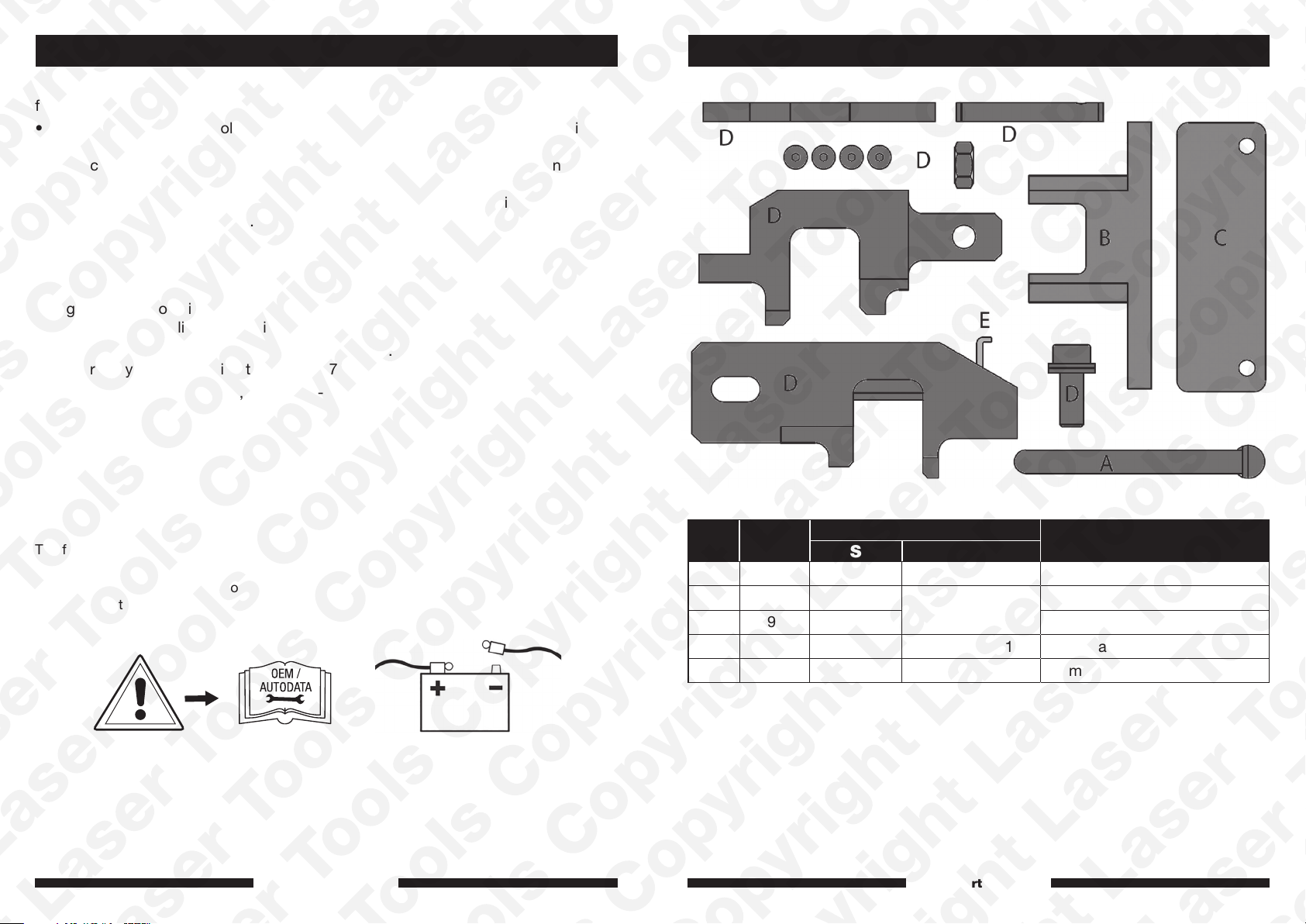

ComponentsIntroduction
The following instructions are for guidance only. Please refer to OEM derived data such as
the vehicle manufacturers’ own data or Autodata.
The use of this engine timing tool kit is purely down to the user’s discretion and The Tool
Connection Ltd. cannot be held responsible for any damage caused whatsoever.
www.lasertools.co.uk
Ref.
Comp.
Code
OEM Ref.
PSA Vauxhall/Opel
Description
A C662 0109-2B EN-52127-2 Flywheel Locking Tool
B C994 J-0109-2C
C C995 J-0109-2D Exhaust Camshaft Timing Tool
N/A
Inlet Camshaft Timing Tool
D C661 0109-2A21 EN-52127-1 Camshaft Setting Tool
E C982 G-0109-6 N/A Cambelt Checking Tool
www.lasertools.co.uk
32
Page 3
Applications - Engine CodesApplications
Manufacturer Model Year
Citroën
Peugeot
DS
Toyota Aygo 2015 to 2018
Vauxhall/Opel
Always refer to the website for most up to date applications:
Berlingo 2014 on
C1 II 2014 to 2018
C3/Picasso 2012 to 2017
C3/Aircross 2016 on
C4/Cactus 2014 on
C4 Picasso/Grand Picasso II 2015 to 2018
C4 SpaceTourer/Grand SpaceTourer 2018 on
C5 Aircross 2019 on
C-Elysee 2012 to 2020
DS3/DS3 Cabrio 2013 to 2015
DS4 2014 to 2015
108 2014 to 2018
208 2012 on
301 2012 to 2020
308 2013 to 2021
508 2019 on
2008 2013 on
3008 2014 on
5008 2014 on
Partner 2014 on
Rifter 2018 on
DS 3/Crossback 2015 on
DS 4/Crossback 2015 to 2019
DS 7/Crossback 2018 to 2022
Combo-E 2018 on
Corsa-F 2019 on
Crossland X 2017 on
Grandland X 2017 on
www.lasertools.co.uk/product/8570
1.0L Non-turbo
ZMZ (EB0)
ZMZ (EB0F)
1PP (HM01)
Engine Codes
1.2L Non-turbo 1.2L Turbo
HMH (EB2FAD) HNK (EB2ADT)
HMM (EB2FAD) HNK (EB2ADTD)
HMP (EB2FB) HNN (EB2ADTX)
HMR (EB2FA) HNP (EB2ADT)
HMT (EB2) HNS (EB2ADTS)
HMT (EB2F) HNV (EB2DT)
HMU (EB2D) HNV (EB2DTM)
HMU (EB2FD) HNW (EB2DTSM)
HMV (EB2M) HNX (EB2DT)
HMW (EB2) HNX (EB2DTSD)
HMX (EB2F) HNY (EB2DTS)
HMY (EB2M) HNZ (EB2DT)
HMZ (EB2)
HMZ (EB2F)
B12XE (EB2F) B12XHL (EB2DT)
D12XE (EB2FA) B12XHT (EB2DTS)
F12XE (EB2FA) D12XHL (EB2ADT)
HMH/EB2FAD D12XHT (EB2ADTS)
F12XHT (EB2ADTS)
HNK/EB2ADTD
HNS/EB2ADTS
www.lasertools.co.uk www.lasertools.co.uk
54
Page 4
InstructionsInstructions
Component Descriptions:

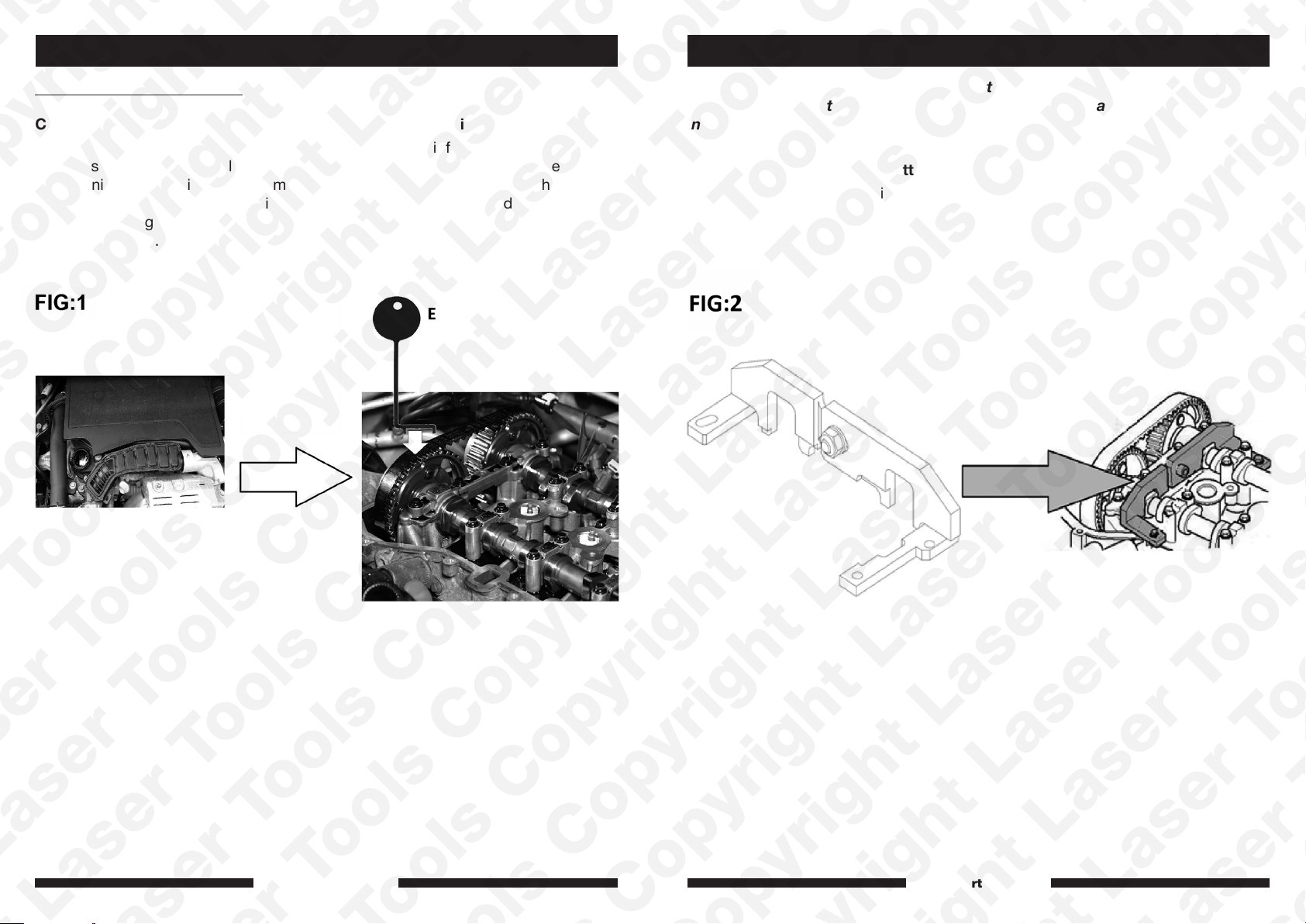

Component E = Cambelt checking tool (for non-turbo engines)
It is possible to check the cambelt condition by checking it for swell. This can be
done easily without dismantling the engine. Using component E through the oil filler
cap opening it is possible to confirm if the belt has swollen or not. If the checking
gauge (E) does not fit on the belt it indicates the belt has swollen and must be
replaced (see Figure 1). It is also advisable to remove the engine sump and clean
out the oil pickup.
NOTE: When working on earlier engines that do not have a split plastic cam
cover use camshaft setting tool (D) to clamp the camshafts in place as shown
in Figure 2.
Component D = Camshaft Setting Tool Assembly
Assemble the camshaft setting tool and fit on the camshafts as shown in Figure 2.
www.lasertools.co.uk www.lasertools.co.uk
76
Page 5

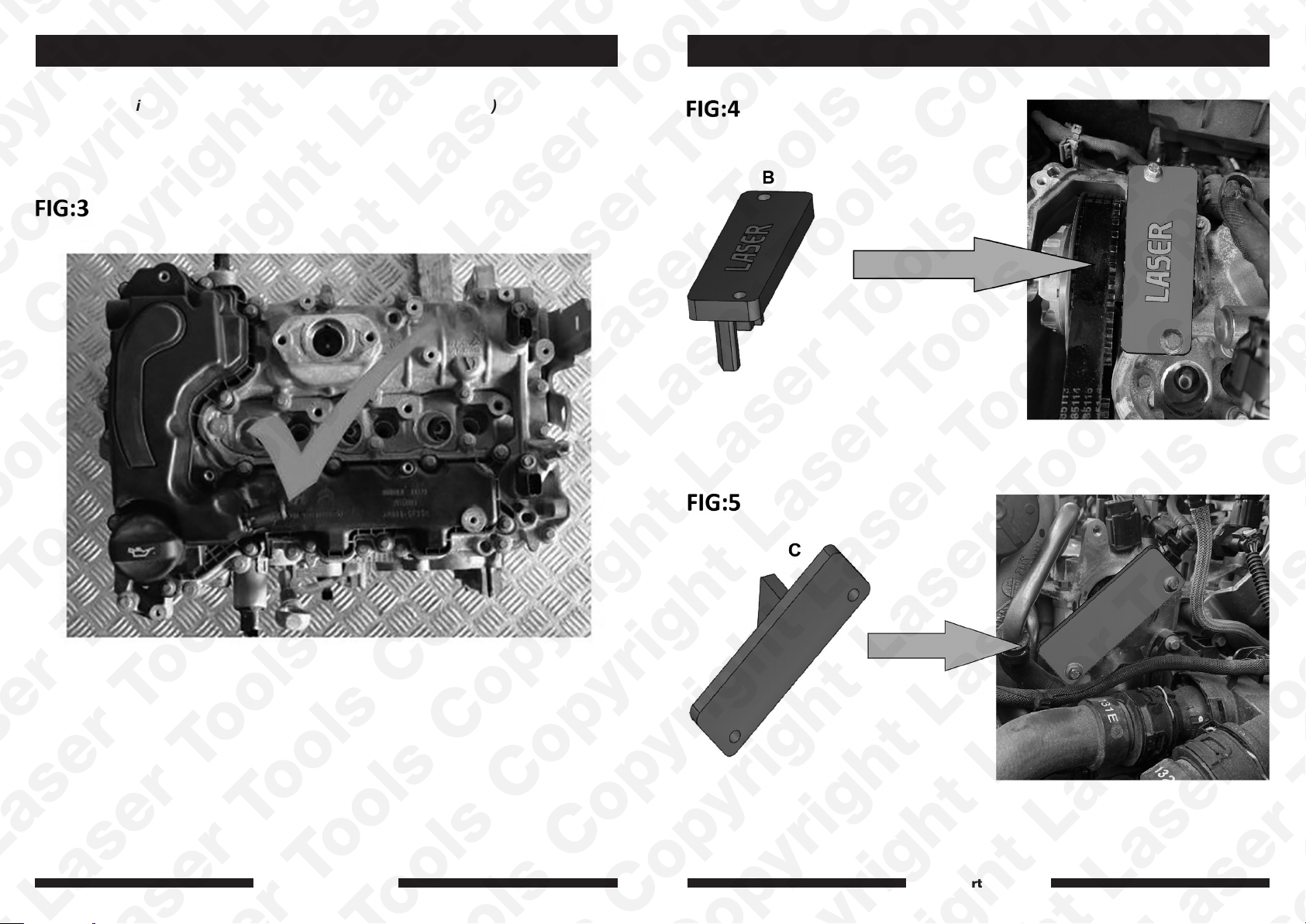

NOTE: When working on an engine with a split cam cover (turbo engines)
as shown in Figure 3, use camshaft alignment tools (B) and (C) as shown in
Figures 4 and 5.
InstructionsInstructions
www.lasertools.co.uk www.lasertools.co.uk
98
Page 6
Instructions
Safety Warnings - please read
To fit component C the brake vacuum pump must be removed.

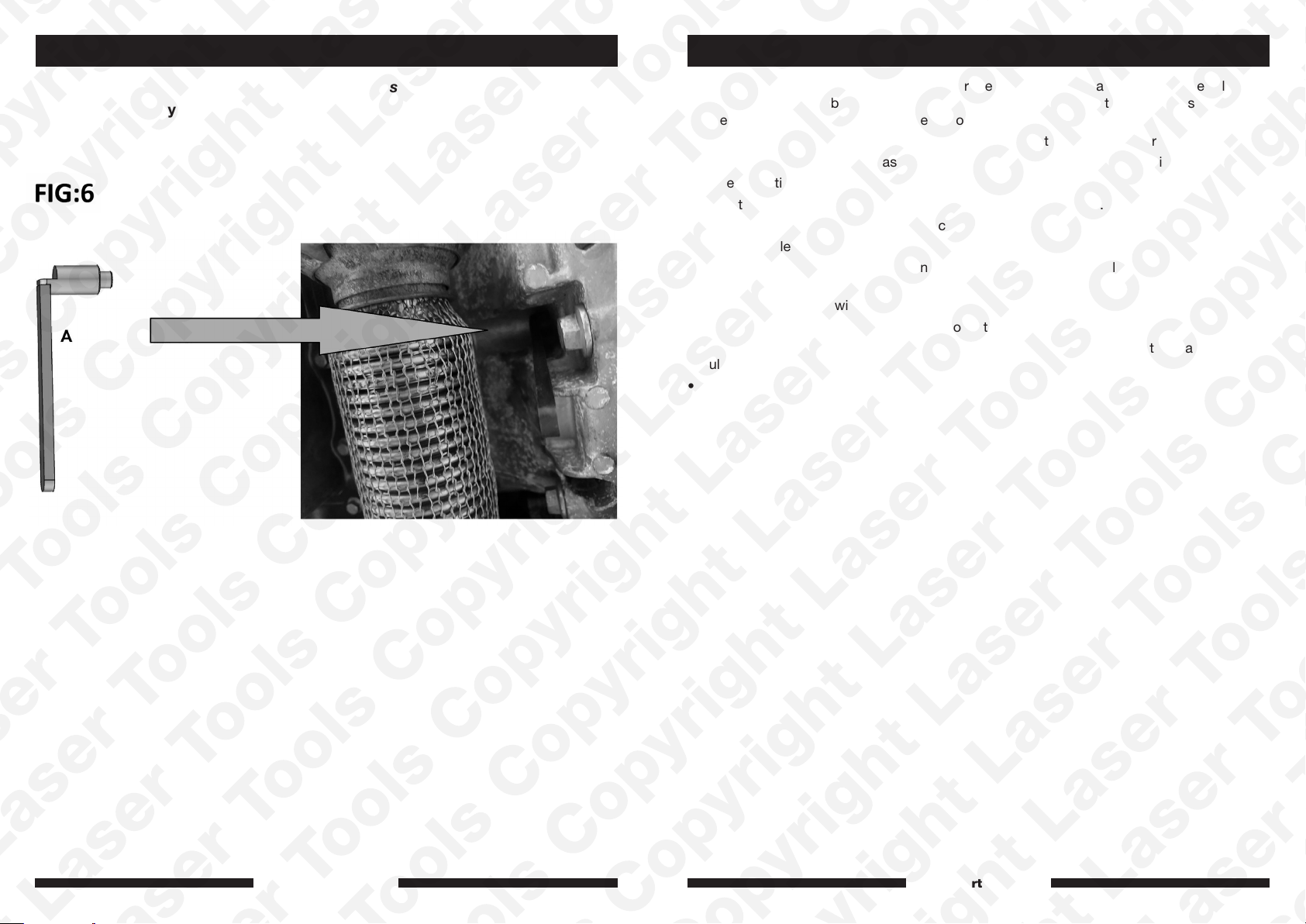

Component A = Flywheel Alignment Tool
Insert in to flywheel as shown in Figure 6.
• If the engine has been identified as an Interference engine, damage to the engine will occur
if the timing belt has been damaged. A compression check of all the cylinders should be
taken before the cylinder head(s) are removed.
• Do not turn crankshaft or camshaft when the timing belt/chain has been removed.
• To make turning the engine easier, remove the spark plugs/glow plugs or injectors.
• Observe all tightening torques.
• Do not turn the engine using the camshaft or any other sprocket.
• Disconnect the battery earth lead (check radio code is available).
• Do not use cleaning fluids on belts, sprockets or rollers.
• Some toothed timing belts are not interchangeable. Check the replacement belt has the
correct tooth profile.
• Always mark the belt with the direction of running before removal.
• Do not lever or force the belt onto its sprockets.
• Do not use timing pins to lock the engine when slackening or tightening the crankshaft
pulley bolts.
• ALWAYS REFER TO A REPUTABLE MANUFACTURERS WORKSHOP MANUAL.
www.lasertools.co.uk www.lasertools.co.uk
1110
Page 7
Our products are designed to be used correctly and with care for the purpose for which they
are intended. No liability is accepted by the Tool Connection for incorrect use of any of our
products, and the Tool Connection cannot be held responsible for any damage to personnel,
property or equipment when using the tools. Incorrect use will also invalidate the warranty.
If applicable, the applications database and any instructional information provided has been
designed to offer general guidance for a particular tool’s use and while all attention is given
to the accuracy of the data no project should be attempted without referring first to the
manufacturer’s technical documentation (workshop or instruction manual) or the use of a
recognised authority such as Autodata.
It is our policy to continually improve our products and thus we reserve the right to alter
specifications and components without prior notice. It is the responsibility of the user to
ensure the suitability of the tools and information prior to their use.
www.lasertools.co.uk
8570_Instructions_V3
