Page 1
3-in-1 Riveter, RivNut
& Reaming Tool
Instructions
Part No. 8355
www.lasertools.co.uk
Page 2
Introduction
This robust, multifunction tool combines a rivet gun, capable of installing both hand (pop)
rivets and rivnuts/nut rivets, with a reaming/nibbler tool suitable for use on mild steel (≤ 2mm),
stainless steel (≤ 1mm), galvanised steel (≤ 2mm) and aluminium (≤ 2mm).
Supplied with four colour-coded rivet heads suitable for fitting 2.4, 3.2, 4.0 and 4.8mm hand
(pop) rivets. Rivnut mandrel sizes include M3, M4, M5 and M6. Two different reaming/nibbler
broaches are included, suitable for cutting curved and square edges.
The tool features soft grip handles allowing for easy one handed operation along with a 360°
swivel head for ease of access.

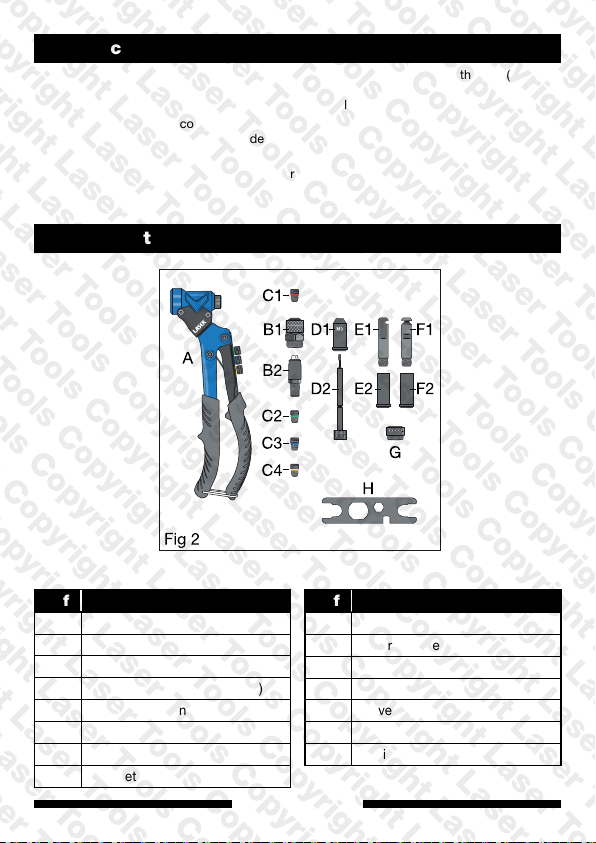

Components
Ref. Description
Rivet tool
A
Rivet sleeve
B1
Rivet tool insert
B2
Rivet head red: (2.4mm 3/32")
C1
Rivet head green: (3.2mm 1/8")
C2
Rivet head blue: (4.0mm 5/32")
C3
Rivet head yellow: (4.8mm 3/16")
C4
Nut rivet sleeve (M3, M4, M5, M6)
D1
2
Ref. Description
D2
E1
E2
F1
F2
G
H
www.lasertools.co.uk
Nut rivet rod (M3, M4, M5, M6)
Square reamer/nibbler broach
Square reamer/nibbler sleeve
Curved reamer/nibbler broach
Curved reamer/nibbler sleeve
Sleeve securing nut
Multi-function wrench
Page 3
Instructions

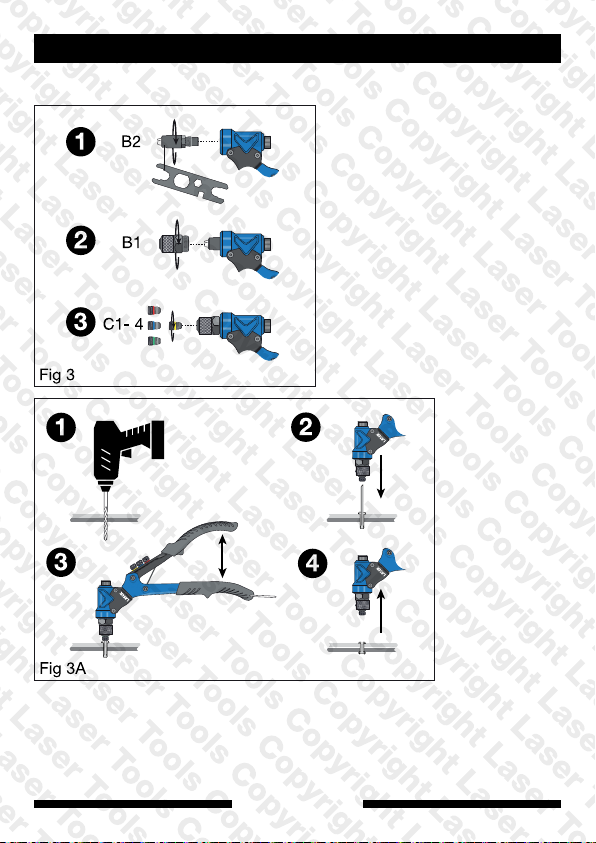

Hand (pop) riveting:
www.lasertools.co.uk
3
Page 4
Instructions

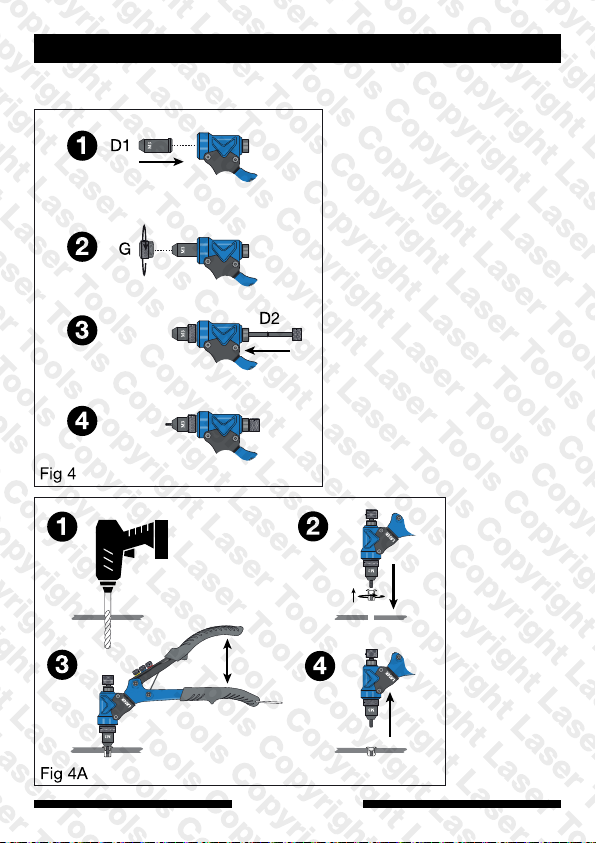

Rivnut / nut riveting:
4
www.lasertools.co.uk
Page 5
Instructions

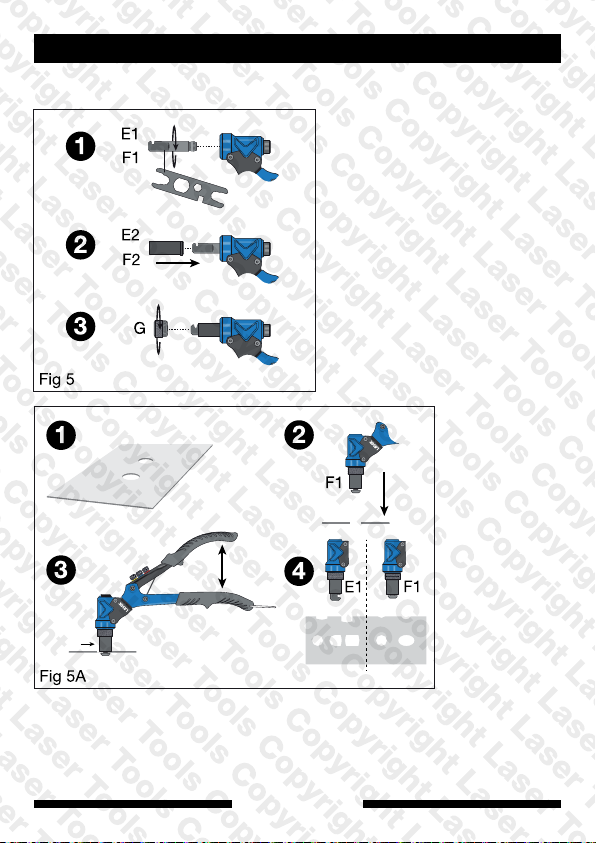

Reaming / nibbling, square & curved:
www.lasertools.co.uk
5
Page 6
Spare Parts
Note: due to the nature of the work undertaken by this kit the following components are
considered consumable: C1-4, D1 & D2, E1 & F1.
Spare Parts Available:
61806
61807
61808
61809
61810
61811
61812
61813
61814
61815
Spare Rivet Head 2.4 mm
Spare Rivet Head 3.2mm
Spare Rivet Head 4.0mm
Spare Rivet Head 4.8mm
Spare Rivet Nut Tie Rod & Sleeve M3
Spare Rivet Nut Tie Rod & Sleeve M4
Spare Rivet Nut Tie Rod & Sleeve M5
Spare Rivet Nut Tie Rod & Sleeve M6
Curved Broach
Square Broach
Rivnuts and rivets available separately:
see Laser part nos. 0980 - 0983 (Rivnuts) & 1799 - 1802 (rivets).
Connect Workshop Consumables offer mixed sets of assorted rivets:
see part nos. 31843 (assorted rivets, 475pc) & 31844 (assorted black rivets, 200pc).
6
www.lasertools.co.uk
Page 7
www.lasertools.co.uk
7
Page 8
Safety Warnings - please read
• Read and understand these instructions before using the tool.
• Wear appropriate PPE.
Do not hold the workpiece by hand; secure workpiece with a clamp or vice, etc.
•
Replace worn out parts (see spare parts list).
•
Clean the tool components after use and store in a clean and dry environment.
•
Our products are designed to be used correctly and with care for the purpose for which they
are intended. No liability is accepted by the Tool Connection for incorrect use of any of our
products, and the Tool Connection cannot be held responsible for any damage to personnel,
property or equipment when using the tools. Incorrect use will also invalidate the warranty.
If applicable, the applications database and any instructional information provided has been
designed to offer general guidance for a particular tool’s use and while all attention is given
to the accuracy of the data no project should be attempted without referring first to the
manufacturer’s technical documentation (workshop or instruction manual) or the use of a
recognised authority such as Autodata.
It is our policy to continually improve our products and thus we reserve the right to alter
specifications and components without prior notice. It is the responsibility of the user to
ensure the suitability of the tools and information prior to their use.
www.lasertools.co.uk
8355_Instructions_V2
