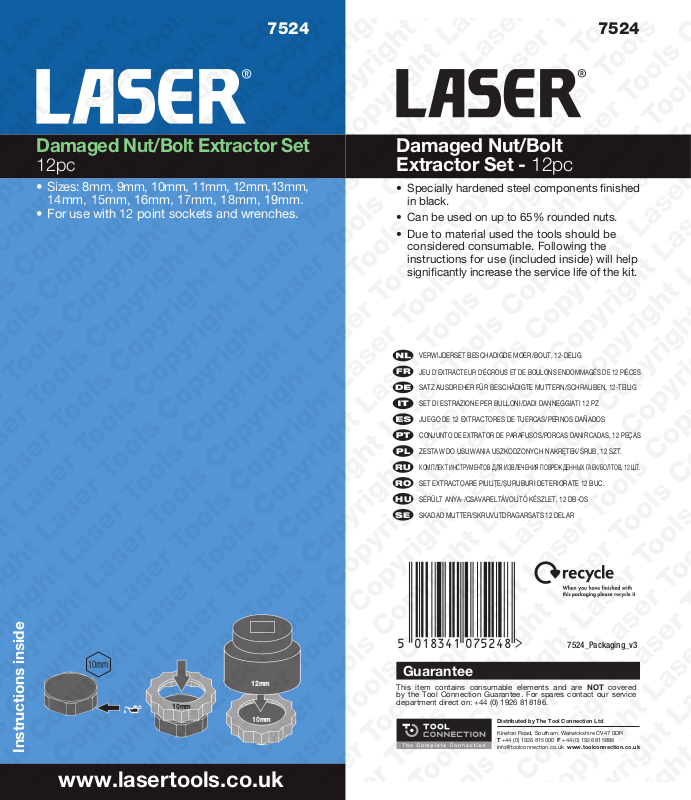

Laser 7524 User guide

7524

5 018341 075248

7524

Damaged Nut/Bolt Extractor Set

12pc

• Sizes: 8mm, 9mm, 10mm, 11mm, 12mm,13mm,
14mm, 15mm, 16mm, 17mm, 18mm, 19mm.

• For use with 12 point sockets and wrenches.

Damaged Nut/Bolt
Extractor Set - 12pc

• Specially hardened steel components fi nished
in black.

• Can be used on up to 65% rounded nuts.

• Due to material used the tools should be
considered consumable. Following the
instructions for use (included inside) will help
signifi cantly increase the service life of the kit.

VERWIJDERSET BESCHADIGDE MOER/BOUT, 12-DELIG

FR

JEU D'EXTRACTEUR D'ÉCROUS ET DE BOULONS ENDOMMAGÉS DE 12 PIÈCES

SATZ AUSDREHER FÜR BESCHÄDIGTE MUTTERN/SCHRAUBEN, 12-TEILIG

SET DI ESTRAZIONE PER BULLONI/DADI DANNEGGIATI 12 PZ

JUEGO DE 12 EXTRACTORES DE TUERCAS/PERNOS DAÑADOS

CONJUNTO DE EXTRATOR DE PARAFUSOS/PORCAS DANIFICADAS, 12 PEÇAS

PL

ZESTAW DO USUWANIA USZKODZONYCH NAKRĘTEK/ŚRUB, 12 SZT.

RU

КОМПЛЕКТ ИНСТРУМЕНТОВ ДЛЯ ИЗВЛЕЧЕНИЯ ПОВРЕЖДЕННЫХ ГАЕК/БОЛТОВ, 12 ШТ.

RO

SET EXTRACTOARE PIULIȚE/ȘURUBURI DETERIORATE 12 BUC.

SÉRÜLT ANYA-/CSAVARELTÁVOLÍTÓ KÉSZLET, 12 DB-OS

HU

SKADAD MUTTER/SKRUVUTDRAGARSATS 12 DELAR

SE

10mm

Instructions inside

www.lasertools.co.uk

10mm

12mm

10mm

7524_Packaging_v3

Guarantee

This item contains consumable elements and are NOT covered
by the Tool Connection Guarantee. For spares contact our service
department direct on: [phone].

Distributed by The Tool Connection Ltd

Kineton Road, Southam, Warwickshire CV47 0DR
T [phone] F [phone]
[e-mail] www.toolconnection.co.uk

Our products are designed to be used correctly and with
care for the purpose for which they are intended. No
liability is accepted by the Tool Connection for incorrect
use of any of our products, and the Tool Connection
cannot be held responsible for any damage to personnel,
property or equipment when using the tools. Incorrect
use will also invalidate the warranty.

Description

The kit is made up of a set of cleverly designed hexagon
bolt and nut extractor adaptor caps. The caps fit
over the rounded off fixing and allow a standard 12
point socket or ring wrench to be used to remove the
rounded off hexagon fitting.

Note: Due the method of use and the material
requirements of the 7524 kit the adaptors are
considered consumable.

Sizes

8mm Extractor Cap

9mm Extractor Cap

10mm Extractor Cap

11mm Extractor Cap

12mm Extractor Cap

13mm Extractor Cap

14mm Extractor Cap

15mm Extractor Cap

16mm Extractor Cap

17mm Extractor Cap

18mm Extractor Cap

19mm Extractor Cap

Instructions

The following instructions are for guidance only.
The use of this extractor kit is purely down to the user’s
discretion and The Tool Connection cannot be held
responsible for any damage caused whatsoever.

Note:

When removing the cap from the fixing do not strike the
caps directly with a hammer

10mm

10mm

12mm

10mm

Extractor Cap Removal
