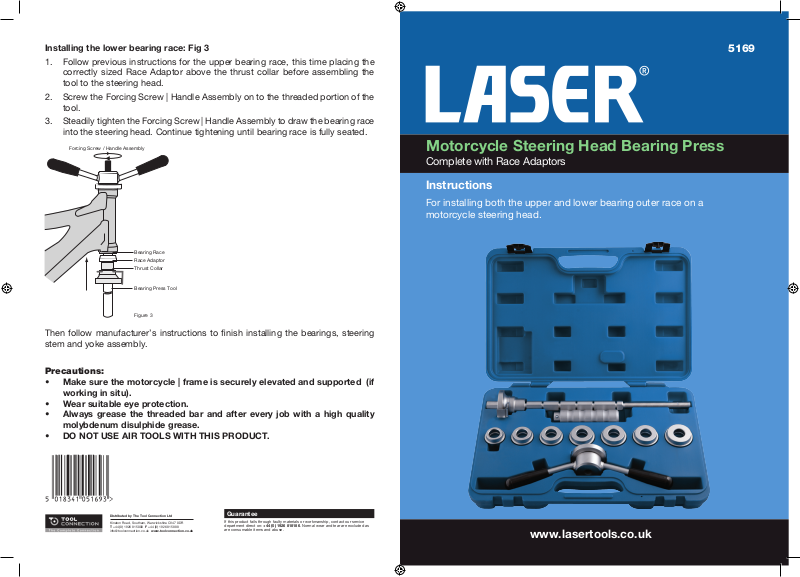

Installing the lower bearing race: Fig 3
Forcing Screw / Handle Assembly
1. Follow previous instructions for the upper bearing race, this time placing the
correctly sized Race Adaptor above the thrust collar before assembling the
tool to the steering head.
2. Screw the Forcing Screw | Handle Assembly on to the threaded portion of the
tool.
3. Steadily tighten the Forcing Screw | Handle Assembly to draw the bearing race
into the steering head. Continue tightening until bearing race is fully seated.
Bearing Race
Race Adaptor
Thrust Collar
Bearing Press Tool
5169
Motorcycle Steering Head Bearing Press
Complete with Race Adaptors
Instructions
For installing both the upper and lower bearing outer race on a
motorcycle steering head.
Figure 3
Then follow manufacturer’s instructions to finish installing the bearings, steering
stem and yoke assembly.
Precautions:
• Make sure the motorcycle | frame is securely elevated and supported (if
working in situ).
• Wear suitable eye protection.
• Always grease the threaded bar and after every job with a high quality
molybdenum disulphide grease.
• DO NOT USE AIR TOOLS WITH THIS PRODUCT.
Distributed by The Tool Connection Ltd
Kineton Road, Southam, Warwickshire CV47 0DR
T +44 (0) 1926 815000 F +44 (0) 1926 815888
[email protected] www.toolconnection.co.uk
Guarantee
If this product fails through faulty materials or workmanship, contact our service
department direct on: +44 (0) 1926 818186. Normal wear and tear are excluded as
are consumable items and abuse.
www.lasertools.co.uk
Page 2

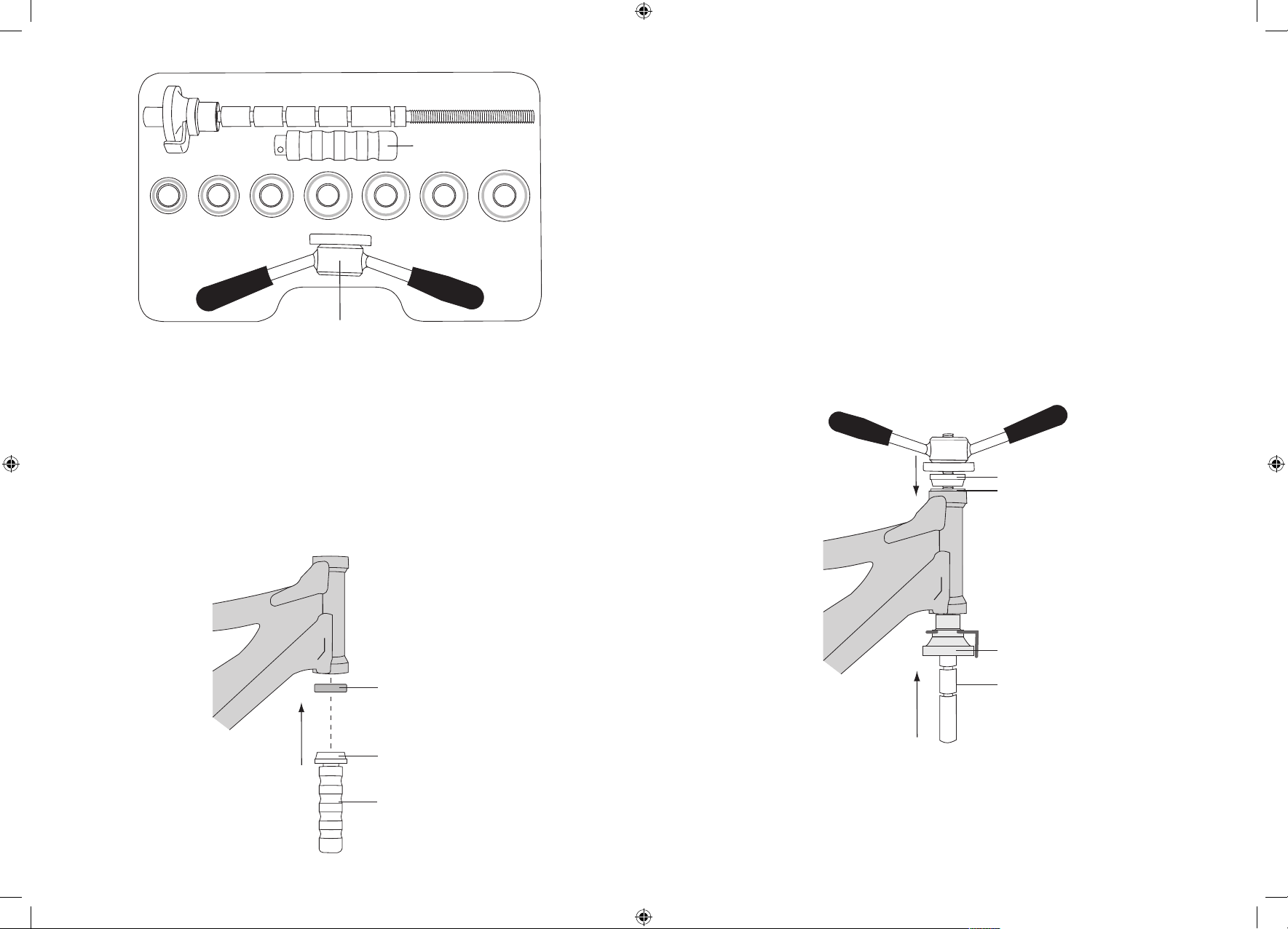

A: Bearing Press Tool
Forcing Screw / Handle Assembly
B: Bearing Seating Tool
C: Race Adaptors
D: Forcing Screw / Handle Assembly
Before you Start:
• For procedure refer to vehicle manufacturer’s hand book or reputable workshop
manual.
Positioning the bearing race using the Bearing Seating Tool:
1. Choose correct adaptor to fit the bearing race. Fit this to the Bearing Seating
Tool with chamfered surface facing outward.
2. For ease of bearing race installation, lubricate the outside of the bearing race.
3. Place bearing race onto race adaptor. Using the Bearing Seating Tool, gently
‘start’ the bearing race into position on the steering head. (Refer to Fig. 1.)
Installing the upper bearing race:
1. Refer to Figure 2: adjust length of Bearing Press Tool by releasing the securing
tab (press in) and move thrust collar to a suitable slot that leaves enough of the
threaded portion of the tool to enable fitment of the Forcing Screw | Handle
Assembly when assembled to the steering head.
IMPORTANT: The threaded portion of the Bearing Press Tool must be
lubricated with HMP grease.
2. Assemble the tool to the steering head; the new bearing race has already been
placed in position (see preceding section). Place the correctly sized Race
Adaptor onto the bearing race. Screw the Forcing Screw | Handle Assembly on
to the threaded portion of the tool.
3. Steadily tighten the Forcing Screw | Handle Assembly to draw the bearing race
into the steering head. Continue tightening until bearing race is fully seated.
Race Adaptor
Bearing Race
Thrust Collar
Bearing Race
Race Adaptor
Bearing Seating Tool
2 3
Figure 1
Bearing Press Tool
Figure 2
