Motorcycle Steering Bearing Installer
Instructions

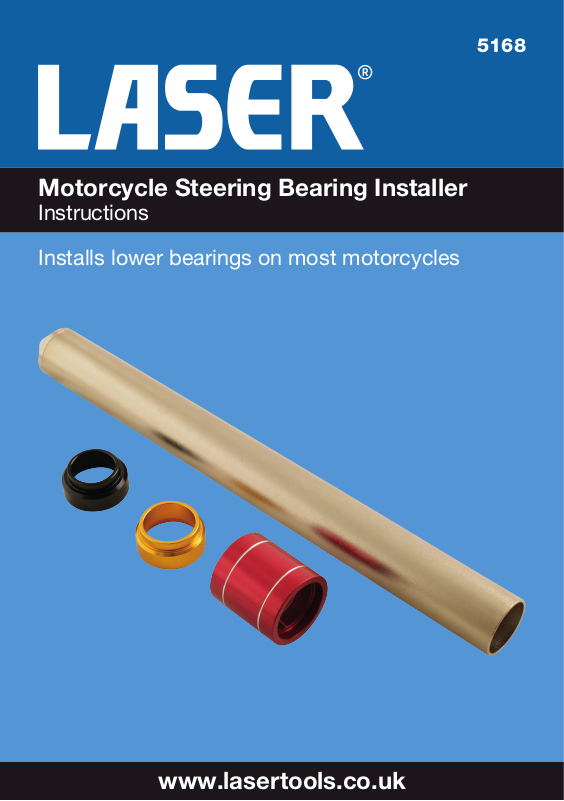

Installs lower bearings on most motorcycles
5168
www.lasertools.co.uk
Page 2
Motorcycle Steering Bearing Installer
Instructions
This tool is designed to allow the user to
install the lower steering bearing inner race
without damaging the race. The tool helps
to ensure the bearing is fitted square and
prevents damage to the bearing and the
steering stem.
The drift tube is used in conjunction with one of
the three supplied aluminium drift dies:
Drift die internal diameters:
Red: 35.50 mm
Gold: 30.00 mm
Black: 26.50 mm
After the old bearing has been removed place
the new bearing inner race as far down steering
stem shaft as far as possible by hand (see

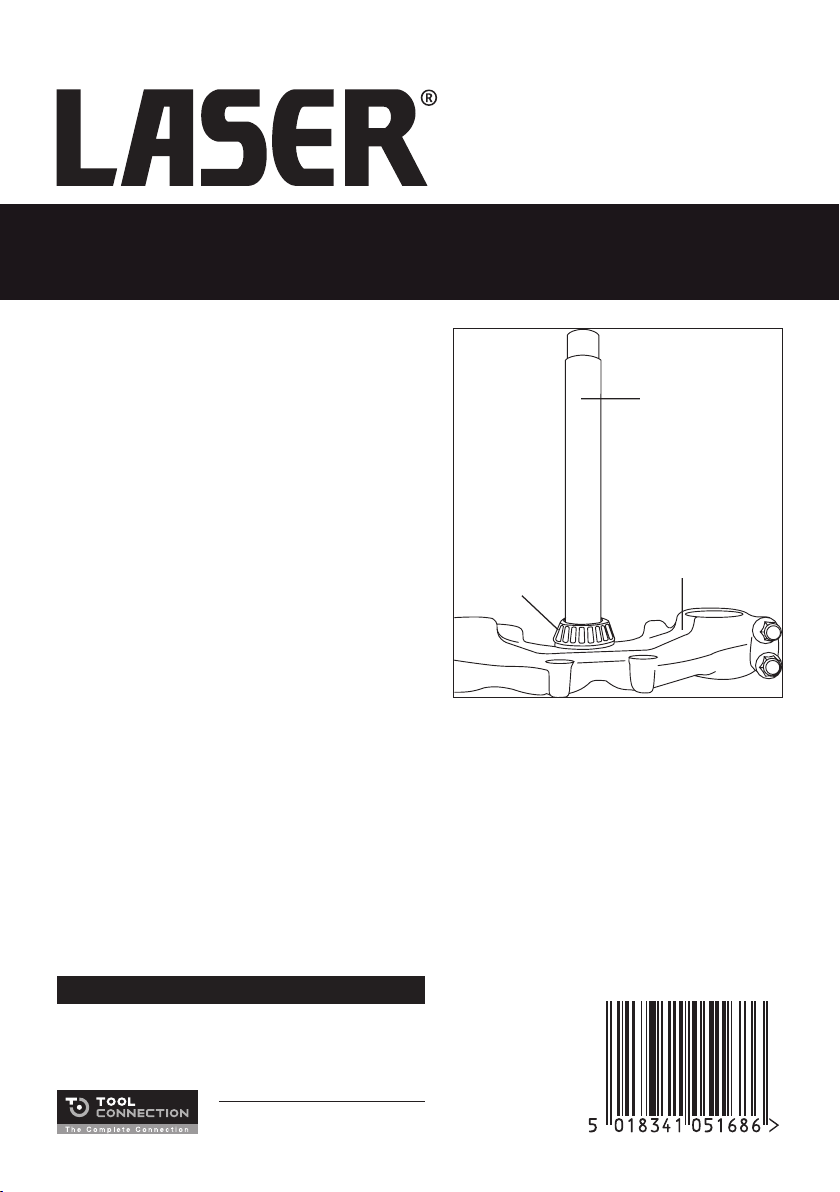

diagram).
Bearing
Inner Race
Steering Stem
Bottom Yoke
5168
Select the appropriate drift die and place it onto
the bearing.
Note: the die should rest on the inner race ring
of the bearing and not on the bearing rollers/
balls or cage.
Place the drift tube over the steering stem
and locate in recess in the die. Knock bearing
into place using a suitable soft faced hammer
(recommend Laser Tools 5134).
Guarantee
If this product fails through faulty materials or workmanship, contact our
service department direct on: +44 (0) 1926 818186. Normal wear and tear are
excluded as are consumable items and abuse.
