Incorrect or out of phase engine timing can result in damage to the valves.
The Tool Connection cannot be held responsible for any damage caused
by using these tools in anyway.
Safety Precautions – Please read
• Disconnect the battery earth leads
(check radio code is available)
• Remove spark or glow plugs to make
the engine turn easier
• Do not use cleaning fluids on belts,
sprockets or rollers
• Always make a note of the route of the
auxiliary drive belt before removal
• Turn the engine in the normal direction
(clockwise unless stated otherwise)
• Do not turn the camshaft, crankshaft or
diesel injection pump once the timing
chain has been removed (unless
specifically stated)
• Do not use the timing chain to lock the
engine when slackening or tightening
crankshaft pulley bolts
• Do not turn the crankshaft or camshaft
when the timing belt/chain has been
removed
• Mark the direction of the chain before
removing
• It is always recommended to turn the
engine slowly, by hand and to re-check
the camshaft and crankshaft timing
positions.
• Crankshafts and Camshafts may only be
turned with the chain drive mechanism
fully installed.
• Do not turn crankshaft via camshaft or
other gears
• Check the diesel injection pump timing
after replacing the chain
• Observe all tightening torques
• Always refer to the vehicle
manufacturer’s service manual or a
suitable proprietary instruction book
• Incorrect or out of phase engine timing
can result in damage to the valves
• It is always recommended to turn the
engine slowly, by hand, and to re-check
the camshaft and crankshaft timing
positions

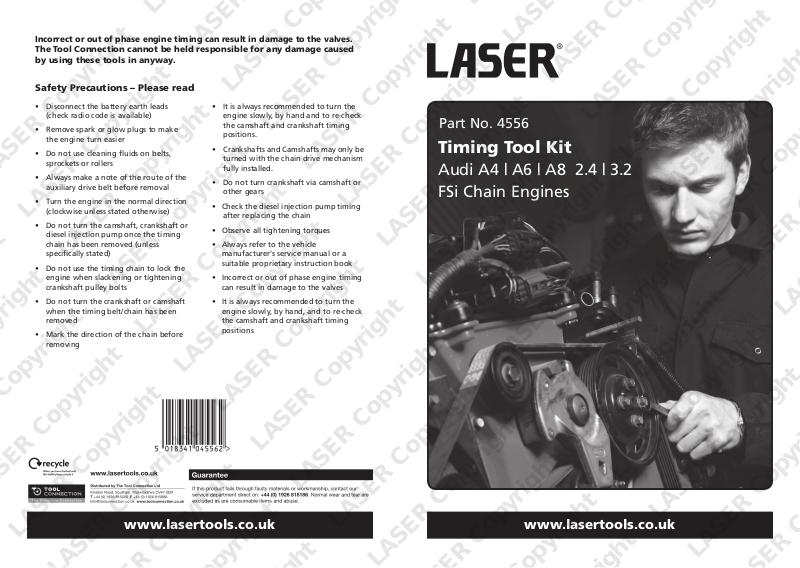

Part No. 4556
Timing Tool Kit
Audi A4 | A6 | A8 2.4 | 3.2
FSi Chain Engines
LASER Copyright LASER Copyright LASER Copyright LASER Copyright
www.lasertools.co.uk www.lasertools.co.uk
Page 2
Plan Layout
Instruction
The timing chains are positioned at the
rear of the engine.
C
A
B

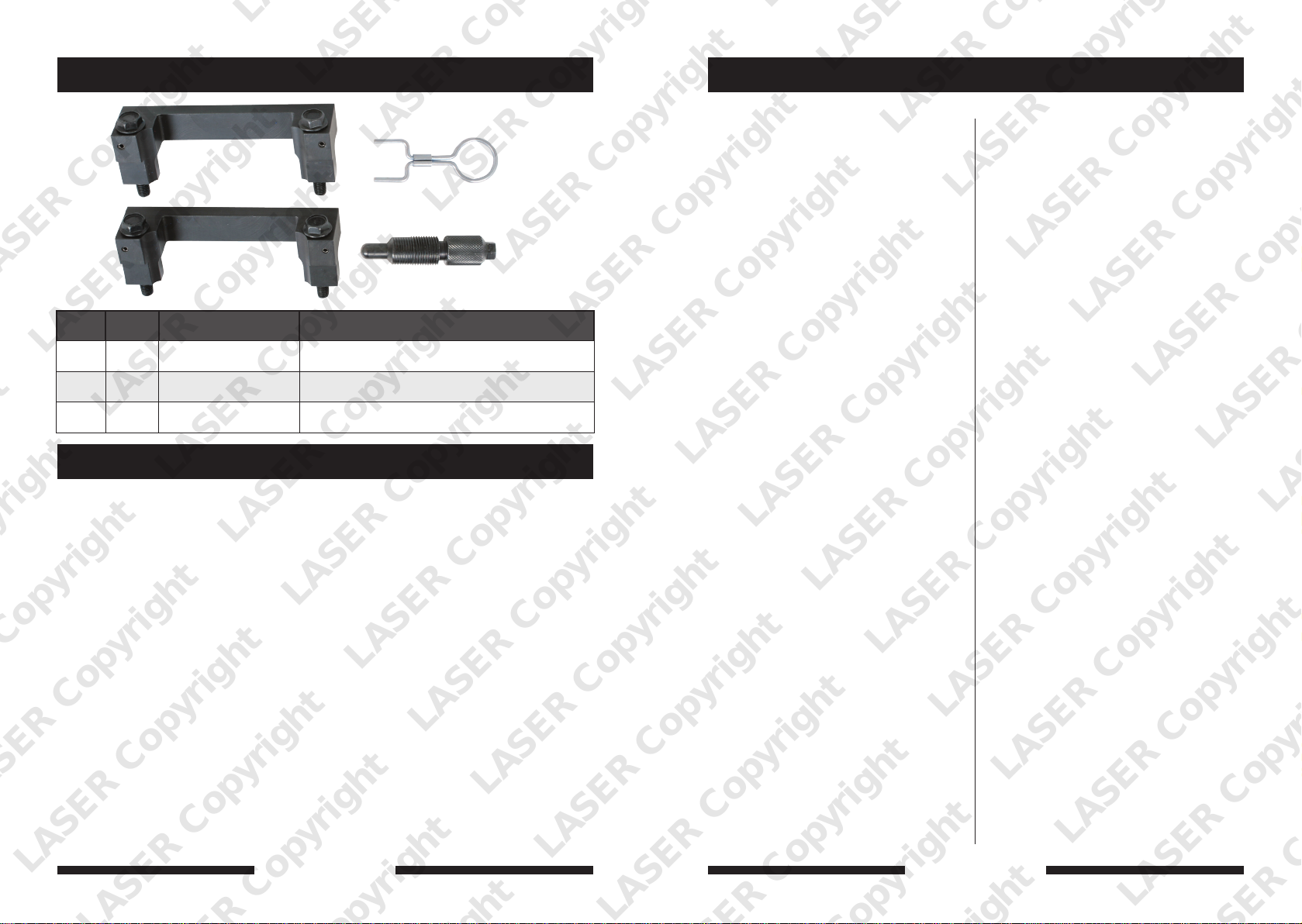

Ref Code Oem Code Description
A C356 T40070 Camshaft Locking Tool (2)
B C357 T40069 Crank Locking Timing Pin
C C358 T40071 Timing Chain Tensioner Locking Pin
Applications
The application list for this product has been compiled cross referencing the OEM Tool Code with the
Component Code. In most cases the tools are specific to this type of engine and are necessary for Cam
belt or chain maintenance. If the engine has been identified as an interference engine valve to piston
damage will occur if the engine is run with a broken Cam belt.
A compression check of all cylinders should be performed before removing the cylinder head.
Always consult a suitable work shop manual before attempting to change the Cam belt or Chain.
Autodata
Our applications data is supplied by Autodata and we are able to supply this data to you in a PDF
format. If this is a specific kit for a group of engine codes the application list has been supplied
showing the main vehicles this kit is designed for and does not list every model each pin fits.
If this is a master kit then all vehicles are included.
The data is the copyright of Tool Connection and should not be reproduced.
If the application data is extensive we have included a CD with the application list in .pdf format.
Languages
We have also included where possible translations for the instructions in the following languages:
• French
• Spanish
• German
• Italian
• Dutch
The use of these engine timing tools is purely down to the user’s discretion and Tool Connection
cannot be held responsible for any damage caused what so ever.
ALWAYS USE A REPUTABLE WORKSHOP MANUAL
LASER Copyright LASER Copyright LASER Copyright LASER Copyright
2 3
It is therefore necessary to remove the
engine, transmission and flywheel before
it is possible to remove and replace the
timing chains.
The Crankshaft Pulley may require turning
to a position just before Top Dead Centre
to enable the Crankshaft Alignment Pin
(B) to be inserted.
The threaded holes in the camshafts must
face upwards and lock the Balancer Shaft
in position.
Fit the Camshaft Locking Tools (A) in
position, and tighten the securing bolts
to 20Nm. (If this tool cannot be fitted, the
valve timing is incorrect).
It will be necessary to remove the chain
tensioners to enable chain removal and
replacement.
The Tensioner plunger must be depressed
and locked in position with Tensioner
Locking Pin (C)
With the chains removed align the
Camshafts and refit the Camshaft
Alignment tools (A)
www.lasertools.co.ukwww.lasertools.co.uk
Refit the chains.
It is recommended that following the
removal of all tools the crankshaft
is turned twice and the valve timing
positions re-checked by re-fitting the
camshaft and crankshaft tools.
Other tools required:
T10172 Camshaft Adjuster
Pre-tensioning tool
T10172/2 Camshaft Adjuster
Pre-tensioning tool
T40058 Crankshaft pulley bolt
adaptor (23162-95)
T10035 Camshaft Sprocket Adaptor
3212 Two pin Wrench
