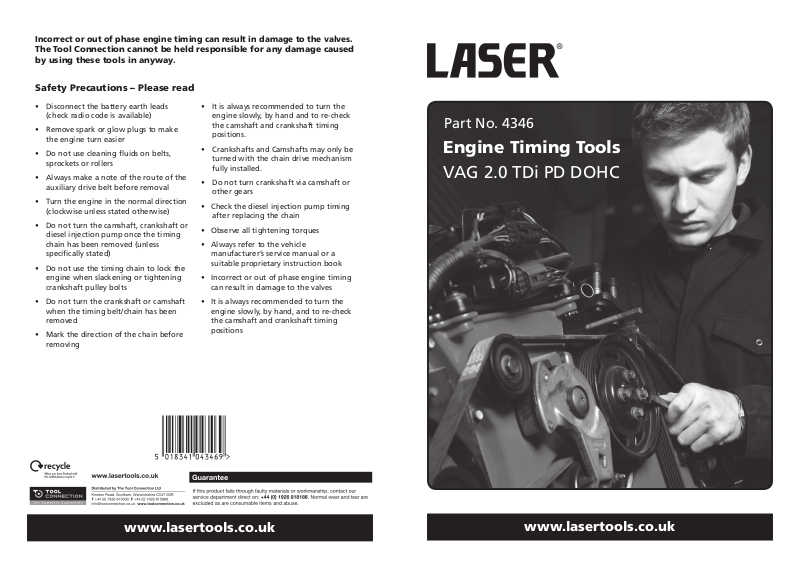

Page 1
Incorrect or out of phase engine timing can result in damage to the valves.
The Tool Connection cannot be held responsible for any damage caused
by using these tools in anyway.
Safety Precautions – Please read
3388
• Disconnect the battery earth leads
(check radio code is available)
• Remove spark or glow plugs to make
the engine turn easier
• Do not use cleaning fluids on belts,
sprockets or rollers
• Always make a note of the route of the
auxiliary drive belt before removal
• Turn the engine in the normal direction
(clockwise unless stated otherwise)
• Do not turn the camshaft, crankshaft or
diesel injection pump once the timing
chain has been removed (unless
specifically stated)
• Do not use the timing chain to lock the
engine when slackening or tightening
crankshaft pulley bolts
• Do not turn the crankshaft or camshaft
when the timing belt/chain has been
removed
• Mark the direction of the chain before
removing
• It is always recommended to turn the
engine slowly, by hand and to re-check
the camshaft and crankshaft timing
positions.
• Crankshafts and Camshafts may only be
turned with the chain drive mechanism
fully installed.
• Do not turn crankshaft via camshaft or
other gears
• Check the diesel injection pump timing
after replacing the chain
• Observe all tightening torques
• Always refer to the vehicle
manufacturer’s service manual or a
suitable proprietary instruction book
• Incorrect or out of phase engine timing
can result in damage to the valves
• It is always recommended to turn the
engine slowly, by hand, and to re-check
the camshaft and crankshaft timing
positions
Part No. 4346
Engine Timing Tools
VAG 2.0 TDi PD DOHC
www.lasertools.co.uk
www.lasertools.co.uk
Page 2

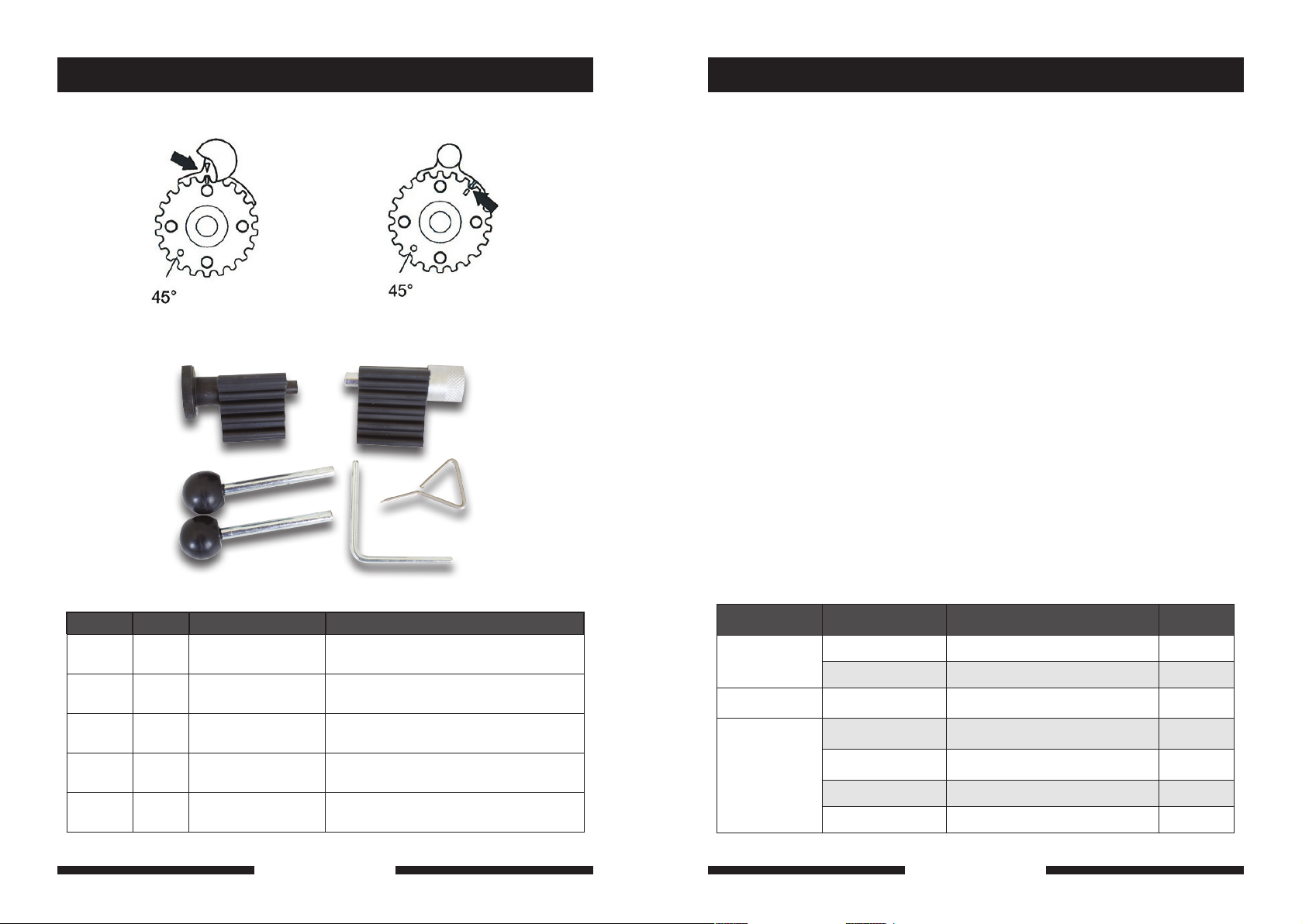

Plan Layout Applications
The application list for this product has been compiled cross referencing the OEM Tool
A
B
Code with the Component Code.
In most cases the tools are specific to this type of engine and are necessary for Cam belt
or chain maintenance.
If the engine has been identified as an interference engine valve to piston damage will
occur if the engine is run with a broken Cam belt.
A compression check of all cylinders should be performed before removing the cylinder
head.
Always consult a suitable work shop manual before attempting to change the Cam belt
or Chain.
The use of these engine timing tools is purely down to the user’s discretion and
Tool Connection cannot be held responsible for any damage caused what so ever.
ALWAYS USE A REPUTABLE WORKSHOP MANUAL
A
B
E
C
D
Ref Code Oem Code Description
A C157 T10050 | 310-085
B
C
D
E
C304
C216
C283
C282
T10100
3359 | T20102 Injection Pump Locking Pins (2)
T10060/A Auxiliary drive belt tensioner locking pin
T10115 Tensioner Pulley Locking Pin
Crankshaft Setting Tool
Bored engines
Crankshaft Setting Tool
Non Bored engines
Manufacturer Model Engine Code Year
Audi
Skoda Octavia II
Volkswagen
A4
A6
Golf | Golf Plus
Jetta
Passat
Touran
BLB | BNA | BRE | BRF | BVG 2004-07
BLB | BNA | BRE | BRF | BVG 2004-07
AZV | BKD 2004-07
AZV | BKD 2003-07
AZV | BKD 2003-07
BKP 2009
AZV | BKD 2003-07
www.eldontools.
2 11
