Page 1
For all cars
Purge and Refill Kit
Cooling System Vacuum
Instruction
4287
Page 2
Cooling System Vacuum
Purge and Refi ll Kit

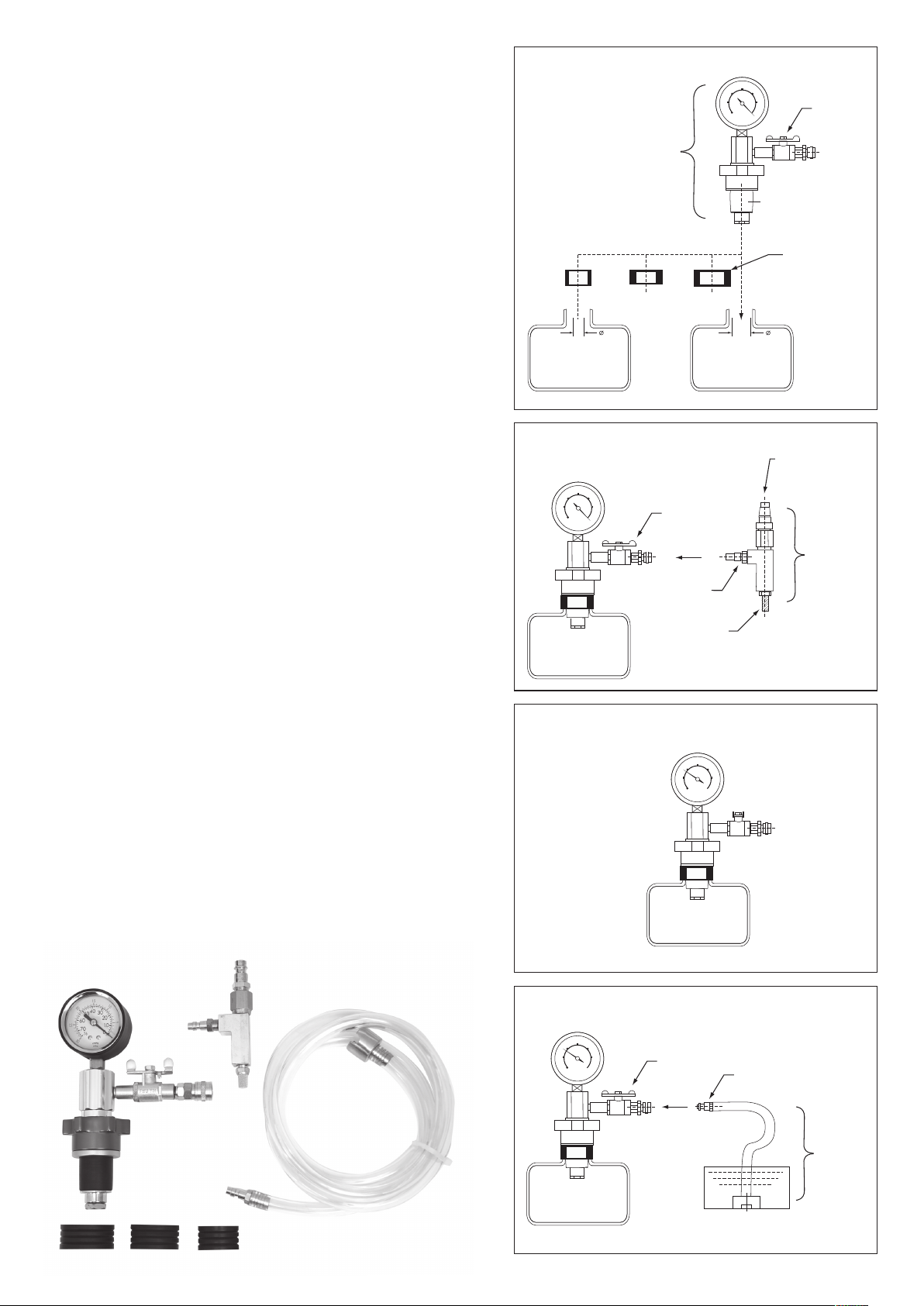

Fig. 1
15
20
10
5
25
30
0
Switch
Instructions
To purge the system
1. Drain water from cooling system.
2. Select suitable rubber bush to connect cooling system
adapter to radiator or expansion tank neck.
3. Connect vacuum pump to cooling system adapter.
4. Connect to air compressor.
5. Switch on (Fig 2).
6. Allow air pressure to reach a vacuum level of
approximately 20-25 in/HG (50-60cmHG) of mercury.
7. Turn off the switch and remove vacuum pump (Fig 3).
To refi ll the system
1. Connect coolant hose to cooling system adapter.
2. Put the other end in the reservoir of new or saved coolant.
3. Turn ON.
4. The coolant will fl ow into the radiator intil the needle
points to zero (Fig 4).
B
Radiator or
Expansion Tank
Fig. 2
15
20
25
30
Radiator or
Expansion Tank
Cooling System
Adapter
C
S L
10
5
0
D
Radiator or
Expansion Tank
Switch
ON
Coupler Plug
Muffler
A
Rubber Bush
Air Connector
Vacuum
Pump
5. Check to see if the radiator is full of coolant.
6. Top up as necessary.
Cooling System
Vacuum Pump
Adapter
Coolant Hose
Fig. 3
Fig. 4
15
20
10
5
25
30
0
OFF
Radiator or
Expansion Tank
15
20
10
5
25
30
0
ON
Switch
Coupler Plug
Coolant
Hose
Rubber Bushes
Radiator or
Expansion Tank
