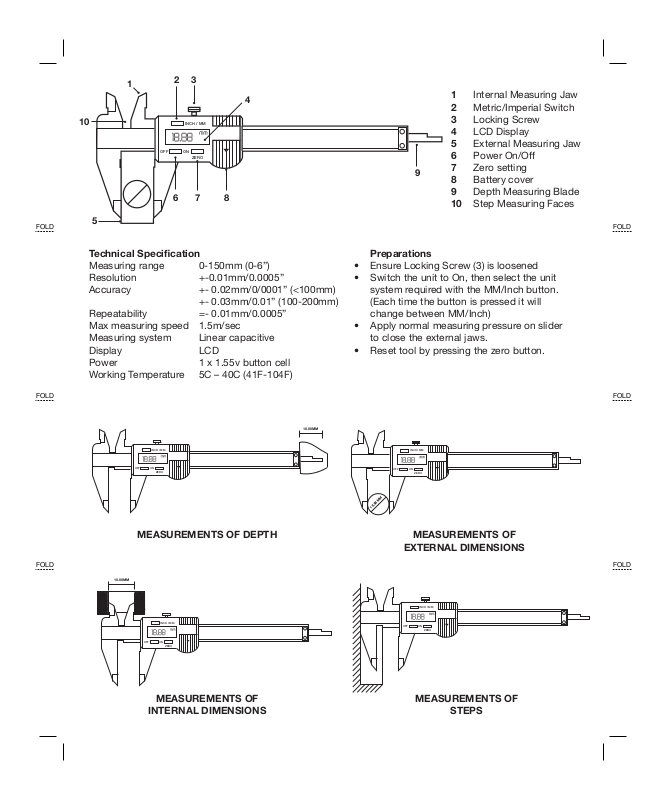

Page 1
1
243
1 Internal Measuring Jaw
2 Metric/Imperial Switch
10
INCH / M
M
3 Locking Screw
4 LCD Display
N
OFF O
O
ZER
9
876
FOLD FOLD
5
5 External Measuring Jaw
6 Power On/Off
7 Zero setting
8 Battery cover
9 Depth Measuring Blade
10 Step Measuring Faces
Technical Specification
Measuring range 0-150mm (0-6”)
Resolution +-0.01mm/0.0005”
Accuracy +- 0.02mm/0/0001” (<100mm)
+- 0.03mm/0.01” (100-200mm)
Repeatability =- 0.01mm/0.0005”
Max measuring speed 1.5m/sec
Measuring system Linear capacitive
Display LCD
Preparations
• Ensure Locking Screw (3) is loosened
• Switch the unit to On, then select the unit
system required with the MM/Inch button.
(Each time the button is pressed it will
change between MM/Inch)
• Apply normal measuring pressure on slider
to close the external jaws.
• Reset tool by pressing the zero button.
Power 1 x 1.55v button cell
Working Temperature 5C – 40C (41F-104F)
FOLD FOLD
18.88MM
OFF ON
INCH / MM
ZERO
18.88MM
OFF ON
INCH / MM
ZERO
MEASUREMENTS OF DEPTH MEASUREMENTS OF
EXTERNAL DIMENSIONS
FOLD FOLD
18.88MM
INCH / MM
OFF ON
ZERO
MEASUREMENTS OF
INTERNAL DIMENSIONS
INCH / MM
OFF ON
ZERO
MEASUREMENTS OF
STEPS
Page 2
0.00
OFF ON
INCH / MM
ZERO
OFF O
0.08
INCH / M
N
ZERO
M
DIFFERENT METHOD OF MEASUREMENT
FOLD FOLD
(APPLICATION OF ZERO SETTING)
Battery Replacement
Flashing digits show flat or low battery.
Take off the battery cover (8) in the
direction of arrow and replace the
battery Positive side facing out.
INCH / MM
0.08
OFF ON
ZERO
FOLD FOLD
Failure Cause Action
Five digits flash simultaneously
once per second
Display does not change when
slider is move
Less accurate than specification Dirt in the sensor Remove slider cover and its
No display on LCD Battery is making poor contact
Battery is low Replace the battery*
Circuit problems Remove battery, wait 30 secs
Or Battery is too low
See below
and replace
assembly. Clean face of sensor
with clean compressed air
(5kg/cm2)
Remove battery cover and
adjust battery seat or replace
the battery
4263
FOLD FOLD
Digital 0 - 150mm (0" - 6")
Vernier Caliper
Instructions
