Warning
It is always recommended to refer to the vehicle manufacturers workshop manual
for specific procedures and technical data when using these tools.
Incorrect or out of phase engine timing can result in damage to valves.
It is always recommended to turn the engine slowly by hand and to recheck the
camshaft and crankshaft timing positions.
Our application directory should be used as a guide only and The Tool Connection
cannot be held responsible for any damage caused to your engine by using these tools.
Safety
Care should be taken when working on the engine and full protection should be worn.
The Tool Connection cannot be held responsible for any personal injury caused when
using these tools.
Replacement parts can be ordered direct from The Tool Connection and not
through your distributor.
Application Directory
Timing Tool Kit
Renault & Vauxhall / Opel Engines
3787
www.lasertools.co.uk
LASER Copyright LASER Copyright LASER Copyright LASER Copyright
LASER Copyright LASER Copyright LASER Copyright LASER Copyright
Page 2
This set of timing tools enables the correct timing position to be made when servicing
C18 0
C18 2
C18 1
C18 3
C26 9
C27 0
C17 9
C18 4
Renault & Vauxhall / Opel Ecotec 2.2 engines

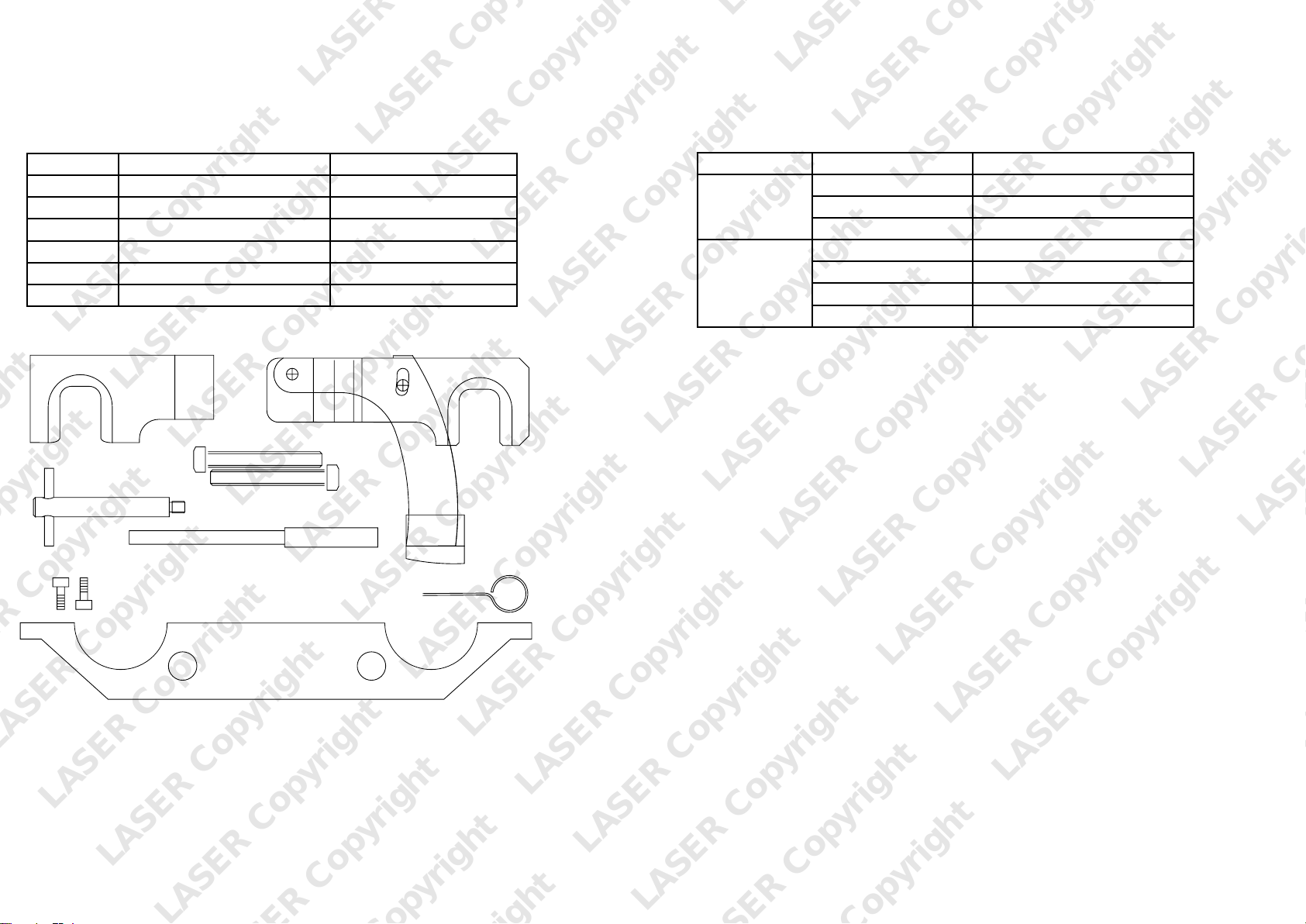

What the kit contains:
Check your Laser Timing Tool Kit carefully to make sure you have all the components.
If any are missing, please contact Laser Tools on 01926 815000 You should have all the
components listed in the table.
ITEM DESCRIPTION OEM REF
C183 Camshaft Locking Tool KM 6148
C184 Tensioner Locking Pin (1mm) KM 6077
C179 Crankshaft alignment pin KM 6203 / MOT 1536
C180 Exhaust camshaft alignment tool KM 6204 / MOT 1537
C181 Inlet camshaft alignment tool KM 6205 / MOT 1534
C182 Pulley locking tool MOT 1538
Manufacturer Model Item Used
Renault Espace 2.2 Dci C179 / C180 / C181
Master 2.2 Dci C179 / C180 / C181
Master 2.5 Dci C179 / C180 / C181
Vauxhall / Opel Astra-G 2.2 C183 / C184
Movano 2.2 Dti AB C183 / C184
Vectra-B 2.2 C183 / C184
Zafira 2.2 C183 / C184
