Part No. 0290
Coil spring Compressors
3 Piece
3388
Part no. 0290
Coil Spring Compressors 3 Piece
This Coil Spring Compressor is a 3 piece clamp set with security clamps
for extra safety.
Works on a working pressure of 1500kg.
LASER Copyright LASER Copyright LASER Copyright LASER Copyright
Guarantee
If this product fails through faulty materials or workmanship, contact
our service department direct on: +44 (0) 1926 818186. Normal wear
& tear are excluded as are consumable items & abuse.
LASER Copyright LASER Copyright LASER Copyright LASER Copyright
www.lasertools.co.uk
www.lasertools.co.uk
LASER Copyright LASER Copyright LASER Copyright LASER Copyright
Page 2
Warning Warning
The use of this type of spring compressor is not recommended for double
diameter, dual rate or progressively wound suspension springs.
Double Diamenter Dual Rate Progressively Wound
Some modern Macpherson strut suspension springs are fitted with a
considerable pre-load.
Always refer to the spring manufacturer’s specification to ensure the
tool’s maximum loading is not exceeded.
When compressed a vehicle road spring is storing a very large amount of
energy. Whilst all possible actions have been taken to reduce the risk of
slippage this risk will always be present.
This operation uses up to 1500kg of
pressure and therefore extreme care
should be taken.
Always wear protective protective head/
eye gear and make sure the threads are
well greased.

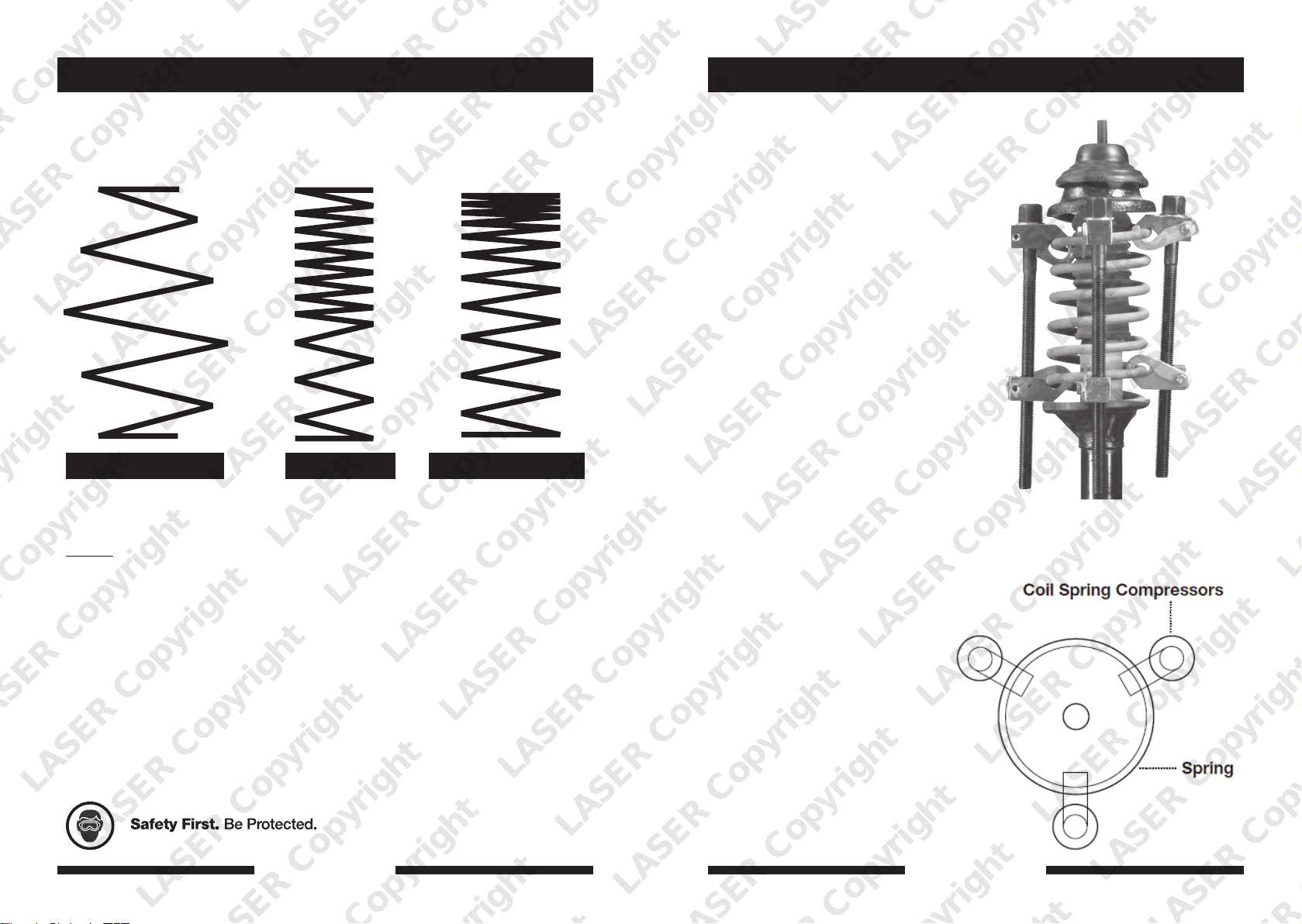

1. Place each compressor equally around
the coil spring with clamps at equal
distance apart.
2. Tighten each compressor slightly to take
up the tension of the spring and secure
clamps at the most extended position.
3. Once the clamps are secured, continue
to tighten at
4. 10mm increments on either side of the
spring.
5. UNEVEN TIGHTENING WILL CAUSE
OVERLOAD ON ONE
SIDE AND MAY DAMAGE BOTH THE
SPRING AND CLAMPS.
6. 4. A gap of 30-40mm between the
compressed coil and the cap should
give enough clearance for removal.
Always wear protective head, eye and hand gear.
Responsibility for damage or injury lies with the user.
