EasyLog USB Data Loggers
Quick Start Guide
DOWNLOAD AND INSTALL SOFTWARE
Windows™ XP/VISTA/7/8
(32 & 64bit)
Visit www.easylogusb.com and click ‘Begin Software Download’.
EL-WIN-USB is the software platform for Lascar’s standalone USB data loggers. It is compatible with 32-bit and
64-bit versions of Windows XP, Vista, 7 & 8.
The latest build of the software includes a change to use an International date format to avoid incompatibility
with certain location settings when exporting data to Excel.
Follow the instructions found in ‘Installing EL-WIN-USB on Windows’ (link on
website).
USING THE SOFTWARE
.
Insert the data logger into an available USB port on your PC.
.
Double click on the EasyLog USB icon on your Windows™
desktop. This will load the conguration software. Set up
the data logger for a new session, download a data logger
that has been recording, view previously saved data in
graph format and check the current status of the attached
data logger.
.
When setup is complete, the data logger should be removed from the
USB port. Do not leave your data logger in the USB port for extended
periods as this will cause some of the battery capacity to be lost (with
the exception of EL-USB-1-RCG).
.
Full specications on your EasyLog product, including LED and LCD status
indication (where applicable), can be found on the product’s datasheet at
www.lascarelectronics.com
.
If you would like advice on how best to use the data logger for a particular
application, please contact your nearest Lascar representative. Further
information can also be found in the Help Topics with in the EasyLog
software.
REPLACING YOUR DATA LOGGER’S BATTERY
Your data logger is provided with a 3.6V 1/2AA battery already installed. You
can change the battery by following the instructions below.
Replacement batteries are available from www.lascarelectronics.com.
EL-USB-1 PRO
Before using the data logger you will need to insert the 3.6V 2/3AA
High Temperature battery provided, following the instructions below.
Replacement batteries are available from www.lascarelectronics.com, part
number: BAT 3V6 2/3AA H TEMP.
1 2
3 4
1
3
2
4
EL-USB-1-RCG
The EL-USB-1-RCG’s battery is preinstalled. To charge the battery, connect
to a USB port until the green LED shows. The rechargeable battery should
only be replaced by an authorized supplier.

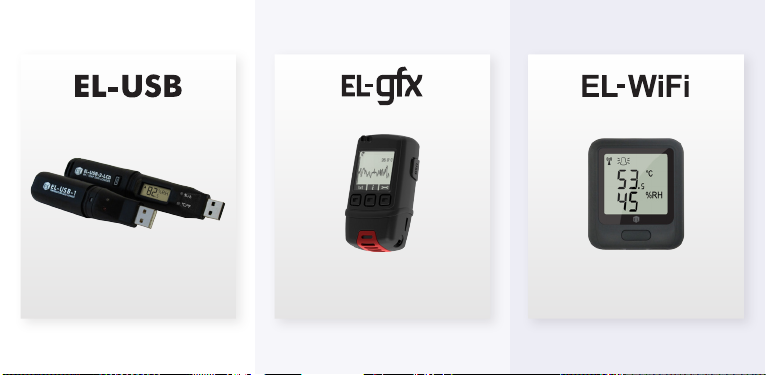

Simple Low Cost Data Logging Wireless Data Logging
Advanced Data Logging
• USB interface for conguration and download
• Easy to use Windows control software
• Graphic LCD for real-time readings and graph
• Compact and robust design
• Cloud based monitoring with email alerts
• Connects to an existing WiFi network
For a full product data sheet for your data logger
or for more information on the rest of the EasyLog range visit
www.lascarelectronics.com
Temperature
Event, State & Count Carbon Monoxide
Temperature/
Relative Humidity
Thermocouple
Voltage
Current
Thermistor
IMPORTANT SAFETY INFORMATION
electronics
Repairing or Modifying
Never attempt to repair or modify Lascar products. Dismantling them, other than for the purpose of changing replaceable batteries,
may cause damage that is not covered under the warranty. Servicing should only be provided by an authorized supplier.
Disposal and Recycling Information
You must dispose of Lascar products in accordance with relevant laws and regulations. They contain electronic components and
lithium batteries and therefore must be disposed of separately from household waste.
NEED HELP WITH YOUR DATA LOGGER?
Contact your nearest Lascar Electronics ofce:
Module House
UK
Whiteparish, Salisbury,
Wiltshire SP5 2SJ
UNITED KINGDOM
T +44 (0) 1794 884567
E sales@lascar.co.uk
4258 West 12th Street
USA
Erie, PA 16505
UNITED STATES
T +1 (814) 835-0621
E us-sales@lascarelectronics.com
8th Floor, China Aerospace Centre
HK
143 Hoi Bun Road
Kwun Tong, Kowloon
HONG KONG
T +852 2389 6502
E sales@lascar.com.hk
Iss 11_08-15
