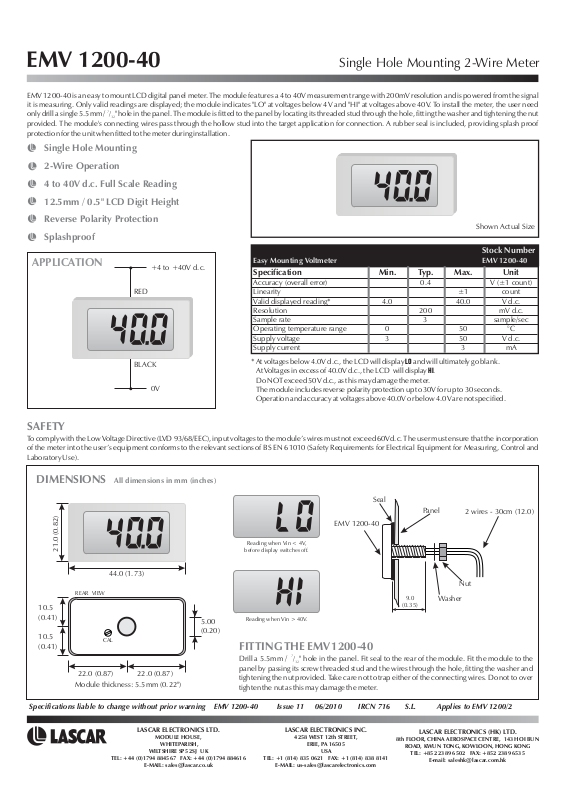

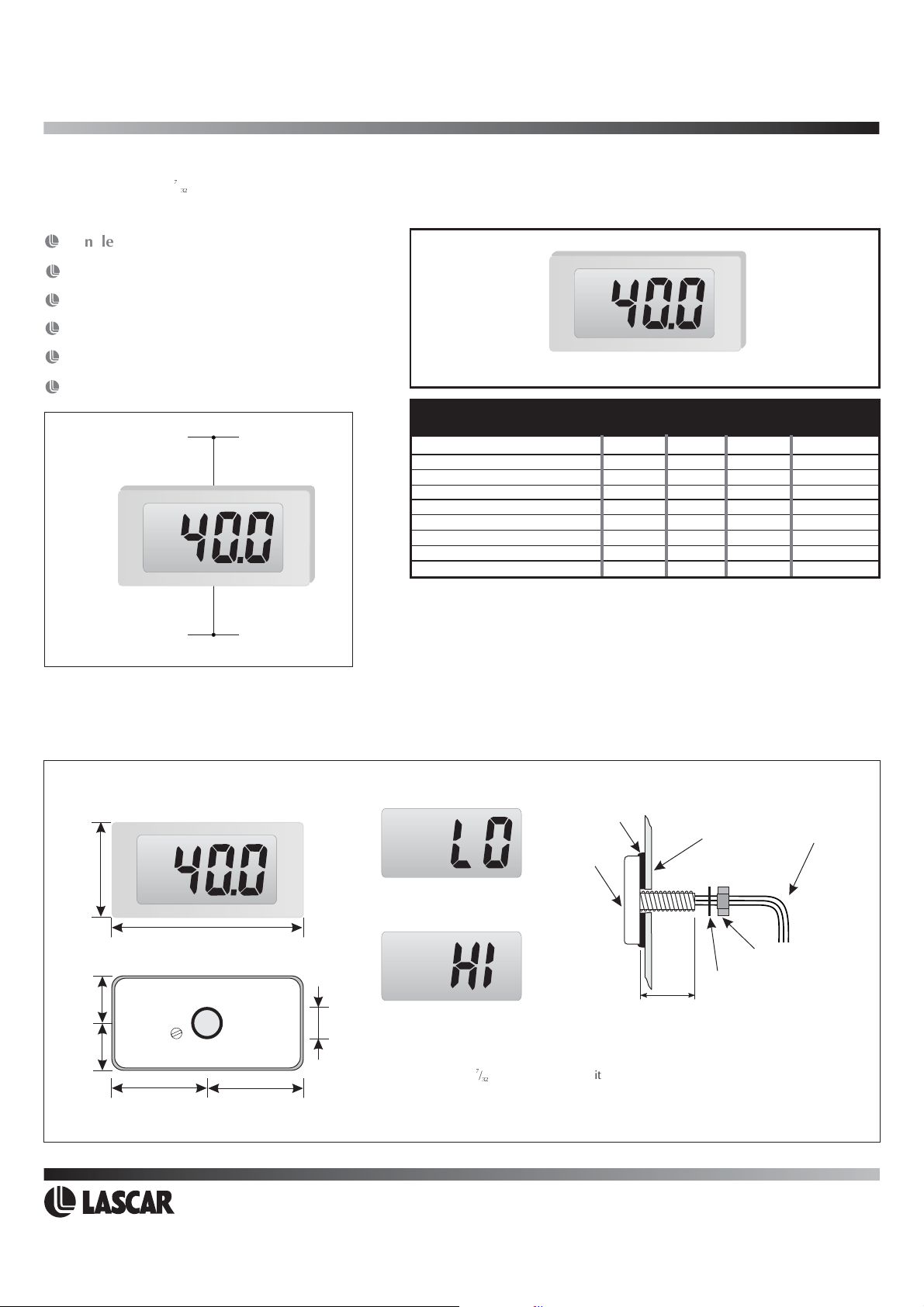

Page 1
EMV 1200-40 Single Hole Mounting 2-Wire Meter
EMV 1200-40 is aneasytomount LCD digital panel meter.
it is measuring. Only valid readings are displayed; the module indicates "LO" at voltages below 4V and "HI" at voltages above 40V.
only drill a single 5.5mm / hole in the panel. The module is fitted to the panel by locating its threaded stud through the hole, fitting the washer and tightening the nut
%
"
/
!
provided. The module's connecting wires pass through the hollow stud into the target application for connection.
The module features a4to40V measurement range with 200mV resolution and ispoweredfromthe signal
To install the meter, the user need
A rubber seal is included, providing splash proof
protection for the unit when fitted to the meter during installation.
Single Hole Mounting
2-Wire Operation
4to40
V d.c. Full Scale Reading
12.5mm / 0.5" LCD Digit Height
Reverse Polarity Protection
Shown Actual Size
Splashproof
Stock Number
APPLICATION
+4 to +40V d.c.
RED
BLACK
0V
Easy Mounting Voltmeter EMV 1200-40
Specification Min. Typ. Max. Unit
Accuracy (overall error) 0.4 V (±1 count)
Linearity ±1 count
Valid displayed reading* 4.0 40.0 V d.c.
Resolution 200 mV d.c.
Sample rate 3 sample/sec
Operating temperature range 0 50 °C
Supply voltage 3 50 V d.c.
Supply current 3 mA
* At voltages below 4.0V d.c., the LCD will display and willultimatelygoblank.
At Voltagesinexcessof40.0Vd.c.,theLCD willdisplay .
Do NOT exceed50Vd.c.,asthismaydamagethemeter.
The module includes reverse polarity protection up to 30V for up to 30 seconds.
Operation and accuracy at voltages above 40.0V or below 4.0V are not specified.
LO
HI
SAFETY
To comply with the Low VoltageDirective(LVD 93/68/EEC), input voltages to the module’s wires must not exceed 60Vd.c. Theusermustensurethattheincorporation
of the meter into the user’s equipment conforms to the relevant sections of BS EN 61010 (Safety Requirements for Electrical Equipment for Measuring, Control and
Laboratory Use).
DIMENSIONS All dimensions in mm (inches)
Seal
10.5
(0.41)
10.5
(0.41)
21.0 (0.82)
44.0 (1.73)
REAR VIEW
CAL
22.0 (0.87)
22.0 (0.87)
Module thickness: 5.5mm (0.22")
5.00
(0.20)
Panel
EMV 1200-40
Reading when Vin < 4V,
before display switches off.
9.0
(0.35)
Reading when Vin > 40V.
FITTING THE EMV 1200-40
Drill a 5.5mm / " hole in the panel.
%
/
!
Fit seal to the rear of the module. Fit the module to the
panel by passing its screw threaded stud and the wires through the hole, fitting the washer and
tightening the nut provided. Take care not totrap either of the connectingwires. Do
tighten the nut as this may damage the meter.
2 wires - 30cm (12.0)
Nut
Washer
not to over
Specifications liable to change without prior warning EMV 1200-40 Issue 11 06/2010 IRCN 716 S.L. Applies to EMV 1200/2
LASCAR ELECTRONICS LTD.
MODULE HOUSE,
WHITEPARISH,
TEL: +44 (0)1794 884567 FAX: +44 (0)1794 884616
WILTSHIRE SP5 2SJ UK
E-MAIL: [email protected]
LASCAR ELECTRONICS INC.
4258 WEST 12th STREET,
ERIE, PA 16505
TEL: +1 (814) 835 0621 FAX: +1 (814) 838 8141
E-MAIL: [email protected]
USA
LASCAR ELECTRONICS (HK) LTD.
8th FLOOR, CHINA AEROSPACE CENTRE, 143 HOI BUN
ROAD, KWUN TONG, KOWLOON, HONG KONG
TEL: +852 2389 6502 FAX: +852 2389 6535
E-mail: [email protected]
Page 2
EMV 1200-40 Single Hole Mounting 2-Wire Meter
AUTOMOTIVE AND MARINE PROTECTION

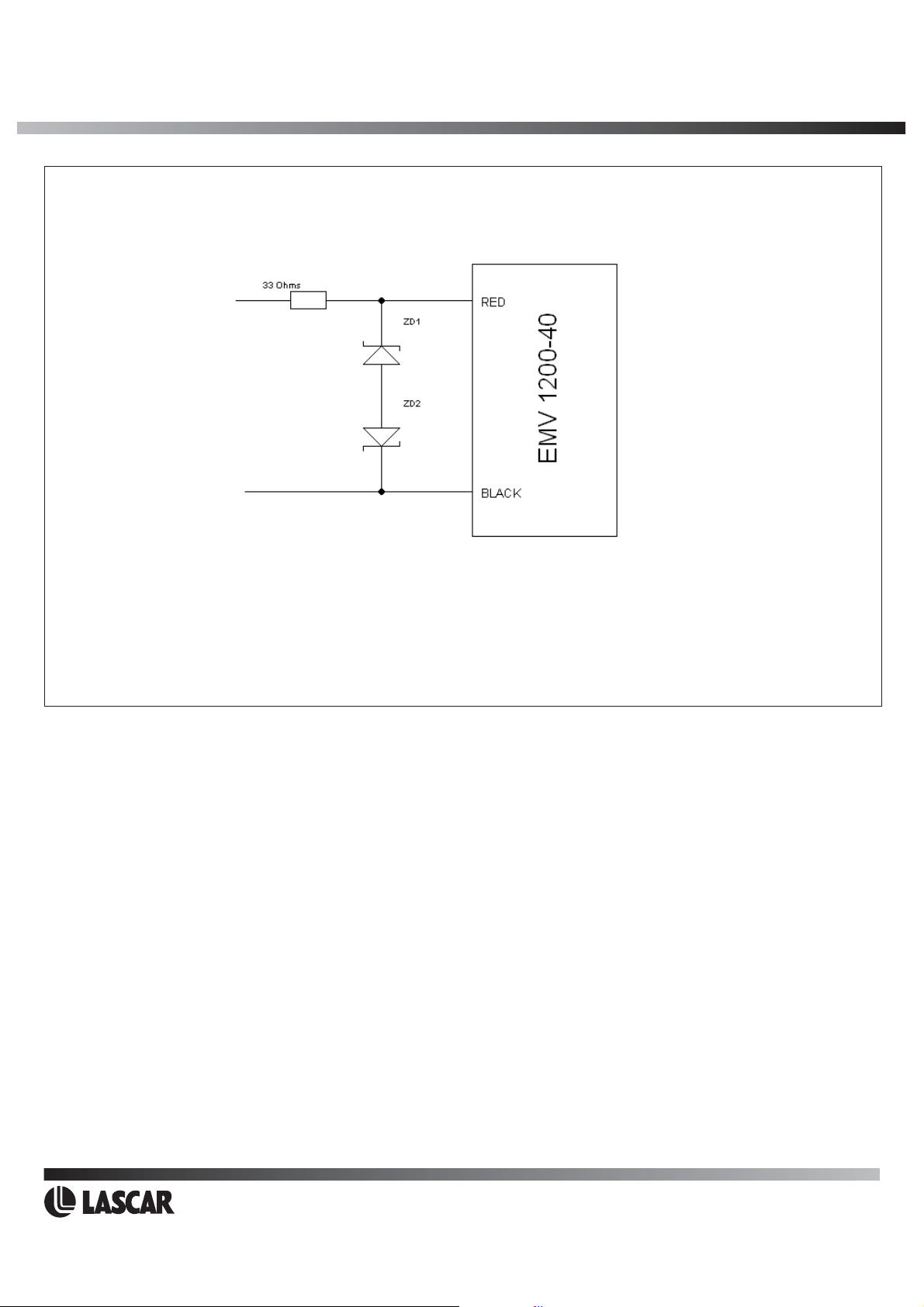

Fig. 1
Automotive and maritime applications can create harsh conditions for electronic devices. Fig. 1 shows the type of protection we recommend is added
when the EMV 1200-40 is used in an application of this nature. We suggest a high wattage 33 ohm resistor is used in series with two 5W zener diodes
where the value of each zener is at least 3V higher than the maximum you intend to measure. Alternatively it is possible to use a single 1500W
transient voltage suppressor (TVS) in place of the zener diodes. In addition it is recommended that the meter is connected as close to the battery as is
convenient.
