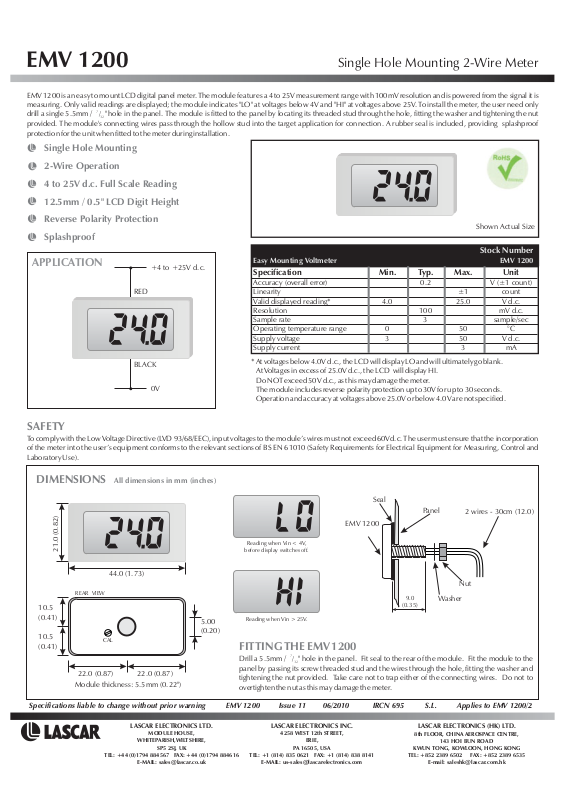

Lascar EMV 1200 Data Sheet
EMV 1200 Single Hole Mounting 2-Wire Meter
EMV 1200 isaneasy to mount LCDdigitalpanel meter.
measuring. Only valid readings are displayed; themodule indicates "LO"at voltages below 4V and "HI" at voltages above 25V.
drill a single 5.5mm / hole in the panel. The module is fitted to the panel by locating its threaded stud through the hole, fitting the washer and tightening the nut
%
"
/
!
provided. The module's connecting wires pass through the hollow stud into the target application for connection.
The module featuresa4 to 25V measurementrangewith 100mV resolution andispowered from the signalitis
To install the meter, the user need only
A rubber seal is included, providing splashproof
protection for the unitwhenfittedto the meter during installation.
Single Hole Mounting
2-Wire Operation
4to
25V d.c. Full Scale Reading
12.5mm / 0.5" LCD Digit Height
Reverse Polarity Protection
Shown Actual Size
Splashproof
Stock Number
APPLICATION
+4 to +25V d.c.
RED
BLACK
0V
Easy Mounting Voltmeter EMV 1200
Specification Min. Typ. Max. Unit
Accuracy (overall error) 0.2 V (±1 count)
Linearity ±1 count
Valid displayed reading* 4.0 25.0 V d.c.
Resolution 100 mV d.c.
Sample rate 3 sample/sec
Operating temperature range 0 50 °C
Supply voltage 3 50 V d.c.
Supply current 3 mA
* At voltages below4.0Vd.c.,the LCD will display LO and will ultimately go blank.
At Voltagesin excess of 25.0V d.c., theLCD will display HI.
Do NOT exceed 50V d.c., asthis may damage the meter.
The module includes reversepolarityprotectionup to 30V for up to30seconds.
Operation and accuracy atvoltagesabove25.0V or below 4.0V are notspecified.
SAFETY
To comply withtheLow VoltageDirective(LVD 93/68/EEC), input voltagestothe module’s wires must notexceed60Vd.c. The user must ensurethatthe incorporation
of the meter into the user’s equipment conforms to the relevant sections of BS EN 61010 (Safety Requirements for Electrical Equipment for Measuring, Control and
Laboratory Use).
DIMENSIONS All dimensions in mm (inches)
Seal
10.5
(0.41)
10.5
(0.41)
21.0 (0.82)
44.0 (1.73)
REAR VIEW
CAL
22.0 (0.87)
22.0 (0.87)
Module thickness: 5.5mm (0.22")
5.00
(0.20)
Panel
EMV 1200
Reading when Vin < 4V,
before display switches off.
9.0
(0.35)
Reading when Vin > 25V.
FITTING THE EMV 1200
Drill a 5.5mm / " hole in the panel.
%
/
!
Fit seal to the rear of the module. Fit the module to the
panel by passing its screw threaded stud and the wires through the hole, fitting the washer and
tightening the nut provided. Take care not to trap either of the connecting wires. Do
overtighten the nut asthismaydamage the meter.
2 wires - 30cm (12.0)
Nut
Washer
not to
Specifications liable to change without prior warning EMV 1200 Issue 11 IRCN 695 S.L. Applies to EMV 1200/206/2010
LASCAR ELECTRONICS LTD.
MODULE HOUSE,
WHITEPARISH,WILTSHIRE,
TEL: +44 (0)1794 884567 FAX: +44 (0)1794 884616
SP5 2SJ, UK
E-MAIL: sales@lascar.co.uk
LASCAR ELECTRONICS INC.
4258 WEST 12th STREET,
ERIE,
TEL: +1 (814) 835 0621 FAX: +1 (814) 838 8141
E-MAIL: us-sales@lascarelectronics.com
PA 16505, USA
LASCAR ELECTRONICS (HK) LTD.
8th FLOOR, CHINA AEROSPACE CENTRE,
143 HOI BUN ROAD
KWUN TONG, KOWLOON, HONG KONG
TEL: +852 2389 6502 FAX: +852 2389 6535
E-mail: saleshk@lascar.com.hk
EMV 1200 Single Hole Mounting 2-Wire Meter
AUTOMOTIVE AND MARINE PROTECTION
Fig. 1
Automotive and maritime applications can create harsh conditions for electronic devices. Fig. 1 shows the type of protection we recommend is added
when the EMV 1200 is used in an application of this nature. We suggest a high wattage 33 ohm resistor is used in series with two 5W zener diodes
where the value of each zener is at least 3V higher than the maximum you intend to measure. Alternatively it is possible to use a single 1500W
transient voltage suppressor (TVS) in place of the zener diodes. In addition it is recommended that the meter is connected as close to the battery as is
convenient.
