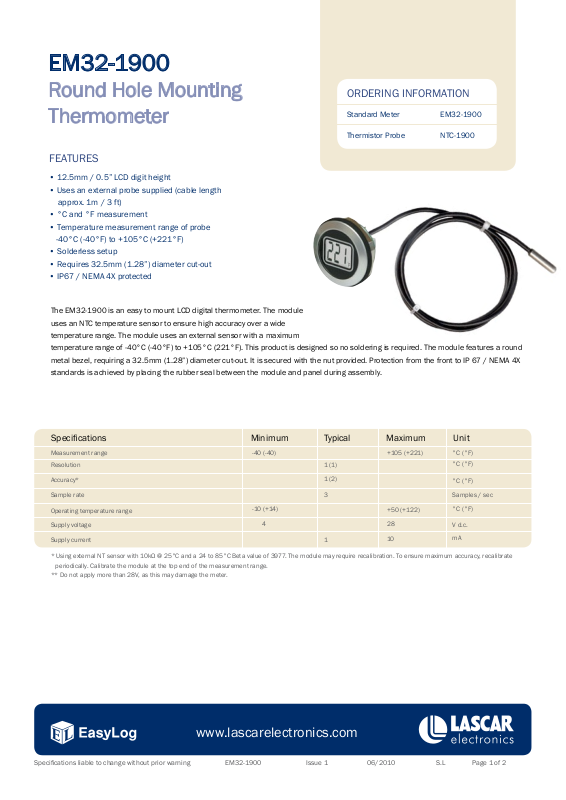

Lascar EM32-1900 Data Sheet

EM32-1900

Round Hole Mounting
Thermometer

ORDERING INFORMATION

Standard Meter

Thermistor Probe

EM32-1900

NTC-1900

FEATURES

• 12.5mm / 0.5” LCD digit height

• Uses an external probe supplied (cable length
approx. 1m / 3 ft)

• °C and °F measurement

• Temperature measurement range of probe

-40°C (-40°F) to +105°C (+221°F)

• Solderless setup

• Requires 32.5mm (1.28”) diameter cut-out

• IP67 / NEMA 4X protected

The EM32-1900 is an easy to mount LCD digital thermometer. The module

uses an NTC temperature sensor to ensure high accuracy over a wide

temperature range. The module uses an external sensor with a maximum

temperature range of -40°C (-40°F) to +105°C (221°F). This product is designed so no soldering is required. The module features a round

metal bezel, requiring a 32.5mm (1.28”) diameter cut-out. It is secured with the nut provided. Protection from the front to IP 67 / NEMA 4X

standards is achieved by placing the rubber seal between the module and panel during assembly.

Specications Minimum Typical Maximum Unit

Measurement range

Resolution

Accuracy*

Sample rate

Operating temperature range

Supply voltage

Supply current

* Using external NT sensor with 10kΩ @ 25°C and a 24 to 85°C Beta value of 3977. The module may require recalibration. To ensure maximum accuracy, recalibrate
periodically. Calibrate the module at the top end of the measurement range.
** Do not apply more than 28V, as this may damage the meter.

-40 (-40)

-10 (+14)

4

1 (1)

1 (2)

3

1

+105 (+221)

+50 (+122)

28

10

°C (°F)

°C (°F)

°C (°F)

Samples / sec

°C (°F)

V d.c.

mA

www.lascarelectronics.com

Specications liable to change without prior warning EM32-1900 Issue 1 06/2010 S.L Page 1 of 2

EM32-1900

Round Hole Mounting Thermometer

DIMENSIONS
All dimensions in mm (inches)

Panel cut-out

PIN FUNCTIONS

0V Negative supply voltage to the module

V+ Positive supply voltage to the module, between 4V d.c. and 28V d.c.

NTC Connection for external 10kΩ NTC sensor

JUMPER LINKS

J1 Temperature scale selector. When tted, the module displays °C (default). When removed, the module displays °F

SAFETY

As the NTC temperature sensor is a passive device, no voltages should be applied to the input terminals of the EM32-1900. The user must

ensure that the incorporation of the meter into the user’s equipment conforms to the relevant sections of BS EN 61010 (Safety Requirements

for Electrical equipment for Measuring, Control and Laboratory Use).
