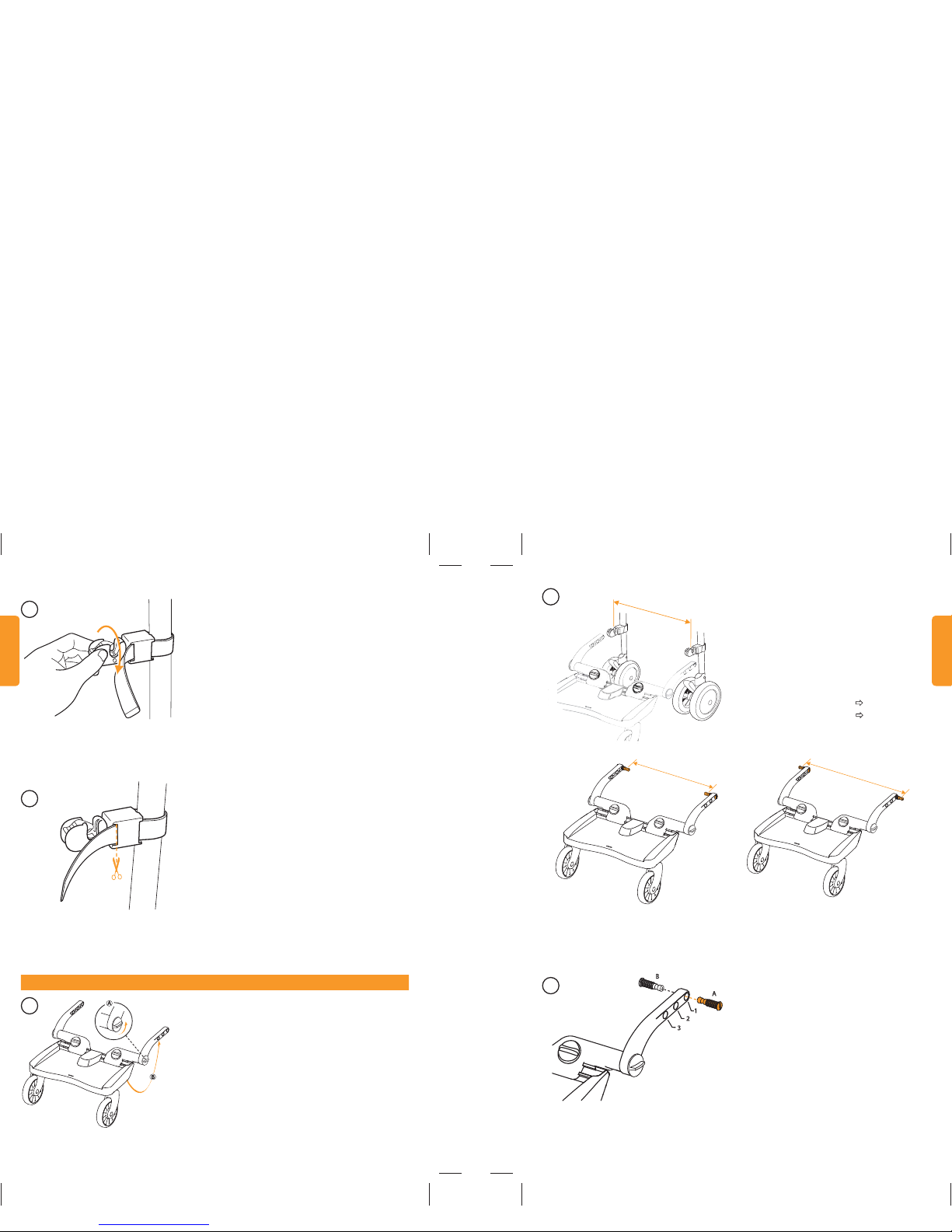

1. Attaching the wheels and the arms.
THE WHEELS AND ARMS
1
2. Positioning the connectors.
The connectors can be attached facing forward
or backwards. The connectors can be fitted onto
different shapes of tubing with a maximum
circumference of 22.5 cm (9 in.). Bend the
strap round the tubing. Then feed the strap
through the slot in the connector cover and pull
the strap gently. Check the position of the
connectors to be sure that
• the arms (81320/81321) will be able to reach
the connectors (maximum 35 cm (14 in.)
above the ground).
• they are as low as possible on the stroller.
• they do not interfere with the stroller’s folding
mechanism.
• the arms stay clear of both the braking
mechanisms and the wheels of the stroller.
3. Attaching the connectors.
Once certain of the position of the connectors,
loosen the strap and fix the Friction Tape on the
uprights where the Connectors are going to be
attached. Reposition the connector over the
friction tape and pull the strap tight. Secure the
connector by turning the connector-bolt
clockwise. Check that the stroller still folds
properly and th brakes still work properly; if
not, you may need to reposition the
connectors.
2.
Max. 35 cm / 14 in.
Max. 35 cm / 14 in.
3.
2
1
English
KEEP FOR FUTURE REFERENCE
- 4 - - 5 -

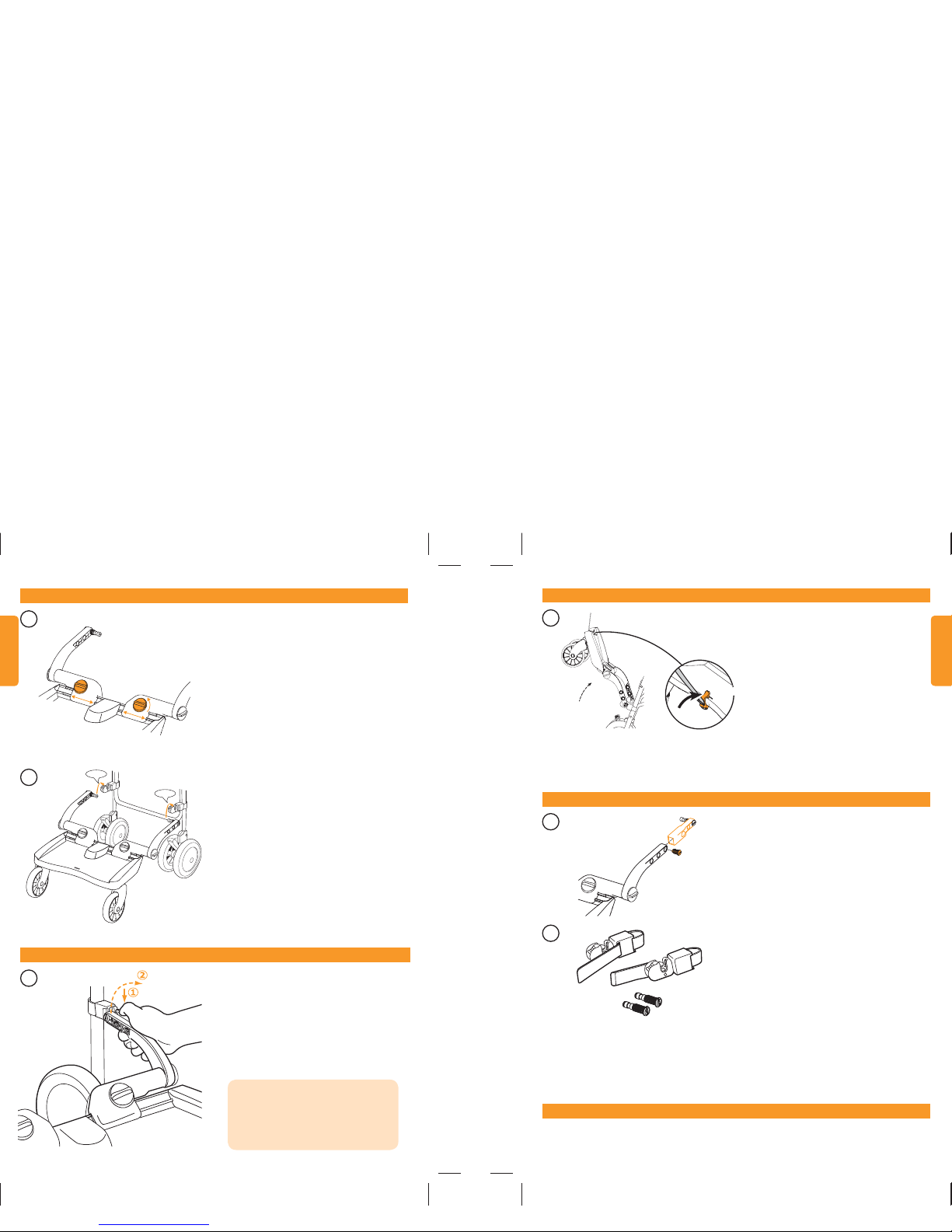

THE CONNECTORS
Friction Tape
CONTENT
Part no. Description Preassembled part Qty.
81610 - 81612 Platform 1
81150 Strap with hook 1
81310/81311 Height adjustment screw (red/blue) x 2
81320 Arm support, left x 1
81321 Arm support, right x 1
81330 Fixing plate x 2
81340 Fixing screw x
x
x
x
2
81613 Wheel 2
2
81520 Cotter pin
81604 Friction Tape (25 x 50 mm)
2
2
81800 Owner manual
81614 Suspension arm left
81615 Suspension arm right
81616 Suspension spring
80370 Extender
80371 Extender Screw
1
1
1
2
2
2
x
x
81617 Suspension rivet
81618 Wheel locking cage
2
2
x
81300 Arm, left
1
x
81301 Arm, right
1
81520
81340
81150
81610 - 81612
81330
81613
81800
81320
81300
81615
81618
81616
81321
80371
81310/81311
81614
81617
81600 Connector assembly for Maxi
81601 Connector cover
81602 Connector strap
81603 Connector bolt
81602
81601
81603
81600
81604
80370
81301
