Larson Electronics WAL-QP-4XWP60E-100-1227 User Manual

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

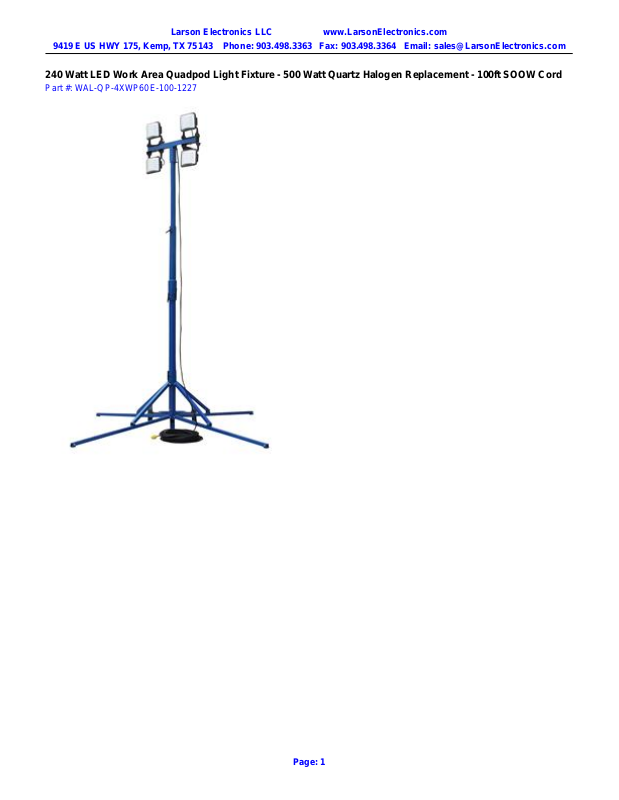

240 Watt LED Work Area Quadpod Light Fixture - 500 Watt Quartz Halogen Replacement - 100ft SOOW Cord

Part #: WAL-QP-4XWP60E-100-1227

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Made in the USA

The WAL-QP-4XWP60E-100-1227 Quadpod Mounted LED Work Area Light from Larson Electronics produces 21,600 lumens of bright
flood light and is an economical direct replacement for 500 Watt quartz halogen flood lamps. This adjustable LED light tower is
designed for portability and durable operation and ideal for use in demanding conditions.

*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS, LIGHT TOWERS, OR QUADPODS*

The WAL-QP-4XWP60E-100-1227 is a quadpod mounted work area LED light providing 21,600 lumens of light output to work areas requiring
portable lighting. This 240 Watt LED light tower has four adjustable LED light heads mounted on top of a four leg steel quadpod equipped with
wheels for easy positioning of the unit from one area of the workspace to another. The LED light heads on this unit produce a wide flood pattern
of light that is ideal for illuminating large workspaces and job sites. This light is designed for heavy duty use in demanding conditions including
emergency services, mining, construction, marine, and industrial operations where durability and reliability is critical.
This portable LED light is comprised of four adjustable LED light heads mounted atop a four leg quadpod fabricated from heavy duty steel. This
adjustable and collapsible quadpod pod can be extended to twelve feet and collapsed to seven feet, and includes solid wheels to allow the
operator to tilt the unit back and simply roll the entire assembly to a new location when fully deployed. The LED light fixtures can be rotated 360°
by loosening the trunnion mount, rotating the light to the desired position, and righting the bold. A 180° tilt is available to each lamp by adjusting
the set screws located on either side of the lamp and then retightening them to lock the angle in place. The entire assembly can be removed by
releasing the hand knob and sliding the light and mounting bracket off of the center support while the legs can be collapsed, aiding in
deployment, storage and transport. The lamp can be easily adjusted vertically and locked into position.

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

The LED light heads on this tower provide 21,600 lumens of light and are an energy efficient alternative to 500 Watt quartz halogen lamps.
Each flood light consists of 45 LEDs paired with purity specular optics to produce a wide light distribution. Each lamp is constructed of three
angled boards; the center board shines forward and the side boards have a 45° offset, shining to the side. The housing is waterproof powder
coated aluminum and contains integral cooling fins for heat dissipation and LED longevity. The LEDs are protected by a polycarbonate lens
sealed to the housing with a waterproof seal.
Included with this LED light quadpod is 100' of SOOW cord which combined with the adjustability offered by the LED light heads provides ample
length for tower placement and optimal coverage of the workspace. The easy to collapse design of this LED work light allows Larson Electronics
to avoid pallet freight charges when shipping and deliver these units via UPS next day air service, which in turn improves delivery time and
reduces the cost to buyers.
The WAL-QP-4XWP60E-100-1227 Work Area Quadpod with 4 LED flood lamps is a flood light fixture that can withstand demanding conditions
and is water and vapor proof, making it applicable for work environments like as emergency services, mining, construction, marine, and other
industrial operations where durable and portable illumination is required but not naturally available.

Made in USA Quality Superior LED Benefits

1.Heavy duty steel tube tower construction.

2. Led lamp head requires no lamping and simply slides on
the quadpod and is locked into place with a hand tightened set screw.

3. Quadpod constructed of heavy duty 1/8" thick steel.

4. No ballast box. No ballast to replace.

5. Extreme long life LEDs reduce maintenance and replacement costs.

6. Solid rubber tires. No flats or tube replacements.

7. LED Light Output Comparable to (4) 500 Watt Quartz Halogen
Lamps.

8. 21,600 Lumens produced from only 240 watts.

9. Mercury free shock proof LED lamp light head.

Page: 3

1. 50,000+ hour lifespan.

2. Can SAVE 50% or more on energy.

3. 100% recyclable.

4. No toxins-lead, mercury.

5. No UV light, infrared radiation or CO2 emissions.

6. Bright, even light maintains consistent color over time.

7. Instant on/off – No flickering, delays or buzzing.

8. Very good color rendering.

9. Vibration/impact resistant.

10. Significantly cooler operation.

11. Less frequent outages, higher output improves workplace safety.

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Specifications / Additional Information

WAL-QP-4XWP60E-100-1227 Work Area LED Quadpod Quick Summary
Lamp Type: LED (4) 60 Watt, 5400 lumen lamps
Dimensions: 11.69 "-L 7.54"-H 4.94"-D- Light Head Adjustable Steel Tower 7 - 12 Feet
Weight: 60 lbs. 100 SOOW Foot Cord
Total Watts: 240 watts Water proof LED housing
Voltage: 120/277 VAC 50/60Hz Replacement for 500 Watt quartz halogen lamps
Lighting Configuration:Flood Aluminum housing; polycarbonate lens
LED Lamp Life Expectancy: 50,000 Hours ETL approved for wet locations
Mounting: Adjustable bracket IP68 Waterproof
Wiring: 100 feet SOOW Cord, 5-15 wall, L5-15 twist lock, schuko, L6-

15 twist lock

Total Lumens: 21,600 Special Orders- Requirements
Color Rendering Index: 80 Contact us for special requirements
Light Temperature: Cool white - 6000K Toll Free: 1-800-369-6671

Intl: 1-903-498-3363
E-mail: [e-mail]

Scroll Down to Purchase- UPS Next Day Air Available

Part #: WAL-QP-4XWP60E-100-1227 (104879)
