Portable Light Tower - 4 X 1000 Watt Metal Halide Lights - 440,000 Lumens - Extends to 14 feet

Part #: WAL-C-4XM

Made in the USA

The WAL-C-4XM Quadpod Mini Light Tower from Larson Electronics produces 400,000 lumens of light. This adjustable light tower is
designed for rugged yet portable use and is ideal for use in demanding industrial and outdoor construction conditions.

*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*

The WAL-C-4XM is a quadpod mounted mini light tower and provides 400,000 lumens of light output. This portable light tower has a removable
four light head assembly mounted on top of a four leg steel quadpod equipped with 10 inch wheels for easy positioning of the unit from one area
of the workspace to another. The light assembly on this unit produces a wide flood pattern of light that is ideal for illuminating large workspaces
and jobsites. This light is designed for heavy duty use in demanding conditions including emergency services, mining, construction, marine, and
industrial operations where durability and portability is important.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

This portable light tower is comprised of a removable light assembly fitted with four metal halide lamps mounted atop a four leg tripod fabricated
from heavy duty steel. This adjustable and collapsible quadpod pod can be extended to fourteen feet and collapsed to seven feet and is locked
into position with t-handle locking pins. The unit is extended and lowered using an included hand crank cable winch equipped with a brake for
fast and safe deployment. Included solid wheels allow the operator to tilt the unit back and simply roll the entire assembly to a new location when
fully deployed. The light fixture assembly can be removed by releasing the hand knob and sliding the light and mounting bracket off of the center
support while the legs can be collapsed, aiding in deployment, storage and transport. The lamps can be easily adjusted up, down or from side to
side independently of each other and locked into position for maximum coverage of the work area.

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

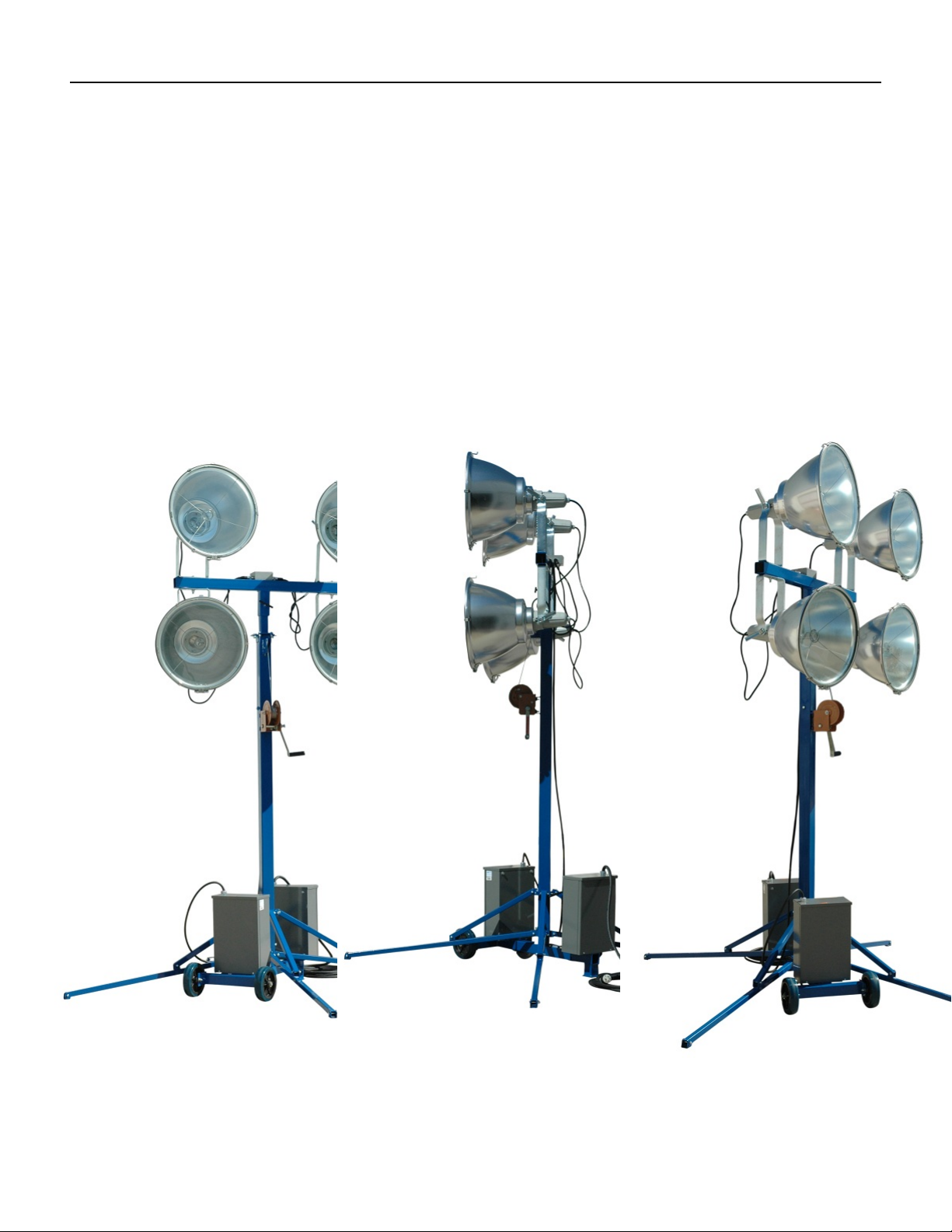

Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Included with this quadpod tower is 25 feet of SOOW cord which combined with the full adjustability of the light heads helps provide optimal
coverage of the workspace. The easy to collapse design of this mini light tower allows users to easily break down and transport the unit yet is
durable enough for any industrial or commercial application.

Page: 4

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

The light head assembly on this tower contains four 1000 watt metal halide lamps producing 110,000 lumens each. These lamps are
independently adjustable, allowing operators to adjust each light for maximum coverage of the workspace. An included control box containing the
ballast is included and features a built in On/off switch, line circuit protection and power indicator. This tower operates on 220, 240, or 277V AC.
Please see options below.

Page: 5

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

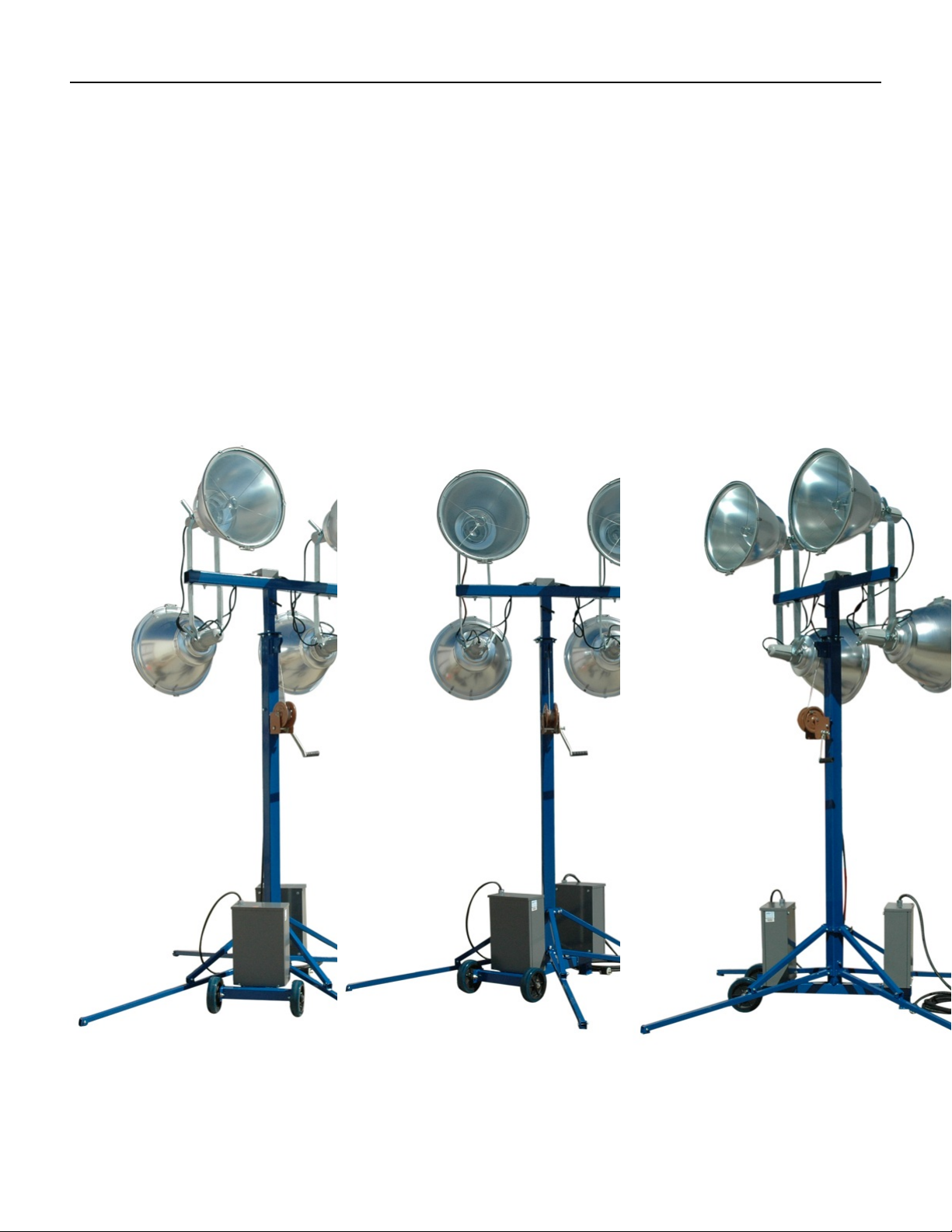

Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge

Page: 6

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

This is a heavy duty unit designed for use in demanding conditions and for overall longevity in difficult construction environments with heavy duty
steel construction for maximum durability. We make this lighting solution in the United States. Larson Electronics tower lights are designed for
industrial, commercial, emergency response, and military applications where the operators are working in harsh, destructive environments and

Page: 7

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

the operators income or mission success are dependent on dependable, durable lighting.

Specifications / Additional Information

WAL-C-4XM QuadPod Light Tower Quick Summary
Lamp Type: (4) Metal Halide 4000 Watt, 440,000 Lumen Light Assembly
Lighting Configuration: Flood Pattern Adjustable Tower 7 - 14 Feet
Total Watts: 4000 watts 25 Foot Cord
Total Lumens: 440,000 Wheeled Portable Light Tower
Voltage: 220/240/277 VAC 50/60Hz
Amps: 16.67 @ 240V AC Special Orders- Requirements
Wiring: 25 feet SOOW Cord - L6-30 Plug Contact us for special requirements
Dimensions: Adjustable Tower 7 to 14 Feet Height Toll Free: 1-800-369-6671
Mounting: Steel Square Tube Quadpod, 7-14' Adjustable Height Intl: 1-903-498-3363
Weight: Tower only 33 lbs, Total 175 Lbs E-mail: [e-mail]

Scroll Down to Purchase-

Part #: WAL-C-4XM (72953)
