Larson Electronics MGS-DC-30KVA-480-220-110 User Manual

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Power Substation - 30 KVA - 480V AC to 10 X 120V AC & 2 X 240V AC Outlets with GFCI – 480V Feed Thru

Part #: MGS-DC-30KVA-480-220-110

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Made in the USA

The Larson Electronics MGS-DC-30KVA-480-220-110 heavy duty power transformer substation converts 480 VAC single phase or three
phase electrical current to single phase 120V AC and 240V AC. This unit provides operators the ability to safely tap into and distribute
480VAC power from a variety of sources including generators and direct grid power.

*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION SYSTEMS*

The MGS-DC-30KVA-480-220-110 portable power transformer provides a safe and reliable way for operators in industrial settings to tap into and
utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds,
maintenance and cleaning in hazardous areas, equipment installations and repairs and any activities requiring an alternative to native power
sources. This portable transformer system is designed to operate with 480 VAC which it then steps down to 120 and 240 VAC. This transformer
makes 120VAC available via 10 GFCI protected receptacles and 240VAC available via two 240VAC outlets. This portable power distribution
system also provides a 480 Volt feed through for a welding substation.

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

The MGS-DC-30KVA-480-220-110 converts 480 VAC single phase to single phase 120V AC and 240V AC and provides 30 KVA. Protection is
provided through the use of 12 GFCI protected outlets and integral breaker boxes on both input and line outs. 20' of #4 SOOW cable connects to
a fused ON/OFF disconnect switch which controls power to the 30 KVA, 480 Volt Transformer. The transformer and distribution assembly is

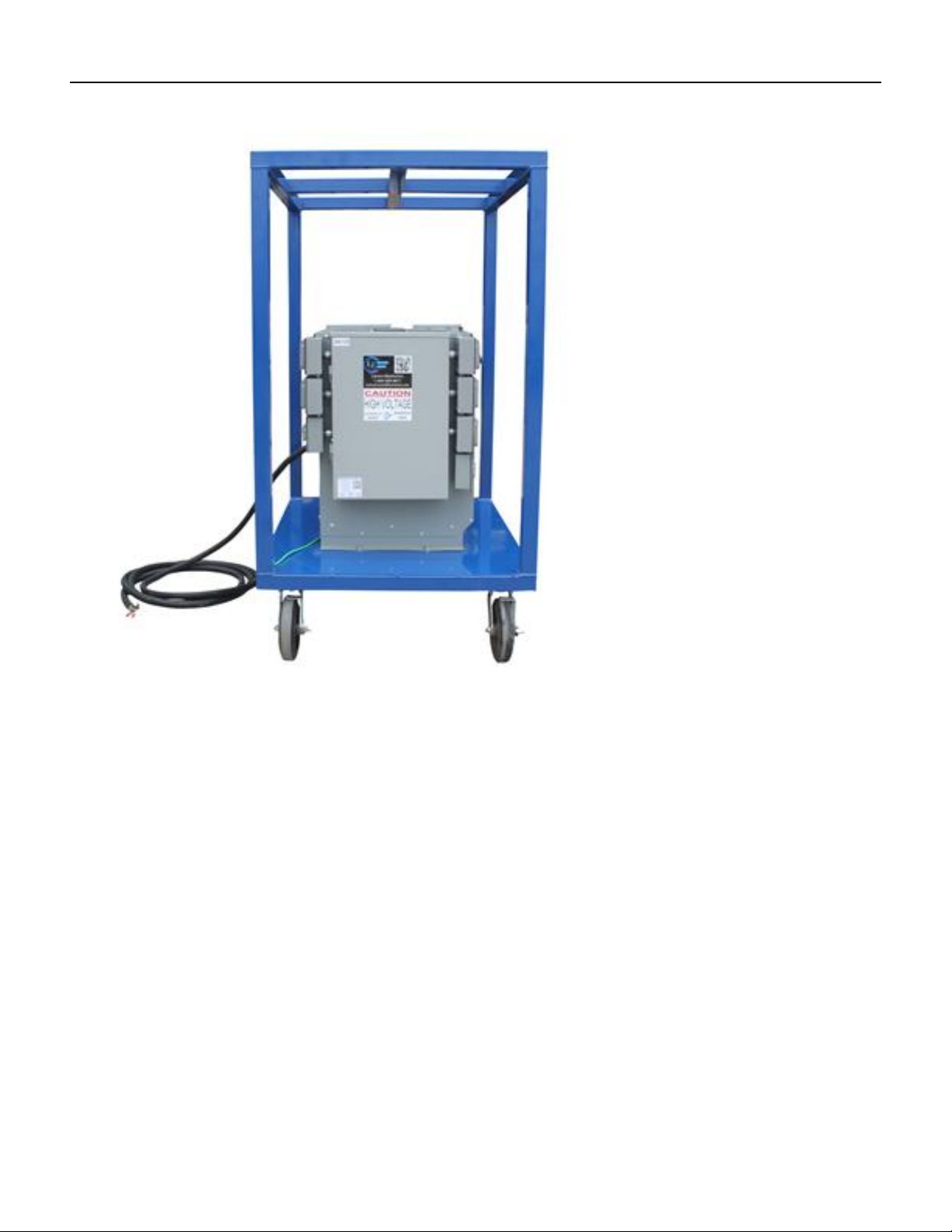

mounted onto a rugged carbon steel frame with integrated skid pockets and a top located lifting eyelet to allow easy transport.
Unlike many portable power distribution boxes made of plastic and utilizing thin gauge, low grade metals in their construction, this unit is
designed for serious use and is ruggedly constructed to withstand demanding conditions and heavy duty industrial applications. The transformer
is mounted on a 3/16" thick carbon steel mounting platform and the load center/distribution assembly is mounted to a 2" by 2" by 1/8" thick
square carbon steel tubing frame, resulting in an extremely stable, durable and well protected power distribution platform. The entire frame is
powder coated with glossy blue finish for corrosion resistances and aesthetics. This model is equipped with forklift skid pockets and a top located

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

lifting eyelet allows easy lifting with cable or chain hooks. This can be replaced with stainless steel, hot dip galvanized steel, or aluminum
depending on the customer’s needs for an additional cost. 3" x 1/4" thick square tubing and powder coated for corrosion resistance. This can be
replaced with stainless steel, hot dip galvanized steel, or aluminum depending on the customer’s needs for an additional cost.
This unit is weatherproof and ideal for use in applications including but not limited to; plant maintenance, welding stations, trade shows, exhibits
and marine applications. These units are popularly used in locations where external power sources are often necessary and work well in
combination with generators or grid power.
Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power
distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please
contact us at 1-800-369-6671 or [e-mail]

Specifications / Additional Information

MGS-45KVA-8X120-2X240-WC Power Transformer
Line In: 480V via 20' #4 SOOW cable Max Primary OCP: 36 amps @ 480V
Disconnect: 60A fused 480V N3R disconnect Max Secondary OCP: 100 amps @ 240V
Feed through 480V: 30amp Breaker Enclosure w/ ADR3034

Receptacle

Transformer: 30KVA 480V-120/240 N3R
Secondary Panel: 100-amp NEMA 3R 120/240 1P
120V Outlets: (10) 20-amp 5-20 GFCI w/ covers
240V Outlets: (2) L6-30 w/ watertight covers Special Orders- Requirements
Protection: GFCI Outlets, Circuit Breakers Contact us for special requirements
Mounting: Carbon steel tubular frame, powder coated, w/ locking 8"

casters, skid pockets, & top picking eyelet

Dimensions: 36"W X 30"D X 56"H Intl: 1-903-498-3363
Weight: ~350lbs E-mail: [e-mail]

*All grounding shall comply with state and local codes and meet the
minimum requirements of the National Electronic Code section 250*

Scroll Down to Purchase

Toll Free: 1-800-369-6671

Part #: MGS-DC-30KVA-480-220-110 (48510)
