Thirty Foot Telescoping Light Mast - 14-30' Fold Over Three Stage Light Tower - 360° Rotating Boom

Part #: LM-30-3S

Made in the USA

The Larson Electronics LM-30-3S fold over 3-stage light mast winches provides a safe and effective way for operators to quickly
deploy lights, security cameras and other equipment to elevations of up to thirty feet. This light tower folds over for easy
transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment
when not in use.

*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*

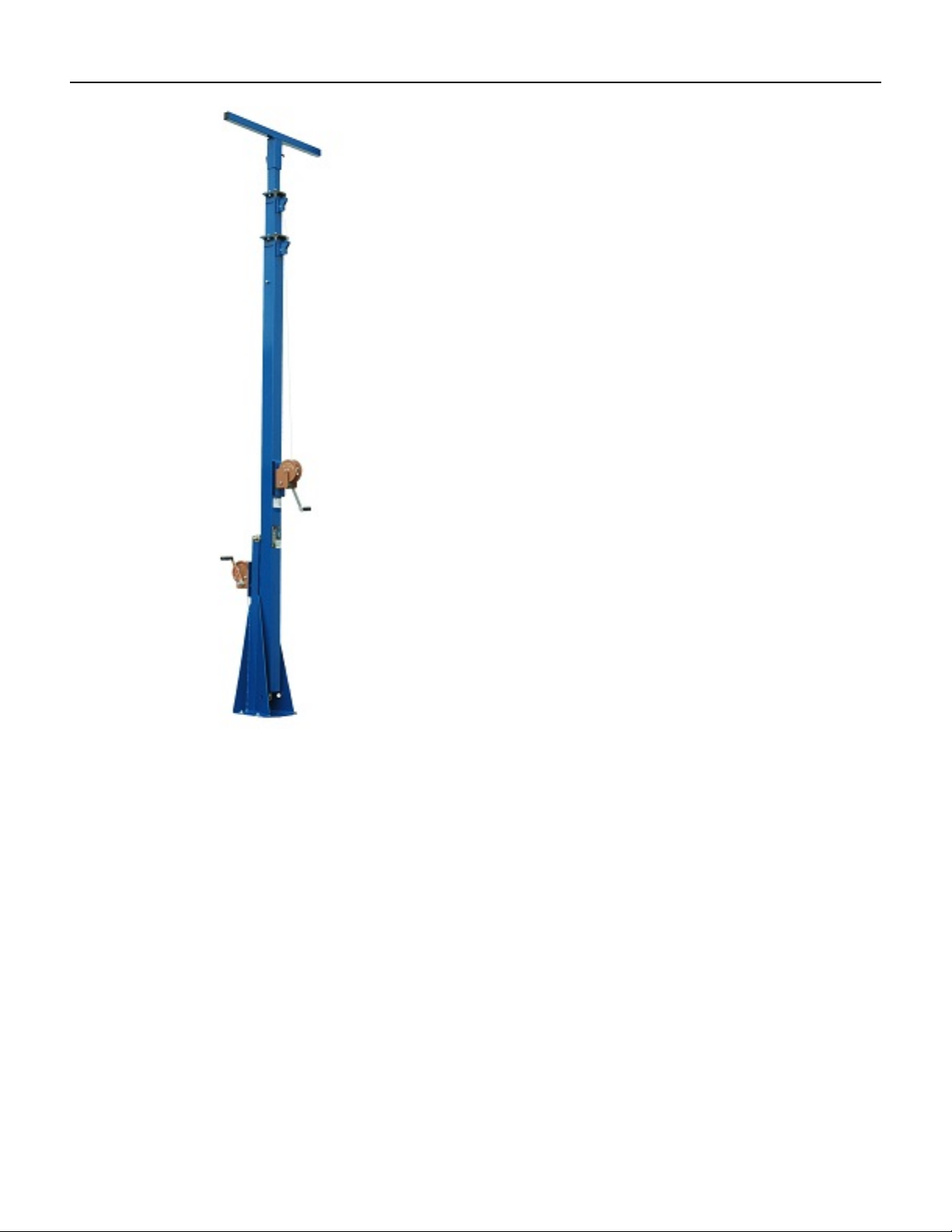

This telescoping three stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting,
cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 30' for effective coverage. This light
boom can be extended to 30' for maximum area coverage and collapsed to 14' for applications where a smaller footprint is required. The tower is
constructed of square steel tubing with a lower section 12' in length and 4" by 4" by 1/8" thick, middle section 11' in length and 3" by 3" by 1/8"
thick, and an upper section 10' and 2" by 2" by 1/8" thick. Each section has a 1' overlap. The mast is elevated using an included 1,000 lbs hand
winch with 3/16" cable and extended to its full height using a second 1,000 lbs hand winch.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge

Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge

Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically
mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor
bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable
platform for light fixtures and equipment.
The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When
lowered to 14', the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By
loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions,
and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand.
This light tower weighs approximately 315 lbs and can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common
freight carrier and when shipped measures approximately 16.5' long, 4' wide, 5' tall and weighs approximately 1400 lbs. Larson Electronics can
custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the
manual 1,000 lbs hand winches included standard or optional electric winches.
Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or
1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the LED10WSA-160, LEDLB-200X2E,
LEDLB-160X2E or LEDLB-80x2E.

Specifications / Additional Information

LM-30-3S - 30' Three Stage Telescoping Light Tower Quick Summary
Length: Telescoping from 14' to 30' 14' to 30' Foot Light Mast
Weight: +-315 lbs Steel Construction
Capacity: 150 lbs Power Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (2) 1,000lbs Manual Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Aircraft Cable
Mounting: 1/4" thick, 13"x15" Base Plate Special Orders- Requirements
Anchor Bolts: (6) 9/16" Bolts Contact us for special requirements
Shipping: Common Freight Phone: [phone]
Shipping Dimensions: 16.5'-L x 4'-W x 5'-H Toll Free: 1-800-369-6671
Shipping Weight: +-1400 lbs Fax: [phone]
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail: [e-mail]

3 year warranty replacement on this light mast. The customer ships the
failed light mast to Larson Electronics at their expense. If the failure is a
manufacturer defect, we will repair and/or replace the unit.

Scroll Down to Purchase-

Part #: LM-30-3S (50792)
